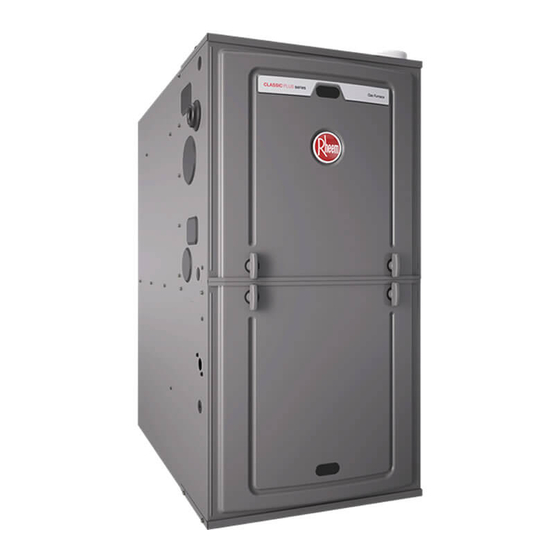

Rheem 96v series Installation Instructions Manual

4 position condensing two-stage, communicating gas furnaces w/ecm blower
Hide thumbs Also See for 96v series:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

INSTALLATION INSTRUCTIONS

FOR 4 POSITION CONDENSING TWO-STAGE,
COMMUNICATING GAS FURNACES W/ECM BLOWER
(-)96V SERIES
& (-)(-)96MDV SERIES
ISO 9001:2008
 Factory Use Only
U.L. and/or C.S.A. recognized fuel gas and CO (carbon monoxide) detectors are rec-
ommended in all applications, and their installation should be in accordance with the
manufacturer's recommendations and/or local laws, rules, regulations, or customs.
92-24161-124-03
SUPERSEDES 92-24161-124-02
