Summary of Contents for Chauvet Maverick MK2 Wash

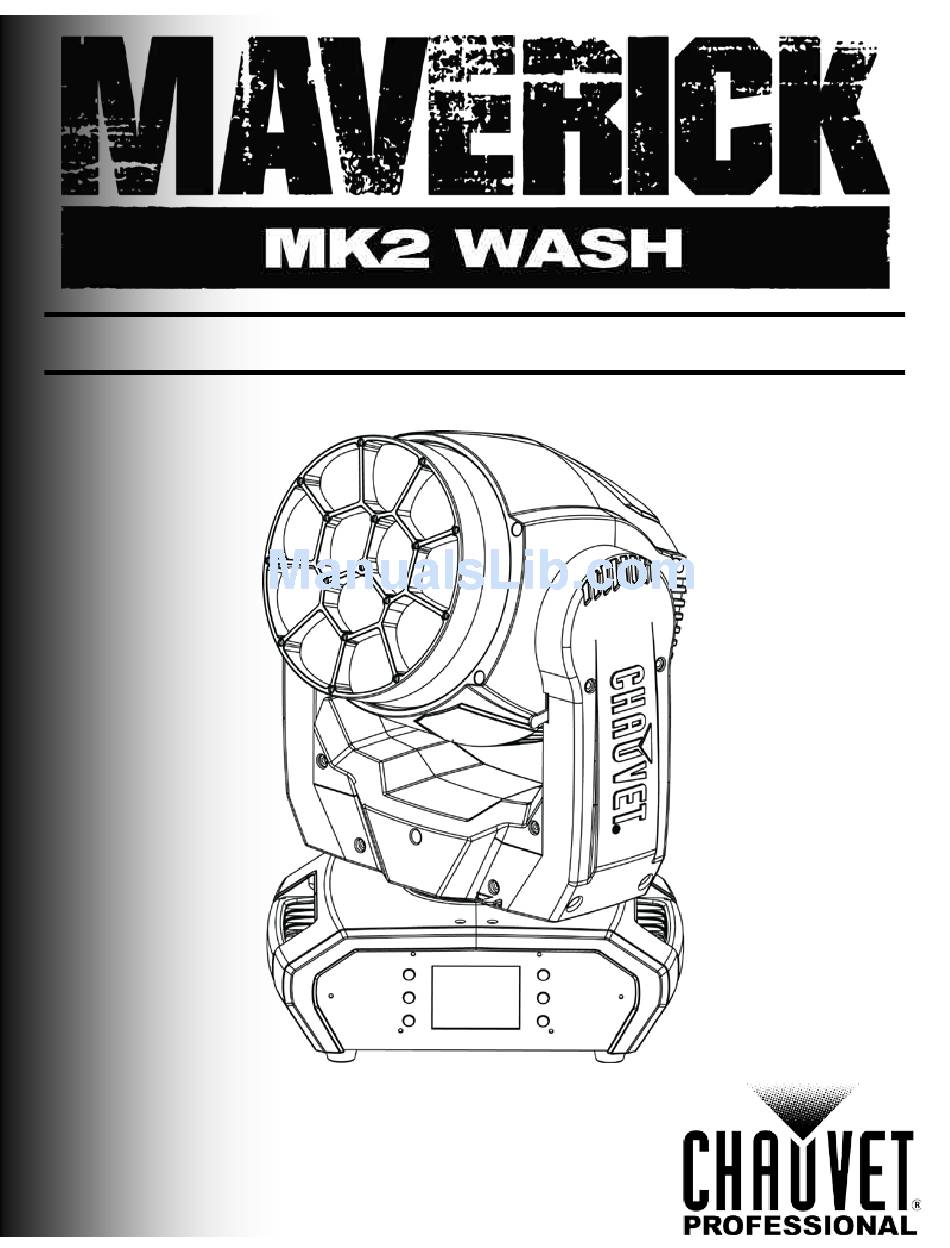

  • Page 1 User Manual...
  • Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. The Maverick MK2 Wash User Manual Rev. 1 is the first edition of this manual. Go to Document www.chauvetprofessional.com for the latest version.

  • Page 3: Table Of Contents

    Zones for Pixel control ..........................16 DMX Values ..............................16 Single Control Values ..............................16 Advanced Mode (122-channel) ..............................16 Standard Mode (68-channel) ................................ 20 Basic Mode (20-channel) ................................23 Dual Control Movement Values............................. 24 Maverick MK2 Wash User Manual Rev. 1...
  • Page 4 System Information ............................... 38 Offset Mode ..............................39 5. Firmware Update ......................... 40 6. Technical Information ......................... 43 Product Maintenance ..........................43 7. Technical Specifications ......................44 Returns ............................45 Contact Us ............................46 -ii- Maverick MK2 Wash User Manual Rev. 1...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

  • Page 7: Introduction

    Introduction 2. I NTRODUCTION The Maverick MK2 Wash is a fully featured moving head product equipped with 12 quad-color Description RGBW 40-watt LEDs. Maverick MK2 Wash is a powerful wash product that features smooth pan and tilt operation, a 7° to 49° zoom range, and a unique lens system that gives you an even, professionally combined color wash.

  • Page 8: Dimensions

    234 mm 10.16 in 258 mm 8.12 in 206 mm 11.13 in 283 mm 18.53 in 471 mm 16.49 in 419 mm 4.42 in 112 mm 12.2 in 8.84 in 310 mm 225 mm Maverick MK2 Wash User Manual Rev. 1...

  • Page 9: Setup

    Make sure to disconnect the product’s power cord before replacing a blown fuse. Always replace the blown fuse with another of the same type and rating. The Maverick MK2 Wash supports power linking. You can power link up to 2 products at Power Linking 120 V;...

  • Page 10: Mounting

    When mounting the product on the floor, make sure that the product and cables are away from people and vehicles. · Place the Maverick MK2 Wash so that it can move freely without hitting anything or anybody. · Leave enough slack on the cabled to prevent tension and pull on the plugs.

  • Page 11: Signal Connections

    The Maverick MK2 Wash can receive DMX, Art-Net™, sACN, or Kling-Net signal. The Maverick MK2 Wash has 2 Neutrik® etherCON® through ports, and 3- and 5-pin DMX in and out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf...

  • Page 12: Operation

    Operation 4. O PERATION The Maverick MK2 Wash has a touchscreen display as well as 6 control buttons. Navigate the Touchscreen menu structure by pressing the buttons, touching the images of the buttons on the sides of the Control Panel display, or touching the desired menu option on the display directly.
  • Page 13 Sets the sACN universe Basic Sets the Kling-Net personality, from KlingNet Personality Basic (36CH) or Standard (48CH) Standard In Dual Control mode, the Movement Protocol and the pixel protocol cannot be the same. Maverick MK2 Wash User Manual Rev. 1...
  • Page 14 Black out while panning/tilting Keep current settings Calibration Calibrate touchscreen Display responds to touch Touchscreen Lock Display does not respond to touch Locks the buttons and touchscreen. Lock Screen Passcode to unlock: 0920 -10- Maverick MK2 Wash User Manual Rev. 1...
  • Page 15 Color Balance 100–255 Blue Sets blue LED maximum value White Sets white LED maximum value Reset individual functions or all Reset Function Tilt functions from start-up Factory Settings Reset to factory default settings Maverick MK2 Wash User Manual Rev. 1 -11-...
  • Page 16 Dimmer Fine Shutter Zoom Functions Red (main, 1–12) Red Fine (main, 1–12) Green (main, 1–12) Green Fine (main, 1–12) Blue (main, 1–12) Blue Fine (main, 1–12) White (main, 1–12) White Fine (main, 1–12) -12- Maverick MK2 Wash User Manual Rev. 1...

  • Page 17: Protocol Configuration

    Operation Protocol Configuration The Maverick MK2 Wash can be set to respond to DMX, WDMX, Art-Net™, sACN, Kling-Net, or a combination of those protocols. The protocol configuration must be set for the product to respond correctly to the controller(s). See the Menu Map for more information.

  • Page 18: Dual Control

    Operation Dual Control In Dual Control mode, the Maverick MK2 Wash is controlled by two protocol inputs. One controls the movement of the yoke and zoom, as well as the dimmers and shutter, while the other controls the individual LED output.

  • Page 19: Dual Control Pixel

    Use <LEFT> or <RIGHT> to select the digit to be altered. Use <UP> or <DOWN> to increase or decrease the number value of that digit. Repeat until the universe is set as desired. Press <ENTER>. Maverick MK2 Wash User Manual Rev. 1 -15-...

  • Page 20: Zones For Pixel Control

    LED Macro Fade 000ó255 Fast to slow No function Background Color Macro 001ó255 Background color macros Background Dimmer 000ó255 0–100% Background Fine 000ó255 0–100% Dimmer Main Dimmer 000ó255 0–100% Main Fine Dimmer 000ó255 0–100% -16- Maverick MK2 Wash User Manual Rev. 1...
  • Page 21 110ó114 Pan/tilt speed fast 115ó119 Pan/tilt speed slow 120ó124 Fan mode slow 125ó129 Fan mode full 130ó134 Fan mode auto 134ó139 Dimmer mode fast 140ó144 Dimmer mode slow 145ó255 No function (reserved for future use) Maverick MK2 Wash User Manual Rev. 1 -17-...
  • Page 22 Blue Fine 5 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 5 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White Fine 5 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 -18- Maverick MK2 Wash User Manual Rev. 1...
  • Page 23 Blue Fine 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White Fine 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Maverick MK2 Wash User Manual Rev. 1 -19-...

  • Page 24: Standard Mode (68-Channel)

    LED Macro/Auto Hold Program Speed 129ó255 Slow to fast LED Macro Fade 000ó255 Fast to slow No function Background Color Macro 001ó255 Background color macros Background Dimmer 000ó255 0–100% Main Dimmer 000ó255 0–100% -20- Maverick MK2 Wash User Manual Rev. 1...
  • Page 25 110ó114 Pan/tilt speed fast 115ó119 Pan/tilt speed slow 120ó124 Fan mode slow 125ó129 Fan mode full 130ó134 Fan mode auto 134ó139 Dimmer mode fast 140ó144 Dimmer mode slow 145ó255 No function (reserved for future use) Maverick MK2 Wash User Manual Rev. 1 -21-...
  • Page 26 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Green 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Blue 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 11 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 -22- Maverick MK2 Wash User Manual Rev. 1...

  • Page 27: Basic Mode (20-Channel)

    190ó204 Strobe 8 (Random pulse), fast to slow 205ó209 On 210ó224 Strobe 9 (Fade in, fade out), fast to slow 225ó229 On 230ó244 Strobe 10 (Random pulse), fast to slow 245ó255 On Zoom 000ó255 Wide to narrow Maverick MK2 Wash User Manual Rev. 1 -23-...

  • Page 28: Dual Control Movement Values

    LED Macro Fade 000ó255 Fast to slow No function Background Color Macro 001ó255 Background color macros Background Dimmer 000ó255 0–100% Background Fine 000ó255 0–100% Dimmer Main Dimmer 000ó255 0–100% Main Fine Dimmer 000ó255 0–100% -24- Maverick MK2 Wash User Manual Rev. 1...
  • Page 29 Main Blue Fine 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Main White 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Main White Fine 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Maverick MK2 Wash User Manual Rev. 1 -25-...

  • Page 30: Standard Movement Mode (20-Channel)

    190ó204 Strobe 8 (Random pulse), fast to slow 205ó209 On 210ó224 Strobe 9 (Fade in, fade out), fast to slow 225ó229 On 230ó244 Strobe 10 (Random pulse), fast to slow 245ó255 On Zoom 000ó255 Wide to narrow -26- Maverick MK2 Wash User Manual Rev. 1...
  • Page 31 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Main Green 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Main Blue 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Main White 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Maverick MK2 Wash User Manual Rev. 1 -27-...

  • Page 32: Basic Movement Mode (8-Channel)

    110ó114 Pan/tilt speed fast 115ó119 Pan/tilt speed slow 120ó124 Fan mode slow 125ó129 Fan mode full 130ó134 Fan mode auto 134ó139 Dimmer mode fast 140ó144 Dimmer mode slow 145ó255 No function (reserved for future use) -28- Maverick MK2 Wash User Manual Rev. 1...

  • Page 33: Dual Control Pixel Values

    Blue Fine 6 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 6 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White Fine 6 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Maverick MK2 Wash User Manual Rev. 1 -29-...
  • Page 34 Blue Fine 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White Fine 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 -30- Maverick MK2 Wash User Manual Rev. 1...

  • Page 35: Standard Pixel Mode (48-Channel)

    000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Green 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Blue 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 White 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Maverick MK2 Wash User Manual Rev. 1 -31-...

  • Page 36: Basic Pixel Mode (36-Channel)

    000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Red 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Green 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 Blue 12 000ó255 RGBW mode: 0–100% / CMY mode: 100%–0 -32- Maverick MK2 Wash User Manual Rev. 1...

  • Page 37: Operating Settings Configuration

    If using the buttons instead of the touchscreen, press <ENTER>. Network Settings Ethernet To DMX The Maverick MK2 Wash can convert a single ethernet input signal to a single DMX output signal. To activate or deactivate the Ethernet to DMX function, do the following: Navigate to the Setup menu.

  • Page 38: Ip Mode

    Operation IP Mode The IP address of the Maverick MK2 Wash can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: Navigate to the Setup menu.

  • Page 39: Pan/Tilt Orientation

    Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (do not calibrate) or YES (calibrate), or touch the display where it says the desired option. Press <ENTER>. Follow the instructions, touching the points as they appear on the display. Maverick MK2 Wash User Manual Rev. 1 -35-...

  • Page 40: Touchscreen Lock

    Press <ENTER>. WDMX Reset To reset the WDMX connection from the Maverick MK2 Wash, do the following: Navigate to the Setup menu. Use <UP> or <DOWN> to select WDMX Reset, or touch the display where it says WDMX Reset.

  • Page 41: Backlight Timer

    Loss of Data In case of an input signal being lost in any way, the Maverick MK2 Wash will respond in one of two ways. the product will either hold the last signal received, or black out all LED output.

  • Page 42: Color Balance

    Press <ENTER>. System Information All information about the current status of the Maverick MK2 Wash is available through the product’s Sys Info menu. To view this information, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>.

  • Page 43: Offset Mode

    MAC Address To assign the fourth, fifth, or sixth digit of the MAC address, do the following: 1. Use <UP> or <DOWN> to select MAC4, MAC5, or MAC6. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the value, from 000–255. 4. Press <ENTER>. Maverick MK2 Wash User Manual Rev. 1 -39-...

  • Page 44: Firmware Update

    The following steps apply to the Windows® 7 operating system: Step 1 Connect the Maverick MK2 Wash to a computer with an ethernet cable. Verify the network with the Maverick MK2 Wash is connected to the computer. Step 2 Set the control protocol on the Maverick MK2 Wash to ArtNet in Single Control mode.
  • Page 45 Type 2.255.0.0 into the IP address bar. Press <Tab> on your keyboard. The Subnet mask bar should automatically populate as 255.0.0.0. If not, then enter it manually. Ignore the Default gateway bar. Maverick MK2 Wash User Manual Rev. 1 -41-...
  • Page 46 Sys Info (System Information) and checking that the version number matches the name of the file on the computer. Step 15 Disconnect the Maverick MK2 Wash from the computer. The firmware update is complete. The examples shown are for illustrative purposes. -42-...

  • Page 47: Technical Information

    Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans by blowing compressed air into them. Maverick MK2 Wash User Manual Rev. 1 -43-...

  • Page 48: Technical Specifications

    Determined per ArKaos Amphenol XLRnet MediaMaster software Thermal Max. External Temperature Cooling System 113 °F (45 °C) Fan-Assisted Convection Ordering Product Name Item Name Item Code UPC Number Maverick MK2 Wash MAVERICKMK2WASH 08011201 781462215491 -44- Maverick MK2 Wash User Manual Rev. 1...

  • Page 49: Returns

    · If you are located in Benelux, contact Chauvet Europe BVBA. If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux.

  • Page 50: Contact Us

    +52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Maverick MK2 Wash User Manual Rev. 1...
