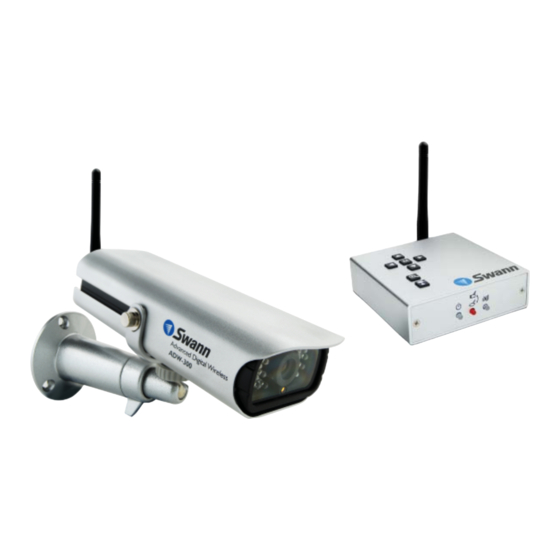

Swann ADW-300 Operating Instructions Manual
Advanced digital wireless camera & receiver
Hide thumbs
Also See for ADW-300:
- Installation manual (7 pages) ,
- Specification sheet (2 pages) ,
- Installation manual (4 pages)
Related Manuals for Swann ADW-300
Summary of Contents for Swann ADW-300
-
Page 1: Operating Instructions
Advanced security made easy Advanced Digital Wireless Camera & Receiver ADW-300 Operating Instructions SW233-ADW www.swannsecurity.com SR233-ADW-10006-290709... -
Page 2: Before You Begin
Before You Begin FCC Verifi cation: NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residen- tial installation. -
Page 3: Table Of Contents
Table of Contents Before You Begin Table of Contents Package Contents Tips & Suggestions Camera Layout Receiver Layout Menu Functions Connecting to a TV/VCR Software Installation 10-11 Opening the Software Software Layout & Functions Motion Sensor Record Storage Video Capture Photo Snapshot Event List Device Setup... -
Page 4: Package Contents
Place cameras in high traffi c areas such as doorways to maximise security. Use only the included Power Supply and do not modify or cut wires. Package Contents ADW-300 Camera with Stand Power Adapters Receiver Operating Instructions A/V Cable... -
Page 5: Camera Layout
Camera layout Front Power LED Pairing Lens Infra Red light Back Antenna connection Pairing button* *Remove rubber cover to reveal pairing button... -
Page 6: Receiver Layout
Receiver Layout 1. CAMERA SELECT 6. DOWN When in display mode press to change between each Press to move the view down when in zoom mode. Press to camera channel. Press to pair a camera with a channel once select next selection below in the menu. you have selected the channel to pair. -
Page 7: Menu Functions
Menu Functions After connecting the ADW-300 camera & receiver to your TV/VCR you will be able to set up your camera/s to your receiver. To access the menu press the M button on the receiver. Audio vol Use the LEFT & RIGHT arrow keys on the receiver to increase and decrease the volume. -
Page 8: Connecting To A Tv/Vcr
Connecting to a TV/VCR Connect the power adapter plug into the power socket attached to the camera. Plug the camera’s power adapter into the wall socket. 5A. Connect to VCR (Optional) From Receiver Connect the A/V cable to the Input on the back of the VCR Input Output... - Page 9 Connect the Connect the power adapter power plug into the receiver’s adapter into power socket. the wall socket. Connect the the A/V cable to your TV or VCR 5B. Connecting to TV From Receiver Connect the A/V Cable to a TV Input INPUT From VCR (Optional)
-
Page 10: Software Installation
Software Installation 1. Insert the software CD. If the CD does not automatically start click START> MY COMPUTER and click on the drive your software CD is in, to open it. Find the fi le named AUTORUN.EXE and double click it. Next >... - Page 11 < Back Next > Cancel < Back Install Cancel 6. Click NEXT or select your preferred 7. Click INSTALL. location for the program shortcuts. Cancel Next > < Back Install Cancel 9. Click INSTALL. 8. Click NEXT. Finish Finish 11. Tick the box if you would like to 10.
-
Page 12: Opening The Software
Using the Software Opening the Software Once you have installed the software and have plugged the receiver to your com- puter using the USB cable provided you will be able to view your camera on your computer. 1. Click START > PROGRAMS or ALL PROGRAMS on your computer. Find the folder where the shortcut for the program is stored. -
Page 13: Software Layout & Functions
Software Layout & Functions 11 12 13 1. CAMERA NAME *You must click the ZOOM button (14) to activate the features Shows you which camera is currently being viewed. below. (11, 12, 13 & 15) 2. TIME & DATE 11. LEFT Shows current date and time Click to move the view left when in ZOOM mode* 3. -
Page 14: Motion Sensor
Motion Sensor The motion sensor on the camera can be confi gured using the software. The motion sensitivity and the siren period which sounds when motion is detected can be changed. You can set the software to record an also sound the alarm or just sound the alarm. Note: to turn the alarm off click the MUTE button (see page 13 - No. -
Page 15: Storage
Record (continued) 3. Select the format you want; click on the VIDEO CLIP button for video and the PICTURE button for photos. You can also change resolutions. Note: 640x480 will provide better image/video quality but this means more storage space will be used on your computers hard drive. -
Page 16: Photo Snapshot
Photo Snapshot With the PHOTO SNAPSHOT function you can capture images of the selected channel while in live view. 1. To take a snapshot click on the CAPTURE button on the far left (it will be the only button active). After taking the picture the other buttons will become active. -
Page 17: Device Setup
Device Setup In the DEVICE SETUP screen you can pair your camera/s with a channel, name your cameras, choose to show the timestamp & camera name on the display and change language. Pairing Cameras with a channel 1. Click on CAM1, CAM2, CAM3 or CAM4 to se- lect channel 1, 2, 3 or 4. -
Page 18: Troubleshooting Guide
Troubleshooting Guide Problem: I’m getting a “NO SIGNAL” message on my screen where I want to see my images. Solutions: Make sure the camera is getting power from the supplied 5V power adaptor. Ensure that the camera is properly paired with the receiver by pressing the pair but- ton on the appropriate receiver, followed by the pair button on back of the camera. -
Page 19: Technical Specifi Cations
Technical Specifications Image Image Sensor 1/4” CMOS Sensor Video Quality 380 TV Lines No. of Effective Pixels 640 x 480 (VGA) / 320 x 240 (QVGA) Minimum Illumination 2 Lux Color, 0 Lux B&W Day/Night Mode Automatic Lens F3.6mm Viewing Angle H:53°,V:40°... -
Page 20: Helpdesk
Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
