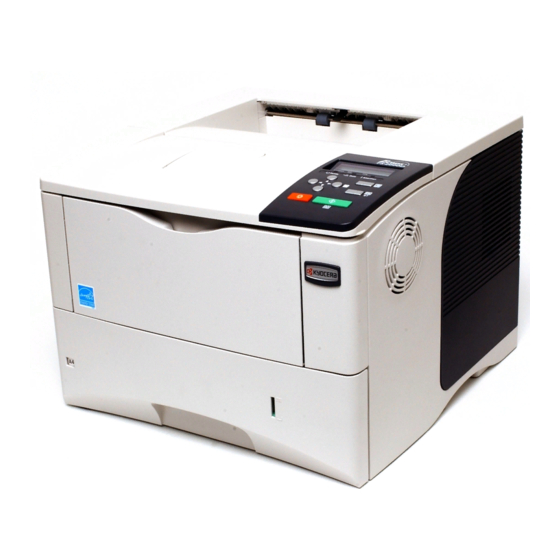

Kyocera FS-2000D Service Manual
Hide thumbs
Also See for FS-2000D:
- Advanced operation manual (146 pages) ,
- Service manual (144 pages) ,
- Installation manual (56 pages)
Related Manuals for Kyocera FS-2000D
Summary of Contents for Kyocera FS-2000D
- Page 1 FS-2000D FS-3900DN FS-4000DN SERVICE MANUAL Published in September 2006 2GA70763 Revision 3...
-
Page 2: Specifications
CONTENTS 1-1 Specifications 1-1-1 Specifications............................1-1-1 1-1-2 Parts names............................1-1-3 (1) Overall ...............................1-1-3 (2) Operation panel..........................1-1-4 1-1-3 Machine cross section ..........................1-1-5 1-2 Installation 1-2-1 Installation environment ..........................1-2-1 1-2-2 Unpacking and installation ........................1-2-2 (1) Installation procedure ........................1-2-2 1-2-3 Installing the expanding memory (optional) ..................1-2-12 1-2-4 Installing the memory card or hard disk (optional) ................1-2-13 1-2-5 Installing the network interface card (optional) ..................1-2-14 1-2-6 Installing the network interface card (optional for 30/31 ppm printer [EUR/USA model] only)....1-2-15... -
Page 3: Mechanical Construction
(3) Detaching and refitting the heat roller .....................1-5-17 (4) Detaching and refitting the press roller....................1-5-18 (5) Detaching and refitting the fuser thermistor M, fuser thermistor S, and thermal cutout ....1-5-19 1-5-8 PWBs ..............................1-5-22 (1) Detaching and refitting the engine PWB ..................1-5-22 (2) Detaching and refitting the main PWB ....................1-5-26 (3) Detaching and refitting the power source unit .................1-5-28 1-5-9 Others ..............................1-5-30... - Page 4 2F8/2F9/2GA-2 1-1-1 Specifications Printing method....... Semiconductor laser and electrophotography Printing speeds ....... Simplex: 30/31 ppm printer 35/37 ppm printer 45/47 ppm printer A5: 19 ppm A6: 21 ppm A6: 23 ppm A4: 30 ppm A5: 21 ppm A5: 23 ppm Letter: 31 ppm A4: 35 ppm A4: 45 ppm...
- Page 5 2F8/2F9/2GA-1 First print out (A4) ......30/31 ppm printer 35/37 ppm printer 45/47 ppm printer 19 seconds or less 25.5 seconds or less 24 seconds or less Resolution........Fine 1200, Fast 1200, 600 dpi, 300 dpi Monthly duty ........Average: 30/31 ppm printer 35/37 ppm printer 45/47 ppm printer...
- Page 6 2F8/2F9/2GA-1 1-1-2 Parts names (1) Overall 30/31 ppm printer 35/37 and 45/47 ppm printer (EUR/USA model) (EUR/USA model) Figure 1-1-1 Top cover 11. USB memory slot Paper stopper 12. USB interface connector Top tray 13. Network indicators Operation panel 14. Network interface connector Paper cassette 15.
- Page 7 FS-2000D FS-3900DN FS-4000DN SERVICE MANUAL Published in January 2006 842GA110 2GASM060 First Edition...
-
Page 8: Parts List
FS-2000D FS-3900DN FS-4000DN PARTS LIST Published in February 2006 2GAPL071 842GA121... - Page 9 NOTES 1. Indicate parts number and machine model when placing an order. e.g. Parts Number Parts Name Machine Model Cycle Quantity 302F904060 COVER LEFT FS-3900DN 60Hz / 50Hz 2. Service calls and freight will be charged separately. 3. Symbols in the "Parts Number" column. •...
- Page 10 Controller Box ............40 FIG. 7 Imaging Unit ............18 FIG.16 Parts Package ............42 FIG. 8 Developer Unit ............20 FIG. 9 Fuser Unit I (FS-2000D) ......... 22 • INDEX ..............43 FIG. 9 Fuser Unit I (FS-3900/4000DN) ......24 - 1 -...
- Page 11 FIG. 1 Covers (FS-2000D) 2F8/2F9/2GA - 2 -...
- Page 12 Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual Kyocera-Mita FS-2000D, FS-3900DN, FS-4000DN service manual...
