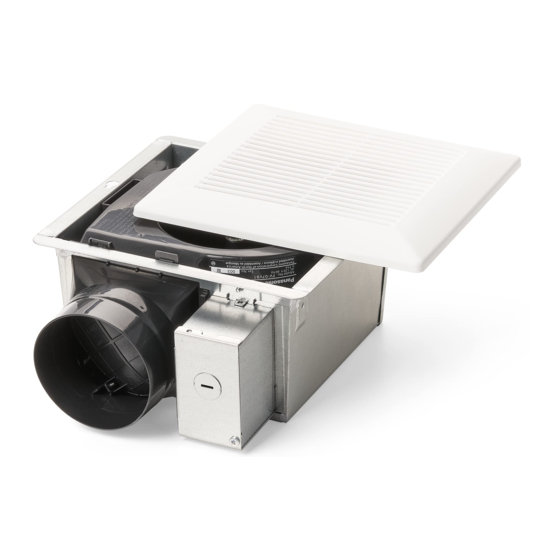

PEG1312057CE Version:1501 Service Manual Ventilating Fan (North America Market) Model No: FV-07VB1 Housing Can: Motor / Grille Assembly: FV-07VBA1 FV-07VBB1 Frame Assembly Replacement Method < If the frame assembly(lot no. 512) was damaged,please order the new frame assembly (FFV1600147S) to replace original frame assembly.Please refer to P8-P10 for replacement guide.
1. Parts Identification FV-07VB1 Air volume Noise Duct Power at 0.1"WG Speed Weight Voltage Frequency (sones) diameter consumption Speed (CFM) (rpm) (lb./k ) direction (Hz) (inches) 0.1"WG 0.1"WG 0.25"WG 0.1"WG 0.25"WG Exhaust (Standard) 4.4/2.0 1019 Exhaust (Boost) HVI Certified performance based on HVI Procedures 915,916 and 920.
Page 3
2. Parts Identification FV-07VB1 Main Body Section (2pcs) Old Status Lot no.<512 (3pcs) (4pcs) 08VSL3082 Not for use in cooking area-See installation instructions Non destiné à la zone de cuisson -Voir instructions d’installation. No usar en áreas donde cocine - Consulte las instrucciones de instalación.
Page 4
2. Parts Identification FV-07VB1 Packing Section(FV-07VBA1) (4pcs) New Status ≥ Lot no. 512 (4pcs) (4pcs) (2pcs) Old Status Lot no.<512 (2pcs) (2pcs)
3. Wiring diagram FV-07VB1 Fan body Junction box Capacitor Neutral White White White (114 Fuse in motor) Switch Power supply Motor Thermally - protected I-Standard Yellow Yellow AC120V 60Hz Black Live Black Black II-Boost Earth ground (114 Fuse in motor)
4. Parts List FV-07VB1 Main Body Section Part No. Part Name Q'ty Remark FFV5710026S Spacer Lot No<512 FFV1600147S Frame Assembly Lot No≥512 FFV0000149S Adapter Assembly FFV2800022S Electric Section FFV2800023S Junction Cover FFV3450010S Earth Lead Wire FFV2800024S Junction Box FFV0900064S Connector Plate...
Page 8
4. Parts List FV-07VB1 Packing Section(FV-07VBA1) Part No. Part Name Q'ty Remark 22 FFV4710384S Cover Pad 23 FFV4650021S Poly Cover For Adapter Assembly Packing 24 FFV4710385S Pad A 25 FFV2540181S Installation Instructions English,For USA/CA Market.Lot No<512 (25) FFV2540193S Installation Instructions English,For USA/CA Market.Lot No≥512...
