Avaya Solution & Interoperability Test Lab

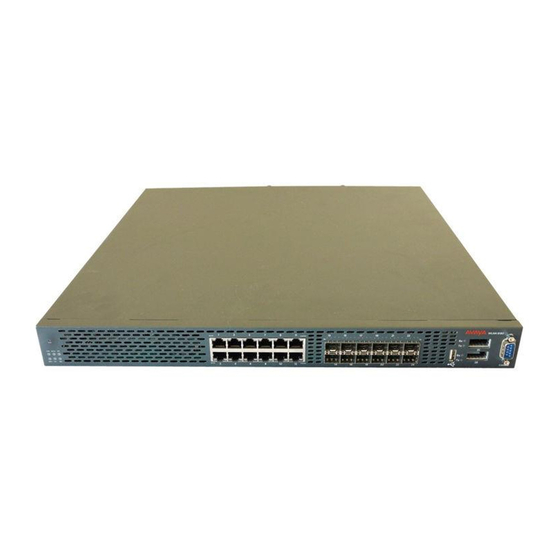

Configuring Avaya Wireless LAN Controller 8180 with
Avaya 8120 Access Points to support Avaya A175 Desktop
Video Devices using 802.1X Authentication – Issue 1.0
These Application Notes describe the steps to configure Avaya Wireless LAN Controller 8180
and Avaya 8120 Access Points to support Avaya A175 Desktop Video Devices in an 802.1X
enabled Avaya wireless network infrastructure. Avaya A175 Desktop Video Devices register
as SIP endpoints to Avaya Aura® Session Manager 6.2 via Avaya 8120 Access Points. 802.1X
authentication and WPA (WiFi Protected Access) are enabled on the wireless LAN to prevent
unauthorized access and provide encryption. The wireless configuration described in this
document also applies to other types of wireless endpoints such as Avaya Flare
Communicator or Avaya Flare
Application Notes.
These Application Notes provide information for the setup, configuration, and verification of
the call flows tested on this solution. Information in these Application Notes has been obtained
through interoperability testing conducted at the Avaya Solution and Interoperability Test Lab.
DJH; Reviewed:
SPOC 06/18/2012
Abstract
®
Experience on iPad devices which will be described in future
Solution & Interoperability Test Lab Application Notes
©2012 Avaya Inc. All Rights Reserved.
®
1 of 24
WLAN8180_ADVD

Advertisement

Table of Contents
loading

Related Manuals for Avaya 8180

Summary of Contents for Avaya 8180

  • Page 1 Abstract These Application Notes describe the steps to configure Avaya Wireless LAN Controller 8180 and Avaya 8120 Access Points to support Avaya A175 Desktop Video Devices in an 802.1X enabled Avaya wireless network infrastructure. Avaya A175 Desktop Video Devices register as SIP endpoints to Avaya Aura®...

  • Page 2: Interoperability Testing

    These Application Notes describe the steps to configure Avaya Wireless LAN Controller 8180 and Avaya 8120 Access Points to support Avaya A175 Desktop Video Devices in an 802.1X enabled Avaya wireless network infrastructure. Avaya A175 Desktop Video Devices register as SIP endpoints to Avaya Aura®...

  • Page 3: Reference Configuration

    To support wireless communication, several Avaya 8120 Access Points were deployed in the sample configuration and registered to an Avaya Wireless LAN Controller 8180. As shown in Figure 1, Avaya A175 Desktop Video Devices and other SIP endpoints utilize the Session Manager User Registration feature and are supported by Communication Manager. For the sample configuration, SIP users are not IP Multimedia Subsystem (IMS) users and Communication Manager is configured as an Evolution Server in the Avaya Aura architecture.
  • Page 4 Figure 1: Avaya 8100 Series Wireless Network Configuration DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 4 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...

  • Page 5: Equipment And Software Validated

    4. Equipment and Software Validated The following equipment and software were used for the configuration provided: Component Software Version Avaya Aura® Session Manager on Avaya S8800 Release 6.2 Server Build 6.2.0.1.01059009 Avaya Aura® System Manager on Avaya S8800 Release 6.2 Server Version: 6.2.0.10.13835-6.2.10.2...
  • Page 6 7. Configure Avaya Wireless LAN Controller 8180 This section describes the steps needed to configure Access Points profiles and associated network profiles on the Avaya Wireless LAN Controller 8180 to support wireless endpoints. These instructions assume the Avaya Wireless LAN Controller 8180 is already installed and configured as a controller capable of managing mobility domains.
  • Page 7 7.1. Verify Status of Avaya Wireless LAN Controller 8180 Step 1: Use the show wireless command to verify the Status of the Avaya Wireless LAN Controller 8180 is “Enabled” as shown below. WC8180#show wireless Status : Enabled Interface IP : 20.20.20.160...
  • Page 8 Since Avaya 8120 Access Points do not provide mechanism for manually configuring the IP address of the Avaya Wireless LAN Controller 8180, configure Option 043 on DHCP Server before connecting any Avaya 8120 Access Points to the network. Configuration of Option 043 is required for an Avaya 8120 Access Point to automatically obtain the IP address of Avaya Wireless LAN Controller 8180.
  • Page 9 Step 3: In the Data entry section, enter Hexadecimal values for “AVAYA AP” and length of the string for the first row associated with Sub-Option “0008”. In the second row, enter the Hexadecimal value of the IP address of Avaya Wireless LAN Controller 8180.
  • Page 10 7.3. Configure Avaya 8120 Access Points Step 1: Connect an Avaya 8120 Access Point to a Power over Ethernet data switch which has connectivity to the DHCP server configured in Section 7.2. Step 2: Navigate to configure terminal  wireless.
  • Page 11 WC8180(config-wireless)#show wireless domain mobility-vlan --------------------------------------------------- Mobility VLAN Name Status -------------------------------- ----------------- default-MVLAN Active Mobile-Clients Active mvlan_20 Active --------------------------------------------------- WC8180(config-wireless)# DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 11 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 12 Creating network-profile (id = 1) ... WC8180(config-network-profile)#profile-name sil WC8180(config-network-profile)#ssid avaya_sil WC8180(config-network-profile)#mobility-vlan mvlan_20 WC8180(config-network-profile)#security-mode WPA-Personal WC8180(config-network-profile)#wpa2 key xxxxxxxx WC8180(config-network-profile)#wpa2 cipher-suite ccmp-and-tkip WC8180(config-network-profile)#exit DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 12 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 13 : xxxxxxxx Session Key Refresh Period (seconds) : 0 Group Key Refresh Period (seconds) Wireless ARP Suppression : Disabled DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 13 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 14 Default? -------------------------------- ------------------- -------- -------- Default Associated AP8120 SIL-ap Configured AP8120 ----------------------------------------------------------------------------- Total number of AP profile: 2 WC8180(config-wireless)# DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 14 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 15 After completing the steps to define both the network and access point profiles, synchronize the changes between Avaya Wireless LAN Controller 8180 and all of the managed Access Points. Step 1: Use the wireless controller config-sync command to apply changes to all Access Points as shown below.
  • Page 16 ----------------- -------------------------------- --------- 1 / 1 CC:F9:54:9C:93:C0 avaya_sil 2 / 1 CC:F9:54:9C:93:D0 avaya_sil ------------------------------------------------------------------------ Total Number of AP(s): 2 DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 16 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 17 8.1. Configure Wireless Network Connection Step 1: Select the Wireless Icon on an Avaya A175 Desktop Video Device and click on Settings button on the Network Settings: section as shown below. Step 2: On the Wi-Fi settings page, select the SSID defined in Section 7.5 for the wireless network as shown below.
  • Page 18 Step 3: Enter the value of the wpa2 key field specified in Section 7.5 in the Wireless Password field and click Connect. Step 4: Verify the Avaya A175 Desktop Video Device successfully registered as a wireless endpoint by verifying “Connected” is displayed for the Status field as shown below. Click Cancel and Back (not shown) to return to main window.

  • Page 19: Configure Static Ip Address

    8.2. Configure Static IP Address For the sample configuration, static IP addresses were manually configured on Avaya A175 Desktop Video Devices. For more information on using a DHCP server to automatically assign IP addresses, see Reference [8] in Section 12.

  • Page 20: Verification Steps

    Authenticated B4:B0:17:7B:1A:6C 20.20.20.208 20.20.20.160 mvlan_20 Authenticated E0:B9:BA:DD:44:17 20.20.20.206 20.20.20.160 mvlan_20 Authenticated E0:B9:BA:DE:24:9B 20.20.20.204 20.20.20.160 mvlan_20 Authenticated ----------------------------------------------------------------------------- WC8180# DJH; Reviewed: Solution & Interoperability Test Lab Application Notes 20 of 24 SPOC 06/18/2012 ©2012 Avaya Inc. All Rights Reserved. WLAN8180_ADVD...
  • Page 21 Navigate to Elements  Session Manager System Status  User Registrations to verify the Avaya A175 Desktop Video Devices have successfully registered with Session Manager. For example, the screen below highlights five Avaya A175 Desktop Video Device wireless endpoints which have successfully registered with Session Manager.
  • Page 22 11. Conclusion These Application Notes described the configuration of an Avaya Wireless LAN Controller 8180 and Avaya 8120 Access Points to support Avaya A175 Desktop Video Devices in an 802.1X enabled Avaya wireless network infrastructure. 802.1X authentication and WPA (WiFi Protected Access) are enabled on the wireless network to prevent unauthorized access and provide encryption.

  • Page 23: Additional References

    Guide, Doc ID 210-100-500. Avaya A175 Desktop Video Device 8) Implementing and Administering the Avaya A175 Desktop Video Device with the Avaya Flare® Experience Release 1.1. March, 2012. 9) Using the Avaya A175 Desktop Video Device with the Avaya Flare® Experience.
  • Page 24 Application Notes. Please e-mail any questions or comments pertaining to these Application Notes along with the full title name and filename, located in the lower right corner, directly to the Avaya Solution & Interoperability Test Lab at interoplabnotes@list.avaya.com...
