Russound X5 Quick Start Manual

Russound X5 Quick Start Manual

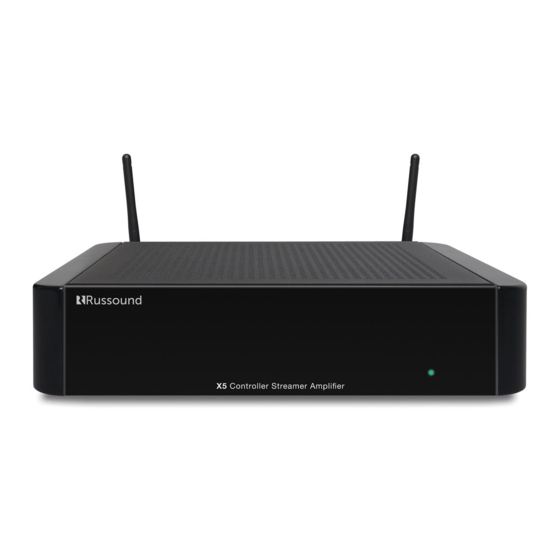

Controller streamer amplifier
Hide thumbs Also See for X5:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Installation Manual
AirPlay works with iPhone,
iPad, and iPod touch with iOS
4.3.3 or later, Mac with OS X
Mountain Lion, and Mac and
PC with iTunes 10.2.2 or later.
X5 installation manual is available at www.russound.com.

Advertisement

loading

Related Manuals for Russound X5

Summary of Contents for Russound X5

  • Page 1 AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later. X5 installation manual is available at www.russound.com.
  • Page 2 Plug in power cable. (All other cables, including Ethernet should be disconnected.) Locate and turn on power switch near AC inlet on the back of the X5. The XStream X5 will turn on to Access Point Mode. Wait for yellow and green lights to be solid.
  • Page 3 Open browser on mobile device or laptop. For iOS (Safari browser), browse to http://XStrmX5-XXXXXX. local. Again reference sticker on bottom of unit to fi nd host name. Alternatively, for other browsers, browse to http://192.168.253.2...

  • Page 4: Connecting To A Wired Network

    Connecting to a wired network: To connect to a wired network, de-select “Enable Wi-Fi” and press continue. Attach Ethernet cable. The X5 will reboot in wired mode. Connecting to a wireless network: To connect to a wireless network, pick the desired network from the list of available Wi-Fi networks. If the Wi-Fi network does...
  • Page 5 Enter security information and press connect. On confi rmation screen, press continue. The X5 will now connect to the new network, wait for green LED to turn on solid. If yellow LED begins to blink the X5 could not connect to the specifi ed network.

  • Page 6: Setting Airplay Name

    “Stream Settings” page. To view the Stream Settings page, select Administration then Stream Settings. The XStream X5 can be fully confi gured using Russound SCS (SCS-C5) confi guration software. SCS software off ers zone customization, local source set up, IR management and power management options.
  • Page 7 2 seconds. Yellow and green LEDs will blink 6 times then go solid. If the Ethernet cable is connected, the Red LED will blink as a warning that the X5 will reboot in wired-ethernet mode. See page 5 “Connecting to a wireless network” Factory-Init Depress the button on the bottom panel for more than 10 seconds.
  • Page 8 Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Russound is under license. other trademarks and trade names are those of their respective owners.
