Package Contents
1. Display with tabletop stand
2. Power adapter
3. USB cable
4. Instruction Manual
This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be
operational.
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
Questions? Contact Customer Support at
(844) 228-5465 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

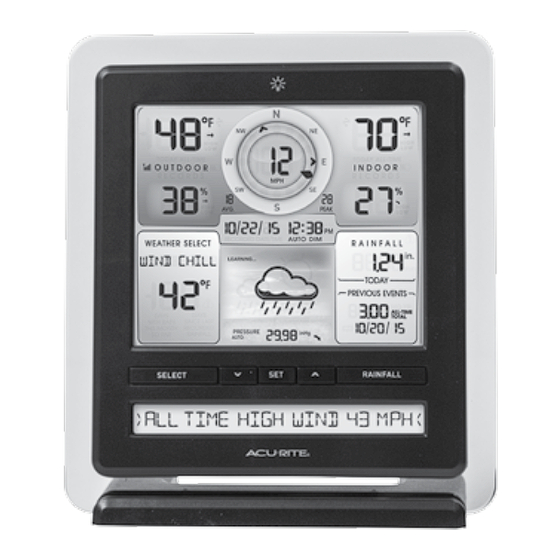

Display for 5-in-1 Weather Sensor
Instruction Manual
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
model 06037M
Advertisement
Table of Contents
Related Manuals for AcuRite 06037M
Summary of Contents for AcuRite 06037M
-
Page 1: Package Contents
Package Contents 1. Display with tabletop stand 2. Power adapter 3. USB cable 4. Instruction Manual This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION... -
Page 2: Features And Benefits
Features & Benefits Display... - Page 3 1. Previous 2 Wind Directions 20. SET Button For setup preferences. 2. Backlight Button 21. “ “ Button For momentary backlight and dimmer settings. for setup preferences. 3. Current Wind Speed 22. SELECT Button Press to change the WEATHER 4. Current Wind Direction SELECT category data being 5.
- Page 4 Back of Display ############ BACK OF DISPLAY CLEAR RECORD/ RESET BUTTON Press and release to clear data 1. Plug-in for Power Adapter recorded since 12:00 am. Press and HOLD for full reset to factory 2. Plug-in for USB Cable defaults. 3.
-
Page 5: Display Setup
SETUP Display Setup Set the A-B-C Switch Write Down the MAC ADDRESS The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and... -
Page 6: Set The Time, Date & Units
Set the Time, Date & Units Press the “ SE T ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... - Page 7 USB Mode To set up AcuRite Connect, you must first select mode 3 on your display to gain access to all functionality. Modes 1, 2 and 4 are not used for the AcuRite Connect software. 1. While in normal viewing mode, press and release the “SET” button until “PC CONNECT MODE” appears on the Weather Ticker screen.
-
Page 8: Download The Software
After AcuRite Connect is installed on the computer, the initial configuration will begin automatically. When selecting where to save weather data downloaded from the display, a folder named “AcuRite Weather Station” will be created on the computer. (PC) When prompted by the software to plug in the display, connect the USB (larger end of the cable into a USB port on the computer. -
Page 9: Weather Forecast
LIKELY LIKELY RAIN & SNOW View the complete list of icons at www.AcuRite.com/acurite-icons Weather Select Weather Select displays data including wind chill, dew point, heat index, feels like, days with rain this month, and days since last recorded rainfall. To change the “Weather Select”... - Page 10 Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. Press the “RAINFALL” button to review rainfall records. The icon is shown on the display while historical data is being viewed.
- Page 11 Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WINDCHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE 7 DAY HIGH TEMP. XX- MM/DD 7 DAY LOW TEMP.
-
Page 12: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 13 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 7). Inaccurate • Make sure both units are positioned away from moisture sources (see page 7). temperature or humidity •...
- Page 14 Troubleshooting Problem Possible Solution • Verify that the status in the AcuRite Connect software on your PC indicates that the data was received from the display. • Verify that you created an account or logged into an existing account at www.acu-link.com or in the AcuRite app, and that you input the display’s MAC...
-
Page 15: Care And Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Calibration The indoor / outdoor temperature and humidity readings, and barometric pressure can be calibrated on the display to improve accuracy. -
Page 16: Specifications
Wind Speed: 18 second updates; Direction: 30 seconds Outdoor temperature & humidity: 36 second updates Indoor temperature & humidity: 60 second updates AcuRite Connect CSV Data Logging: 12 minute intervals AcuRite Connect to Online Portal/App: 18 seconds DISPLAY MEMORY 512 kilobytes (not expandable) ACURITE CONNECT SYSTEM Windows 8.1 / 8 / 7;... -
Page 17: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (844) 228-5465 info@chaney-inst.com AcuRite 24/7 support at www. - Page 20 Plan your day with confidence ™ www.AcuRite.com ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology.
