GE JVW5361 Installation Instructions Manual

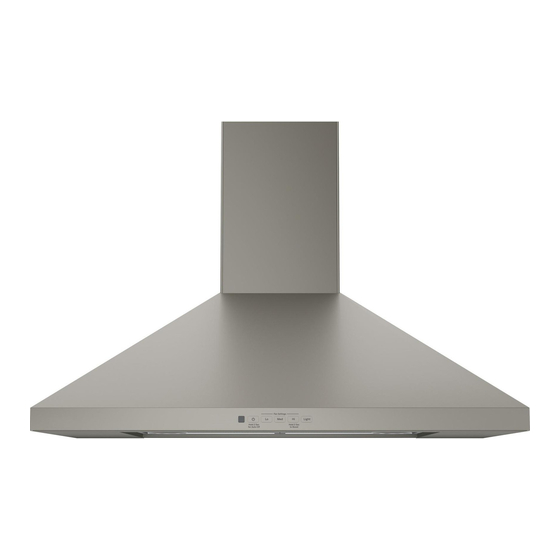

Pyramid wall chimney vent hoods
Hide thumbs Also See for JVW5361:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Installation
Instructions
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
for local inspector's use.
IMPORTANT
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this vent hood
requires basic mechanical and electrical skills.
• Completion time – Approximately 1 to 3 hours
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is
not covered under the Warranty.
CAUTION:
Due to the weight and size of
these vent hoods and to reduce the risk of
personal injury or damage to the product, TWO
PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
FOR YOUR SAFETY:
WARNING:
Before beginning the
installation, switch power off at service panel and
lock the service disconnecting means to prevent
power from being switched on accidentally.
When the service disconnecting means cannot
be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Pyramid Wall
Chimney Vent Hoods
JVW5301, JVW5361
Save these instructions
Observe all governing
WARNING:
FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to
prevent back drafting. Follow the heating
equipment manufacturer's guidelines and
safety standards such as those published by
the National Fire Protection Association (NFPA),
the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and
the local code authorities.
C. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
D. Ducted fans must always be vented to the
outdoors.
E. Turn off breaker to adjacent rooms while
working.
WARNING:
FIRE, USE ONLY METAL DUCT WORK.
(991.0480.581) 31-10983-4 08-16 GE
TO REDUCE THE RISK OF
TO REDUCE THE RISK OF

Advertisement

Table of Contents
loading

Summary of Contents for GE JVW5361

  • Page 1 Installation Pyramid Wall Chimney Vent Hoods Instructions JVW5301, JVW5361 If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com BEFORE YOU BEGIN WARNING: TO REDUCE THE RISK OF Read these instructions completely and FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, carefully.
  • Page 2: Product Dimensions

    Installation Preparation PRODUCT DIMENSIONS INSTALLATION CLEARANCES These vent hoods are designed to be installed 8-1/4” onto a wall with no above cabinets. 7-1/16” 17-3/8” Min. 24-7/16" Max. 13” 24” Required Min. 38” Recommended Max. 9-7/8” 18-1/2” The vent hood must be installed 24” minimum 30”...
  • Page 3: Advance Planning

    Installation Preparation POWER SUPPLY ADVANCE PLANNING IMPORTANT – (Please read carefully) Duct Install Planning • This hood is designed to be vented vertically WARNING: through the ceiling. Use a 6" round duct. Use FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE locally supplied elbows to vent horizontally PROPERLY GROUNDED.
  • Page 4 Installation Preparation TOOLS AND MATERIALS REQUIRED PLAN THE INSTALLATION (NOT SUPPLIED) CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct the air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, Safety glasses or garages.
  • Page 5: Installation Dimensions

    Installation Preparation RANGE HOOD COMPONENTS INSTALLATION DIMENSIONS A. Canopy Section F. Duct Cover Screws The Pyramid Chimneys are adjustable and B. Lower Duct Cover G. Damper designed to meet varying ceiling heights. The C. Upper Duct Cover H. Canopy Mounting duct covers can be adjusted for ceilings between D.
  • Page 6: Prepare The Wall

    Installation Preparation PREPARE THE WALL Duct Covers Hood Body and Power Supply 1. Place one of the duct cover brackets against the wall so that its top edge is 1/16” from the 1. Put a protective covering over the surface ceiling and level.
  • Page 7: Prepare Hood For Installation

    Installation Instructions PREPARE HOOD FOR INSTALLATION Non-vented (recirculation) Installations 1. Remove the grease filters from the unit and (Continued) set aside. The grease filters are removed 2. Check that the recirculation duct is in the correct by pressing the handle orientation with the hole towards the front of in front of the filter.
  • Page 8: Electrical Connection

    Installation Instructions ELECTRICAL CONNECTION FINISH THE INSTALLATION 1. Connect the Power Supply Cable to the range (Continued) hood. Attach the white lead of the power supply 3. Using a flathead screwdriver, lift up the tabs on to the white lead of the range hood (A) with a the top of the canopy.
  • Page 9: Antes De Comenzar

    Instrucciones Campanas de Ventilación de Chimeneas de Pared Pirámide de instalación JVW5301, JVW5361 Ante cualquier duda, llame a GE Appliances al 800.GE.CARES (800.432.2737) o visite nuestro sitio Web en: GEAppliances.com ANTES DE COMENZAR ADVERTENCIA: PARA REDUCIR EL Lea estas instrucciones por completo y con RIESGO DE INCENDIO, DESCARGA ELÉCTRICA...
  • Page 10: Dimensiones Del Producto

    Preparación para la instalación DIMENSIONES DEL PRODUCTO ESPACIO DE INSTALACIÓN Estas campanas de ventilación están diseñadas para ser instaladas en una pared sin gabinetes superiores. La campana de ventilación debe ser instalada a un un rendimiento y uso óptimos, no se recomienda superficie de cocción.
  • Page 11: Planificación Previa

    Preparación para la instalación SUMINISTRO DE ENERGÍA PLANIFICACIÓN PREVIA IMPORTANTE – (Tenga a bien leer cuidadosamente) Planificación para la Instalación con Conducto • Esta campana está diseñada para ventilarse ADVERTENCIA: en forma vertical a través del cielorraso. Utilice codos suministrados en forma local para ventilación horizontal a través de la pared trasera.
  • Page 12: Herramientas Y Materiales Requeridos

    Preparación para la instalación HERRAMIENTAS Y MATERIALES PLAN DE INSTALACIÓN REQUERIDOS (NO SUMINISTRADOS) PRECAUCIÓN: A fin de reducir riesgos de incendios y para que el aire salga de forma apropiada, asegúrese de que el aire sea conducido hacia fuera - No ventile el aire de la salida hacia espacios dentro de paredes o cielorrasos o áticos, espacios muy bajos o garajes.
  • Page 13: Dimensiones De Instalación

    Preparación para la instalación COMPONENTES DE LA CAMPANA DIMENSIONES DE INSTALACIÓN EXTRACTORA están diseñadas para adaptarse a diferentes A. Sección de la Base alturas de cielorraso. Las cubiertas de los conductos pueden ser ajustadas para cielorrasos G. Regulador distancia entre la parte inferior de la campana y de la Base de la la superficie de cocción (distancia X).
  • Page 14 Preparación para la instalación PREPARE LA PARED Cubiertas de Conductos Cuerpo de la Campana y Suministro de Corriente conducto contra la pared, de modo que su extremo nivelado. Alinee las ranuras centrales del soporte debajo de la ubicación de la campana, a fin de proteger C) y marque los centros de los de la suciedad y/o daños.
  • Page 15 Instrucciones de instalación PREPARE LA CAMPANA PARA SU Instalaciones sin ventilación (recirculación) (continúa) INSTALACIÓN encuentre en la orientación correcta con el agujero 1. Retire los filtros de grasa de la unidad y deje hacia el frente de la campana. Inserte el conducto los mismos a un lado.
  • Page 16: Conexión Eléctrica

    Instrucciones de instalación CONEXIÓN ELÉCTRICA FINALICE LA INSTALACIÓN (continúa) lengüetas sobre el extremo de la parte superior. blanco del suministro de corriente al conductor 4. Para instalar la cubierta del conducto inferior: blanco de la campana extractora (A) con una tuerca para cable (C negro del suministro de corriente al conductor negro de la campana extractora (B) con una...
