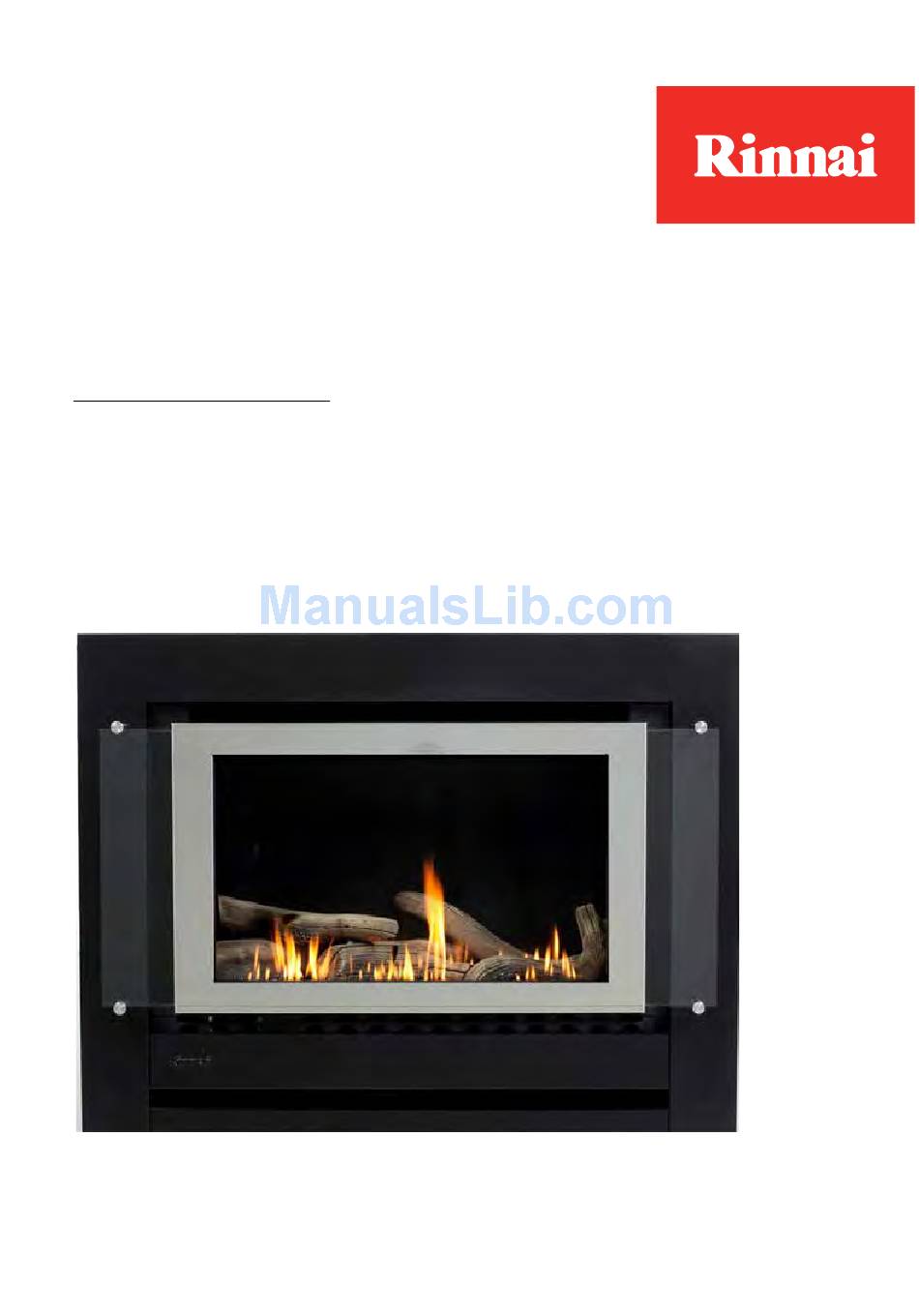

- Page 1 Installation guide RIB2311N / RIB2311L...
- Page 2 Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Checklist ..............4 Specification ...............5 Dimensions ..............6 Clearances ..............7 Mantels and surrounds ..........9 TV installation above a fireplace .........10 Enclosure dimensions for inbuilt models ....11 Electrical connection ..........12 TV installation above a fireplace .........10 Gas supply ..............13 Flueing options ............14 Flueing guidelines ............15 Masonry flue installation ..........16 Masonry installation ...........18 Inbuilt mock chimney installation ......20... -
Page 4: Checklist
Checklist Engine: Masonry installations Rinnai Neo heater (engine) Standard 2. Outer frame (standard or classic) frame 3. Glass outer dress guard—standard frame Mesh dress guard—classic frame (inbuilt models) Classic 4. Inner frame frame 5. Log set and granule pack (inside appliance) 6. -
Page 5: Specification
Noise level 37-45 dB(A) Specification summary Input = 14-30 MJ/h* Flue (masonry) Output = 2.98-6.94 kW* Rinnai recommends the use of a Rinnai flexiliner Efficiency = 80% flue (Ø 100 mm). Energy star = 4.1 stars* Heating area = 69-107 m... -
Page 6: Dimensions
Dimensions (mm) - includes the frame Neo Inbuilt masonry Neo Inbuilt mock chimney Freestanding console Freestanding plinth 6 | Neo installation guide: 11906-H 08-15... - Page 7 Neo Inbuilt Premium Classic Neo installation guide: 11906-H 08-15 | 7...
-
Page 8: Clearances
Clearances The clearances listed below, measured from the edge of the inner glass, are minimum clearances unless otherwise stated. While the heater is operating The appliance must not be installed where curtains or other combustible materials could come into contact with the heater. The 1000 mm clearance above, for the inbuilt model, is the clearance to the ceiling. -
Page 9: Mantels And Surrounds
Mantels and surrounds Combustible mantels and surrounds require clearance from the unit to minimise the risk of fire. Mantels and surrounds, made of combustible materials such as wood, are allowed providing they are outside the minimum clearances shown. The Neo gas fireplace is not designed to be built into bookcases. A Mantel needs to be a minimum of 400 mm away from the edge of the inner glass. -
Page 10: Tv Installation Above A Fireplace
If installing a flat screen TV above a fire, the main issue is heat. Heat from the fire, and heat from the flueing components that could be installed behind the TV (especially if recessed). The Rinnai Neo gas fires have TV directly above a powerful fan that distributes warm air from the appliance out into the room. -
Page 11: Enclosure Dimensions For Inbuilt Models
Enclosure dimensions for inbuilt models The main points governing location are flueing and warm air distribution. The enclosure dimensions provided are critical to the installation of this appliance and must be adhered to. The heater must be positioned on a flat level surface that allows free movement of the appliance. -
Page 12: Electrical Connection
This must be a genuine replacement part available from Rinnai—part number 6765B. * Consult a qualified electrician if direct wiring is required as it must comply with AS/NZS 5601 and AS/NZS 3000 and other... -
Page 13: Gas Supply
Gas supply Gas pipe sizing must consider the gas input to this appliance as well as all other gas appliances in the premises. The gas meter and regulator must be specified for the total gas rate. An approved sizing chart such as the one in AS/NZS 5601.1 should be used. The gas supply termination is inside the heater and enters through the rear of the appliance. -
Page 14: Flueing Options
Flueing options The below options detail the most common types of flue installations. If you have an installation that varies from those below, please contact Rinnai. Masonry without a flexiliner flue Flue component For installations into a masonry cavity where... -
Page 15: Flueing Guidelines
Maximum flue length - 8 m Rinnai recommends a maximum flue length of 8 m with a maximum of two 45 ° bends. Difference in flue lengths For our inbuilt range our flue lengths are all 1.2 m. For our freestanding flues, those that are powder coated (galaxy black and brushed stainless steel), flue lengths are 1 m. -
Page 16: Masonry Flue Installation
Rinnai strongly recommends the use of a Rinnai flexiliner flue system. Failure to meet this criteria may result in an unsafe situation. Installation without a flexiliner flue is permissible as long as the chimney is swept, checked for soundness and ability to achieve a good draw. - Page 17 Installation Installation, servicing and repair shall be carried out only by authorised personnel.
-
Page 18: Masonry Installation
Masonry installation Adapt instructions as necessary for masonry installations without a flexiliner flue. 1. Prepare site: Ensure the 9. Connect gas supply: Firmly adequate seal cannot be formed enclosure meets the dimension then another means of sealing grasp the stainless steel flexi pipe requirements and check the must be used (non-combustible and bend at 90 °, approximately... - Page 19 Fixings R1760-2 Chimney cowl Ø 100 mm Guide rails R1760-3 Flexi flue chimney flashing plate (400 x 300 mm) R1760-6 Aluminium flexi flue 3.6 m Guide plate Flexi flue spigot adaptor Attaching the flexiliner flue to the unit 1. Attach the guide rails to the heater using the predrilled holes and four screws. 2.
-
Page 20: Inbuilt Mock Chimney Installation
Inbuilt mock chimney (zero clearance installation) 1. Prepare site 8. Connect flue adaptor 14. Connect gas supply Ensure the enclosure meets the Connect the flue adaptor* to Firmly grasp the stainless steel dimension requirements and the engine by aligning the guide flexi pipe and bend at 90 °, approximately mid-way, to line check the gas and electrical... - Page 21 2. Assemble the zero clearance box 3. Fit zero clearance box 6. Prepare heater engine 7. Fit cladding Drill 4 x Ø 3.2 mm holes 11. Align guide rails with the guide plate 14. Connect gas supply 01 14. Connect gas supply 02 15.
-
Page 22: Freestanding Installations
Freestanding installations 1. Prepare site Fit the rear and side panels 10. Complete installation Check the installation area using the screws provided. has been prepared according You may need to elevate the to the gas and electrical engine approximately 100mm supply requirements in this off the ground to assemble guide. - Page 23 4. Assemble base assembly - Console model 4. Assemble base assembly - Plinth model Minimum 119mm Minimum 119 mm 5. Attach spigot adaptor and outer panels 6. Fix heater to base assembly - Console model 6. Fix heater to base assembly - Plinth model 8.
-
Page 24: Log Set And Granule Pack Installation
Log set and granule pack installation The granule pack and log set, consisting of five log pieces, comes packaged inside the appliance. The glass retainer will need to be removed before installing the granules and log set. Use extreme care when handling the log pieces, they are made from a fragile material and will damage easily. - Page 25 4. Select the thinner ‘Y’ log and fit into position 3. Select the short straight log with the single by linking up the two pin holes onto the two locating pin and place onto the metal tabs at the left and rear of the burner box—will pins of the first two logs.
-
Page 26: Inner Frame And Control Panel
Inner frame and control panel Before fitting the frame assembly ensure that it is not scratched or damaged. When placing the assembly down ensure it is placed on its lower edge or flat. WARNING If it is placed on its left or right edge the glass may slide out off the stand-off posts. -
Page 27: Test Pressures
Test pressures Check and set the burner pressures spanner hold the high pressure adjusting nut stationary while adjusting the low 1. Refer to the data plate located inside the pressure screw with a screw driver. Turning appliance on the front left hand side for the screw clockwise will increase the the correct gas pressure settings. -
Page 28: Outer Frame And Dress Guard
Outer frame and dress guard Locate and remove the two frame assembly securing screws pre-positioned in the mounting tabs in the heater engine body. These screws have been pre-inserted to ensure correct threading of the frame securing tabs. Attach the frame Carefully pick up the outer frame assembly. -
Page 29: Flame Pattern
It is the responsibility of the installer to check that under normal conditions of the appliance, all flue gases are exhausted to the outside atmosphere, and that there is no spillage of combustion gases into the room. If the appliance cannot be made to perform correctly please contact Rinnai. Soot build up Normal flame pattern Abnormal flame pattern... -
Page 30: Wiring Diagram
Wiring diagram (11904-B) AC 230V -240V 50 Hz (BROWN) (BROWN) (BLACK) (BLACK) (RED) (RED) (BROWN) (BROWN) (WHITE) (BLUE) Hi Speed (RED) (YELLOW) Lo Speed CABLE CAT 5 30 | Neo installation guide: 11906-H 08-15... - Page 32 Experience our innovation Rinnai.co.nz 0800 746 624 http://www.youtube.com/rinnainz Neo installation guide: 11906-H 08-15...
