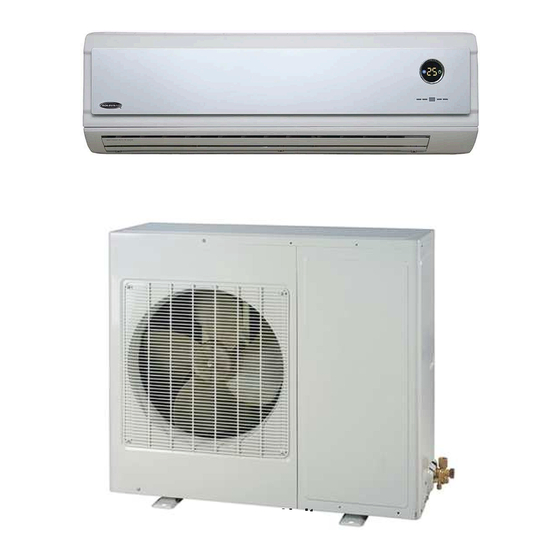

- Page 1 Wall Mounted Mini Split Heat Pump Air Conditioner OPERATING AND INSTALLATION MANUAL Model: KFIHP-09-ID / KFHHP-09-OD KFHHP-12-ID / KFHHP-12-OD Indoor Unit. Outdoor Unit. Thank you for selecting Soleus Air. To ensure proper operation, please read this manual and keep it for future reference.
-
Page 2: Structure And Operation
Structure and Operation Name of Each Part - 1 -... -
Page 3: The Instructions Before Use
The Instructions before Use Warning Grounding: The unit must be properly Disconnect the power when the unit is not being grounded. used for extended periods of time. Don’t attempt to repair the air conditioner by If your air conditioner malfunctions, yourself. - Page 4 The Instructions before Use Set the room temperature appropriately. Adjust the air flow and direction properly. When the air conditioner is running, you can press the SWING key on the remote control to adjust the guide louver and change the The difference direction of air flow.
-
Page 5: Remote Control Operation
Remote Control Operation Function-Remote control Note: Don't drop the remote control. Don't place the remote control in a location exposed to direct sunlight. When the unit is restarted after stopped, it will automatically resume its last running mode, and the outdoor unit will start there after. - Page 6 Remote Control Operation (Continued) Liquid Crystal Display. It shows all set contents. SWING Button: ON/OFF Button Press once to have louvers Press ON. swing [oscillate]. Press Press OFF. twice in one second the panel light will turn on. Press twice again and the light will turn off.
-
Page 7: How To Insert Batteries
How to Insert Batteries 1. Remove the cover from the back of the remote control. 2. Insert the two batteries (Two AAA dry-cell batteries). 3. Re-attach the cover. NOTE: x Don’t mix different batteries. x Remove batteries when not in use for a longtime. x The batteries can be used for about one year. -
Page 8: Operation
Operation The general procedure: 1. Power the unit and a buzzer will sound. Power/Run indication is red and the air conditioner is waiting to run. (Note: Once the air conditioner plugs to power supply or receives the signal of remote control, the buzzer will send out the desirable sound.) 2. -
Page 9: Care And Maintenance
Care and Maintenance Care and Maintenance CAUTION: Turn power off and pull out the power cord before cleaning air conditioner. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an electric shock. Volatile Liquid (e.g. -
Page 10: Check Before Use
Care and Maintenance (Continued) 3. Reinsert the filters Reinsert the filters along the direction of arrow, then cover the surface panel and clasp it. Check before Use 1. Be sure that nothing obstructs the air outlet and intake vents. 2. Verify that the unit is properly grounded. 3. - Page 11 Trouble Shooting Problem Trouble Shooting Sound of water flow can be heard during operation. This is caused by the refrigerant flowing inside the unit. Mist is emitted during cooling operation. Because the air of the room is cooled down rapidly. Creaking noise can be heard when start or stop the unit.
- Page 12 Trouble Shooting Immediately discontinue using the unit and disconnect the power if any of the following occurs: Unusual noise can be heard during operation. If you have any Air switch or leakage protection switch often question, please call your contractor or shuts down.
