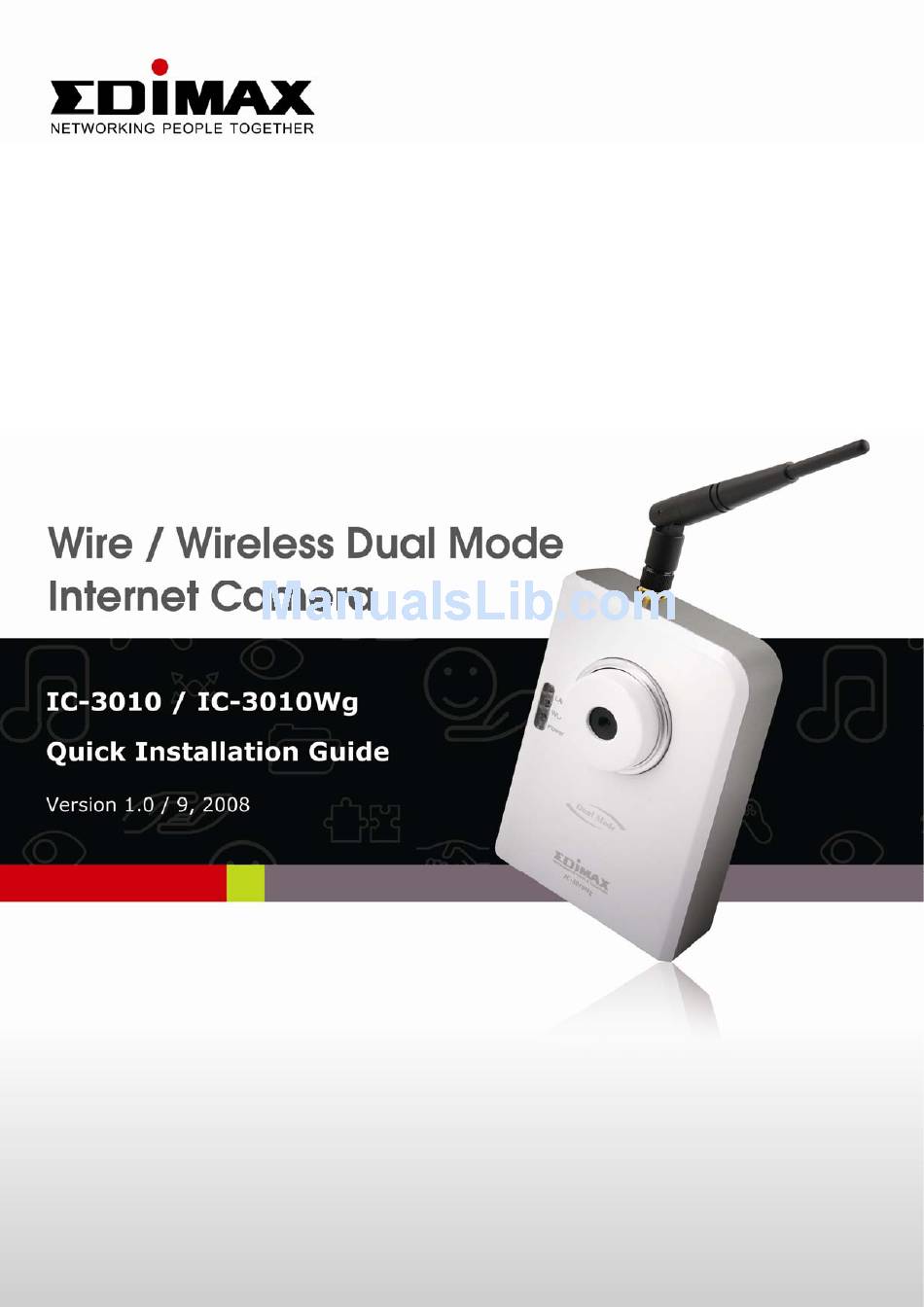

Edimax IC-3010 Quick Instillation Manual

Wire / wireless dual mode internet camera
Hide thumbs Also See for IC-3010:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
0

Advertisement

Table of Contents
loading

Related Manuals for Edimax IC-3010

Summary of Contents for Edimax IC-3010

  • Page 2 Multi-Languages QIG in Driver CD ================================================== Český: Českého průvodce rychlou instalací naleznete na přiloženém CD s ovladači Deutsch: Finden Sie bitte das deutsche QIG beiliegend in der Treiber CD Español: Incluido en el CD el QIG en Español Français: Veuillez trouver l’français QIG ci-joint dans le CD Italiano: Incluso nel CD il QIG in Italiano Magyar: A magyar telepítési útmutató...
  • Page 3 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this Company.

  • Page 4: Table Of Contents

    Index Product Information ............4 Check your package contents ..........6 System Requirement ............6 Hardware Installation ............7 4.1. LED and Focusing ............7 4.2. Installation Procedure ............ 9 4.3. Locate the IP Address ............ 9 Web Management Interface ..........13 Software Installation ............

  • Page 5: Product Information

    Product Information Thank you for purchasing this Network IP camera! This IP camera is an ideal product for all kinds of video-surveillance purposes, like home/office safety, kid/pet monitoring, and remote video acquire etc. Unlink conventional close-circuit vide camera, you’re not limited to the length of cable! Once this IP camera is connected to Internet, you can receive video from anywhere in the world where Internet access is available.
  • Page 6 Key features No pre-loaded software required - all you need is a browser like Internet Explorer 6 with SP2 (and above, with plug-in installed). Supports VGA (640 x 480), QVGA (320 x 240), and QQVGA (160 x 120) video resolution. Supports 2-way audio transmission, with speaker output and built-in microphone.

  • Page 7: Check Your Package Contents

    Check your package contents One Internet Camera One Power Adapter One Camera Stand One 100M Category 5 Ethernet Cable One Quick Installation Guide One CD ((Including Manual/Utility/multi-languages QIG) One Antenna(IC-3010Wg only) If any of the above items are missing, please contact your supplier. System Requirement System requirement for PC, MAC or Notebook PC to access the Internet Camera as following:...

  • Page 8: Hardware Installation

    Hardware Installation 4.1. LED and Focusing The Camera head and its focus ring allow you to modify the aim and focus of the Camera. To adjust the Camera’s focus, rotate the dark focus ring. There are three LEDs indicating the camera status and networking status. LED name Status Description...
  • Page 9 Camera Ports The Camera features two ports and a Reset button. Antenna It has one standard reverse SMA connector where any antennas with reverse SMA connector can connect to the Internet Camera. Power The Power port is where you can connect the power adapter. The LAN port is where you can connect the Ethernet network cable.

  • Page 10: Installation Procedure

    4.2. Installation Procedure 1. Unpack the Internet Camera package and verify that all the items listed in the Chapter 1 are provided. 2. Connect the Internet Camera to your network by attached the network cable from the switch/router to the LAN port of the Internet Camera. 3.
  • Page 11 2. Double-click ‘Network Connections’ icon. 3. Right-click ‘Local Area Connection’, and click ‘Properties’.
  • Page 12 4. Select ‘Internet Protocol (TCP/IP)’, then click ‘Properties’. 5. In ‘IP address’ field, please fill in any IP address begins with ‘192.168.2’, and ends with a value greater than 2 and less than 254 (You can use the example in the picture ‘192.168.2.239’). In Subnet mask field, please fill ‘255.255.255.0’.
  • Page 13 If you changed the IP address of this IP camera and you forget it, there’re 2 methods to recover it: a. Press and hold the ‘Reset’ button located at the bottom of this IP camera, to clear all settings of the IP camera and reset the IP address back to 192.168.2.3.

  • Page 14: Web Management Interface

    Web Management Interface Make sure the IP camera is correctly powered (Power LED is on), and then launch Internet Explorer and type the IP address of the IP camera in address bar of Internet Explorer. You should be prompted to input the user name and password: Default user name is ‘admin’...
  • Page 15 When you’re prompted, click ‘Install’ to continue.
  • Page 16 You should be able to see the image from camera now: Note: If you see one of these messages (or both): Your computer may not have the display capability that this IP camera requires, or you don’t have Microsoft DirectX® installed. Please download Microsoft DirectX®...

  • Page 17: Software Installation

    Software Installation Follow the simple steps below to run the Install Wizard to guide you quickly through the Installation process. The following installation is implemented in Windows XP. The installation procedures in Windows 2000/XP/Server 2003 are similar. 1. Insert the CD shipped along with the Internet Camera into your CD-ROM drive.
  • Page 18 3. The system will start the installation procedures. Click “Next” to continue installation. 4. If you wish to install the software program in an alternate location, click “Change”; otherwise click “Next” to move on to the next step.
  • Page 19 5. Click “Install” to start installing the program. 6. The system will install the program automatically.
  • Page 20 7. Click “Finish” to complete the software installation. 8. If you have Windows Defender (Windows XP) or other 3 party firewall software, you may see the following (or similar) message: Please click ‘Unblock’ (or similar option) to let IP camera Utility pass the firewall, or the IP camera utility may not be able to function properly...
  • Page 21 9. A new folder named ‘IP Camera’ in ‘All Programs’ will be created: Admin Utility, Camera Viewer, and Uninstall. You can use these 3 utilities to connect to the IP camera and use the functions of the camera without web browser.
  • Page 22 If you want to change these settings, please click ‘Detail Setting’ or ‘Setting Wizard’. If you only need to change the basic network setting, click ‘Setting Wizard’. You’ll be prompted to input user name and password. The default user name is ‘admin’ (you can not change it), and the default password is ‘1234’, and then click ‘OK’...
  • Page 23 12. This wizard will pop up a window to ask you if you want to run the “Camera Viewer” and see the video of the Camera immediately. Select “OK” to run “Camera Viewer”. 13. The “Camera Viewer” will show the video automatically. Congratulations, you can use the camera through the network to view the video from now...

  • Page 24: Firmware Upgrade

    Firmware Upgrade Here provides several tools to upgrade the firmware of this IP camera, clear all settings, or switch LED notification off. The descriptions of every setting in this menu will be given below: Item Description Upgrade If you downloaded latest firmware file from our Firmware website, you can click this button to start to upload the firmware file to the IP camera, and you’ll be...
  • Page 25 Reset to Clear all settings in the camera. Please think again Default before you do this, and then click this button to reset all settings. NOTE: IP address will be reset to default value ‘192.168.2.3’ also. You’ll need to change the IP address setting of your computer if the IP address of your computer does not begin with ‘192.168.2’, and subnet mask is not ‘255.255.255.0’, or you’ll...
  • Page 26 R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

This manual is also suitable for:

Ic-3010wg
