Summary of Contents for Vax ACTION 602 U86-AN-BE

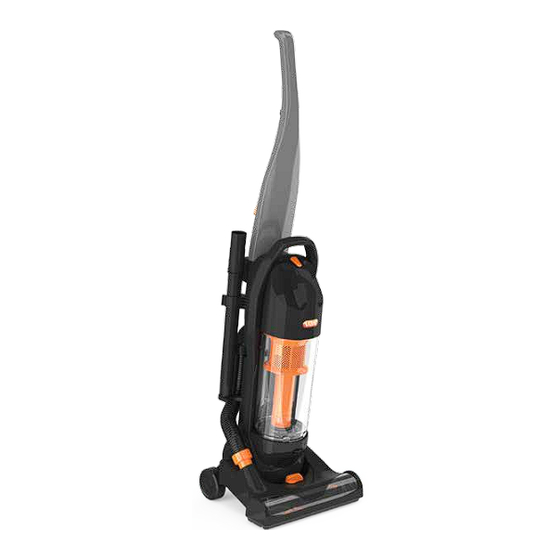

- Page 1 Action 602 Let’s get started vax.co.uk U86-AN-Be/U86-AN-Pe/U86-IN2-Pe...
- Page 2 • Only Vax recommended tools should • This vacuum cleaner can be used be used with this vacuum cleaner. by children aged from 8 years and...
- Page 3 Let’s talk safety Don’ts Don’t attempt to remove blockages Don’t use the vacuum cleaner with with sharp objects as this may cause incorrect voltage as this may result damage to your vacuum cleaner. in damage or injury to the user. The correct voltage is listed on the Don’t vacuum up hard or sharp ratings label.
- Page 4 Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and clean. You’ve chosen the carpets for your home for a reason and Vax will help you take good care of them.
- Page 5 Contents Action 602 Included with Let’s talk safety your machine Getting to know your machine Hard floor tool Getting started Reach extension hose 1.5m Using your machine 2 in 1 dusting/upholstery & crevice tool Taking care of your machine Extension tube Let’s talk technical Action 602 Pet What to do if it goes wrong...
-
Page 6: Technical Specification
Belt Kit Type 25 Dusting Brush (Type 10) 1-1-134411 1-1-134426 Cord length 7m Turbo Tool Type 6* Pro Cleaning kit Weight 7.5kg 1-1-134419 (1-1-133326) * Selected models only. To purchase consumables and accessories, please visit vax.co.uk Subject to technical change without notice. -
Page 7: Before You Begin Cleaning
Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Before you begin cleaning IMPORTANT: Always switch off the vacuum cleaner before connecting or disconnecting the hose/attachments or removing and emptying the dirt container. IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat will automatically turn the vacuum cleaner off. -
Page 8: Using Accessories
Using your machine IMPORTANT: Always switch off and unplug the vacuum cleaner before connecting or disconnecting the hose/ attachments, or removing and emptying the dirt container. The accessories can be attached to the extension tube or directly to the hose. When using accessories on the hose/extension tube raise the height adjuster to the highest setting. -
Page 9: Hard Floor Cleaning
Using your machine Using on the stairs This vacuum cleaner has a constantly rotating brushbar. When cleaning on stairs raise the height adjuster dial to the highest setting. The brushbar must overhang the stair tread. Always take care when cleaning stairs. WARNING Hold vacuum cleaner with brush bar over tread of stairs. -
Page 10: Emptying The Dirt Container
Taking care of your machine IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat, the thermostat will automatically turn the machine off. Switch off and unplug the vacuum cleaner. Check the machine for blockages and clean the filters. - Page 11 Taking care of your machine Cleaning the separator Turn separator Tap separator over Using a soft brush Line up tabs on The separator anti-clockwise a bin to remove any clean any dirt/debris separator with dirt should sit on seal to ‘unlock’, pull dirt/debris.
- Page 12 Taking care of your machine Storing your vacuum cleaner Always use the carry Wrap the power Press handle Lower handle handle to lift and carry around the quick release button. downwards. the machine. cord release hooks. Storing extension hose on vacuum cleaner (optional) Pull hose out of hose to Attach accessory hose Wrap hose around hose guide.
-
Page 13: Removing Debris From The Brushbar
Let’s talk technical IMPORTANT: Unplug and switch off vacuum cleaner before performing maintenance or troubleshooting checks. Removing debris from the brushbar Using a pair of scissors remove any threads or hair caught around the brush bar. Removing dirt/debris from TurboTool (some models only) Slide the locking ring Lift and separate to remove. -
Page 14: Replacing The Belt
Let’s talk technical Removing a blockage from the hose Pull hose out of Lift clip under the Pull latch out and Remove any Line up latch, hose to machine hose inlet. remove hose. blockage by push until it clicks connector. inserting wire coat into place. - Page 15 What to do if it goes wrong Problem Solution • Check the ‘This pack contains’ panel on the box to make sure the part is included with your vacuum cleaner. Is there an accessory missing? • The plug may not be fully pushed into the electrical socket. •...
- Page 16 Getting in touch † Registration required. Terms and conditions apply, see vax.co.uk for details. * Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
- Page 17 Accessories Don’t forget your accessories! Order at: www.vax.co.uk/spares-and-solutions Pro cleaning kit (Type 2) 1-1-133326 All our best tools all in one kit that makes cleaning your home quicker, easier and with even better results. We’ve taken care of cleaning all of the hard to reach...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 Local Authority or retailer for recycling advice. © 2016 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge is the property of Techtronic Floor Care Technology Ltd and is registered in the EU and may be pending or registered in other countries.
