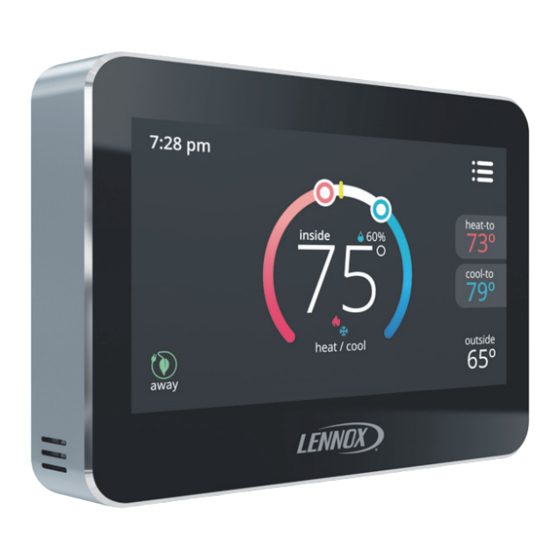

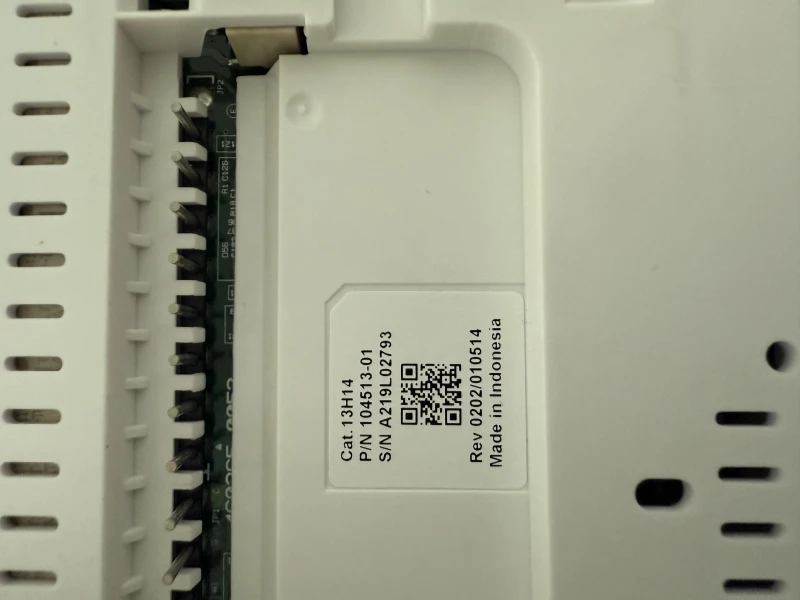

Lennox ComfortSense 7500 User Manual
Color touchscreen programmable thermostat
Hide thumbs
Also See for ComfortSense 7500:
- Installation and setup manual (56 pages) ,
- User manual (24 pages) ,
- Installation and setup manual (53 pages)
Related Manuals for Lennox ComfortSense 7500
Summary of Contents for Lennox ComfortSense 7500
-

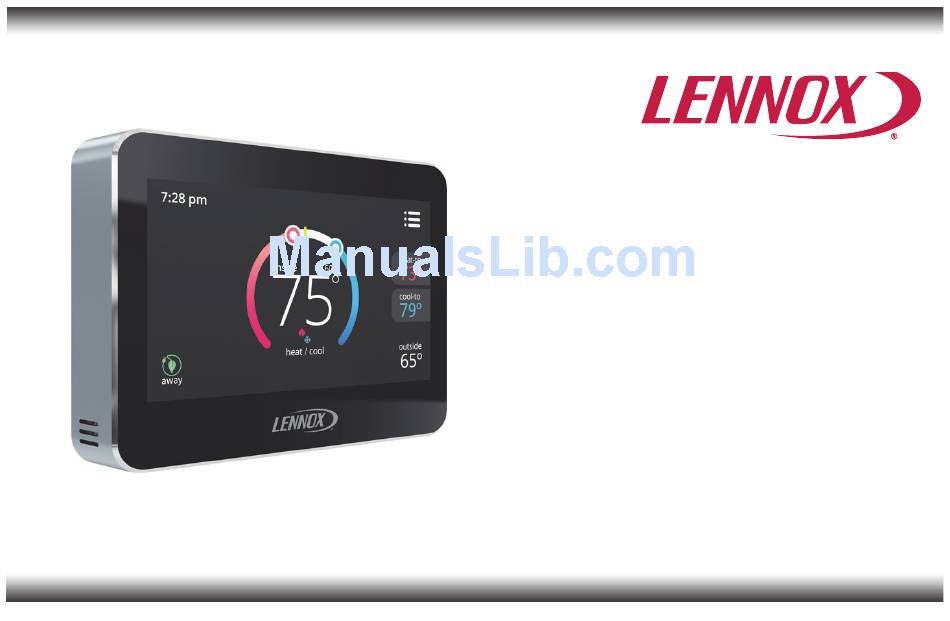

Page 1: User Guide
User Guide Color Touchscreen Programmable Thermostat ® ComfortSense 7500 Model: 13H14 507503-01 10/2015 Supersedes 7/2015... -
Page 2: Table Of Contents
TABLE OF CONTENTS Large, clear color display that shows the cur rent and set temperature, time, indoor relative Features ........humidity and outdoor temperature (if optional outdoor sensor is installed and enabled). -
Page 3: Temperature Dial Indicator
Temperature Dial Indicator 2:31 am Ⓐ Ⓒ Ⓑ Ⓕ heat−to inside Ⓓ 72° waiting cool−to Ⓔ 78° outside heat/cool 89° away Figure 1. Temperature Dial Feature... - Page 4 A. This is the heat set point position indicator D. When there is an active call for heating, this on the dial. This object will be red in color. area of the dial will fade back and forth from white to red. B.
-
Page 5: Home Screen
Home Screen 2:31 am Ⓓ Ⓒ Ⓙ Ⓔ Ⓕ Schedule hold until 8:22 am Ⓖ heat−to Ⓚ inside Ⓔ 72° waiting Ⓘ cool−to Ⓕ 78° Ⓑ outside schedule 1 Ⓗ Ⓐ 89° away Figure 2. home screen... - Page 6 Touch the screen anywhere - the first touch turns D. Menu - Touching the three bars will bring up the on the backlight. menu option. Selections are notifications, A. OPERATING MODE - touch to access the performance report, schedules and set screen that will list available modes.
- Page 7 H. This location could display the outdoor air tem 4. For the 1 or 2 hour setting the home screen perature. What is displayed in that location de will indicate schedule hold until time indi pends on what sensor is installed and config cated (i.e., 11:57 pm).
- Page 8 Table 1. System Status Icons Screen Icon Description Humidifying icon is displayed when humidifying is occurring. Touching on the icon will display humidifying next to the icon. Dehumidifying icon is displayed when dehumidifying is occurring. Touching the icon will display dehumidifying next to the icon. Red flames indicates the system is heating.
- Page 9 Screen Icon Description Red flame with a plus indicates the system is running in emergency heat mode. Transitioning to next schedule temperature setting. This icon will only appear if smooth setback recovery is enabled under the installer setup. When enabled, it will begin recovery up to two hours before the programmed time so that the pro...
-
Page 10: Operating Modes
Operating Modes Touch anywhere in the area indicated below to select how the system will operate. 2:31 am heat−to inside 72° cool−to 78° outside schedule 1 69° away Figure 3. Home Screen (Accessing Mode Screen) -
Page 11: Select Mode
Select Mode Fan Operation 1. HEAT/COOL allows the thermostat to switch The desired fan mode is selected in addition to se between heating and cooling automatically. lected mode of operation. 2. HEAT ONLY allows only heating demand. 3. COOL ONLY allows only cooling demand. Table 2. -
Page 12: Menu
Menu Touch the three lines in the upper right-hand corner of the screen to access the menu. Selectable op tions under menu are notifications, performance report, edit schedules and settings. menu notifications heat−to performance report 72° cool−to edit schedules 78° settings Figure 4. -
Page 13: Dealer Info
Notifications Any active history for notifications (critical errors or When a system error or reminder occurs, a pop-up reminders will be listed under settings > notifica screen will appear indicating the condition. tion. Error code notification pop-up can be dismiss If critical errors occur, they will also be displayed under notifications as illustrated in figure 5. - Page 14 When reminders occur, they will also be displayed under notifications as illustrated in figure 6. Touch the clear or remind later option to redisplay active reminder for 1 day, 1 week, 1 month, 3 months or a custom date. < notifications reminders critical...
- Page 15 Performance Report NOTE: See Selection Mode on page 10 to run a specific schedule. This will display the total number of hours each month that the system has been running. Example would be for mar (March) 23H or 23 hours. To re From the HOME screen touch the MENU and turn to the menu screen, touch the house icon in touch edit schedules option.
- Page 16 > select days individual days week/weekend all 7 days edit schedules schedule x (rename) To navigate to the next select mode schedule 1 screen in the selection select days schedule 2 heat/cool process, always touch the select mode schedule 3 heat only right-arrow next to the de...
-
Page 17: Settings (User)
Settings (user) Table 3. User Settings (Fan) Any schedule can be selected by touching the Setting right-arrow next to the option Function Description Selection user settings < See table 2 for on, auto and detail descrip circulate > tion. Settings Descriptions (user) heat/cool >... - Page 18 Table 4. User Settings (Heat/Cool, Cool Only and Reminders) Setting Selection Function Description Heats home to desired tempera normal ture setting. Options are on or off. If system is two-stage heating or comfort cooling, then 2 stage is locked in unit demand is satisfied. Bypasses the first stage of heat / cool (either heat pump, heating (any stage[s] of heat...
- Page 19 Table 5. User Settings (Humidity) Table 6. User Settings (Reminders) Setting Setting Function Description Function Description Selection Selection media filter Options for (air filter) each reminder Options are humidity - is disabled ON and OFF. humidity pad Allows section (default), Allows humidi...
- Page 20 Table 7. User Settings (General) Setting Selection Function Description Displays information concerning thermostat about model number, serial number, hardware and software revisions. Setting options are unlocked, partially, and locked. To set partially lock, create a three digit code. Partially lock restricts access to accessing the menu.
- Page 21 Table 8. User Settings (Display) Setting Selection Function Description Outdoor temperature display None or sensor Options are enable and disable. Default is enabled. When enable only the time, inside temperature and outside temperature (if outdoor sensor is installed and enabled) is screen saver displayed on the screen.
