Summary of Contents for Zotac ZBOX pico

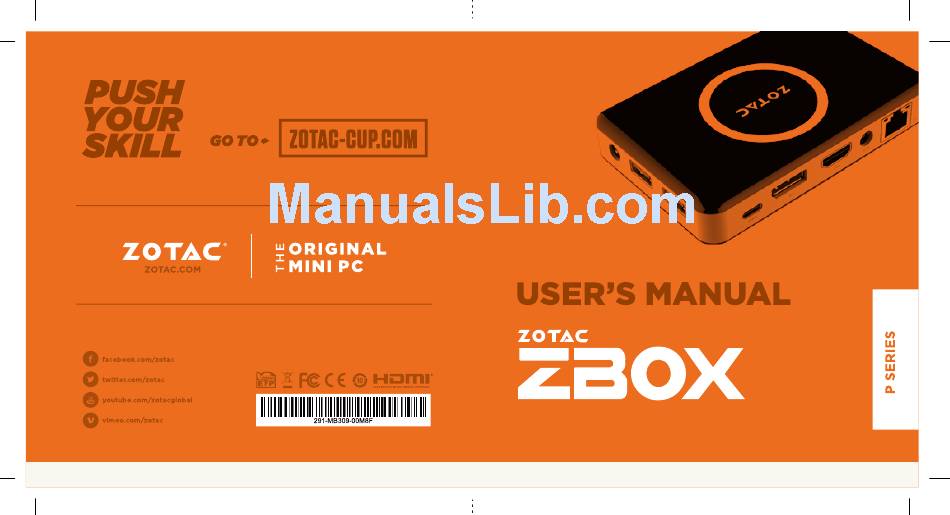

- Page 1 PI330 pico...
- Page 2 ZOTAC ZBOX pico User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except by the purchaser for backup purposes, without the express written permission of ZOTAC.
-
Page 3: Table Of Contents
How to disable the ZOTAC logo indicator --------------------------------------------------- 8 How to disable the O-ring indicator -----------------------------------------------------------10 Mounting the ZOTAC ZBOX pico to an LCD monitor----------------------------------- 12 Getting started with Windows 10 Home 64-bit --------------------------------------------14 Using your ZOTAC ZBOX pico ------------------------------------------------------------------18... -
Page 4: Product Specifications
• One USB 3.0 Type-C port Audio • One combo headphone/microphone jack Storage • 32GB eMMC • 2-in-1 card reader (Micro SDHC/SDXC) Networking • 10/100/1000Mbps Ethernet Wireless networking • 802.11ac Wi-Fi • Bluetooth 4.0 Operating System • Windows 10 Home 64-bit preinstalled ZOTAC ZBOX pico... -
Page 5: Safety Information
Safety information Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system. -
Page 6: Welcome
Welcome Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration displays the package contents of your new ZOTAC ZBOX pico. Please contact your retailer if any of the below items are damaged or missed. Package contents • 1 x ZOTAC ZBOX pico •... -
Page 7: Port Layout
USB 3.0 compatible devices. 2. DisplayPort DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display connections. 3. HDMI output The HDMI (High Definition Multimedia Interface) output supports a Full HD 1080p displays such as an HDTV or monitor. ZOTAC ZBOX pico... - Page 8 6. MicroSD memory card slot The built-in memory card reader supports Micro SDHC/SDXC cards to expand the storage capabilities of the ZOTAC ZBOX pico. 7. Power input (DC 5V, 3A) The supplied power adapter converts AC power to DC power for use with this jack.
-
Page 9: How To Disable The Zotac Logo Indicator
How to disable the ZOTAC logo indicator Turn on the ZBOX pico mini-PC, then press <Delete> to enter the BIOS SETUP UTILITY. Use the arrow keys to navigate to the Power menu and select Logo Indicator. ZOTAC ZBOX pico... - Page 10 Press <Enter> and select Disabled. Press F10 to save the configuration and exit. The PC will reboot. ZOTAC ZBOX pico...
-
Page 11: How To Disable The O-Ring Indicator
How to disable the O-ring indicator Turn on the ZBOX pico mini-PC, then press <Delete> to enter the BIOS SETUP UTILITY. Use the arrow keys to navigate to the Power menu and select O-ring Indicator. ZOTAC ZBOX pico... - Page 12 Press <Enter> and select Disabled. Press F10 to save the configuration and exit. The PC will reboot. ZOTAC ZBOX pico...
-
Page 13: Mounting The Zotac Zbox Pico To An Lcd Monitor
Mounting the ZOTAC ZBOX pico to an LCD monitor You can attach the ZOTAC ZBOX pico to the back of a VESA75/100 compliant display. Secure the mounting bracket to the LCD monitor using 2 screws. Disclaimer: ZOTAC is not liable for damages resulting from an improper installation. - Page 14 Connect the ZOTAC ZBOX pico to the LCD monitor with an HDMI cable. Note: You can also mount the ZOTAC ZBOX pico vertically as shown in the picture below. ZOTAC ZBOX pico...
-
Page 15: Getting Started With Windows 10 Home 64-Bit
Getting started with Windows 10 Home 64-bit Please follow the steps below to begin using your ZBOX pico with Windows 10 Home 64-bit. 1. Power on the system. 2. Connect to the Internet via Ethernet or Wi-Fi. 3. Select the language and region. - Page 16 4. Read and accept the license terms. 5. We recommend using the express settings. ZOTAC ZBOX pico...
- Page 17 6. Create a Microsoft new account if you don’t have one. Otherwise, select “Sign in”. 7. Setup your account. ZOTAC ZBOX pico...
- Page 18 8. Wait for the initial system setup to complete . ZOTAC ZBOX pico...
-
Page 19: Using Your Zotac Zbox Pico
Using your ZOTAC ZBOX pico Configuring a wireless connection Please follow the instructions below to connect to a wireless network: Double-click the wireless network icon (pic) in the notification area. Select the wireless network you want to connect to from the list and click Connect. -
Page 20: Using A Dynamic Ip (Pppoe Connection)
Password. Click “Next”. 10. Click “Finish” to finish the configuration. 11. Enter your user name and password. Click “Connect” to connect to the internet. Note: Contact your internet Service Provider (ISP) if you have problems connecting to the network. ZOTAC ZBOX pico... -
Page 21: Configuring Audio Output Via An Hdmi Device
Configuring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX pico to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel. Under Playback devices, click the display...
