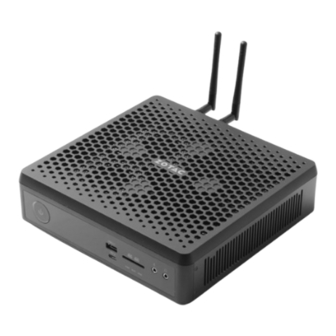

Zotac ZBOX E Series User Manual

Hide thumbs Also See for ZBOX E Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Zotac ZBOX E Series

Summary of Contents for Zotac ZBOX E Series

  • Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.

  • Page 3: Table Of Contents

    Safety information ----------------------------------------------------------------------------------------------4 Setting up your system -------------------------------------------------------------------------------------4 Care during use ----------------------------------------------------------------------------------------------4 Welcome -----------------------------------------------------------------------------------------------------------5 Package contents -------------------------------------------------------------------------------------------5 Getting to know your ZOTAC ZBOX ----------------------------------------------------------------------6 Front view -----------------------------------------------------------------------------------------------------6 Rear view ------------------------------------------------------------------------------------------------------7 Installing Hardware inside ZOTAC ZBOX ---------------------------------------------------------------8 Installing a memory module -------------------------------------------------------------------------------9 Removing the memory module --------------------------------------------------------------------------10 Installing M.2 SSD module --------------------------------------------------------------------------------11...

  • Page 4: Product Specifications

    ZOTAC ZBOX Product Specifications q Microprocessor support v Intel Core i7-13700HX (16-core, 2.1 GHz, up to 5.0 GHz) q Chipset v Intel HM770 q Onboard Graphics support v NVIDIA GeForce RTX 4070 Laptop GPU w/ 8GB GDDR6, 128bit v 1x HDMI 2.1, 2x DP 1.4a...

  • Page 5: Safety Information

    ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before operating your system.

  • Page 6: Welcome

    ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items are damaged or missed, contact your retailer. Package contents • 1 x ZOTAC ZBOX •...

  • Page 7: Getting To Know Your Zotac Zbox

    ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view 5 6 7 Refer to the diagram below to identify the components on this side of the system 1. Power switch The power switch allows powering ON and OFF the system.

  • Page 8: Rear View

    ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on this side of the system. 1. Power input (DC19.5V) The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.

  • Page 9: Installing Hardware Inside Zotac Zbox

    ZOTAC ZBOX Installing Hardware inside ZOTAC ZBOX Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX. 1. Remove the two rear thumb screws. 2. Gently remove the cover as shown below.

  • Page 10: Installing A Memory Module

    2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Note: 1. This ZOTAC ZBOX accomodates two DDR5 SO-DIMM memory modules. You must install at least one module for the system to function. 2. 16GB DDR5 memory is pre-installed in Windows version.

  • Page 11: Removing The Memory Module

    ZOTAC ZBOX Removing the memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle.

  • Page 12: Installing M.2 Ssd Module

    ZOTAC ZBOX Installing M.2 SSD module 1. Locate the M.2 SSD slot and insert an M.2 SSD module into the slot at a 45 degree angle. 2. Gently press down on the M.2 SSD module, and install the screw. *1TB M.2 SSD is pre-installed in Windows version.

  • Page 13: Setting Up Your Zotac Zbox

    ZOTAC ZBOX Setting up your ZOTAC ZBOX You need to connect peripherals before using your ZOTAC ZBOX. 1. Connecting to a network device Connect one end of a Killer Ethernet cable to the LAN port on the system rear panel and the other End to a hub or switch.
  • Page 14 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system.  When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the AC outlet to save on power consumption.

  • Page 15: Installing Drivers And Software

    Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX USB flash drive: •...
  • Page 16 ZOTAC ZBOX • BayHub_SD Driver  Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX. Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers.

  • Page 17: Installing Killer Control Center

    ZOTAC ZBOX Installing Killer Control Center Before you can use the full feature of Killer Lan, please follow the instructions below to install the Killer Control Center. Run Killer Wireless Network Driver, click “Next” when the following dialog box displays.
  • Page 18 ZOTAC ZBOX Click “Install” to begin the installation. (Please make sure that the network is connected before the installation) Check √ before “Download Killer Control Center”, and click “Finish”.
  • Page 19 ZOTAC ZBOX Click “Get” to download the Killer Control Center. When the installation is complete, click “Launch” to run the Killer Control Center.
  • Page 20 ZOTAC ZBOX Killer Control Center displays as below.

  • Page 21: Using Your Zotac Zbox

    Configuring audio output Follow the steps below to enable audio output when connecting the ZOTAC ZBOX to a TV or receiver via DP/HDMI adapter. Click the audio icon in the notification area.

  • Page 22: Creating A Raid Set

    ZOTAC ZBOX Creating a RAID set Setting your computer, then press <Delete> to enter BIOS SETUP UTILITY. Use the arrow key to select FEATURES menu, and select the item VMD setup menu.
  • Page 23 ZOTAC ZBOX Change the item Enable VMD controller to Enabled, and press F10 to save the configuration and reset.
  • Page 24 ZOTAC ZBOX Use the arrow key to select FEATURES menu, enter Intel(R) Rapid Storage Technology. Select Create RAID Volume> RAID Level> RAID0 (Stripe) or RAID1 (Mirror).
  • Page 25 ZOTAC ZBOX Select Disks, and enter the space bar.
  • Page 26 ZOTAC ZBOX Enter Create Volume, you will see the status of RAID Volumes. Press F10 to save the configuration and reset.
  • Page 27 ZOTAC ZBOX Install your Windows system, and select Load driver when the following screen appears.
  • Page 28 ZOTAC ZBOX Click Browse, and select the right fold.
  • Page 29 ZOTAC ZBOX 10. Select the driver to install.
  • Page 30 ZOTAC ZBOX 11. When the Windows installation is finished, the SATA RAID is created.
