Tip: To Prevent The Wire Harness (86) From - Pro-Form 280 RAZOR PFEVEL73008.0 User Manual

3. Tip: Avoid pinching the Wire Harness (86).
Start all screws before tightening any of
them.
Have another person hold the Upright (2) near
the Frame (1).
Locate the wire tie in the Upright (2). Tie the
lower end of the wire tie to the Wire Harness
(86). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie.

Tip: To prevent the Wire Harness (86) from

falling inside the Upright (2), secure the Wire
Harness with a rubber band.

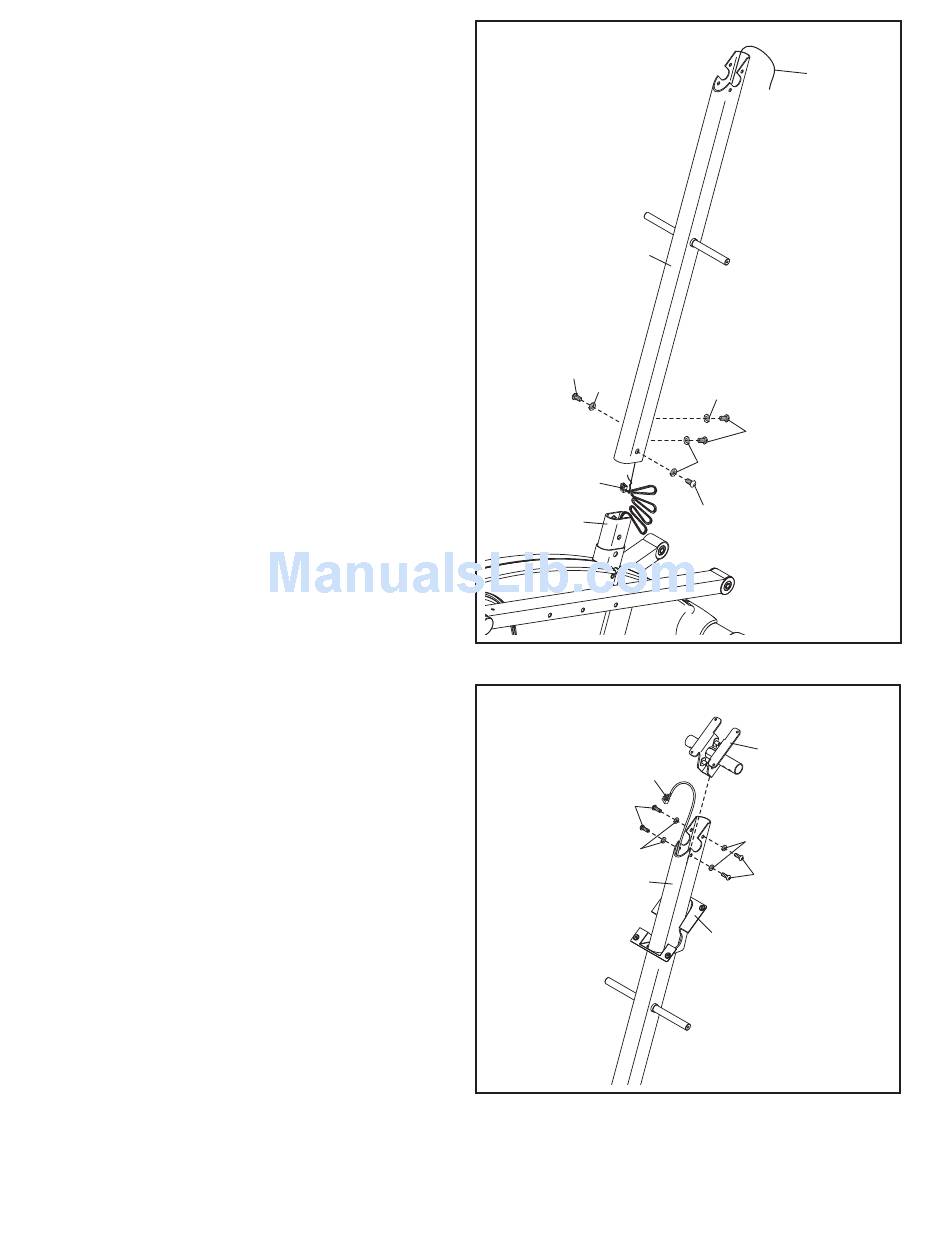

Attach the Upright (2) to the Frame (1) with four
M10 x 20mm Button Screws (79) and four M10
Split Washers (78). Do not tighten the Button
Screws yet.
4. Slide the Console Cover (96) onto the Upright
(2) and move it downward.
Then, insert the Console Bracket (3) into the top
of the Upright (2).
Tip: Avoid pinching the Wire Harness (86).
Attach the Console Bracket (3) with four M6 x
18mm Patch Screws (102) and four M6 Split
Washers (101).
3
Avoid pinching the
Wire Harness (86)
2
79
78
86
1
4
86
102
101
2
7
Wire Tie
78
79
78
79
3
101
102
96
Avoid pinching the
Wire Harness (86)
