ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

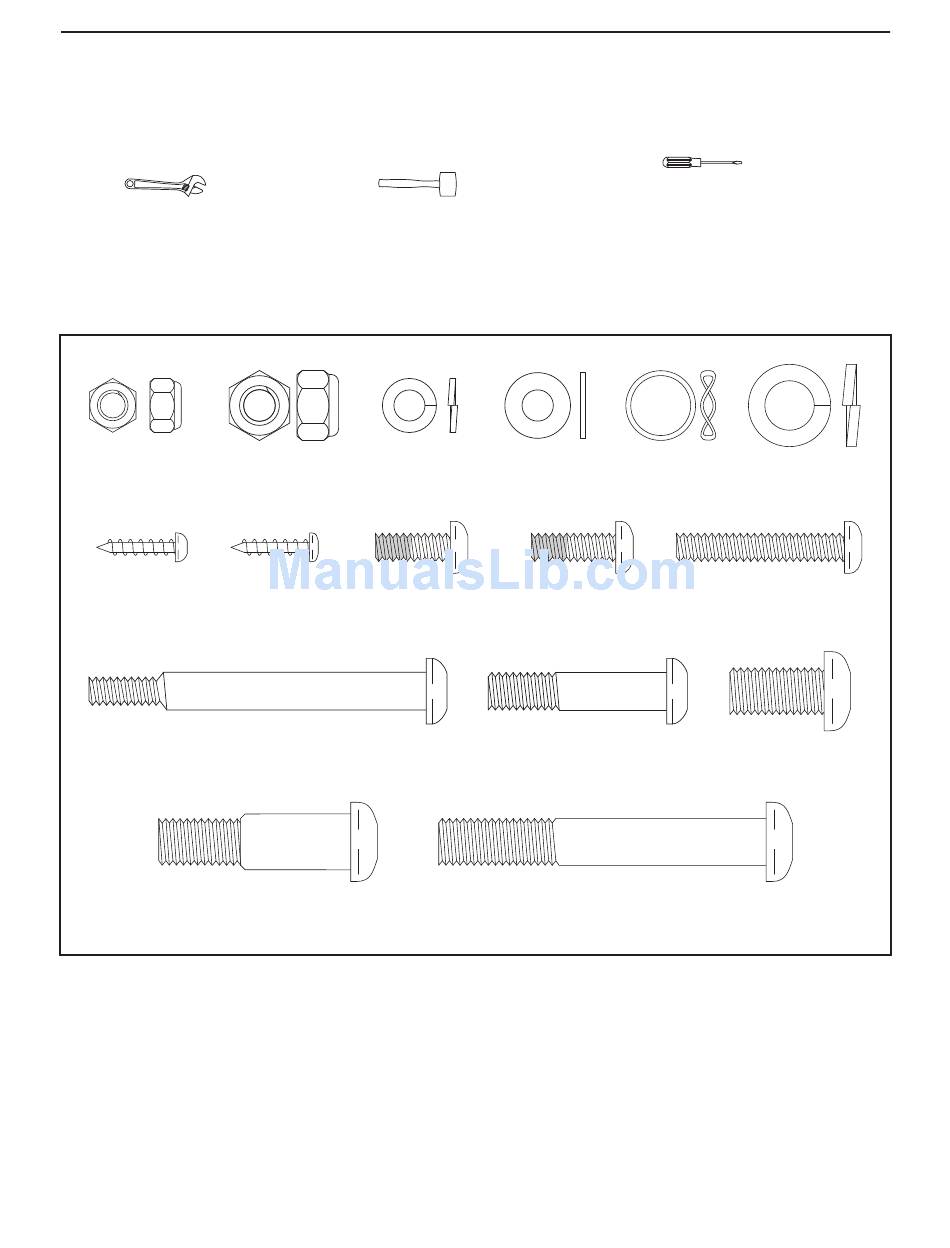

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled. To
avoid damaging plastic parts, do not use power tools for assembly.
M6 Locknut M8 Locknut M6 Split Washer M6 Washer Wave Washer M10 Split
(77)–6 (82)–4 (88)–2 Washer (78)–10
(101)–4 (35)–4
M4 x 16mm M4 x 16mm M6 x 16mm Patch M6 x 18mm Patch M6 x 36mm Button
Round Head Screw (94)–14 Screw (80)–2 Screw (102)–4 Bolt (76)–4
Screw (84)–10
M6 x 72mm Shoulder M8 x 38mm Button M10 x 20mm Button
Bolt (21)–2 Bolt (98)–4 Screw (79)–4
M10 x 41mm Shoulder M10 x 70mm Button Screw (75)–6
Screw (63)–2
5
