Page 1: Operating Instructions

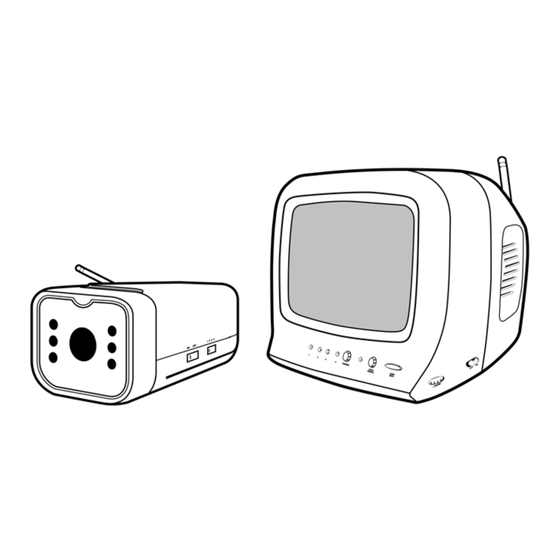

2.4 GHz WIRELESS VIDEO SECURITY SYSTEM Before operating the unit, please read this manual thoroughly This product broadcasts over public airwaves and its video and audio signals may be intercepted without your consent. OPERATING INSTRUCTIONS Rev 05/01-1... -
Page 2: Camera
SPECIFICATIONS WIRELESS CAMERA FCC CLASS B NOTICE Image sensor CMOS Lens 3.6mm 320X240 (B&W) Picture Elements Note: 2:1 interlace Scanning system This equipment has been tested and found to comply with the limits For a Class B 15.734 KHz(H) 59.94Hz (V) Scanning frequency digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Monitor
SYSTEM INCLUDES System includes 1- Wireless Camera with camera stand CAUTION 1- 5” Monitor RISK OF ELECTRIC SHOCK. DO NOT OPEN. 2- AC Adapters --12 V DC 500mA Adapter (Camera) CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE --13.8 V DC 1000mA Adapter (Monitor) COVER (OR BACK). -
Page 4: Camera
TROUBLE SHOOTING SAFETY INSTRUCTIONS If the system does not function properly, check the following points. IMPORTANT SAFEGUARDS Causes and remedies Problems All the safety and operating instructions should be read before the Camera Monitor appliance is operated and retained for future reference. No power - AC adapter not plugged in - AC adapter not plugged... -
Page 5: Monitor
OPTIONAL ACCESSORIES 7. DAMAGE REQUIRING SERVICE - Unplug this product from the wall outlet The following optional accessories are available to add to your existing system and refer servicing or repairs to qualified service personnel under the following conditions： Accessory Camera - Used to view other camera locations a. -
Page 6: Table Of Contents
OPERATION USING SYSTEM WITH MORE THAN ONE CAMERA CHAPTER TABLE OF CONTENTS PAGE Monitor 1. CONTROLS AND FUNCTIONS CAMERA……...........………………....5 MONITOR..………………........…………..………6 2. INSTALLATION CAMERA............………………...…7 MONITOR......………………..……………..……..8 3. OPERATION USING STSTEM WITH MORE THAN ONE CAMERA………..…...….9 AC Adapter RCA CABLES AUTO SCANNING……………………………….…..…………………9 AUTO/MANUAL VIEWING OPTIONS………….………………………..10 SELECTABLE DWELL SETTING…………………………………………10 USING SYSTEM WITH MORE THAN ONE CAMERA………………..11 Connections... -
Page 7: Selectable Dwell Setting
MULTIPLE CHANNEL OPERATION CONTROLS AND FUNCTIONS CAMERA AUTO AND MANUAL VIEWING OPTIONS FRONT VIEW SIDE VIEW This system is preset to Manual mode, with a dwell mode of 2 seconds. In Auto mode, the LED light will be ON. To manually view a specific camera location, press the Auto/Manual button. -
Page 8: Using System With More Than One Camera
CONTROLS AND FUNCTIONS MULTIPLE CHANNEL OPERATION USING SYSTEM WITH MORE THAN ONE CAMERA MONITOR This video security system allows you to view up to four different camera MONITOR FRONT VIEW MONITOR BACK VIEW locations. When connecting more than one camera to the monitor/camera system, you will need to set each camera to a different channel (Channels 1-4). - Page 9 INSTALLATION INSTALLATION MONITOR CAMERA INSTALLATION 13.8V 1.0 A AC Adapter DC INPUT Jack 1.Connect the supplied AC adapter to the DC INPUT JACK at the rear of the receiver monitor and plug it into the 120V electrical outlet. NOTE Ensure the power switch on the monitor and camera are set to the OFF position before proceed following steps.
