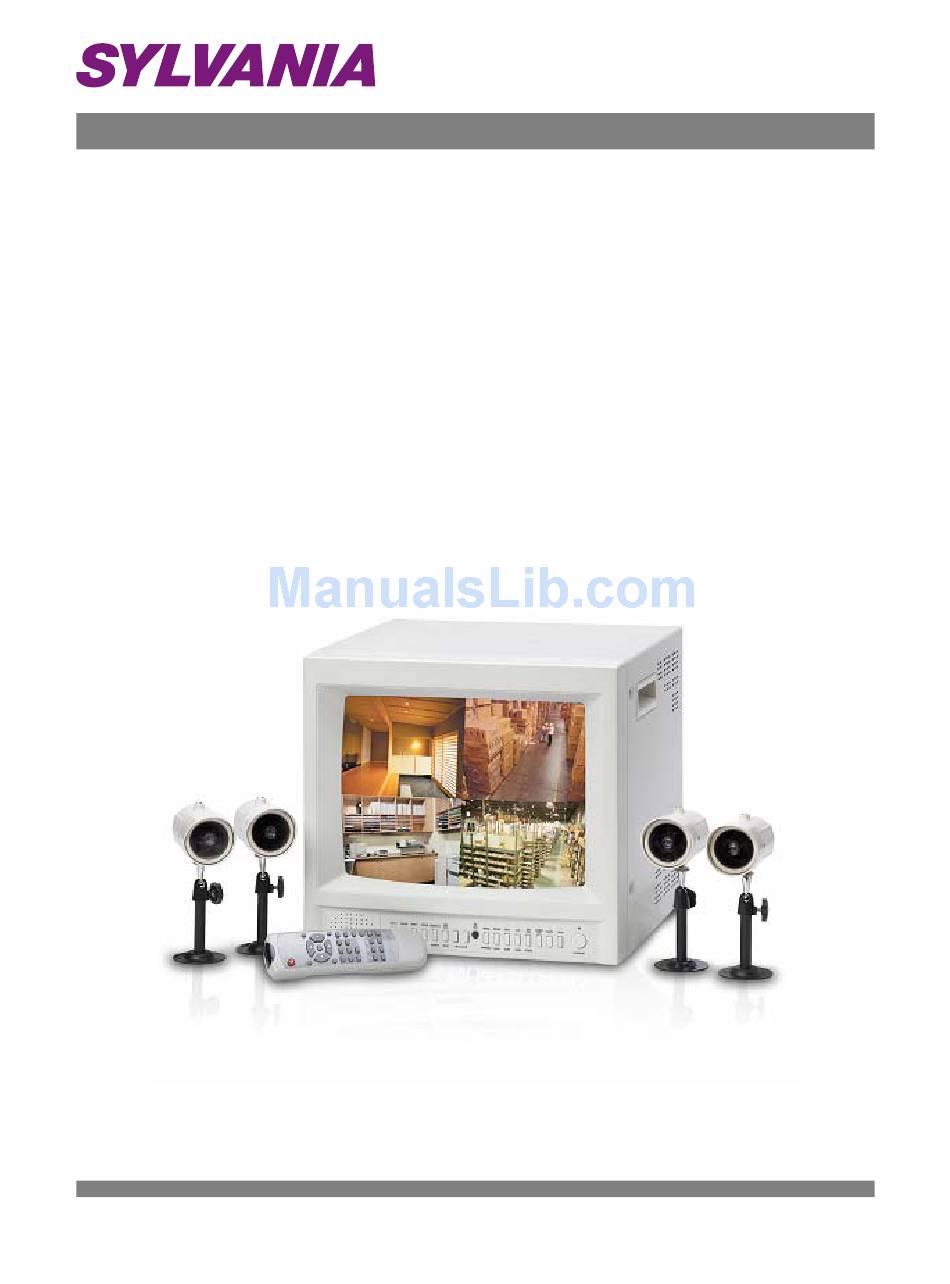

- Page 1 MODEL: SY14Q6084CN IP ENABLED 14” 2 PAGE / 8-CHANNEL COLOR QUAD OBSERVATION SYSTEM WITH 4 CAMERAS Instruction Manual English Version 1.0 Copyright © 2006 Strategic Vista International Inc...
- Page 2 Thank you for purchasing the IP enabled 14” 2 Page/ 8 Channel Color Quad Observation system. Sylvania is committed to providing our customers with a high quality, reliable security product that customers have come to expect from us. The IP enabled Observation system allows you to make an ethernet LAN connection from the monitor to a computer for internet monitoring.
- Page 3 NOTE This equipment has been certified and found to comply with the limits regulated by FCC, EMC and LVD. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that user follows this manual's guidelines to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard or injury.
-
Page 4: Table Of Contents
CONTENTS GENERAL PRECAUTIONS .................1 CAUTIONS AND FEATURES ................2 Features SYSTEM INCLUDES ...................3 MONITOR CONTROLS – FRONT PANEL ............4 MAIN MENU CONTROL ..................7 PAN/TILT ZOOM....................9 MONITOR CONTROLS BACK PANEL..............10 REMOTE CONTROL ..................11 STANDARD WIRED CAMERA ................12 MONITOR CONNECTIONS................13 TROUBLESHOOTING ..................14 TECHNICAL SPECIFICATIONS ................15 OPTIONAL ACCESSORIES ................16 APPENDIX A –... -
Page 5: General Precautions
GENERAL PRECAUTIONS 1. Read Instructions: All of the safety and operating 15. Servicing: Do not attempt to service this product instructions should be read and understood before yourself as opening or removing covers may expose the product is used. you to voltage or other hazards. Refer all servicing to qualified service personnel 2. -
Page 6: Cautions And Features
CAUTIONS AND FEATURES All the warnings and instructions of this manual should be followed Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use water damped cloth for cleaning Do not use this unit in very humid and wet places Keep enough space around the unit for ventilation. -
Page 7: System Includes
SYSTEM INCLUDES AUDIO CH1/5 CH2/6 CH3/7 CH4/8 QUAD1/2 MENU ZOOM MUTE TALK ENTER ALRS VOLUME PAN/TILT MAIN SUB1 SUB2 P-SEQ STANDBY 14” COLOR 2 PAGE / 8 CHANNEL 4 – 1/3” CMOS COLOR QUAD MONITOR CAMERAS, STAND AND 57 FT CABLE ALSO INCLUDES, IP SOFTWARE &... -
Page 8: Monitor Controls - Front Panel
MONITOR CONTROLS – FRONT PANEL 6 7 8 10 11 12 Channel 1/5 – Channel 4/8 - These buttons perform the following functions: Displays a picture in Full Screen. If you are in the Quad1 mode, select the Channel 1/5 button and hold for 2-3 seconds to view Camera 1 in Full Screen. - Page 9 Menu / (Pan/Tilt) - This button serves 2 functions: Menu – Press this button to enter the menu option screen. For more information on Menu mode, please refer to MAIN MENU CONTROL section. Pan/Tilt – This button activates the Pan/Tilt feature. For more information on the Pan/Tilt Zoom feature please refer to MAIN MENU CONTROL section.
- Page 10 SINGLE PIP DUAL PIP Main - Pressing the Main button while viewing PIP/Dual PIP/POP mode will change the camera location of the main screen being displayed. Sub1 & Sub2 - Pressing the Sub1/Sub2 buttons in PIP mode changes one of the two camera locations being displayed as a picture in picture. These buttons will also remove /add a sub-picture to create a Single PIP / Dual PIP viewing mode.
-
Page 11: Main Menu Control
MAIN MENU CONTROL Enter the Menu screen by pressing the Menu button. Scroll through the eight options by pressing the UP and DOWN buttons. To enter a sub-menu, press the Enter button where the highlighted scroll bar is located. To exit the Main Menu, scroll down to the Exit option and press Enter. Note: in submenus of the Main Menu, you can either exit Menu mode entirely by selecting Exit, or you can return to the Main Menu by selecting Return. - Page 12 POP POSITION: There are two different viewing options for POP display. Title Set – This submenu allows you to change the title of each camera location (up to 8 characters), or remove the titles from the on-screen display. DISPLAY: Selecting [Y] will enable the camera titles to appear in the on- screen display.
-
Page 13: Pan/Tilt Zoom
PAN/TILT ZOOM The monitor is equipped with a built-in Pan/Tilt Zoom feature, which is only available when used in conjunction with a compatible Sylvania Pan/Tilt Zoom (Zoom optional) Dome camera. (model SG7380) Please refer to www.sylvaniasecurity.com for more information on the available accessories (sold separately). -
Page 14: Monitor Controls Back Panel
MONITOR CONTROLS BACK PANEL Power Switch – This button controls power to the entire unit. Depress the side with the ”•” to turn power ON. Depress the other side to turn the unit OFF Ethernet Input – Connect the LAN cable for IP enablement to a computer (see the Software CD and Quick Start Guide for further instructions) RCA Audio inputs - Channel 1-8 Audio inputs.(for cameras with standard RCA Audio output) -
Page 15: Remote Control
REMOTE CONTROL Features of the Remote Control. For more details on specific remote control features, refer to the Monitor features FUNCTION DESCRIPTION Turns Power to unit On/Off. Cuts off the sound from the MUTE camera. Selects the Audio channel in AUDIO SEL Quad mode UP / DOWN arrow keys, used... -
Page 16: Standard Wired Camera
STANDARD WIRED CAMERA Camera Lens Speaker – Delivers sound from the monitor to the camera Camera Output – Connect cable to monitor Bracket – Metal bracket connects to camera for mounting to walls, ceilings or table Microphone – Picks up sound around the camera INSTALLATION A. -
Page 17: Monitor Connections
MONITOR CONNECTIONS (DIN Camera) VIDEO AUDIO DC12V BNC CAMERA Camera 1 Input Connect one end of the supplied 65ft cable to the first wired camera, the other end to camera Input 1 of the monitor Camera 2 – 8 Inputs Connect optional additional cameras to the camera 2-8 inputs using either the DIN or BNC camera inputs - 13 -... -
Page 18: Troubleshooting
TROUBLESHOOTING If the system does not function properly, please check the following points. PROBLEM REMEDY MONITOR Too dark or too bright picture Readjust the CONTRAST or BRIGHTNESS controls NO POWER Check for AC connection NO POWER Poor picture quality Clean the camera lens. Readjust the CONTRAST or BRIGHTNESS controls Picture but no sound... -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS MONITOR Picture Tube 14 “ Color Horizon Resolution 380 TV lines at center Camera Capable Up to 8 (8 DIN / BNC) Quad Speed 30 fps Alarm Inputs/Outputs 8 / 2 Input Signal 1V p-p 75 Ω terminated Power Source Voltage (AC 120V) 32 °F –... -
Page 20: Optional Accessories
OPTIONAL ACCESSORIES CABLE TIME LAPSE VCR Extends viewing length from Used to record key events. Used to record key events. Camera to monitor. Available Select From a 40 hour real Converts analog video into digital In 65, 100 and 250 ft lengths time or 1280 Hour time lapse format and records it on a hard disk. -
Page 21: Appendix A - Connecting To A Standard Vcr
APPENDIX A – CONNECTING TO A STANDARD VCR PLEASE SEE THE DIAGRAM BELOW FOR CONNECTING YOUR VCR TO THE MONITOR. Ensure the Standard VCR’s channel is set to A/V Mode in order to ensure reception. NOTE Consult your VCR’s Owners Manual to set the VCR to this setting. To record the video signal from the monitor use the VCR Audio/Video out terminals. -
Page 22: Appendix B - Connecting The Monitor To A Dvr
APPENDIX B – CONNECTING THE MONITOR TO A DVR PLEASE SEE THE DIAGRAM BELOW FOR CONNECTING YOUR DVR TO THE MONITOR FOR RECORDING PURPOSES Back of Monitor When recording to a Digital Video Recorder, the DVR may indicate a Video Loss as NOTE the monitor sequences between channels. -
Page 23: Appendix C - Connecting To A Slave Monitor
APPENDIX C – CONNECTING TO A SLAVE MONITOR Connections to another monitor (i.e. Slave Monitor) can be made through “SLAVE OUT” as shown in the diagram below. MONITOR MONITOR - 19 -... -
Page 24: Appendix D - Typical Configuration For Complete System
APPENDIX D – TYPICAL CONFIGURATION FOR COMPLETE SYSTEM COMPUTER ETHERNET SENSOR CAMERA MONITOR - 20 -... -
Page 25: Appendix E - Connecting To A Time Lapse Vcr For Alarm Recording
APPENDIX E – CONNECTING TO A TIME LAPSE VCR FOR ALARM RECORDING - 21 -... -
Page 26: Appendix F - Connecting To A Single Channel Digital Video Recorder For Alarm Recording
APPENDIX F – CONNECTING TO A SINGLE CHANNEL DIGITAL VIDEO RECORDER FOR ALARM RECORDING Alarm Block Back of Monitor Alarm Terminals - 22 -... -
Page 27: Appendix G - Connecting To A 4 Channel Dvr For Alarm Recording
APPENDIX G – CONNECTING TO A 4 CHANNEL DVR FOR ALARM RECORDING DVR – L154 +CH1 +CH1 - CH1 BNC Male to Male BNC Male to Male connecting cable. connecting cable. Observation Camera SG7257 - 23 -... -
Page 28: Care And Maintenance
CARE AND MAINTENANCE Please follow these instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices. - Page 29 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Firmware Upgrades Quick Start Guides VISIT www.sylvaniasecurity.com www.sylvaniasecurity.com Strategic Vista International Inc.
