Oregon Scientific Action Cam ATC5K Owner's Manual

Oregon scientific action camera owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ATC5K_manual-US0710.qxd
8/18/08
5:40 PM
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Oregon Scientific Action Cam ATC5K

Summary of Contents for Oregon Scientific Action Cam ATC5K

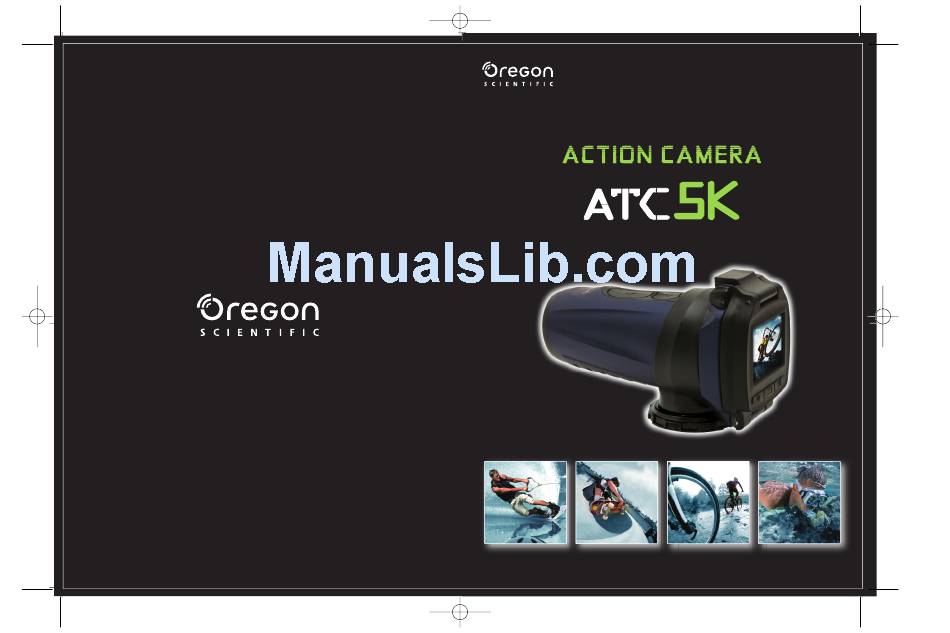

  • Page 1 ATC5K_manual-US0710.qxd 8/18/08 5:40 PM Page 1...

  • Page 2: Table Of Contents

    Review the following pages for technical information, tips and troubleshooting which will allow you to maximize your experience with the ATC5K. PLAY HARD, RECORD EVERYTHING. OREGON SCIENTIFIC and associated trademarks and trade dress are owned by OREGON SCIENTIFIC, Inc. © 2008 OREGON SCIENTIFIC, Inc. All Rights Reserved. Page 2 I .

  • Page 3: Turning On/Off The Camera

    Waterproof Feature The ATC5K camera is waterproof up to 3m (10ft). Oregon Scientific will not assume any responsibility for camera malfunction caused by liquid entering the camera as a result of misuse by the user.
  • Page 4 ATC5K_manual-US0710.qxd 8/18/08 5:40 PM III) Technical Specifications • Sensor resolution 640x480 VGA CMOS sensor • Built-in memory 32MB • SD memory card drive supports cards of up to 4GB (not included) • Movie storage: 640 x 480 pixels (30* frames per second) 320 x 240 pixels (30* frames per second) •...

  • Page 5: Battery Installation

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM VI) Camera Mounting Description The camera can be mounted in a number of ways using the straps and the velcro patch provided. Please follow the methods of mounting as suggested below: Fixing the position of the camera a) With the base of the camera facing you, turn the clip clockwise to tighten its position.
  • Page 6 ATC5K_manual-US0710.qxd 8/18/08 5:40 PM Remote Control Battery Installation The battery compartment is located on the underside of the controller. Use a coin to twist the cap lock anti-clockwise then lift the cover off. Insert the battery ensuring the negative polarity direction is placed on the metal prong. Replace the cover and use a coin to screw it clockwise ensuring it is firmly closed.

  • Page 7: Menu Settings

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM VIII) Menu Settings 1. Press and hold the Menu button for 2 seconds (one beeping sound) to start selecting options.The menu icons will be shown on the LCD screen. Please refer to the table below for the icon details. 2.

  • Page 8: Resolution

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM Playback on LCD Press the Menu button , the first icon is the button to enter this menu mode or press Menu next mode, Resolution This mode allows the user to review files stored in the memory. Press "Menu"...

  • Page 9: Deleting Individual Files

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM Setting the Date When adjusting the date, “DD” will be shown. Press the “Menu button” adjust the date. Press the 'Confirm' button to verify, after which you would be able to proceed to setting the time. Setting the Time Press the “Menu button”...

  • Page 10: Webcam Installation

    This hardware has not passed Windows Logo testing. Users may install the webcam feature but do so at their own risk. By installing the webcam feature users indemnify Oregon Scientific from any software, hardware or virus problems caused as a result of installation.
  • Page 11 ATC5K_manual-US0710.qxd 8/18/08 5:40 PM 6. Select WinVista_32bit then click “OK”. 7. Ensure the path name is correct then click “Next”. 8. When the Windows Security pop up window appears click “Install this software anyway” to continue installing. 9. Congratulations the device is successfully installed. Page 11 Webcam Installation Guide on Windows XP Note: Before installing the software please ensure the CD is in the CD drive.
  • Page 12 Logo Testing to verify its compatibility with Windows XP. Click “Continue Anyway”. Page 12 7. Your OS Digital Camera is now installed, click “Finish” and wait for the next pop up window. 8. The pop up window should be the same as in step 1. Please follow steps 1-9 again.
  • Page 13 5. Select Win2000 from the CD drive then select the icon named “OSUsb” before clicking “Open”. 6. Ensure the path name is correct then click “OK”. 7. Select “OS Digital Camera” then click “Next”. 8. When the next window appears click “Next”.

  • Page 14: Webcam / Usb Mode

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM 9. At this window click the “Yes” button. 10. Your hardware is now installed. Click “Finish”. 11. Once you click “Finish” the Video Capture Device will begin installing. Repeat the above steps until that has been installed. 12.

  • Page 15: Playing Back Video Footage On A Tv

    ATC5K_manual-US0710.qxd 8/18/08 5:40 PM 6. Open the “100ATC5K” folder in the [DCIM] folder to start selecting your desired video files. Copy the desired video to your MAC. 7. While in either mode, to change to the other, users must disconnect from their MAC and reconnect going through the entire selection procedure again.
  • Page 16 1-800-853-8883. Our service representatives will be happy to help you. Please note that the Technical Support Team cannot issue or authorize any RMA's or replacements. For an RMA or replacement please contact our Customer Service Department. Oregon Scientific, Inc. 19861 SW 95th Avenue Tualatin, OR 97062, USA Hotline: 1-800-853-8883 Website: www2.oregonscientific.com...
