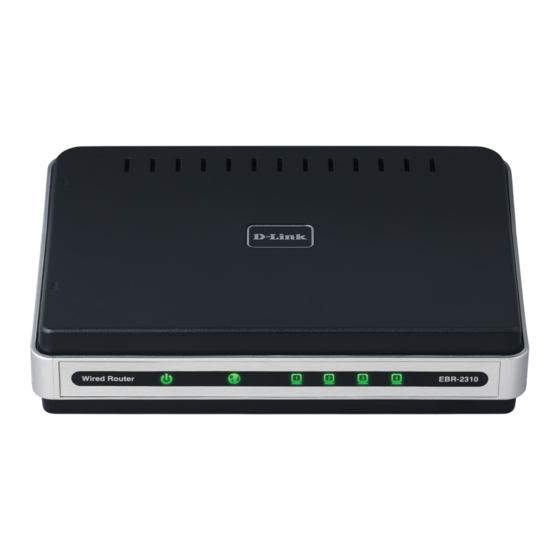

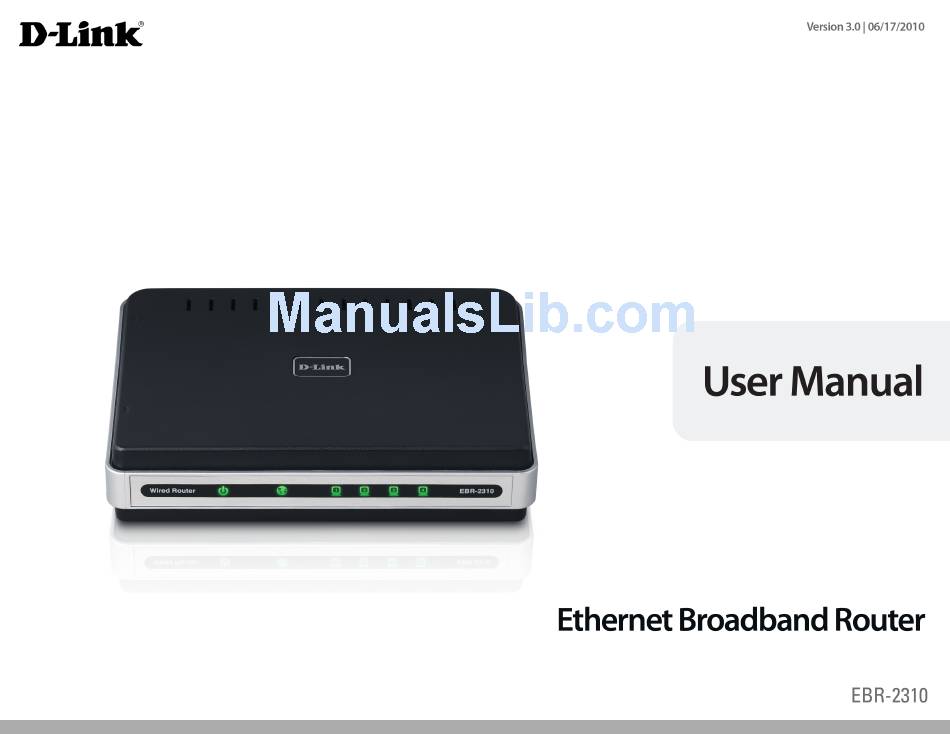

D-Link EBR-2310 User Manual

Ethernet broadband router
Hide thumbs Also See for EBR-2310:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for D-Link EBR-2310

Summary of Contents for D-Link EBR-2310

  • Page 2: Table Of Contents

    Internet Setup ..........19 Static IPv6 (Stateful) ........43 Static (assigned by ISP) ......19 Static IPv6 (Stateless) ........ 44 Manual Configuration ........20 DHCPv6 (Stateful) ........45 Dynamic (Cable) ........20 DHCPv6 (Stateless) ........46 D-Link EBR-2310 User Manual...
  • Page 3 Troubleshooting ............70 Assigning a Static IP Address........ 74 Adding and Sharing Printers in Windows XP ..77 ® Adding a local printer ........77 Sharing a Network Printer ........83 Sharing an LPR Printer .......... 87 D-Link EBR-2310 User Manual...

  • Page 4: Product Overview

    Section 1 - Product Overview Product Overview Package Contents EBR-2310 Ethernet Broadband Router Power Adapter CAT5 Ethernet Cable CD with drivers and software If any of the above items are missing, please contact your reseller. System Requirements • Ethernet-based Cable or DSL Modem •...

  • Page 5: Introduction

    , and can be integrated into an existing ® network. This Manual is designed to help you connect the D-Link Express EtherNetwork EBR-2310 to a high speed Internet connection and 4 Ethernet PC connections. This manual provides a quick introduction to Broadband Router Technology, Firewalls, and Local Area Networking. Please take a moment to read through this manual and get acquainted these various technologies.

  • Page 6: Features

    • Ethernet Switch - Allows you to quickly and easily share an Internet connection with multiple computers and devices. • VPN supported - Supports multiple and concurrent IPSec and PPTP pass-through sessions, so multiple users behind the EBR-2310 can access corporate networks through various VPN clients more securely.

  • Page 7: Hardware Overview

    Power indicator will light Green. Internet The Internet status indicator will light Green when there is a good physical Internet connection. LAN Link/Act Link status indicators light Green. The LED flickers when the corresponding port is sending or receiving data. D-Link EBR-2310 User Manual...

  • Page 8: Rear Panel

    Connect one end of your included power adapter to the power port and the other end into your power outlet. Reset Used to restore the EBR-2310 back to factory default settings. *All ports (both LAN & Internet) are Auto-MDIX. All ports auto-sense cable types to accommodate Straight-through or Cross-over cable.

  • Page 9: Technology Introduction

    A firewall can also run specific security functions based on the type of application or type of port that is being used. For example, a firewall can be configured to work with an FTP or Telnet server. Or a firewall can be configured to work with specific UDP or TCP ports to allow certain applications or games to work properly over the Internet. D-Link EBR-2310 User Manual...

  • Page 10: Introduction To Local Area Networking

    Leave the device powered on, do not disconnect the power Press the reset button and hold (use a paper-clip) Keep the button pressed about 10 seconds Release the button The EBR-2310 will then automatically reboot itself. D-Link EBR-2310 User Manual...

  • Page 11: Installation

    2. Configure your computers to obtain TCP/IP settings automatically from the DHCP server feature of the EBR-2310 Since the IP address of the EBR-2310 is 192.168.0.1, the IP address of your computer must be 192.168.0.X (where “X” is a number between 2 and 254). Each computer on your network must have a different IP address within that range.

  • Page 12: Getting Started

    Section 2 - Installation Getting Started The EBR-2310 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems.

  • Page 13: Configuration

    Log in Open your web browser and type in the IP address of the EBR-2310 into the Location (for Netscape) or Address (for IE) field and press “Enter. ” The default IP address of the EBR-2310 is 192.168.0.1. You may also use http://dlinkrouter/.

  • Page 14: Setup Wizard

    Section 3 - Configuration Setup Wizard You may run the setup wizard to quickly setup your router. Click Internet Connection Setup Wizard to launch the wizard. Click Next to continue. D-Link EBR-2310 User Manual...
  • Page 15 Create a new password and then click Next to continue. Select your time zone from the drop-down menu and then click Next to continue. Select the type of Internet connection you use and then click Next to continue. D-Link EBR-2310 User Manual...
  • Page 16 Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router. D-Link EBR-2310 User Manual...
  • Page 17 Section 3 - Configuration If you selected PPTP, enter your PPTP username and password. Click Next to continue. If you selected L2TP, enter your L2TP username and password. Click Next to continue. D-Link EBR-2310 User Manual...
  • Page 18 Click Connect to save your settings. Once the router is finished rebooting, click Continue. Please allow 1-2 minutes to connect. Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet. D-Link EBR-2310 User Manual...

  • Page 19: Internet Setup

    MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Link EBR-2310 User Manual...

  • Page 20: Manual Configuration

    Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Link EBR-2310 User Manual...

  • Page 21: Internet Setup

    MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Link EBR-2310 User Manual...

  • Page 22: Pptp

    Enter a maximum idle time during which the Internet connection Time: is maintained during inactivity. To disable this feature, enable Auto-reconnect. DNS Servers: The DNS server information will be supplied by your ISP (Internet Service Provider). D-Link EBR-2310 User Manual...
  • Page 23 MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Link EBR-2310 User Manual...

  • Page 24: L2Tp

    DNS Servers: Enter the Primary and Secondary DNS Server Addresses (Static L2TP only). Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your specific ISP. 1400 is the default MTU. D-Link EBR-2310 User Manual...
  • Page 25 MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Link EBR-2310 User Manual...

  • Page 26: Network Settings

    Local Domain: Enter the Domain name (Optional). Enable DNS Relay: Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server. D-Link EBR-2310 User Manual...

  • Page 27: Dhcp Server Settings

    DHCP Server Settings DHCP stands for Dynamic Host Control Protocol. The EBR-2310 has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.

  • Page 28: Virtual Server

    Section 3 - Configuration Virtual Server The EBR-2310 can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
  • Page 29 The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. D-Link EBR-2310 User Manual...

  • Page 30: Port Forwarding

    The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. D-Link EBR-2310 User Manual...

  • Page 31: Application Rules

    TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic. The EBR-2310 provides some predefined applications in the table on the bottom of the web page. Select the application you want to use and enable it.

  • Page 32: Qos Engine

    ISP. This is determined by your ISP. ISP’s offer speed as a download/upload pair. For example, 1.5Mbits/284Kbits. Using this example, you would enter 284. Alternatively you can test your uplink speed with a service such as www.dslreports.com. D-Link EBR-2310 User Manual...

  • Page 33: Access Control

    P2P utilities or games. Add Policy: Click the Add Policy button to start the Access Control Wizard. Access Control Wizard Click Next to continue with the wizard. D-Link EBR-2310 User Manual...
  • Page 34 Enter the following information and then click Next to continue. • Address Type - Select IP address, MAC address, or Other Machines. • IP Address - Enter the IP address of the computer you want to apply the rule to. D-Link EBR-2310 User Manual...
  • Page 35 Protocol - Select the protocol. Dest Port Start - Enter the starting port number. Dest Port End - Enter the ending port number. To enable web logging, click Enable. Click Save to save the access control rule. D-Link EBR-2310 User Manual...

  • Page 36: Website Filters

    Clear the List Below. Website URL/ Enter the keywords or URLs that you want to block (or allow). Any URL Domain: with the keyword in it will be blocked. Note: https sites are not supported. D-Link EBR-2310 User Manual...

  • Page 37: Inbound Filter

    Inbound Filter This section will list any rules that are created. You Rules List: may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule. D-Link EBR-2310 User Manual...

  • Page 38: Firewall Settings

    Firewall Settings A firewall protects your network from the outside world. The D-Link EBR-2310 offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you cam enable DMZ.

  • Page 39: Application Level Gateway (Alg) Configuration

    Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG off. D-Link EBR-2310 User Manual...

  • Page 40: Routing

    A value 1 is the lowest cost and 15 is the highest cost. Interface: Select the interface that the IP packet must use to transit out of the router when this route is used. D-Link EBR-2310 User Manual...

  • Page 41: Advanced Network Settings

    UPNP provides compatibility with networking equipment, software and peripherals. WAN Ping: Unchecking the box will not allow the EBR-2310 to respond to pings. Blocking the Ping may provide some extra security from hackers. Check the box to allow the Internet port to be “pinged”.

  • Page 42: Ipv6

    Section 3 - Configuration IPv6 Link-Local Connectivity My IPv6 Connection: Select Link-Local Only from the drop-down menu. LAN IPv6 Address Displays the IPv6 address of the router. Settings: D-Link EBR-2310 User Manual...

  • Page 43: Static Ipv6 (Stateful)

    Enter the start IPv6 Address for the DHCPv6 Start: range for your local computers. IPv6 Address Range Enter the end IPv6 Address for the DHCPv6 End: range for your local computers. IPv6 Address Enter the IPv6 Address Lifetime (in minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 44: Static Ipv6 (Stateless)

    Displays the Router’s LAN Link-Local Address. Address: Enable Check to enable the Autoconfiguration feature. Autoconfiguration: Autoconfiguration Select Stateless. Refer to the previous page Type: for Stateful. Router Enter the Router Advertisement Lifetime (in Advertisement minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 45: Dhcpv6 (Stateful)

    Enter the start IPv6 Address for the DHCPv6 Start: range for your local computers. IPv6 Address Range Enter the end IPv6 Address for the DHCPv6 range End: for your local computers. IPv6 Address Enter the IPv6 Address Lifetime (in minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 46: Dhcpv6 (Stateless)

    Displays the Router’s LAN Link-Local Address. Address: Enable Check to enable the Autoconfiguration feature. Autoconfiguration: Autoconfiguration Select Stateless. Refer to the previous page Type: for Stateful. Router Advertisement Enter the Router Advertisement Lifetime (in Lifetime: minutes). D-Link EBR-2310 User Manual...

  • Page 47: Ipv6 Over Pppoe (Stateful)

    DNS Address. Primary/Secondary DNS Enter the primary and secondary DNS server addresses. Address: LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router. LAN Link-Local Address: Displays the Router’s LAN Link-Local Address. D-Link EBR-2310 User Manual...
  • Page 48 Enter the start IPv6 Address for the DHCPv6 range for your local computers. IPv6 Address Range End: Enter the end IPv6 Address for the DHCPv6 range for your local computers. IPv6 Address Lifetime: Enter the IPv6 Address Lifetime (in minutes). D-Link EBR-2310 User Manual...

  • Page 49: Ipv6 Over Pppoe (Stateless)

    DNS Address. Primary/Secondary Enter the primary and secondary DNS server addresses. DNS Address: LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router. LAN Link-Local Displays the Router’s LAN Link-Local Address. Address: D-Link EBR-2310 User Manual...
  • Page 50 Section 3 - Configuration Enable Check to enable the Autoconfiguration feature. Autoconfiguration: Autoconfiguration Type: Select Stateful (DHCPv6) or Stateless. Router Advertisement Enter the Router Advertisement Lifetime (in minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 51: To 4 Tunneling (Stateful)

    Enter the start IPv6 Address for the DHCPv6 Start: range for your local computers. IPv6 Address Range Enter the end IPv6 Address for the DHCPv6 range End: for your local computers. IPv6 Address Enter the IPv6 Address Lifetime (in minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 52: To 4 Tunneling (Stateless)

    Displays the Router’s LAN Link-Local Address. Address: Enable Check to enable the Autoconfiguration feature. Autoconfiguration: Autoconfiguration Select Stateless. Refer to the previous page for Type: Stateful. Router Advertisement Enter the Router Advertisement Lifetime (in Lifetime: minutes). D-Link EBR-2310 User Manual...

  • Page 53: Ipv6 In Ipv4 Tunneling (Stateful)

    Displays the Router’s LAN Link-Local Address. Address: Enable Check to enable the Autoconfiguration feature. Autoconfiguration: Autoconfiguration Select Stateless. Refer to the previous page for Type: Stateful. Router Enter the Router Advertisement Lifetime (in Advertisement minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 54: Ipv6 In Ipv4 Tunneling (Stateless)

    Enter the start IPv6 Address for the DHCPv6 range Start: for your local computers. IPv6 Address Range Enter the end IPv6 Address for the DHCPv6 range End: for your local computers. IPv6 Address Enter the IPv6 Address Lifetime (in minutes). Lifetime: D-Link EBR-2310 User Manual...

  • Page 55: Administrator Settings

    (Internet) host. Remote Admin The port number used to access the EBR-2310. Port: Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of the EBR-2310 and 8080 is the port used for the Web Management interface. D-Link EBR-2310 User Manual...

  • Page 56: Time Settings

    To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Set Time. You can also click Copy Your Computer’s Time Settings. Copy Your Apply your computer’s date and time settings. Computer’s Time Settings: D-Link EBR-2310 User Manual...

  • Page 57: Syslog

    The address of the SysLog server that will be used to send the logs. Address: You may also select your computer from the drop-down menu (only if receiving an IP address from the router via DHCP). D-Link EBR-2310 User Manual...

  • Page 58: Email Settings

    Selecting this option will send the logs via e-mail according to schedule. Schedule: This option is enabled when On Schedule is selected. You can select a schedule from the list of defined schedules. To create a schedule, go to Tools > Schedules. D-Link EBR-2310 User Manual...

  • Page 59: System Settings

    Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router configuration settings, use the Save button above. Reboot Device: Click to reboot the router. D-Link EBR-2310 User Manual...

  • Page 60: Update Firmware

    You can upgrade the firmware of the Router here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support site for firmware updates at http://support.dlink.com. You can download firmware upgrades to your hard drive from the D-Link support site.

  • Page 61: Ddns

    Enter the Host Name that you registered with your DDNS service provider. Username or Enter the Username for your DDNS account. Key: Password or Enter the Password for your DDNS account. Key: Timeout: Enter a time (in hours). D-Link EBR-2310 User Manual...

  • Page 62: System Check

    The Ping Test is used to send Ping packets to test if a computer is on the Internet. Enter the IP Address that you wish to Ping, and click Ping. Ping Results: The results of your ping attempts will be displayed here. D-Link EBR-2310 User Manual...

  • Page 63: Schedules

    Click Save to save your schedule. You must click Save Settings at the top for your schedules to go into effect. Schedule Rules The list of schedules will be listed here. Click the Edit icon to make List: changes or click the Delete icon to remove the schedule. D-Link EBR-2310 User Manual...

  • Page 64: Device Information

    Device Information This page displays the current information for the EBR-2310. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.

  • Page 65: Log

    Refresh: Updates the log details on the screen so it displays any recent activity. Clear: Clears all of the log contents. Save Log: This option will save the router to a log file on your computer. D-Link EBR-2310 User Manual...

  • Page 66: Stats

    Section 3 - Configuration Stats The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the EBR-2310 on both the Internet and the LAN ports. The traffic counter will reset if the device is rebooted.

  • Page 67: Routing Table

    Section 3 - Configuration Routing Table This page displays the routing details configured for your router. D-Link EBR-2310 User Manual...

  • Page 68: Ipv6 Network Information

    Section 3 - Configuration IPv6 Network Information All of your IPv6 Internet and network connection details are displayed on this page. D-Link EBR-2310 User Manual...

  • Page 69: Support

    Section 3 - Configuration Support D-Link EBR-2310 User Manual...

  • Page 70: Troubleshooting

    1. Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
  • Page 71 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web •...
  • Page 72 NT, 2000, and XP users type in cmd) and press Enter (or click OK). • Windows ® ® • Once the window opens, you’ll need to do a special ping. Use the following syntax: ping [url] [-f] [-l] [MTU value] Example: ping yahoo.com -f -l 1472 D-Link EBR-2310 User Manual...
  • Page 73 • To change the MTU enter the number in the MTU field and click Save Settings to save your settings. • Test your e-mail. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Link EBR-2310 User Manual...

  • Page 74: Assigning A Static Ip Address

    If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: • Go to Start • Click on Control Panel • Double-click on Network Connections D-Link EBR-2310 User Manual...
  • Page 75 Appendix A - Assigning a Static IP Address • Right-click on Local Area Connections. • Left-click Properties • Highlight Internet Protocol (TCP/IP) • Click Properties • Select Use the following IP address in the Internet Protocol (TCP/IP) Properties window (shown below). D-Link EBR-2310 User Manual...
  • Page 76 • Input your DNS server addresses. Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway. The DNS server information will be provided by your ISP (Internet Service Provider). D-Link EBR-2310 User Manual...

  • Page 77: Adding And Sharing Printers In Windows Xp

    A printer that is not shared on the network and is connected directly to one computer is called a local printer. If you do not need to share your printer on a network, follow these directions to add the printer to one computer. • Go to Start> Printers and Faxes D-Link EBR-2310 User Manual...
  • Page 78 Appendix B - Adding and Sharing Printers in Windows ® • Click on Add a printer • Click Next D-Link EBR-2310 User Manual...
  • Page 79 • Click Next • Select Use the following port: • From the pull-down menu select the correct port for your printer (Most computers use the LPT1: port, as shown in the illustration). • Click Next D-Link EBR-2310 User Manual...
  • Page 80 • At this screen, you can change the name of the printer (optional). • Click Next • Select Yes, to print a test page. A successful printing will confirm that you have chosen the correct driver. • Click Next D-Link EBR-2310 User Manual...
  • Page 81 Appendix B - Adding and Sharing Printers in Windows ® This screen gives you information about your printer. (The printer will begin to print a test page) Click Finish When the test page has printed, Click OK D-Link EBR-2310 User Manual...
  • Page 82 Appendix B - Adding and Sharing Printers in Windows ® • Go to Start> Printers and Faxes A successful installation will display the printer icon as shown at right. You have successfully added a local printer. D-Link EBR-2310 User Manual...

  • Page 83: Sharing A Network Printer

    Add Printer Wizard on all the computers on your network. Please follow these directions to use the Add Printer Wizard to share a printer on your network: • Go to Start > • Printer and Faxes • Click on Add a Printer • Click Next D-Link EBR-2310 User Manual...
  • Page 84 Appendix C - Sharing a Network Printer • Select Network Printer • Click Next • Select Browse for a printer • Click Next • Select the printer you would like to share. • Click Next D-Link EBR-2310 User Manual...
  • Page 85 Appendix C - Sharing a Network Printer • Click Finish To check for proper installation: • Go to Start > Printers and Faxes D-Link EBR-2310 User Manual...
  • Page 86 • Run the Add Printer Wizard on all the computers on your network. • Make sure you have already run the Network Setup Wizard on all the network computers. After you run the Add Printer Wizard on all the computers in the network, you can share the printer. D-Link EBR-2310 User Manual...

  • Page 87: Sharing An Lpr Printer

    To share an LPR printer, please follow these directions: • Go to Start > Printers and Faxes • Click on Add a Printer The screen to the right will display. • Click Next • Select Local printer… • Click Next D-Link EBR-2310 User Manual...
  • Page 88 • From the pull-down menu, select Standard TCP/IP Port, as shown. • Click Next • Please read the instructions on this screen. • Click Next • Enter the Printer IP Address and the Port Name, as shown. • Click Next D-Link EBR-2310 User Manual...
  • Page 89 • Enter the Port Name and the Printer Name or IP Address. • Select LPR • Enter a Queue Name (if your Print-Server/Gateway has more than one port, you will need a Queue name). • Click OK D-Link EBR-2310 User Manual...
  • Page 90 • Select the printer you are adding from the list of Printers. • Insert the printer driver disk that came with your printer. • Click Have Disk If the printer driver is already installed, • Select Keep existing driver • Click Next D-Link EBR-2310 User Manual...
  • Page 91 • Please run the Add Printer Wizard on all the computers on your network in order to share the printer. Note: You must run the Network Setup Wizard on all the computers on your network before you run the Add Printer Wizard. D-Link EBR-2310 User Manual...

  • Page 92: Networking Basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 93: Statically Assign An Ip Address

    2000 - From the desktop, right-click My Network Places > Properties. Windows ® Step 2 Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties. Step 3 Highlight Internet Protocol (TCP/IP) and click Properties. Step 4 Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.

  • Page 94: Technical Specifications

    0.44 lbs (200g) • Power Warranty • Internet • Local Network – 10/100 1-Year Operating Temperature 32°F to 131°F (0°C to 55°C) Humidity 95% maximum (non-condensing) Power Input • External power Supply • DC 5V, 1.0A D-Link EBR-2310 User Manual...

  • Page 95: Contacting Technical Support

    • Serial Number (s/n number located on the label on the bottom of the router). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues. For customers within the United States:...

  • Page 96: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 97 D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s...
  • Page 98 • The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase invoice for the product) if the product is not registered.
  • Page 99 Purolator Canada or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are prepaid by the customer.

  • Page 100: Limitation Of Liability

    FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 101 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. D-Link EBR-2310 User Manual...
  • Page 102 Appendix H - Warranty For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 103: Registration

    Appendix I - Registration Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 3.0 June 17, 2010 D-Link EBR-2310 User Manual...
