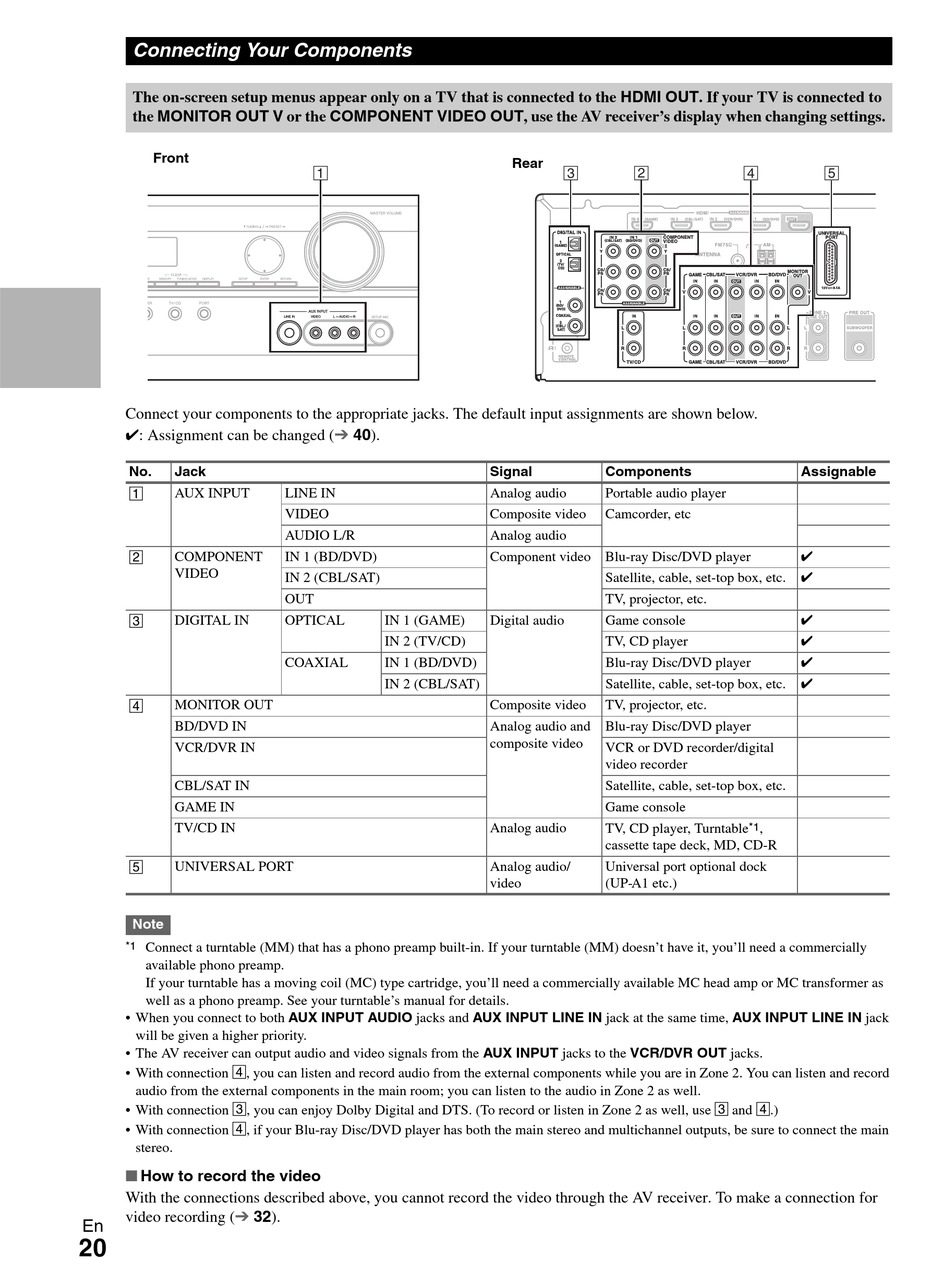

Connecting Your Components

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver's display when changing settings.
Front
Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed
No. Jack
AUX INPUT
A
COMPONENT
B
VIDEO
DIGITAL IN
C
MONITOR OUT
D
BD/DVD IN
VCR/DVR IN
CBL/SAT IN
GAME IN
TV/CD IN
UNIVERSAL PORT
E
Note
*1 Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn't have it, you'll need a commercially
available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you'll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable's manual for details.
• When you connect to both AUX INPUT AUDIO jacks and AUX INPUT LINE IN jack at the same time, AUX INPUT LINE IN jack
will be given a higher priority.
• The AV receiver can output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.
• With connection D, you can listen and record audio from the external components while you are in Zone 2. You can listen and record
audio from the external components in the main room; you can listen to the audio in Zone 2 as well.
• With connection C, you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well, use C and D.)
• With connection D, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main
stereo.
■
How to record the video
With the connections described above, you cannot record the video through the AV receiver. To make a connection for
video recording (➔
En
20
A
(➔ 40).
LINE IN
VIDEO
AUDIO L/R
IN 1 (BD/DVD)
IN 2 (CBL/SAT)
OUT
OPTICAL IN 1 (GAME)
IN 2 (TV/CD)
COAXIAL IN 1 (BD/DVD)
IN 2 (CBL/SAT)
32).
Rear
C B
Signal Components
Analog audio Portable audio player
Composite video Camcorder, etc
Analog audio
Component video Blu-ray Disc/DVD player
Satellite, cable, set-top box, etc.
TV, projector, etc.
Digital audio Game console
TV, CD player
Blu-ray Disc/DVD player
Satellite, cable, set-top box, etc.
Composite video TV, projector, etc.
Analog audio and Blu-ray Disc/DVD player
composite video
VCR or DVD recorder/digital
video recorder
Satellite, cable, set-top box, etc.
Game console
Analog audio TV, CD player, Turntable
cassette tape deck, MD, CD-R
Analog audio/ Universal port optional dock
video (UP-A1 etc.)
D E
Assignable
✔
✔
✔
✔
✔
✔
*1
,
