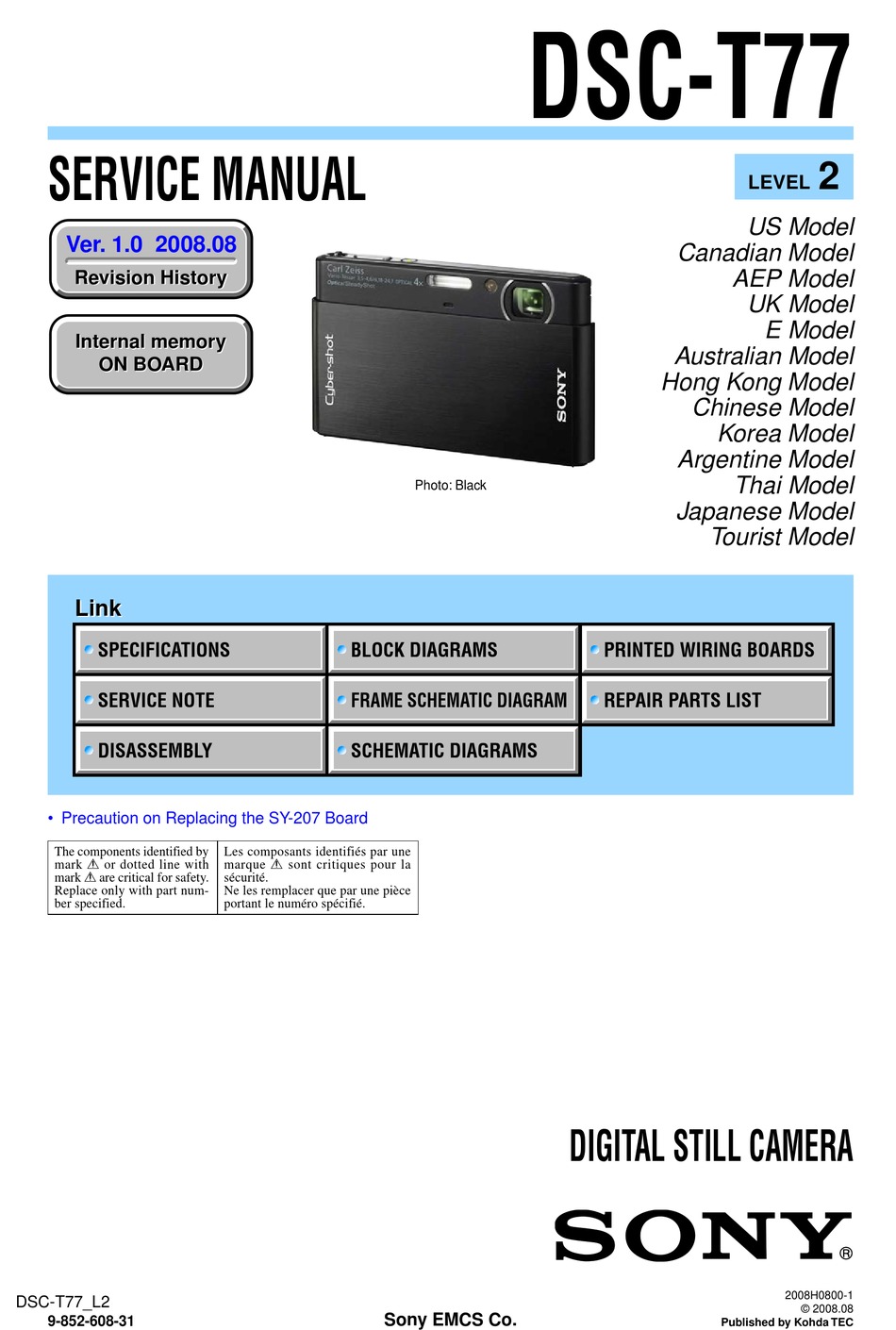

Sony DSC-T77 Service Manual

Digital still camera

Hide thumbs Also See for DSC-T77:

Instruction manual (108 pages)

Service manual (34 pages)

Handbook (171 pages)

Table of Contents

Quick Links

Summary of Contents for Sony DSC-T77

Page 1 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL STILL CAMERA 2008H0800-1 DSC-T77_L2 © 2008.08 Sony EMCS Co. 9-852-608-31 Published by Kohda TEC...
Page 2: Specifications
SPECIFICATIONS Camera [Input and Output connectors] BC-CSD battery charger Multi connector:Video output Power requirements: AC 100 V to 240 V, Audio output (Monaural) 50/60 Hz, 2.2 W [System] USB communication Output voltage: DC 4.2 V, 0.33 A Image device: 7.7 mm (1/2.3 type) color CCD, USB communication: Hi-Speed USB (USB 2.0 Operating temperature: 0 to 40˚C (32 to 104˚F) Primary color filter...
Page 3: Safety Check-Out
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
Page 4 ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. PRECAUTION ON REPLACING THE SY-207 BOARD DESTINATION DATA When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting. Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”. USB SERIAL No.
Page 5: Method For Copying Or Erasing The Data In Internal Memory
To change the setting, use the write enable tool “WriteEnableTool.exe”. Data writing method Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”. Start the Write Enable Tool and the SeusEX.
Page 6: Self-Diagnosis Function
ENGLISH JAPANESE ENGLISH JAPANESE 1-5. SELF-DIAGNOSIS FUNCTION 1-5-1. Self-diagnosis Function 1-5-2. Self-diagnosis Display When problems occur while the unit is operating, the self-diagnosis When problems occur while the unit is operating, the LCD screen function starts working, and displays on the LCD screen what to shows a 4-digit display consisting of an alphabet and numbers, which blinks at 3.2 Hz.
Page 7: Self-Diagnosis Code Table
ENGLISH JAPANESE ENGLISH JAPANESE 1-5-3. Self-diagnosis Code Table Self-diagnosis Code Block Detailed Symptom/State Correction Function Code The internal memory has experienced a Turn the power off and on again. media error. The internal memory has experienced a Format the internal memory. format error.
Page 8: Process After Fixing Flash Error
ENGLISH JAPANESE ENGLISH JAPANESE 1-6. PROCESS AFTER FIXING FLASH ERROR When “FLASH error” (Self-diagnosis Code E : 91 : 01) occurs, to prevent any abnormal situation caused by high voltage, setting of the flash is changed automatically to disabling charge and flash setting. After fixing, this setting needs to be deactivated.
Page 9: Service Note
ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. SY-207基板交換時の注意仕向けデータ補修用基板と交換する時，補修用基板に書かれている仕向けデータは元の設定と違っている場合があります。 ADJ編を参照して，「DESTINATION DATA WRITE」を行ってください。 USBシリアルNo. セットは，1台毎に異なる固有のID（USB Serial No.）を書き込んだ後，出荷されています。新品の補修用基板には，このIDが書き込まれていないので，基板交換後にIDを入力する必要があります。 ADJ編を参照して，「USB SERIAL No. INPUT」を行ってください。角速度センサ補修用基板と交換する時，角速度センサ（SE510）の感度表示を書き留めてください。 ADJ編を参照して，「角速度センサ感度調整」を行ってください。 SY-207 BOARD (SIDE B) YYY: YAW Sensor sensitivity PPP: PITCH Sensor sensitivity SE510 Note：SY-207基板のSE510感度表示は補修用基板にしか記載されておりません。 1-2.
Page 10 データをコピーすると“メモリースティックデュオ”内に新しいフォルダが作成されます。コピー先のフォルダを指定することはできません。内蔵メモリーのフォーマット方法フォーマット “メモリースティックデュオ”または内蔵メモリーをフォーマット（初期化）します。市販の“メモリースティックデュオ”はフォーマット済みのため、フォーマットの必要はありません。（メモリー管理）［メモリーツール］［フォーマット］［実行］ご注意フォーマットすると、プロテクトしてある画像も含めて、すべてのデータが消去され、元に戻せません。 1-4. 内蔵メモリーへデータを書き戻す方法通常は，PCからカメラの内蔵メモリーへデータを書き込むことはできない設定になっています。基板交換後などに，内蔵メモリーへデータを書き戻す場合には，この設定を一時的に変更する必要があります。設定の変更には，書き込み許可ツール（WriteEnableTool.exe）を使用します。書き戻し方法カメラとPCをマスストレージ接続し，ドライバを“Sony Seus USB Driver”に切り替える。書き込み許可ツールとSeusEXを起動する。書き込み許可ツールの[Activate Write Enable Mode]ボタンをクリックする。設定の変更が終了すると，次のメッセージが表示されます。ドライバを元に戻して、カメラとPCをマスストレージ接続する。 PCに読み出しておいたデータをカメラの内蔵メモリーに書き込む。カメラとPCの接続を解除し，カメラの電源をOFFにする。注意：カメラの電源をOFFにすることにより，書き込み許可の設定が解除されます。 DSC-T77_L2...
Page 11 ENGLISH JAPANESE ENGLISH JAPANESE 1-5. 自己診断機能 1-5-2. 自己診断表示 1-5-1. 自己診断機能について本機の動作に不具合が生じたとき，LCD画面にアルファベッ本機の動作に不具合が生じたとき，自己診断機能が働き，トと4桁の数字が表示され，3.2Hzで点滅します。この5文字 L C D 画面に，どう処置したらよいか判断できる表示を行いの表示によって対応者分類および不具合の生じたブロックのます。自己診断機能については取扱説明書にも掲載されて分類，不具合の詳細コードを示します。います。 LCD画面 C : 3 2 : 00 3.2Hz点滅対応者分類詳細コードブロック分類 C ：お客さま自身で対応対応方法の違いにより分類「1-5 -3 . 自己診断コード表」例 13 ･･･“メモリースティックを参照...
Page 12 ENGLISH JAPANESE ENGLISH JAPANESE 1-5-3. 自己診断コード表自己診断コードブロック詳細症状／状態対応／方法機能コード内蔵メモリーにメディアエラーが電源を入れ直す。あった。内蔵メモリーにフォーマットエラー内蔵メモリーをフォーマットする。があった。フォーマットしていない“メモリー “メモリースティックデュオ”をフォーマットする。スティックデュオ”を入れた。 “メモリースティックデュオ”が新しい“メモリースティックデュオ”に交換する。壊れている。規格内の“メモリースティックデュオ”を挿入する。 “メモリースティックデュオ”のタイプエラーを検出した。電源の入れ直し，または“メモリースティックデュオ” “メモリースティックデュオ”が読み／書きできない。...
Page 13 ENGLISH JAPANESE ENGLISH JAPANESE 1-6. フラッシュエラー発生時の対処法本機はフラッシュエラー（自己診断コードE：91：01）が発生した場合，高電圧による異常を防止するために自動的にフラッシュ充電および発光禁止の設定になります。フラッシュエラー発生後はエラーの解除を行う必要があります。エラーの解除はホーム画面から初期化操作を実行することにより行います。フラッシュエラーの解除方法設定リセットお買い上げ時の設定に戻します。［設定リセット］を実行しても、画像は削除されません。（設定）［本体設定］［設定リセット］［実行］ご注意設定リセット中は電源が切れないようにご注意ください。 DSC-T77_L2 1-10E...
Page 14: Note For Repair
2. DISASSEMBLY NOTE FOR REPAIR • Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Cut and remove the part of gilt Do not insert the cable insufficiently nor crookedly. which comes off at the point. (Be careful or some •...
Page 15: Identifying Parts
2-1. IDENTIFYING PARTS Rear Cabinet Block ST-199 Flexible Board LCD Block Loudspeaker (1.0cm) Control Switch Block (RL61210) SY-207 Board - 2 0 Frame Assy BT-044 Flexible Board Front Block Lens Block BT Lid Assy CD-743 Flexible Board - DISASSEMBLY FLOW - 2-2-1.
Page 16: Exploded View
HELP HELP 2-2. DISASSEMBLY EXPLODED VIEW HARDWARE LIST 2-2-1. OVERALL SECTION Follow the disassembly in the numerical order given. (1-1 to 1-14) Front Block Note: Microphone holder caution There are some cases the microphone holder is caught on the front block. Microphone Holder Main Section...
Page 17: St/Rear Section
2-2-2. MAIN SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. (1-1 to 1-6) Lens Block (2-1 to 2-12) SY-207 Board ( 3-1 to 3-7) BT Lid Base (Claws) ST/Rear Section (See Page 2-5) ST-199 Flexible Board 2-12 2-12...
Page 18: Lcd Block
2-2-3. ST/REAR SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. (1-1 to 1-3) ST-199 Flexible Board (2-1 to 2-5) LCD Block Note: BT-044 flexible board caution Replace with new one in case of peeling the adhesive portion. Adhesive Part (BT-044 Flexible Board) 2-1 (Bosses)
Page 19 HELP Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown. HELP01 HELP02 FRONT CUSHION AF WINDOW ADHESIVE SHEET PUTTING POSITION PUTTING POSITION Cabinet (Front) Assy Cabinet (Front) Assy AF Window Adhesive Sheet Plate Front Cushion Scrached line HELP03 HELP04 PLAY BUTTON ADHESIVE SHEET...
Page 20 HELP05 HELP06 FRONT CUSHION SY INSULATING SHEET, INSULATING PUTTING POSITION SHEET (A) PUTTING POSITION SY-207 Board SY Insulating Sheet Connectors Front Cushion SY-207 SY-207 SY-207 SY-207 IC001 Do not attach it out of SY-207 Board the IC outline. Printed Line Insulating Sheet (A) (Attach Insulating Sheet (A) must be covered connectors.)
Page 21 HELP08 CD LIGHT INTERCEPTION SHEET PUTTING POSITION CD Light Interception Frame Assy (210) Sheet HELP09 ST CUSHION PUTTING POSITION ST-199 Flexible Board ST Cushion ST-199 Flexible Board ST Cushion HELP10 AF CUSHION PUTTING POSITION AF Cushion ST-199 Flexible Board DSC-T77_L2 HELP...
Page 22 HELP11 INSTALLATION CAUTIONS OF THE LCD BLOCK 1 Attach four claws of FTS block assy (30SHGU08) to the light guide plate (3.0) block in the order A, B, C and D. FTS Block Assy (30SHGU08) Adjust to the upper FTS Block Assy left standard.
Page 23 3 Solder two points. Place BL Frame. BL Frame Flexible Board of FTS Block Assy (30SHGU08) Soldering Points Flexible Board of Light Guide Plate (3.0) Block Fit two claws by pushing them. Fit other claws by pressing with finger. Attach LCD cushion to main frame (210). Fit Main Frame Block by fitting three bosses.
Page 24 HELP12 THE METHOD OF ATTACHMENT OF ST-199 FLEXIBLE BOARD 1 Fold dotted line parts of ST-199 flexible board as shown in figure. ST-199 Flexible Board Valley Hold Mountain Hold Mountain Hold Valley Hold Mountain Hold Mountain Hold 2 Install ST-199 Flexible board to ST holder as shown in figure. Claws Claws ST-199 Flexible Board...
Page 25 HELP13 NOTES ON ATTACHING BT HINGE SHAFT (210) In case of BT hinge shaft (210) is coming out, insert it with care of followings. BT Hinge Shaft (210) BT Lid Assy (210) BT Hinge Shaft (210) Do not touch the tip of BT hinge plate.
Page 26: Cabinet Rear Block
HELP14 NOTES ON ASSEMBILING FRONT BLOCK In case of assembling front block, bend two claws on the cabinet rear block as shown below. (Once front block is removed causes the engagement of two claws on the cabinet rear block and two bosses on the control switch block (RL61210) becomes loose.) Control Switch Block (RL61210)
Page 27 HELP15 RADIATION SHEET (K) PUTTING POSITION 0 3mm Radiation Sheet (K) DSC-T77_L2 HELP...
Page 28: Overall Block Diagram
3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/2) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (2/2) POWER BLOCK DIAGRAM (2/2) DSC-T77_L2...
Page 29 3. BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. CD-743 FLEXIBLE BOARD SY-207 BOARD (1/2) LENS BLOCK LCD901 (1/2) CN301 IRIS LENS CN709 CCDOUT...
Page 30 3-2. OVERALL BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. SY-207 BOARD (2/2) CN705 (2/2) CONTROL SWITCH BLOCK XPWR_ON (RL61210) CN712 S002 XPWR_ON XPWR_ON ACV_UNREG POWER SE001 D008...
Page 31 3-3. POWER BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. SY-207 BOARD (1/2) VL_3V F002 ST_UNREG CN702 MS_VCC MEMORY STICK CN705 PRO DUO F001 L001 ACV_UNREG UNREG IC001...
Page 32 3-4. POWER BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. SY-207 BOARD (2/2) LCD901 CN709 XDD_SYS_RST XDD_SYS_RST L701 D_1.85V D_1.85V L702 D_3.1V D_3.1V 3.0 inch COLOR IC503 LCD MONITOR...
Page 33 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM C902 C901 CHARGING CHARGING CAPACITOR CAPACITOR BT-044 FLEXIBLE BOARD BH001 ST-199 FLEXIBLE BOARD BATTERY TERMINAL BOARD CONTROL SWITCH FL001 BLOCK (FL61210) (FLASH UNIT) S001 (RL61210) (PLAYBACK) BT001 LITHIUM RECHARGEABLE BATTERY CN712 MIC601...
Page 34: Schematic Diagrams
4-2. SCHEMATIC DIAGRAMS Link Link ST-199 FLEXIBLE BOARD CONTROL SWITCH BLOCK (FLASH DRIVE) (RL61210) BT-044 FLEXIBLE BOARD (BATTERY IN/PLAYBACK SWITCH) COMMON NOTE FOR SCHEMATIC DIAGRAMS DSC-T77_L2...
Page 35: This Note Is Common For Schematic Diagrams
ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1. Connection • All capacitors are in µF unless otherwise noted. pF : µ Pattern box µF.
Page 36 ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS (JAPANESE) 回路図共通ノート（他に必要なノートは各ブロックに記載してあります）【回路図ノート】 1. 接続図・ケミコン，タンタルを除くコンデンサで，耐圧50V以下のものパターンボックスカラーバーチャートはその耐圧を省略。単位はすべてμF（pはpF）。 For PTB-450: Pattern box PTB-450 ・チップ抵抗で指示のないものは，1／10W以下。 J-6082-200-A J-6020-250-A kΩ＝1000Ω，MΩ＝1000kΩ ・チップ部品交換時の注意 For PTB-1450: Small pattern box J-6082-559-A PTB-1450 取り外した部品は再使用せず，未使用の部品をご使用くださ J-6082-557-A い。タンタルコンデンサのマイナス側は熱に弱いため注意してくだ...
Page 37 Schematic diagrams of the CD-743 flexible board and SY-207 board are not shown. Pages from 4-4 to 4-13 are not shown. DSC-T77_L2...
Page 38 • Refer to page 4-2 (English), 4-3 (Japanese) for mark 0. P i n L N D 0 3 2 L N D 0 2 4 L N D 0 2 7 L N D 0 0 1 B A T T E R Y - R E G _ G N D B T 0 0 1 D I S C H A R G E L A N D...
Page 39 • Refer to page 4-2 (English), 4-3 (Japanese) for mark 0. S 0 0 1 ( P L A Y B A C K ) P i n S 0 0 2 L N D 0 0 1 X D I R E C T _ P B P O W E R P i n D 0 0 3...
Page 40: Printed Wiring Boards
4-3. PRINTED WIRING BOARDS Link Link ST-199 FLEXIBLE BOARD BT-044 FLEXIBLE BOARD COMMON NOTE FOR PRINTED WIRING BOARDS DSC-T77_L2...
Page 41 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS (ENGLISH) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
Page 42 Printed wiring boards of the CD-743 flexible board and SY-207 board are not shown. Pages from 4-17 to 4-19 are not shown. DSC-T77_L2...
Page 43 ST-199 (2 layers), BT-044 (1 layer) : Uses unleaded solder. C902 C901 CHARGING CHARGING CAPACITOR CAPACITOR BT-044 FLEXIBLE BOARD LND013 LND012 LND011 ST-199 FLEXIBLE BOARD LND024 R003 BH001 BATTERY TERMINAL C005 BOARD Note : BH001 is not included in BT-044 flexible board. R004 T001 BT001...
Page 44: Repair Parts List
NOTE NOTE 5. REPAIR PARTS LIST NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown. EXPLODED VIEWS EXPLODED VIEWS Link Link OVERALL SECTION MAIN SECTION ST/REAR SECTION ELECTRICAL PARTS LIST Link ELECTRICAL PARTS LIST...
Page 45 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST (ENGLISH) When indicating parts by reference number, NOTE: please include the board name. • -XX, -X mean standardized parts, so they may have some differences from the original one. The components identified by mark 0 or •...
Page 46 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1. EXPLODED VIEWS DISASSEMBLY HARDWARE LIST 5-1-1. OVERALL SECTION Main section (See page 5-3) #142 #143 (Note) #142 #144 #143 (Note) #142 #143 (Note) #142 #143 (Note) Note : Please refer to “THE COMBINATION OF CABINET’S COLOR AND SCREW”...
Page 47 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-2. MAIN SECTION ns: not supplied ST/REAR section (See page 5-4) MIC601 (Note 2) SP901 - 2 0 Note 2: On repairing microphone, cover the hole with polyimide tapes or the like so that the hot air does not go into the parts.
Page 48 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-3. ST/REAR SECTION ns: not supplied BH001 (Note) FL001 C901 C902 BT001 #142 : BT001 (LITHIUM RECHARGEABLE BATTERY) Board on the mount position. (See page 4-20.) LCD901 注意 Note: Be sure to read “HELP12” 電池の交換は，正しく行わないと破裂する恐れ...
Page 49 BT-044 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description 1-877-837-11 BT-044 FLEXIBLE BOARD ******************** (BH001 is not included in BT-044 flexible board.) (S001 is not supplied, but this is included in BT-044 flexible board.) <...
Page 50 ST-199 Ref. No. Part No. Description Ref. No. Part No. Description A-1557-173-A ST-199 FLEXIBLE BOARD, COMPLETE ****************************** < LITHIUM RECHARGEABLE BATTERY > 0 BT001 1-756-813-11 LITHIUM RECHARGEABLE BATTERY < CAPACITOR > * C002 1-112-746-11 CERAMIC CHIP 4.7uF 6.3V C003 1-100-611-91 CERAMIC CHIP 22uF 6.3V C005...
Page 51: Checking Supplied Accessories
Checking supplied accessories. Note 1: This item is supplied with the unit as an accessory, but is not prepared as a service part. Power cord (mains lead) Battery charger Battery charger (EXCEPT US, CND, J) (BC-CSD) (BC-CSD) 0 1-555-074-91 (AUS) 0 1-480-352-12 (J) 0 1-480-352-32 0 1-783-952-61 (AR)
Page 52 HARDWARE LIST (1/8) #1: M1.7 X 2.5 #2: M1.7 X 4.0 #3: M1.7 X 2.5 #4: M1.4 X 2.5 (Tapping) (Black) (Black) (Red) (Dark Silver) 2-635-562-11 2-635-562-31 2-660-401-01 3-348-998-81 #5: M1.7 X 3.5 (Tapping) #6: M1.4 X 1.7 #7: M1.7 X 1.6 #8: M1.7 X 3.5 (Tapping) (Black) (Silver)
Page 53 HARDWARE LIST (2/8) #21: M1.4 X 3.0 #22: M1.7 X 5.0 (Tapping) #23: M1.7 X 4.0 (Tapping) #24: B1.7 X 5.5 (Tapping) (Black) (Silver) (Black) (Black) 2-662-396-21 3-083-261-01 3-080-204-11 4-679-805-11 #25: M1.7 X 3.0 #26: M1.4 X 2.0 #27: M1.4 X 2.0 #28: M1.4 X 4.0 (Tapping) (Black) (Silver)
Page 54 HARDWARE LIST (3/8) #41: M3.0 X 8.0 (Tapping) #42: M2.0 X 4.0 (Tapping) #43: M1.7 X 4.0 #44: M1.7 X 3.0 (Tapping) (Silver) (Silver) (Red) (Silver) 3-065-748-01 7-628-253-00 2-660-401-31 3-078-890-61 #45: M1.4 X 2.5 #46: M1.7 X 3.0 #47: M1.4 X 3.0 (Tapping) #48: M1.7 X 2.5 (Silver) (Red)
Page 55 HARDWARE LIST (4/8) #64: M1.7 X 5.0 (Tapping) #61: M3.0 X 10.0 #62: M2.0 X 3.0 #63: M5.0 X 12.5 (Silver) (Black) (Silver) (Black) 2-666-551-21 7-682-549-09 3-080-202-21 3-060-811-21 12.5 10.0 #65: M1.4 X 3.5 #66: M1.4 X 1.4 #67: M1.4 X 2.0 #68: M1.7 X 4.0 (Silver) (Silver)
Page 56 HARDWARE LIST (5/8) #81: M1.7 X 2.5 #82: M1.4 X 1.4 #83: M1.7 X 7.0 (Tapping) #84: M2.0 X 3.0 (Silver) (Silver) (Black) (Silver) 2-515-756-01 3-272-251-01 3-080-204-41 3-072-453-11 #86: M1.7 X 4.0 (Tapping) #85: M1.7 X 2.5 #87: M1.6 X 5.3 #88: M1.6 X 5.9 (Tapping) (Black) (Silver)
Page 57 HARDWARE LIST (6/8) #101: M2.0 X 5.0 #102: M2.6 X 8.0 #103: M2.6 X 10.0 #104: M3.0 X 8.0 (Silver) (Black) (Silver) (Black) 7-621-555-39 7-621-284-30 7-685-794-09 7-682-548-09 10.0 #105: M2.0 X 4.0 #106: M2.0 X 6.0 #107: M2.0 X 5.0 #108: M1.7 X 3.0 (Tapping) (Red) (Black)
Page 58 HARDWARE LIST (7/8) #121: M2.0 X 4.0 (Tapping) #122: M3.0 X 6.0 #123: M4.0 X 8.0 #124: M1.7 X 2.0 (Silver) (Black) (Black) (Silver) 7-682-547-09 3-080-205-11 7-682-561-09 2-599-475-01 #125: M1.4 X 3.0 #126: M2.9 X 3.5 #127: M3.0 X 25.0 #128: M4.0 X 12.0 (Black)
Page 59 HARDWARE LIST (8/8) #141: M2.6 X 5.0 (Tapping) #142: M1.4 X 2.0 #143: M1.4 X 2.0 #144: M1.4 X 1.2 (Silver) (Silver) (Black) (Silver) 4-111-392-01 4-111-392-11 4-111-392-21 7-685-791-01 #145: M1.4 X 2.4 #146: M1.4 X 2.4 (Silver) (Black) 4-111-248-01 4-111-248-11...
Page 60: Revision History
Reverse 985260831.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2008.08 Official Release — — DSC-T77_L2...
