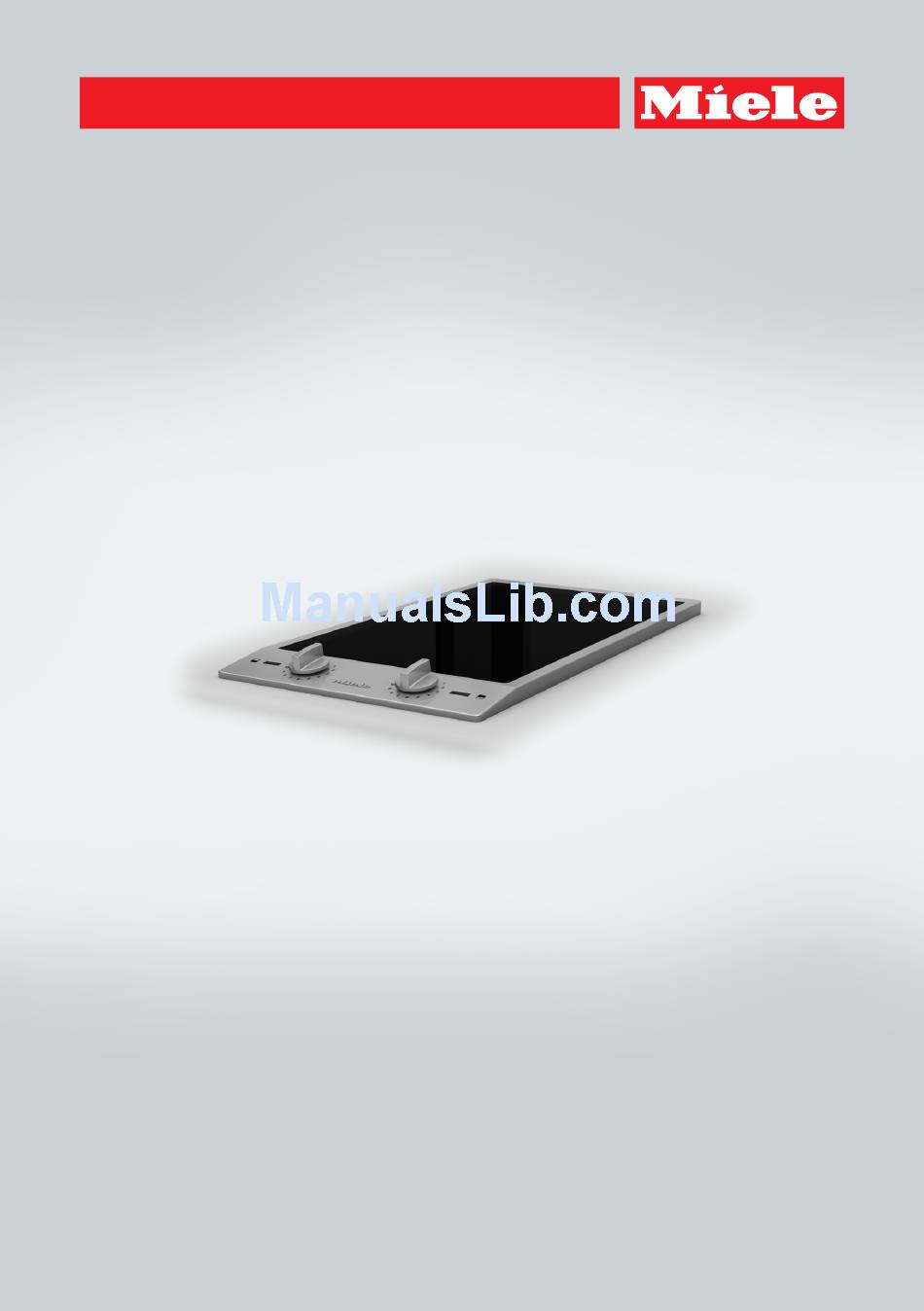

Miele CS 1212-1 Operating And Installation Instructions

Miele CS 1212-1 Operating And Installation Instructions

Ceramic cooktops with induction

Advertisement

Operating and installation instructions
Ceramic cooktops with induction
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ
M.-Nr. 09 199 860

Advertisement

Table of Contents
loading

Summary of Contents for Miele CS 1212-1

  • Page 1 Operating and installation instructions Ceramic cooktops with induction To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-AU, NZ M.-Nr. 09 199 860...
  • Page 2: Table Of Contents

    Contents Warning and Safety instructions................ 4 Caring for the environment ................ 15 Overview.......................  16 Cooktop......................... 16 CS 1212-1 ...................... 16 CS 1221-1 ...................... 17 CS 1222...................... 18 Indicators....................... 18 Control symbols ....................19 Display........................19 Cooking zone data ....................19 Using for the first time ..................
  • Page 3 Optional accessories .................. 39 Safety instructions for installation.............. 40 Safety distances .................... 41 Installation notes .................... 43 Building-in dimensions .................. 44 CS 1212-1 ......................44 CS 1221-1 / CS 1222 .................... 45 Building-in several CombiSets ................ 46 Installation...................... 48 Electrical connection .................. 52...
  • Page 4: Warning And Safety Instructions

    They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for non- compliance with these instructions. Keep these instructions in a safe place and ensure that new users are familiar with the contents.
  • Page 5 This cooktop is not suitable for outdoor use.  It is intended only to cook food and keep it warm. Any other use is not supported by Miele and could be dangerous.  This appliance is not intended for use by persons (including...
  • Page 6 Warning and Safety instructions Safety with children  Young children must not be allowed to use this appliance.  Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
  • Page 7  Repairs and other work by unqualified persons could be dangerous. Installation, maintenance work and repairs to electrical appliances must only be carried out by a Miele approved service technician.  A damaged appliance is dangerous. Check it for any visible damage.
  • Page 8 The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele approved service technician.  Faulty components must only be replaced by genuine Miele spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
  • Page 9 Warning and Safety instructions  If the cooktop is installed behind a furniture panel (e.g. a door), ensure that the door is never closed whilst the cooktop is in use. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the cooktop, the housing unit and the floor.
  • Page 10 Warning and Safety instructions Correct use  The cooktop gets hot when in use and remains hot for a while after being switched off. There is a danger of burning until the residual heat indicators go out.  Oil and fat can overheat and catch fire. Do not leave the cooktop unattended when cooking with oil and fat.
  • Page 11 Warning and Safety instructions  You could burn yourself on the hot cooktop. Protect your hands with heat-resistant pot holders or gloves when handling hot pots and pans. Do not let them get wet or damp, as this causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.
  • Page 12 Warning and Safety instructions  Induction heating works extremely quickly. Therefore, the base of the pan could heat up to the temperature at which oil or fat self- ignites within a very short time. Do not leave the cooktop unattended whilst it is being used.
  • Page 13 Warning and Safety instructions  Where several CombiSets are installed side by side: Hot objects can damage the seal of the cover strip between the appliances. Do not place hot pans near or on the cover strip.  The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
  • Page 14: Cleaning And Care

    Warning and Safety instructions Cleaning and care  Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit.  If the cooktop is built in over a pyrolytic oven, the cooktop should not be used whilst the pyrolytic process is being carried out, as this could trigger the overheating protection mechanism on the cooktop (see relevant section).
  • Page 15: Caring For The Environment

    Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packaging Electrical and electronic appliances has been selected from materials which often contain materials which, if are environmentally friendly for handled or disposed of incorrectly, disposal, and can normally be recycled.
  • Page 16: Overview

    Overview Cooktop CS 1212-1 a Cooking zone with TwinBooster b Cooking zone with Booster c Cooking zone display d Cooking zone allocation symbol e Indicators f Control for the rear cooking zone g Control for the front cooking zone...
  • Page 17 Overview CS 1221-1 a Cooking zone with TwinBooster b Cooking zone display c Indicators d Cooking zone rotary controls...
  • Page 18: Indicators

    Overview CS 1222 a Extended zone with TwinBooster b Cooking zone with Booster c Cooking zone display d Cooking zone allocation symbol e Indicators g Control for the front cooking zone h Control for the rear cooking zone Indicators  ...
  • Page 19: Control Symbols

    The system lock has been activated  /  Safety switch-off (see "Safety features")  Overheating protection (see "Safety features") Cooking zone data Cooking zone CS 1212-1 Ø in cm* Rating in watts for 230 V**  10–16 Normal 1400 Booster 2200 ...
  • Page 20 * Cookware of any diameter may be used within the specified range. ** The wattage quoted may vary depending on the size and material of the pans used. Cooking zone CS 1212-1 Ø in cm* Rating in watts for 230 V** ...
  • Page 21: Using For The First Time

    Using for the first time  Please stick the extra data plate for Switching on the cooktop for the appliance supplied with this the first time documentation in the space provided in the "After sales service, data plate, When the cooktop is first switched on warranty"...
  • Page 22: Induction

    Induction How it works  When the appliance is switched on either deliberately or by mistake, An induction coil is located under each or when there is residual heat cooking zone. When a cooking zone is present, there is the risk of any metal switched on, this coil creates a items placed on the cooktop (e.g.
  • Page 23: Noises

    Induction Noises When using an induction cooking zone, the following noises can occur in the pan, depending on what it is made of and how it has been constructed. On the higher power settings, it might buzz. This will decrease or cease altogether when the power setting is reduced.
  • Page 24: Pans

    Induction – Lift pans into position on the Pans cooktop. Sliding them into place can Suitable pans: cause scuffs and scratches. – Stainless steel pans with a base that – Often the maximum diameter quoted can be magnetised. by manufacturers refers to the diameter of the top rim of the pot or –...
  • Page 25: Tips On Saving Energy

    Tips on saving energy – Use a lid whenever possible to minimise heat loss. – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. – Cook with as little water as possible. –...
  • Page 26: Power Level Range

    Power level range Settings  Keeping warm Melting butter Dissolving gelatine Melting chocolate Making milk puddings Warming small quantities of liquid Cooking rice Defrosting frozen vegetables (blocks) Making porridge Warming liquid and semi-solid foods Making omelettes or lightly fried eggs Steaming fruit Cooking pasta/dumplings Steaming vegetables and fish...
  • Page 27: Operation

    Operation Cooking zone rotary controls Switching off  Turn the rotary control anti-clockwise The cooking zone rotary controls must not be turned past B I or B I/II to 0. to 0. Switching on After all cooking zones have been switched off, the in-operation indicator ...
  • Page 28: Auto Heat-Up

    Operation Auto heat-up Continued Heat-up time cooking setting [min : sec] When Auto heat-up has been activated, the cooking zone switches on approx. 0 : 15 automatically at the highest setting and approx. 0 : 15 then switches to the continued cooking setting which you have previously approx.
  • Page 29: Booster

    Operation The cooking zones are connected in Booster pairs in order to provide sufficient The cooking zones are equipped with a power for the Booster. one stage Booster or two stage When the Booster function is selected, TwinBooster (see "Overview - a proportion of energy is taken away Cooktop").
  • Page 30 Operation Switching on the Booster Switching off the Booster / TwinBooster  Turn the rotary control clockwise  Select a different power setting. gently past 9 to B and then back to 9 again. The Booster symbol and B will go out. ...
  • Page 31: Keeping Warm

    Operation Setting the keeping warm function Keeping warm  Turn the control clockwise to . The keeping warm function is not designed to reheat food from the cold state. It is only for keeping food warm directly after cooking. If the keeping warm function has been activated, the cooking zone will switch off automatically after a maximum of 2 hours.
  • Page 32: Safety Features

    Safety features System lock Safety switch-off The safety switch-off mechanism is The system lock can only be activated triggered automatically if one of the if all the cooking zones are switched cooking zones is heated for an off. unusually long period of time. This period of time depends on the power Your cooktop is equipped with a system lock to prevent the cooking zones being...
  • Page 33: Overheating Protection

    If, despite removing the cause, the – The cooking zone will switch off overheating protection mechanism automatically.  will appear in the triggers again, contact Miele. cooking zone display. – Further cooking zones will switch off automatically.  Switch off the affected cooking zone(s).
  • Page 34: Cleaning And Care

    Cleaning and care  Allow the CombiSet to cool down Danger of burning! before cleaning. The cooking zones must be switched off. The cooktop needs to cool  The CombiSet and accessories down. should be cleaned after each use.  Dry the CombiSet after using water to ...
  • Page 35: Ceramic Surface

    (spots with a Do not clean the area between the metallic appearance) can be removed glass-ceramic surface and the frame using the Original Miele ceramic and or the frame and the worktop with stainless steel cooktop cleaner. sharp, pointed objects.
  • Page 36: Stainless Steel Frame/Control Panel

    Cleaning and care Stainless steel frame/control panel  Clean the frame and the control panel with a solution of warm water and a little washing-up liquid applied with a soft sponge. You can also use a ceramic and stainless steel cleaning agent. We recommend using a stainless steel conditioning agent to help prevent resoiling (see "Optional accessories").
  • Page 37: Problem Solving Guide

    Problem solving guide With the aid of the following guide, minor problems can be easily corrected without contacting Miele. If, after reading this guide, you can't remedy the problem yourself, please call Miele (see back cover for details). Please note, however, that a call-out charge will be applied to unnecessary service visits where the problem could have been rectified as described in these operating instructions.
  • Page 38 Problem solving guide Problem Possible cause and remedy In the display for a The power setting was reduced because the Booster cooking zone the function on the linked cooking zone was switched on  symbol flashes (see "Booster"). alternately with the selected power setting.
  • Page 39: Optional Accessories

    250 ml appliance. These can be ordered online at: www.miele.com.au or www.miele.co.nz or from Miele (see end of this booklet Removes heavy soiling, limescale for contact details). deposits and aluminium residues. Original Miele care product for...
  • Page 40: Safety Instructions For Installation

    Safety instructions for installation  The appliance must only be installed and connected to the electricity supply by a suitably qualified and competent person in strict accordance with current national and local safety regulations. Fit the wall units and rangehood before fitting the CombiSet to avoid damaging ...
  • Page 41: Safety Distances

    CombiSet to a minimum safety distance of 600 mm combustible surface:: must be maintained. 40 mm CS 1212-1 For any flammable objects, e.g. utensil CS 1221-1 rails, wall units etc., a minimum safety CS 1222 distance of 600 mm must be...
  • Page 42 Safety distances Minimum safety distances underneath the cooktop To ensure sufficient ventilation to the cooktop, a certain gap must be left between the underside of the cooktop and any oven, interim shelf or drawer. The minimum gap between the underside of the cooktop and –...
  • Page 43: Installation Notes

    Installation notes Seal between the CombiSet Tiled worktop and the worktop Grout lines  and the hatched area underneath the CombiSet frame must be smooth and even. If they are not the Do not use sealant between the CombiSet will not sit flush with the CombiSet and the worktop.
  • Page 44: Building-In Dimensions

    Building-in dimensions CS 1212-1 a Spring clamps b Front c Installation height d Mains connection box with mains connection cable, L = 2000 mm...
  • Page 45 Building-in dimensions CS 1221-1 / CS 1222 a Spring clamps b Front c Installation height d Mains connection box with mains connection cable, L = 2000 mm...
  • Page 46: Building-In Several Combisets

    Building-in several CombiSets Example: 3 CombiSets a Spring clamps b Spacer bars c Gap between spacer bar and worktop d Cover strips e CombiSet width minus 8 mm f CombiSet width g CombiSet width minus 8 mm h Worktop cut-out...
  • Page 47 Building-in several CombiSets Calculating the worktop cut-out The frames of the CombiSets overlap the worktop at the outside right and left by 8 mm on each side.  Add up the widths of the CombiSets and subtract 16 mm from this figure. Example: 288 mm + 288 mm + 380 mm = 956 mm - 16 mm = 940 mm The CombiSets are 288 mm, 380 mm or 576 mm wide depending on model (see...
  • Page 48: Installation

    Installation Preparing the worktop  Make the worktop cut-out as shown in "Building-in dimensions" or as calculated (see "Installation of several appliances"). Observe the safety distances (see "Safety distances"). Wooden worktops  Seal the cut surfaces on wooden worktops with a suitable sealant to avoid swelling caused by moisture.
  • Page 49 Installation Granite and marble worktops You will need heavy duty double-sided tape (not supplied) to secure the spring clamps and spacer bars.  Apply silicone to the side and lower edges of the spring clamps  and the spacer bars .  Then fill the gap  between the spacer bar ...
  • Page 50 Installation Installing several CombiSets Installation with a downdraft extractor  Push the built-in CombiSet to the side until the holes in the spacer bar Please refer to the separate "Downdraft can be seen. extractor with CombiSet" instruction manual for details about installing a downdraft extractor with a CombiSet appliance.
  • Page 51 Installation Connecting the CombiSet  Connect the CombiSet(s) to the mains electricity supply.  Check that each CombiSet works. Removing the CombiSet If the CombiSet cannot be accessed from below, you will need a special tool to remove it.  If the CombiSet can be accessed from below, push it out from below.
  • Page 52: Electrical Connection

    Residual current device  Danger of injury! For extra safety, it is advisable to Miele cannot be held liable for protect the appliance with a suitable unauthorised installation, residual current device (RCD) with a trip maintenance and repair work as this range of 30 mA.
  • Page 53 If the mains cable needs to be replaced, it must be replaced with a special connection cable, type H 05 VV-F (PVC insulated), available from Miele, by a Miele approved service technician or suitably qualified electrician in order to avoid a hazard.
  • Page 54: After Sales Service, Data Plate, Warranty

    After sales service, data plate, warranty After sales service In the event of any faults which you cannot easily remedy, please contact Miele. See back of this booklet for contact details. Please quote the model and serial number of your appliance when contacting Miele.
  • Page 55 Miele Experience Centre South Melbourne: Freemans Bay, Auckland 1011 206-210 Coventry Street South Melbourne, VIC 3205 Miele Experience Centre Auckland: Miele Experience Centre and Office Sydney: 8 College Hill 3 Skyline Place Freemans Bay, Auckland 1011 Frenchs Forest, NSW 2086 Telephone:...
  • Page 56 CS 1212-1 / CS 1221-1 / CS 1222  en-AU, NZ M.-Nr. 09 199 860 / 05...

This manual is also suitable for:

Cs 1221-1Cs 1222
