Page 1: Dvd Camcorder

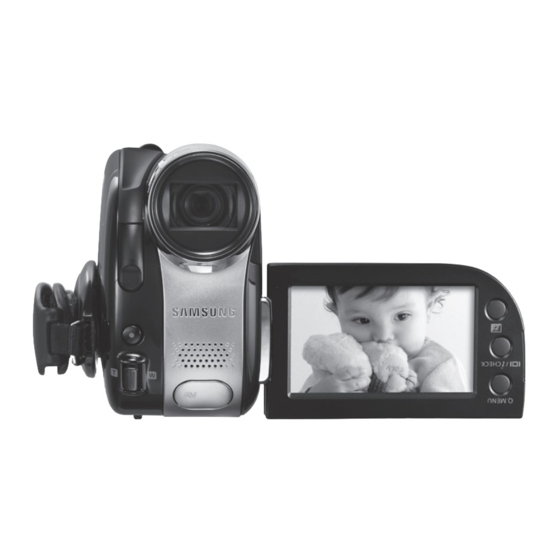

VP-DX10 VP-DX10H DVD Camcorder DVD 摄像机 user manual 用户说明书 imagine the possibilities 无穷想象，无限可能 Thank you for purchasing this Samsung product. 感谢您购买三星产品。 To receive more complete service, please 预享受更加全面的服务，请到以下网站注册您的产品： nregister your product at www.samsung.com/global/register www.samsung.com/global/register...
Page 2 Capture visions farther than the eye can see (26X optical/ 拍摄视角比视线范围远 (26X 光学变焦 /1200X 数字变焦 ) 1200X digital zoom) 三星强有力的光学变焦镜头为您献上超水平质量的图像。另 Samsung’s powerful optical zoom lenses bring the world 外，数字变焦更加清晰，图像扭曲现象少于早先的数字变焦。 closer without sacriﬁ cing image quality. In addition, digital zoom interpolation means that extreme digital zooming is clearer, with less distortion than previous types of digital zooms.
Page 3: Safety Warnings
safety warnings 安全警告 What the icons and signs in this user manual mean: 本说明书中图示和符号的意思： Means that death or serious personal injury is a risk. 意味着有死亡或者受到严重人身伤害的危险。 WARNING 警告 Means that there is a potential risk for personal injury or material 意味着有受到人身伤害或者损失财产的潜在危险。 damage.
Page 4: Important Information On Use
DVD camcorder or  备份重要的录制数据 memory card. Samsung cannot be responsible for your recorded video and audio. 将文件复制到电脑，保护您重要的录制数据。推荐您将文件从电脑复制到其它 Recorded contents may be lost due to a mistake when handling this DVD 存储介质保存。请参见软件安装和...
Page 5  在本用户手册中使用 VP-DX10 型号的图例。 • Illustrations of model VP-DX10 are used in this user manual.  本用户手册中的显示可能不如您在 LCD 屏幕上看到的那样准确。 • The displays in this user manual may not be exactly the same as those you ...
Page 6: Precautions When Using
precautions when using 使用须知 IMPORTANT NOTE 重要注意事项  • Handle the liquid crystal display (LCD) with care: 细心处理液晶显示屏 (LCD)： The LCD is a very delicate display device: Do not press its surface with force, hit it or prick LCD 是非常精密的显示设备：切勿用力压其表面，或使用尖锐的物体击打或刺戳。 it with a sharp object.
Page 7 • Do not use the DVD camcorder near strong radio waves or magnetism:  切勿在靠近强无线电波或强磁力的地方使用 DVD 摄像机： If the DVD camcorder is used near strong radio waves or magnetism, such as near a radio 如果在靠近强无线电波或强磁力的地方使用 DVD 摄像机，如无线电转播塔或电器设备，则 transmitter or electric appliances, noise could enter video and audio that are being recorded. 在录制的视频和音频中可能会夹杂有噪音。...
Page 8: Table Of Contents
contents contents 目录 INTRODUCTION TO 基本功能简介 BASIC FEATURES GETTING TO What’s included with your DVD 了解您的 DVD 摄像机您的 DVD 摄像机包括那些配件 camcorder KNOW YOUR DVD 前视图和右视图 Front and right view 左视图和底视图 CAMCORDER Left side and bottom view 后视图和顶视图 Rear and top view 遥控器...
Page 9 BEFORE Selecting a storage media 制之前选择存储介质录 RECORDING RECORDING Recording movie images 录制录制影音文件 Taking photo images 拍摄照片 Recording with ease for beginners 方便初学者录制 (EASY Q 模式 ) (EASY Q mode) 播放影音图像过程中捕捉静态图像 Capturing still images during movie 变焦 images playback Zooming 播放...
Page 10: 中文
contents 目录 ΙΑΧΕΙΡΙΣΗ ΕΙΚΟΝΩΝ Protection from accidental erasure 图像管理保护以免被偶然删除 Deleting images 删除图像 Copying images from the built-in 从内置存储器复制图像 memory EDITING MOVIE Dividing a movie image 编辑影音图像分割影音图像 Combining two movie images IMAGES 合并两个影音图像 Playlist 播放列表 Creating the playlist 创建播放列表 Arranging order of movie images 在播放列表内排列影音图像...
Page 11 MAINTENANCE & Maintenance 其他信息维护维护 & ADDITIONAL Additional information 其他信息 Using your DVD camcorder abroad 在国外使用本 DVD 摄像机 INFORMATION TROUBLESHOOTING Troubleshooting 故障处理故障处理 SPECIFICATIONS 规格 05_ English 中文 _05...
Page 12 introduction to basic features 基本功能简介 This chapter introduces you to the basic features of your DVD camcorder. See the 本章为您简单介绍 DVD 摄像机的基本功能。 reference pages below for more information. 有关详细信息，请参阅下面的参考页。 Step 1 : Preparation 步骤 1：准备工作 • Charging the battery pack page 18 INSERT INSERT BATTERY...
Page 13 Step 2 : Recording 步骤 2：录制  录制影音或照片图像  第 39-44 页录制影音或照片图像  第 • Recording the movie or photo images pages 39-44 Step 3: Playing back / Editing 步骤 3：播放 / 编辑 • Selecting an image to play back from the thumbnail ...
Page 14 introduction to basic features 基本功能简介 The function of the Finalised disc depends on the disc type. 终结光盘的功能取决于光盘类型。 Finalised 终结 DVD -R You cannot make more 即使光盘有足够的空 recordings, even if Finalised 间，您也无法录制更 the disc has enough 终结 The Finalised DVD disc can 多内容。...
Page 15  The contents may vary depending on the sales region.  提供配件视销售地区的不同而有所不同。  Parts and accessories are available at your local Samsung dealer.  当地 Samsung 经销商和客服中心可以提供产品零件和配件。  A memory card is not included. See page 32 for memory cards ...
Page 16 FRONT AND RIGHT VIEW 前视图和右视图 �� Lens open/close switch 镜头开 / 关切换 Lens 镜头 Remote sensor 遥控传感器 Light 灯 Record/Photo button 录制 / 拍照按钮 Internal microphone 内置麦克风 AV jack AV 接口 AV jack cover AV 接口舱盖 Zoom ( ) lever 变焦控制杆...
Page 17 getting to know your DVD camcorder 了解您的 DVD 摄像机 LEFT SIDE AND BOTTOM VIEW 左视图和底视图 EASY Q button EASY Q 按钮 COPY/FINALIZE button COPY/FINALIZE 按钮 BATT. (Battery release) switch BATT. ( 电池卡扣 ) 开关 Battery pack 电池组 TFT LCD screen (Touch panel) TFT LCD 显示屏...
Page 18: Rear And Top View
REAR AND TOP VIEW 后视图和顶视图 Viewﬁ nder 取景器 Zoom (W/T) lever 变焦控制杆 (W/T) PHOTO button PHOTO 按钮 Focus adjustment knob 取景器调焦按钮 MODE button / Mode indicator MODE 按钮 / 模式指示灯 (Movie ( )/Photo ( ) mode) ( 影音 ( )/ 照片 ( ) 模式...
Page 19: Remote Control
getting to know your DVD camcorder 了解您的DVD摄像机 REMOTE CONTROL 遥控器 START/STOP button START/STOP 按钮 DISPLAY button DISPLAY 按钮 Skip ( ) button 跳过 ( ) 按钮 Stop ( ) button 停止 ( ) 按钮 Play/Pause ( ) button 播放 / 暂停 ( ) 按钮...
Page 20 preparation 准备 This section provides information on using this DVD camcorder; such as how to use 本部分为您介绍在使用 DVD 摄像机之前如何使用提供的配件，如何给电池组充电，如 the provided accessories, how to charge the battery, how to setup the operation mode 何设定操作模式等信息。 and initial setup. USING THE ACCESSORIES 使用配件...
Page 21: Installing The Button Type Battery
IINSTALLING THE BUTTON-TYPE BATTERY 安装钮扣电池 Installing the button-type battery in the remote 安装遥控器内的钮扣电池。 control 1. 用指甲或硬币向左转动电池舱盖(按照标识的标记 1. Turn the battery holder counterclockwise (as ())。 indicated with () mark) using your ﬁ ngernail or a coin to open it. The battery holder opens. 2.
Page 22: Connecting A Power Source
Use only Samsung-approved battery packs. Do not use batteries 仅使用通过三星验证的电池组。不要使用其他厂商的电池组。 from other manufacturers. 否则，有引起过热，起火或者爆炸的危险。 Otherwise, there is a danger of overheating, ﬁ re or explosion. Samsung is not responsible for problems occurring due to using 由于使用未经许可的电池组而引发的事故，三星公司概不负责。 unapproved batteries. 16_ English 中文 _16...
Page 23 We recommend only using the original battery pack that is available from your  Samsung retailer. When the battery reaches the end of its life, please contact 请确保在开始录制之前电池组为充满电的状态。 your local dealer. The batteries have to be treated as chemical waste.
Page 24 preparation 准备为电池组充电 Charging the battery pack POWER switch POWER switch  仅可使用 IA-BP85SW 电池组。 • Use IA-BP85SW battery pack  在购买的时候电池组也许存有 only. 一些电量。 • The battery pack may be charged a little at the time of purchase. 1. Slide the POWER switch 1.
Page 25 It may differ depending on Super Fine or Normal mode. The time is only for reference. Figures shown above are measured under 此时间值仅作为参考。以上表中的测试结果是在三星的测试环境下测出的， Samsung’s test environment, and may differ from your actual use. 用户的实际使用情况也许会与其不同。 The battery pack is charged over 95% after 1 hour 40 minutes, then the 在充电...
Page 26  The AC power adaptor can be used around the world. An AC plug 头转接器。如果确实需要转接器，请从您当地的 Samsung 零售商 adaptor is required in some foreign countries. If you need one, purchase it at your local Samsung dealer. 处购买。  在拔掉电源线之前，请确认 DVD 摄像机的电源是否已经关闭。疏...
Page 27: Basic Dvd Camcorder Operation
BASIC DVD CAMCORDER OPERATION DVD 摄像机的基本操作 Set the appropriate operation mode according to your 根据您的需要，使用 POWER 开关、MODE 按钮和播放模式 preference using the POWER switch, MODE button ) 按钮设置合适的操作模式。 and Play mode ( ) button. 打开和关闭 DVD 摄像机 Turning the DVD camcorder on and off 向下滑动...
Page 28: Screen Indicators
preparation 准备 SCREEN INDICATORS 显示屏指示图标 Movie record mode 影音录制模式 Movie record mode 影音录制模式 Operating mode (STBY (standby) or  操作模式（STBY（待机）或  （录制）） (recording)) STBY 00:00:00 [95Min] 时间计数器（影音录制时间） Time counter (movie recording time) 警示图标和信息 Warning indicators and messages 可录制时间 Remaining time 存储介质...
Page 29 Movie play mode 影音播放模式 Movie play mode 影音播放模式 Operating status (Play/Pause) 操作状态（播放 / 暂停） File name (Folder_File name) 文件名 ( 文件夹 _ 文件名） 00:00:20 / 00:10:00 Time code (elapsed time / total recorded time) 100_0001 计时器（过去的时间 / 录制的时间） Warning indicators and messages/Volume 警示图标和信息...
Page 30 preparation 准备 Photo record mode 拍照模式 Photo record mode 拍照模式 Operating mode 操作模式 Warning indicators and messages 警示图标和信息 Image counter (remain counter) 图像计数器 ( 剩余数量 ) Storage media 存储介质 (Built-in memory or memory card ) 27000 ( 内置存储器或存储卡 ) Battery info 电池组信息...
Page 31 Photo play mode 照片查看模式 Photo play mode 照片查看模式 Slide Show 幻灯放映 File name (Folder_File name) 文件名 ( 文件夹 _ 文件名 ) Warning indicators and messages 1/12 警示图标和信息 Image counter (Selected/Total ﬁ le number) 100_0001 图像计数器 ( 所选的图像数 / 总文件数 ) Storage media 01/JAN/2007 (Built-in memory, DVD or memory card )
Page 32: Using The Display ( )/Icheck
preparation 准备 USING THE DISPLAY ( )/iCHECK BUTTON 使用屏幕显示 ( )/iCHECK 按钮 Switching the information display mode 切换到信息显示模式 You can switch between the on-screen information 您可以切换屏幕信息的显示模式： display modes: Press the Display ( ) / iCHECK button when the 按下屏幕显示 ( )/iCHECK 按钮。...
Page 33: Using The Lcd Enhancer
USING THE LCD ENHANCER ( 使用 LCD 增强器 ( Contrast is enhanced for a clear and bright image 反差增强，在LCD显示屏上得到清晰明亮的图像。该 on the LCD screen. This effect is also implemented 作用也被运用于户外的白天。 outdoors in bright daylight. 1. Slide the POWER switch downwards to turn on 1.
Page 34 preparation 准备 Using the touch panel 使用触感控制板 You can play recorded images and set the functions 您可以通过使用触感控制板进行播放录制的图像，以 by using the touch panel. 及设置一些功能项。 Place your hand on the rear side of the LCD panel 用手在 LCD 控制板的后面支撑，然后再用手指触碰屏 to support it. Then, touch the items displayed on the 幕上显示的选项。...
Page 35: Initial Setting: Osd Language & Date
INITIAL SETTING: OSD LANGUAGE & DATE AND TIME 初次设置：OSD语言&时钟 • Initial setting is available in all operating modes. page 21  所有操作模式均支持初次设置。 第 21 页 • To read the menus or messages in your desired language, set the  设置 OSD 语言，用您需要的语言阅读菜单和信息。设置时钟，在录 OSD language.
Page 36 preparation 准备 Setting the date and time 设置时钟 STBY 00:00:00 [95Min] Set the date and time when using this DVD camcorder for the 当您第一次使用本摄像机时请设置时钟。 ﬁ rst time. 录制的影音 / 照片图像上被记录上日期 / 时间。 The recording start date/time is recorded on the movie/photo images.
Page 37 before recording 录制之前 SELECTING THE STORAGE MEDIA 选择存储介质 STBY 00:00:00 [95Min] Mi n You can record movie and photo images on the 您可以将录制的影音和照片图像存储在合适的存储 desired storage media (built-in memory, a DVD disc 介质（内置存储器，DVD 光盘或存储卡），所以请在 or a memory card) so you should select the desired 开始录制或播放之前选择合适的存储介质。注意照...
Page 38 before recording 录制之前 Method 2: Using a memory card (not supplied) 方法 2: 使用存储卡（未提供） • This DVD camcorder has multi card-slot for access  该 DVD 摄像机备有 SDHC (Secure Digital to SDHC (Secure Digital High Capacity) and High Capacity) 和...
Page 39 SDHC memory card SDHC 存储卡 • SDHC memory card complies with new SD speciﬁ cation  SDHC 存储卡相当于规格为 Ver.2.00 的新 SD 卡。该最新的 Ver.2.00. This latest speciﬁ cation was established by SD card 规格已经由 SD 卡协会证实数据容量在 2GB。 association to realize data capacity over 2GB. ...
Page 40 录制之前 Note on use 注意 • Samsung is not responsible for data loss due to misuse.  由于操作错误导致的数据丢失，三星公司概不负责。 • We recommend using a memory card case to avoid losing data from moving and  为了防止由于挪动存储卡以及静电造成的数据丢失，我们建议您使用存储卡盒。 static electricity. ...
Page 41 Method 3: Using a DVD disc 方法 3: 使用 DVD 光盘 • When inserting a disc or closing the disc cover, do not apply  当插入光盘或关闭光盘舱盖时，不要用力过大。否则会造成 excessive force. It may cause a malfunction. 损坏。 • You cannot open the disc cover while loading. ...
Page 42 before recording 录制之前 When using a new disc: formatting a new disc 当放入一张新光盘：格式化新光盘 Formatting may be required if a new disc is inserted. 当放入一张新光盘的时候也许需要格式化。 Recognition of the disc will start. 碟片将被重新识别。 For a DVD-R/+R DL disc: Formatting will automatically begin. 对于...
Page 43: Recordable Time And Number Of Images
Recordable time and number of images 可录制的时间和图像数量 Recordable time for movie images 可录制影音图像的时间 DVD+RW/ DVD+R Built-in DVD+RW/ 内置存储存储 DVD+R DL 存储卡 Storage Memory card -RW/-R 器 -RW/-R memory 容量 Capacity 1.4GB 2.6GB 256MB 512MB Movie 1.4GB 2.6GB 256MB 512MB 影音质量...
Page 44 录制之前 • The above ﬁgures are measured under Samsung’s standard recording  以上测试结果产生在三星的标准测试条件下，根据环境或者使用的情况 test conditions and may differ depending on actual use. 差异可能会有所不同。 • The DVD camcorder provides three quality options for movie recordings:  本 DVD 摄像机录制影音时有三个质量选项： “Super Fine”( 高清晰 )，...
Page 45 recording 录制 Basic procedures to record a movie or photo image are 向后为您介绍录制影音文件的基本操作步骤。 described below and on the following pages. STBY 00:00:00 [95Min] RECORDING MOVIE IMAGES 录制影音文件 • You can record movie images in the Movie mode only.  仅可以在影音模式下录制影音图像。 第 21 页 page 21 ...
Page 46 recording 录制 • The recorded movie image size is 720X576.  录制影音图像的大小为 720X576。 • Eject the battery pack when you have ﬁnished recording to prevent  为防止电池电量的耗费，建议您在完成录制之后将电池组取出。 unnecessary battery power consumption.  屏幕上显示信息。请参见第 22 页。 • For on-screen information display, see page 22. ...
Page 47 TAKING PHOTO IMAGES 拍摄照片 • You can take photo images in Photo mode only. page 21  仅可以在拍照模式下拍摄照片图像。 第 21 页 • The DVD camcorder provides two PHOTO buttons. One is on  本 DVD 摄像机为您提供两个 PHOTO 按钮。一个在摄像机 STBY 00:00:00 [95Min] the top and the other is on the front of the camcorder.
Page 48 recording RECORDING WITH EASE FOR BEGINNERS (EASY Q MODE) • The EASY Q function is only available with the Movie mode. page 21 • With the EASY Q function, most of the DVD camcorder settings are automatically adjusted, which relieves you of detailed adjustments.
Page 49 CAPTURING STILL IMAGES DURING MOVIE IMAGE PLAYBACK 播放影音图像过程中捕捉静态图像 • This function works only in the Play mode. page 21  此功能仅可以在播放模式下使用。  第 21 页 • If you press the PHOTO button or Record/Photo button  如果在播放期间按下 PHOTO 按钮或摄像机前面的录制 on the front during playback, it stops playing and saves / 拍照按钮，图像将会停止播放并且保存这个当前停留...
Page 50 recording 录制 ZOOMING 变焦 Use the zoom function for close-up or wide-angle recording. 您可以通过变焦功能使用特写或广角进行录制。 This DVD camcorder allows you to record using optical 26x 本 DVD 摄像机为您提供 26x 光学变焦和 1200x 数字变焦进行 power zoom and 1200x digital zoom. 录制。 • The DVD camcorder provides two zoom levers. One is ...
Page 51 playback 播放 You can view recorded movie and photo images in the thumbnail index view and play 您可以通过索引画面查看录制的影音以及照片图像，并且通过各种方式播放它们。 them in various ways. CHANGING THE PLAYBACK MODE 切换到播放模式 • You can easily switch between Record mode and Play mode by touching ...
Page 52 playback 播放 PLAYING MOVIE IMAGES 播放影音图像 • This function works only in the Play mode. page 21  本功能仅可在播放模式下使用。 第 21 页 • You can switch to the Play mode by using the Play mode  您可以使用播放导航 ( ) 轻松地切换到播放模式。 ) button.
Page 53: Adjusting The Volume
Adjusting the volume 调节音量 00:00:20 / 00:30:00 • Touch the Volume ( ) tab on the LCD screen. 100_0001  触摸 LCD 显示屏上的音量导航 ( )。 • You can control the volume by using decrease ( ) or  您可以使用 LCD 显示屏上的减小音量 ( ) 或增大音量...
Page 54 playback 播放 Slow playback 慢放 • Whenever touching Reverse slow ( ) / Forward slow ( ) tab  暂停播放，触摸向后慢放 ( ) / 向前慢放 ( ) 导航将会 while paused, you can play the movie forward or reverse at the 1/2x 以...
Page 55 To view a slide show 幻灯放映 5/12 设置幻灯放映功能进行连续显示。 Set the slide show function for continuous display. 100_0005 Touch the Menu ( ) tab in the thumbnail index view 1. 索引画面显示或单画面显示模式下，触摸菜单 ( or single-image display mode. 导航。 • The menu will appear. ...
Page 56: Connecting To A Tv
connection 连接 You can view the recorded movie and photo images on a large screen by connecting the DVD 您可以将 DVD 摄像机连接至电视机，通过电视机的大屏幕观看录制的影音以及查看 camcorder to a TV. 照片图像。 CONNECTING TO A TV 与电视机连接 • To play back your recordings, the television must be PAL ...
Page 57 Image display depending on TV screen ratio 根据不同的电视机屏幕高宽比的图像显示 Recording ratio Wide (16:9) TV 4:3 TV 录制的高宽比宽屏幕 (16:9) 电视机 4:3 电视机 Images recorded in the 16:9 ratio 以 16:9 高宽比录制图像 (16:9 Wide: On) (16:9 宽屏幕：打开 ) •...
Page 58 using the menu items 使用菜单选项 You can use the DVD camcorder more easily by setting menus related to recording, playback 您可以通过设置菜单使用更多有关录制，播放和设置的功能。 and setting. HANDLING MENU AND QUICK MENU 操作菜单和快捷菜单 • You can change the menu settings to customise your DVD camcorder. Access the desired ...
Page 59 ✪ Follow the instruction below to use each of the menu ✪ 以下内容为您介绍使用每个菜单项。 items listed on this page. For example: setting the Focus 例如：设置聚焦 Digital Effect When using the Menu ( ) tab; 当使用菜单导航 ( Slide the POWER switch downward to turn on the Focus 1.
Page 60 using the menu items 使用菜单选项 MENU ITEMS 菜单选项 • Accessible items in menu vary depending on the operation mode.  根据操作模式的变化，菜单选项也会有相应的变化。 • For operation details, see the corresponding page.  详细的操作细节，请参看对应页的内容。 Recording menu items ( 录制菜单选项 ( Operating mode ) Default value Page Movie ( ) Photo (...
Page 61 Playback menu items ( 播放菜单选项 ( Movie Photo Default 操作模式默认参数页码 Operating mode Page 影音照片 value Play All Play Option( 播放选项 ) ( 播放全部 ) 69  Play Option Play All  Slide Show  Slide Show( 幻灯片 ) ...
Page 62 using the menu items 使用菜单选项 QUICK MENU ITEMS 快捷菜单选项 • Accessible items in the quick menu vary depending on the operation mode.  根据操作模式的变化，快捷菜单选项也会有相应的变化。 • For operation details, see the corresponding page.  详细的操作细节，请参看对应页的内容。 Recording menu items 录制菜单选项 Operating mode Movie ( Photo ( Default value...
Page 63 RECORDING MENU ITEMS ( 录制菜单选项 ( You can set up the menu items for movie and photo images recording. 您可以为录制影音以及拍摄照片图像设置菜单选项。 Scene Mode(AE) Scene Mode(AE)( 场景模式 (AE)) This DVD camcorder automatically sets the shutter speed and aperture 为了达到比较好的拍摄效果，根据被拍摄主题的亮度，本 DVD 摄像机自 according to thesubject brightness for optimum recording: You can also 动设置快门速度和光圈：您也可以根据具体情况，录制的环境或目的选...
Page 64 using the menu items 使用菜单选项 White Balance White Balance( 白平衡 ) This DVD camcorder automatically adjusts the colour of subject. Change the white 本DVD摄像机会自动调整被摄主题的颜色。您可以根据录制条件更改白平衡设置。 balance setting depending on the recording conditions. On-screen 设置内容屏幕显示 Settings Contents display This option is generally used to control the white Auto( 自动...
Page 65 • A subject can be shot under various types of lighting conditions indoors  录制一个主题可以在室内各种照明设备的环境下进行。（自然光，荧光 (natural, ﬂ uorescent, candlelight, etc.). Because the colour temperature 灯，钨丝灯等。）。因为在不同光源下的色温有所不同，所以白平衡设 is different depending on the light source, the subject tint will differ 置后会有不同的色彩。使用本功能会得到更自然的效果。 depending on the white balance settings. Use this function for a more ...
Page 66 using the menu items 使用菜单选项 Manual exposure is recommended in situations listed below: 推荐在所列出的条件下使用手动曝光： • When shooting using reverse lighting or when the background is too bright.  当使用反向照明设备发射光源或者当背景太明亮的时候。 • When shooting on a reﬂective natural background such as at the beach or when ...
Page 67 Digital Effect Digital Effect( 数字效果 ) The digital effect enables you to give a creative look to your recording. Select the 数字效果为您录制的影音提供创造性的视觉效果。有 10 种不同的数字效果可供选择。 appropriate digital effect for the type of picture that you wish to record and the effect you wish to create.
Page 68 using the menu items 使用菜单选项 Focus Focus( 聚焦 ) The DVD camcorder usually focusses on a subject automatically (auto focus). When the DVD 本DVD摄像机通常会自动聚焦被摄的主题（自动聚焦）。 camcorder is turned on, auto focus will always be set. You can also manually focus a subject 根据录制的条件，您还可以对被摄主题进行手动聚焦。...
Page 69 • “Focus” function will alternate between manual focus and auto focus.  您可以交替使用手动聚焦和自动聚焦。但当使用自动聚焦时，屏幕上 With auto focus, no indication will appear on the screen. 不会有相应的指示图标。 • If you are inexperienced in the use of DVD camcorders, we recommend  如果您没有使用 DVD 摄像机的经验，我们建议您使用自动聚焦功能。 that you use auto focus.
Page 70 using the menu items 使用菜单选项 • We recommend using a tripod when recording with a slow shutter speed.  当使用较慢的快门速度进行拍摄时，我们建议您使用三脚架。 • If you manually change the shutter speed value when “Scene Mode(AE)”  如果选定了“Scene Mode(AE)”(场景模式 (AE))功能时，手动改变快 function is selected, manual changes are applied ﬁrst. 门速度，那么手动改变值将首先生效。...
Page 71: Wind Cut
• Recorded ﬁles are encoded with Variable Bit Rate (VBR). VBR is an  录制的文件按照可变码率 (VBR) 编码。 VBR 是根据录制图像自动调整比 encoding system that automatically adjusts the bit rate according to the 特率的一种内码系统。 recording image. Wind Cut Wind Cut( 风声消除 ) ou can reduce wind noise when recording sound from the built-in 当通过内置麦克风录制声音的时候可以减少风声噪音。...
Page 72 using the menu items 使用菜单选项 Back lighting inﬂuences recording when the 当被摄主题比背景暗时，从后面照过来的光源会影 subject is darker than the background: 响录制： The subject is in front of a window. 被摄主题在窗户前。 The person to be recorded is wearing white 被摄人物穿着白色或者明亮的衣服并且所处 or shiny clothes and is placed against a bright 的位置背景光明亮；人物的脸色太暗以致于...
Page 73: Digital Zoom
• The LED light enables you to record a subject in dark places.  LED 灯可让您在黑暗的环境中录制物体。 • The LED light can be used with C. Nite function only.  LED 灯只能与 C.Nite 功能配合使用。 • When using C. Nite, the focus adjusts slowly and white dots may appear ...
Page 74 using the menu items 使用菜单选项 Resolution Resolution( 分辨率 ) You can select the resolution of photo images to record. 您可以选择拍摄照片的分辨率。 On-screen 设置内容屏幕显示 Settings Contents display 1152x864 选择使用高分辨率录制。 1152x864 Select to record at high-resolution. 800x600 选择使用中等分辨率录制。 800x600 Select to record at medium-resolution. •...
Page 75: Play Option
PLAYBACK MENU ITEM 播放菜单选项 You can set up these menu items for playing movies. 您可以设置播放影音的菜单选项。 Play Option Play Option( 播放选项 ) You can set up play options for movie image playback. 您可以设置播放影音图像的菜单选项。 On-screen 设置内容屏幕显示 Settings Contents display Play All 从所选的文件开始连续播放至最后的一个文...
Page 76 using the menu items 使用菜单选项 File No. File No.( 文件编号 ) File numbers are assigned to photo images in the order they were recorded. 将按录制照片图像的顺序为它们分配文件编号。 On-screen Settings Contents 设置内容屏幕显示 display 按顺序分配文件编号，即使换用了另一块存 Assigns ﬁle numbers in sequence even if the memory card Series( 连续...
Page 77: Storage Info
Storage Info Storage Info( 存储信息 ) It shows you the storage information (the storage media, used space and available space, 显示存储介质信息（存储介质，已用空间和剩余空间，以及根据录制质量的录制时间）。 selected recording quality). So you can ﬁ nd out how long you will be able to record on the 您可以通过查看存储信息找到您还可以录制多长时间。...
Page 78 using the menu items 使用菜单选项 Beep Sound Beep Sound( 蜂鸣音 ) You can turn the beep sound on or off. 您可以选择打开或关闭蜂鸣音。 On-screen Settings Contents 设置内容屏幕显示 display Cancels the beep sound. None Off( 关闭 ) 取消蜂鸣音。无 When on, a beep will sound every time a button is On( 打开...
Page 79: Default Set
TV Display TV Display( 电视显示 ) The TV Display function works in recording and play modes. 电视显示功能仅适用于录制和播放模式。 You can select the output path of the OSD (On Screen Display). This allows you to set 您可以选择 OSD（屏幕显示）输出路径。可以设置使用取景器，LCD 显示屏或者电视 the OSD for viewing on the viewﬁnder, LCD screen or an external TV. 机查看...
Page 80 using the menu items 使用菜单选项 Calibration Calibration( 校准 ) The items on the touch panel may not work correctly. 触感控制板上的选项不能正常使用。如果发生此类事 Calibration If this happens, follow the procedure below. It is 情，仿效如下做法。推荐您在进行校准的过程中使用 recommended you connect your DVD camcorder to 交流电源适配器将 DVD 摄像机连接至壁装电源。 the wall outlet using the supplied AC power adaptor during the operation.
Page 81 image management 图像管理 This chapter describes information about movie or photo ﬁ le management 本章节为您介绍有关影音或照片文件的管理工具，譬如保护，删除和 tools such as protection, deletion and copy. They are not performed at low 复制。但是，在电池电量低的情况下不能保存这些设置。 battery for storage protection. PROTECTION FROM ACCIDENTAL ERASURE 保护以免被偶然删除 • This function works only in the Play mode. page 21 1 / 1 ...
Page 82 image management 图像管理 DELETING IMAGES 删除图像 • This function works only in the Play mode. page 21  此功能仅可在播放模式使用。 第 21 页 • You can erase the images recorded on the storage media.  您可以删除记录在存储介质上的图像。 • If the storage media is set to DVD, this function works only on a ...
Page 83 COPYING IMAGES FROM THE BUILT-IN MEMORY ( 从内置存储器复制图像 You can copy images from the built-in memory onto a DVD disc •  您可以将内置存储器中的图像复制到 DVD 光盘或存储卡上。 or memory card. Memory  本功能仅适用于播放模式。 第 21 页 • This function works only in the Play mode. page 21 •...
Page 84: Editing Movie
editing movie images 编辑影音图像 You can edit recorded movie images in various ways. 您可以通过各种方法编辑录制的影音图像。您可以通过各种方法编辑录制的影音图像。 • Select the desired storage media to edit.   选择想要编辑的文件所在的存储介质。选择想要编辑的文件所在的存储介质。 • If the storage media is set to DVD, this function works only on a ...
Page 85 COMBINING TWO MOVIE IMAGES • This function works only in the Play mode. page 21 • You can combine two different movie images. Slide the POWER switch downwards to turn on the power and press the Play ( ) button to set the Play mode.
Page 86: Images 78
editing movie images 编辑影音图像 PLAYLIST 播放列表 What’s a Playlist? 什么是播放列表 • You can create a playlist on the same disc by gathering your favourite scenes from the  您可以将录制的影音图像中喜爱的场景汇集起来在同样的存储介质上创建一个播放列 recorded movie images. When creating or deleting playlists, the original movie image 表。当创建或删除播放列表时，原始的影音图像并不会被删除，而且从播放列表增加或...
Page 87 CREATING THE PLAYLIST • This function works only in Play mode using the Q.MENU button. page 53 • You can create a playlist on this DVD camcorder by gathering favourite recorded movie images. Since the playlist is not created by copying data, you will consume little of the storage capacity by making a playlist.
Page 88 editing movie images ARRANGING THE ORDER OF MOVIE IMAGES WITHIN PLAYLIST • This function works only in Play mode using the Q.MENU button. page 53 • You can arrange movie images within a playlist by moving them to desired positions. 1.
Page 89 DELETING MOVIE IMAGES FROM A 从播放列表删除影音图像 PLAYLIST • This function works only in Play mode using  此功能只能在播放模式中通过 Q.MENU 按钮使 the Q.MENU button. page 53 用。 第 53 页 • You can delete undesired movie images within  您能删除播放列表内不想要的影音图像。 a playlist. 1.
Page 90 editing movie images 编辑影音图像 COPYING PLAYLISTS FROM THE BUILT-IN 从内置存储器复制播放列表 MEMORY  此功能仅可在播放模式下通过使用 Q.MENU 按钮 • This function works only in Play mode using the 实现。 第 53 页 Q.MENU button. page 53  您可以将内置存储器中的播放列表复制到 DVD 光 • You can copy playlists from the built-in memory into 盘或存储卡。...
Page 91: Disc
disc management 光盘管理器 You can manage a DVD disc for recording. 您可以对录制的 DVD 光盘进行管理。 STBY 00:00:00 [95Min] DISC INFORMATION 光盘信息 -RW +RW +R DL -RW +RW +R DL • This function works in both Movie mode and Play  此功能可以在影音模式和播放模式下使用。 mode.
Page 92 disc management 光盘管理器 DISC FORMAT 光盘格式化 -RW +RW -RW +RW STBY 00:00:00 [95Min] • This function works in both Movie mode and Play  此功能在影音模式和播放模式下起作用。 第 mode.page 21 21 页 • You can format a recorded disc for re-use. By ...
Page 93 DISC FINALISE 光盘终结 +R DL +R DL • This function works in both Movie mode and Play mode.  此功能在影音模式和播放模式下起作用。  第 21 页 page 21  要在其它 DVD 播放机 / 录像机 / 驱动器上播放 DVD- STBY 00:00:00 [95Min] M in •...
Page 94 disc management 光盘管理器 • The ﬁ nalise function is not available at the battery level under (  电池电量低 ( ) 的时候无法使用光盘终结功能。 • Once Finalised, the movie images or playlists in the disc cannot be deleted  一旦终结完成，标题清单和光盘播放清单将不能删除或编辑。 or edited. ...
Page 95 Playing back a ﬁ nalised disc on a DVD player / recorder 在 DVD 播放器 / 刻录机上播放终结后的光盘 To playback a disc 播放光盘播放光盘 +R DL You can playback ﬁ nalised DVD-R/-RW (Video 您可以在 DVD 播放器 / 刻录机播放已终结的 DVD-R/-RW 您可以在 DVD 播放器 / 刻录机播放已终结的 DVD-R/-RW mode)/+R DL discs on DVD players/recorders.
Page 96 disc management 光盘管理器 DISC UNFINALISE 光盘取消终结 STBY 00:00:00 [95Min] • This function works in both Movie mode and Play mode.  此功能在影音模式和播放模式下起作用。 第 21 页 page 21  如果在 VR 模式或 Video 模式下已经终结了 DVD-RW 光盘， • If a DVD-RW disc had been ﬁ nalised in the VR mode 为了方便继续录制可以取消终结光盘。当取消终结时，...
Page 97: Printing Photo
printing photo images 打印照片 You can print photo images by inserting the DPOF setting card to the 在 DPOF 兼容的打印机中插入 DPOF 设置卡，或者将 DVD 摄像机与 DPOF-compatible printer or connecting the DVD camcorder to the PictBridge 打印机连接，打印照片。 PictBridge printer. DPOF 打印设置 DPOF PRINT SETTING Slide Show ...
Page 98 printing photo images 打印照片 DIRECT PRINTING WITH A PICTBRIDGE 通过 PICTBRIDGE 打印机直接打印 • If your printer is compatible with PictBridge, photo  如果您的打印机兼容 PictBridge, 便可以通过 USB 数据 images can be printed easily by connecting the 线连接至打印机更方便地打印照片。DPOF 设置也可以 camcorder with the USB cable directly to the printer. 使用。...
Page 99 PictBridge menu PictBridge 菜单 Setting the date/time imprint option 设置内嵌日期 / 时间打印选项。设置内嵌日期 / 时间打印选项。 Touch the Menu ( ) tab  “Date/Time”  “Off,” “Date,” 触摸菜单导航 ( 触摸菜单导航 ( ) “Date/Time” ( 日期 / 时间 )  “Off” “Time,” or “Date&Time”  Return ( ) tab.
Page 100 USB interface USB 接口 This chapter explains how to connect the camcorder to a PC using the USB 本章节为您介绍怎样使用USB数据线将DVD摄像机连接至电脑实现各种功能。 cable for various functions. ✪ 连接 USB 数据线至电脑，请参见软件安装指南以及如下电脑规格。 ✪ When connecting a USB cable to a PC, refer to the software installation instructions and PC speciﬁcations below.
Page 101 INSTALLING THE CyberLink PowerDirector 安装 CyberLink PowerDirector PowerDirector is a software for easy of editing MPEG, AVI, and other video ﬁ les, still PowerDirector 是一款可以让您更容易地编辑 MPEG，AVI，和其它影音文件，静态图 images, and other contents for creating a movie. 像以及创建其它内容影音的软件。 This software has an interface that allows editing in either timeline or storyboard 使用本软件的界面可以在时间线或节目撮要模式中编辑，保持较高的图像质量，使...
Page 102 USB interface USB接口 Conﬁ rm your information and click “Next.” 确认您的信息并且点击“Next” 。 • It is possible to change the information.   可以更改您的信息。 • The “Choose Destination Location” screen appears.   屏幕上显示“Choose Destination Location” 。 Click “Next.” 点击“Next” 。 •...
Page 103 CONNECTING THE USB CABLE 连接 USB 数据线 To copy the movie ﬁ les and photo ﬁ les to your PC, connect your DVD camcorder to 通过 USB 数据线连接您的 DVD 摄像机至电脑，复制影音文件和照片文件。 the PC with a USB cable. DVD camcorder Set the “USB Connect” to “Mass 设置“USB Connect”(USB 连接...
Page 104 USB interface USB接口 VIEWING THE CONTENTS OF STORAGE MEDIA 查看存储介质信息 • You can transfer or copy the ﬁ les saved on built-in   您可以通过 USB 数据线将摄像机内置存储器或存储卡上您可以通过 USB 数据线将摄像机内置存储器或存储卡上 memory or memory card into PC using USB cable. 的文件复制或转移到电脑上。 •...
Page 105 Structure of folders and ﬁ les on the storage media 存储介质上的文件夹和文件的结构 • The folder and ﬁ le structure for the built-in memory or   以下为内置存储器或存储卡的文件夹和文件的结构。以下为内置存储器或存储卡的文件夹和文件的结构。 memory card is as follows:   不要任意移动或者更改文件夹或者文件名称。这样做很不要任意移动或者更改文件夹或者文件名称。这样做很 • Do not arbitrarily change or remove the folder or ﬁ le 可能导致文件不能正常播放。...
Page 106 USB interface USB接口 TRANSFERRING FILES FROM THE DVD CAMCORDER TO YOUR PC 从 DVD 摄像机转移文件至电脑 You can copy the movie and photo images to your PC 您可以复制影音图像至电脑并且进行播放。 and play them back. 1. Execute the procedure in “Viewing the contents of 1.
Page 107 maintenance & additional information 维护 & 其他信息 MAINTENANCE 维护 Your DVD camcorder is a product of superior design and craftsmanship and should 您的 DVD 摄像机是具有超级设计和工艺的产品，应该小心对待。下面的建议将帮助履 be treated with care. The suggestions below will help you fulﬁll any guarantee 行所有担保义务，并让您多年使用本产品。 obligations and allow you to enjoy this product for many years. ...
Page 108 Do not store the storage media in locations with high temperature or high humidity. Do not touch the metal parts.  发生故障之后可能导致存储介质不能正常操作使用。三星公司不会对丢失数据承担任 • Copy the recorded ﬁles to your PC. Samsung shall not be responsible for any lost 何赔偿。 data.  详细内容请参见第 31-36 页。...
Page 109 Remove from charger or powered unit when not in use, as some machines use electric current even when switched off. 短产品使用寿命。请在不使用的时候拔掉充电器或电源，同样要在关闭电源的时候与其它一些设备 • It is recommended that only genuine Samsung batteries are used in this camcorder. 连接。 Using generic non-Samsung batteries can cause damage to the internal charging  建议您仅使用三星原装电池组。使用普通非三星原装电池组可能会损坏电...
Page 110 maintenance & additional information 维护&其他信息 On charging the built-in rechargeable battery 为内置蓄电池充电 Your camcorder has a built-in rechargeable battery to retain the date, time, and 您的摄像机事先配有可再充电电池以备在关闭电源的时候保留日期，时间以及其它 other settings even when the power switched off. The built-in rechargeable battery 一些设置。事先配有的可再充电电池当摄像机通过交流电源适配器连接到壁装电源 is always charged while your camcorder is connected to the wall outlet via the AC 插座或安装了电池组的过程中，会被动充电。如果您大约6个月未使用本DVD摄像机，...
Page 111 ① 您必须格式化新的光盘才能进行录像。 You must format a new disc before recording on it.  When loading a DVD-RW disc you must format it in Video or VR mode. ② 载入 DVD-RW 光盘时，您必须在“Video”或“VR”模式中对它进行格式化。  When loading a DVD+RW disc you must format it. ...
Page 112 故障处理 TROUBLESHOOTING 故障处理 Before contacting a Samsung authorised service centre, perform the following simple 在联系三星授权维修中心前，请进行如下简单的检查。 checks. They may save you the time and expense of an unnecessary call. 警告图标和提示信息 Warning indicators and messages Power source 电源 Message Icon Informs that...
Page 113 Message Icon Informs that... Action 信息图标说明内容…… 处理 There is no memory card inserted Insert a memory card. Insert Card 插入一张存储卡。 Insert Card 没有插入存储卡。 in the card slot. Use another storage media. page 31 ( 无存储卡 ) 使用另一种存储介质。 第 31 页 Delete unnecessary ﬁles on the There is no enough space to record Card Full...
Page 114 When recording outside in hot weather after being indoors or inside a car 当在室外炎热的天气进行录制，后又进入室内或者汽车内充 where the AC was running. 电时。 Note before sending your camcorder for repair. 修理数码摄像机前的注意事项 • If these instructions do not solve your problem, contact your nearest Samsung  如果这些说明不能解决问题时，请与最近的三星授权服务中心联系。 authorised service centre.  根据出现的问题, 当前的硬盘也许需要初始化或更换并且删除数据。 •...
Page 115: Symptoms And Solutions
If you encounter any problem using your camcorder, check the following before ✪ 如果您在使用摄像机的过程中遇到任何问题，请在送出修理之前检查以下事项。 ✪ requesting service. If these instructions do not solve your problem, contact your 如果这些说明不能够解决问题，请与最近的三星授权服务中心联系。 nearest Samsung authorised service centre. Symptoms and solutions 症状与解答 Power 电源 Symptom Explanation/Solution 症状...
Page 116 troubleshooting 故障处理 Symptom Explanation/Solution 症状解释/解答 An afterimage remains • This occurs if you disconnect the AC power adaptor or  如果您在关闭电源之前拔开交流电能适配器或去除电池组会 on the LCD screen. remove the battery pack before turning the power off LCD 显示屏上有残像发生这种情况。 • Ambient light is too bright. Adjust the brightness and angle The image on the LCD of LCD.
Page 117 Recording 录制 Symptom Explanation/Solution 症状解释/解答 • The internal temperature of your camcorder is  存储介质上没有多余的空间进行录制。将重要 extremely low. Keep it turned on and wait until 文件转移到电脑并且格式化存储介质或者删除 it warms up. • If you make a frequent recording or deletion 一些多余的文件。 of ﬁles, the performance of the storage ...
Page 118 troubleshooting 故障处理 Symptom Explanation/Solution 症状解释/解答 The shutter sound is not heard • Set “Shutter Sound” to “On.” 当拍照的时候不能听到快  设置“Shutter Sound”( 快门音 ) 为“On” when you record a photo image. 门音...
Page 119 Adjusting the image during recording 录制期间调整图像 Symptom Explanation/Solution 症状解释/解答 • Set “Focus” to “Auto.” page 62  设置“Focus”(聚焦)为“Auto”(自动)。 • The recording conditions are not suitable for auto 第62页 focus. Adjust the focus manually. page 62 Focus does not adjust •...
Page 120 故障处理 troubleshooting Symptom Explanation/Solution 症状解释/解答 • If the temperature inside the camcorder is too high, 跳过或搜索功能不能正常  如果摄像机内部温度过高，则无法正常工作。请关闭 The Skip or Search function it may not function properly. does not work properly. Turn the camcorder off, wait for a few moments, 使用...
Page 121 Connecting to a computer 与电脑连接 Symptom Explanation/Solution 症状解释/解答 • Disconnect any other USB device than the keyboard, mouse and camcorder from the  从电脑上拔掉除了键盘，鼠标和摄像机之 computer. 外的所有 USB 设备。 The computer does not • Disconnect the USB cable from the computer recognise your camcorder.
Page 122 troubleshooting 故障处理 Symptom Explanation/Solution 症状解释/解答 • Check the system requirements to play a movie. page 94  请检查播放影音文件的系统要求。第94页 The playback • Exit other all applications running on the current computer.  退出当前电脑上的所有应用程序。 screen is paused or • If a recorded movie is played on your camcorder connected to a 播...
Page 123 规格 MODEL NAME: VP-DX10/VP-DX10H 型号名：VP-DX10/VP-DX10H System 系统 Video signal 视频信号 MPEG-2 Picture compression format 图像压缩格式 MPEG-2 ® Audio compression format ® 音频压缩格式 DOLBY DIGITAL STEREO CREATOR DOLBY DIGITAL STEREO CREATOR SF (about 9Mbps,60min), F (about 6Mbps,90min), 录制质量 SF ( 约 9Mbps,60 分钟 ), F ( 约 6Mbps,90 分钟 ), N ( 约 3Mbps,180 分钟 )
Page 124 01-8000112112 www.samsung.com.co BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be 844 000 844 CZECH REPUBLIC www.samsung.com/cz Distributor pro Českou republiku :Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4 DENMARK 70 70 19 70 www.samsung.com/dk FINLAND 030-6227 515 www.samsung.com/ﬁ FRANCE 3260 SAMSUNG(726-7864) or 08 25 08 65 65 (€...
Page 125 RoHS compliant 符合 RoHS 标准 Our product complies with “The Restriction Of the use of certain 我们的产品符合“在电子电气设备禁用某些有害物质”指令规 Hazardous Substances in electrical and electronic equipment,” 定，产品中不含6 种有害物质，即镉（Cd）、铅（Pb）、汞（Hg）、 and we do not use the 6 hazardous materials- Cadmium(Cd), 六价铬（Cr+6）、聚合溴化联苯（PBBs）、聚合溴化联苯乙醚 Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr +6), Poly （PBDEs）。...
