Samsung CM1029 Owner's Instructions & Cooking Manual

Hide thumbs Also See for CM1029:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

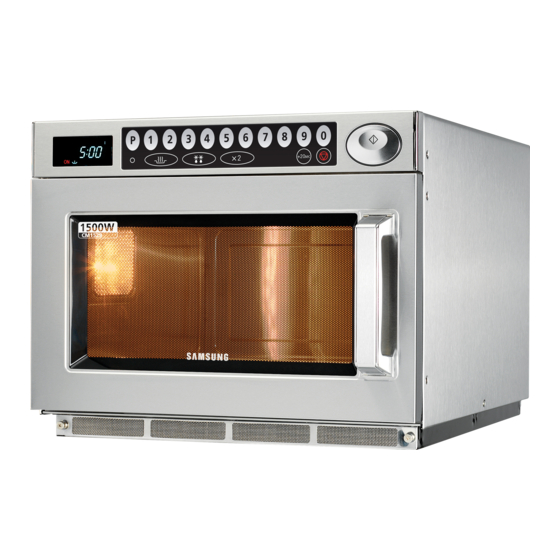

Microwave Oven

Owner's Instructions & Cooking Guide
Please be advised that the Samsung warranty does NOT cover service
calls to explain product operation, correct improper installation, or
perform normal cleaning or maintenance.
This manual is made with 100 % recycled paper.
CM1029_XEU_DE68-2570B-01_EN.indd 1
(COMMERCIAL)
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
CM1029
11/18/2013 7:27:28 PM

Advertisement

Table of Contents
loading

Related Manuals for Samsung CM1029

Summary of Contents for Samsung CM1029

  • Page 1: Microwave Oven

    (COMMERCIAL) www.samsung.com/register Owner’s Instructions & Cooking Guide Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. This manual is made with 100 % recycled paper.
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS USING THIS INSTRUCTION BOOKLET You have just purchased a SAMSUNG microwave oven. Your Owner’s READ CAREFULLY AND KEEP FOR Instructions contain valuable information on cooking with your microwave FUTURE REFERENCE. oven: Make sure that these safety precautions are •...
  • Page 3 WARNING: This appliance can be If smoke is emitted, switch off or unplug used by children aged from 8 years the appliance and keep the door closed and above and persons with reduced in order to stifle any flames. physical, sensory or mental capabilities WARNING: Microwave heating of or lack of experience and knowledge beverages can result in delayed eruptive...
  • Page 4 This appliance is not intended for use by If the oven generates a strange noise, persons (including children) with reduced a burning smell, or smoke is emitted, physical, sensory or mental capabilities, unplug the power plug immediately and or lack of experience and knowledge, contact your nearest service center.
  • Page 5 WARNING: Ensure that the appliance is The temperature of accessible surfaces switched off before replacing the lamp to may be high when the appliance is avoid the possibility of electric shock. operating. WARNING: The appliance and its The door or the outer surface may get accessible parts become hot during use.
  • Page 6 INSTALLING YOUR MICROWAVE OVEN oven or radiator. The power supply specifications of the oven must be respected Place the oven on a flat level surface 85 cm and any extension cable used must be above the floor. The surface should be strong of the same standard as the power cable enough to safety bear the weight of the oven.
  • Page 7 2. Remove any splashes or stains on the (Swing heater model only) inside surfaces of oven with a soapy cloth. STORING AND REPAIRING YOUR Rinse and dry. MICROWAVE OVEN 3. To loosen hardened food particles and A few simple precautions should be taken remove smells, place a cup of diluted when storing or having your microwave oven lemon juice in the oven and heat for ten...
  • Page 8 Please contact nearest authorised nearest service centre. Samsung customer care to arrange for a Do not apply excessive pressure or impact to the qualified engineer to replace the bulb. appliance.
  • Page 9 Keep children away from the door when opening or Eggs in their shell and whole hard-boiled eggs closing it as they may bump themselves on the door should not be heated in microwave ovens since they or catch their fingers in the door. may explode, even after microwave heating has ended;...
  • Page 10 Samsung will charge a repair fee for replacing an accessory or repairing Household users should contact either the retailer where they purchased this product,...

  • Page 11: Table Of Contents

    CONTENTS OVEN Oven .......................11 Control panel ...................12 Display ....................12 Setting the time ..................12 Cooking/reheating ...................13 Power levels & time variation ..............14 Stopping the cooking ................15 Repeat features ..................15 Using +30sec pad ...................15 Using defrost button ................16 Memory programming ................16 How to operate memory cooking .............18 Using the double quantity button .............19 Double quantity pad programming ............19 How to operate double quantity pad ............20...

  • Page 12: Control Panel

    CONTROL PANEL SETTING THE TIME Your microwave oven has an inbuilt clock. When power is supplied, “:0”, “88:88” or “12:00” is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24- hour or 12-hour notation.

  • Page 13: Cooking/Reheating

    COOKING/REHEATING 3. Press the ( )button: Result : The oven lamp and cooling fan will be One Stage Cooking turned on. Heating will start. The time This oven is preset at the factory for automatic operation. on digital display will count down. Make sure the oven is plugged into a properly earthed electrical outlet and “ON”...

  • Page 14: Power Levels & Time Variation

    Multi-stage cooking POWER LEVELS & TIME VARIATION The power level function enables you to adapt the amount of energy 1. Select the desired power level by pressing the POWER LEVEL Selector pad or DEFROST pad. dissipated and thus the time required to cook or reheat your food, according to its type and quantity.

  • Page 15: Stopping The Cooking

    STOPPING THE COOKING USING +30SEC PAD You can stop cooking at any time so that you can: This is a ONE TOUCH COOK pad • Check the food By touching the pad once, you can start heating instantly. • Turn the food over or stir it You can increase the cooking time by pressing the +30sec pad while •...

  • Page 16: Using Defrost Button

    USING DEFROST BUTTON MEMORY PROGRAMMING The defrost time and power level are set automatically. You simply select ONE STAGE COOKING. the programme and the weight. 1. Hold down PROGRAM LOCK and then press Use only dishes that are microwave-safe. PROGRAM pad. Hold together for 2 sec. Be sure First, place the frozen food in the centre of the ceramic plate and close the to press the pads firmly.
  • Page 17 5. Hold down PROGRAM LOCK and then press PROGRAM() pad. Hold ONE STAGE COOKING. together for 2 sec once again. 1. Hold down PROGRAM LOCK and then press PROGRAM pad. Hold together for 2 sec. Be sure Result : PROG indicator and memory number indicator blink 3 to press the pads firmly.

  • Page 18: How To Operate Memory Cooking

    5. Repeat steps 3 and 4 for II or III stage memory programming. HOW TO OPERATE MEMORY COOKING After having finished memory programming, just press the NUMBER pad 6. Hold down PROGRAM LOCK and then press PROGRAM() pad. Hold of the memory number you want to select. The oven will automatically start together for 2 sec once again.

  • Page 19: Using The Double Quantity Button

    USING THE DOUBLE QUANTITY BUTTON DOUBLE QUANTITY PAD PROGRAMMING Double Quantity Factor Editing 1. Hold down and then press ( ) pad. CANCEL( Hold together for 2 seconds. Feature Key Entry Display Remark Hold down ( ) and Hold down for 2 sec. then ( ) pad 2.

  • Page 20: How To Operate Double Quantity Pad

    HOW TO OPERATE DOUBLE QUANTITY PAD 6. Hold down PROGRAM LOCK and then press PROGRAM pad. Hold together for 2 seconds in 1. Press the Double Quantity pad. order to save the new value. This completes the programming of the air filter clean time. 7.

  • Page 21: Double Quantity Pad Programming

    DOUBLE QUANTITY PAD PROGRAMMING HIDDEN KEYS Double Quantity Factor Editing Note: Press Key 1 and then the next one. Hold for 2 secs. Error Error Key Entry Code Cause Remedy Feature Display Remark Items Beep Key 1 Next Unplug the power cord plug and check if the Continuity time CANCEL...

  • Page 22: Care Of Your Microwave Oven

    CARE OF YOUR MICROWAVE OVEN CLEANING THE CEILING COVER Cleaning the Microwave Oven 1. Hold side stoppers of ceiling cover with both hands and pull them in and 1. Unplug the oven from the electrical socket before cleaning. down. Then take the ceiling cover out of the oven cavity. 2.

  • Page 23: Replacement Of Lamp

    REPLACEMENT OF LAMP COOKWARE GUIDE Important To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. 1. Remove a screw securing the lamp cover. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry.

  • Page 24: Cooking Guide

    COOKING GUIDE Cookware Microwave- Comments safe MICROWAVES Metal Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. • Dishes May cause arcing or fire. ✗ The microwaves cause the molecules in the food to move rapidly. The rapid •...
  • Page 25 Standing Standing Time Time Food Portion Method Power Time Food Portion Method Power Time (min.) (min.) (min.) (min.) Peas 500 g Add 15-30 ml (1-2 Medium 9-10 Cauliflower 500 g Cut into even High 5-5½ tbsp.) cold water. sized florets. Add Mixed 500 g Add 15-30 ml (1-2...

  • Page 26: Cooking Guide

    COOKING GUIDE Reheating Soup and Stew Use the power levels and times in this table as a guide lines for reheating. Reheating Dish Entrees Use the power levels and times in this table as a guide lines for reheating. Food Portion Method Power...

  • Page 27: Installation & Wiring Instructions

    Reheating Snacks Defrosting Bread and Cake Use the power levels and times in this table as a guide lines for cooking. Use the power levels and times in this table as a guide lines for cooking. Food Portion Method Power Time Standing Food...

  • Page 28: Wiring Instructions

    WIRING INSTRUCTIONS WARNING : Ensure that the plug and WARNING power cord are not damaged before use. If you have any reason to remove WARNING THIS APPLIANCE MUST BE EARTHED. the moulded plug from this appliance, This appliance must be earthed. In the event of an electrical short circuit, immediately remove the fuse and dispose earthing reduces the risk of electric shock providing an escape wire for the of the plug.

  • Page 29: What To Do If You Are In Doubt Or Have Aproblem

    The food is not cooked at all • A clear description of the problem • Have you set the timer correctly and pressed the Start/+30s ( Then contact your local dealer or SAMSUNG aftersales service. button? • Is the door closed? •...

  • Page 30: Technical Specifications

    TECHNICAL SPECIFICATIONS NOTE SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. CM1029 Model Power source 230 V ~ 50 Hz Power consumption 1700 W...
  • Page 31 NOTE NOTE CM1029_XEU_DE68-2570B-01_EN.indd 31 11/18/2013 7:27:48 PM...
  • Page 32 Festnetz, aus dem Mobilfunk max. 0,42 €/Min.) ITALIA 800-SAMSUNG(726-7864) 8009 4000 only from landline CYPRUS (+30) 210 6897691 from mobile and land line 80111-SAMSUNG (80111 726 7864) only from land line GREECE www.samsung.com (+30) 210 6897691 from mobile and land line LUXEMBURG 261 03 710 NETHERLANDS 0900-SAMSUNG (0900-7267864) (€...
