Belkin F1D201 Instruction Manual

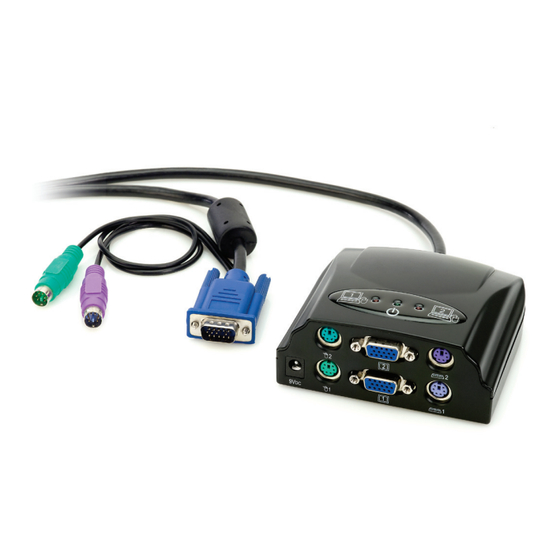

2-port reverse kvm switch
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Package Contents

2-Port Reverse
Quick Installation
KVM Switch
Guide
Introduction
This booklet will guide you through the basic steps needed to install the
2-Port Reverse KVM Switch.
Introduction
1

Advertisement

Table of Contents
loading

Related Manuals for Belkin F1D201

Summary of Contents for Belkin F1D201

  • Page 1: Package Contents

    Package Contents 2-Port Reverse Quick Installation KVM Switch Guide Introduction This booklet will guide you through the basic steps needed to install the 2-Port Reverse KVM Switch. Introduction...

  • Page 2: Specifications

    Specifications Part No. F1D201 Material Plastic enclosure Net Weight 30.6 lbs. (13.9kg.) Unit Dimensions 2.95 (W) x 2.76 (D) x 1.23 (H) in. (75 x 70 x 31.3mm) Max. Video Resolution 1600x1200 Keyboard Connection PS/2 Mouse Connection PS/2 Monitor Connection...

  • Page 3: Installation

    Installation Step 1 Power off your computer. Step 2 Using the included KVM cable, connect the male VGA end to the VGA port on your computer. Step 3 Connect the PS/2 ends of the included KVM cable to the keyboard and mouse ports, paying particular attention to which cable connects to which port.
  • Page 4 Step 5 Connect your keyboards and mice to the console ports to the back of the Reverse KVM Switch. Step 6 Turn on the connected monitors. Step 7 Turn on the connected computer. The display LED will turn on User 1 or User 2, depending on the last lighted position of the LEDs.

  • Page 5: Hot-Key Setting Mode

    Using your 2-Port Reverse KVM Switch Switch Between Two Users Press “Ctrl” twice (within three seconds) to switch between users. Switch the Beeping Sound ON/OFF Press the right “Shift” twice (within three seconds) to switch the beeping sound ON or OFF. Hot-Key Setting Mode To enter the hot-key setting mode, press “Scroll-Lock”...
  • Page 6 Adjusting time-out setting: Under the hot-key settings, press “-” to decrease the time-out period. b. Under the hot-key settings, press “+” to increase the time-out period. Time-out setting table. Time-Out Period NUM LOCK CAPS LOCK SCROLL LOCK 30 sec. 1 min. 3 min.
  • Page 7 Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2009 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 8820-00071...

  • Page 8: Start Here

    2-Port Reverse KVM Switch Start Here Quick Installation Guide F1D201...
