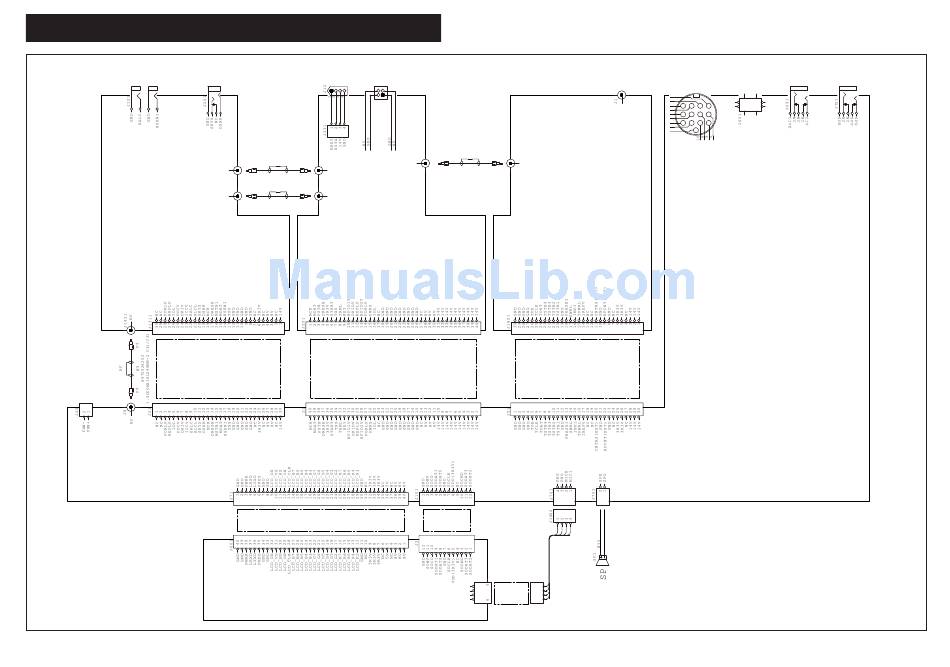

SECTION 8. GENERAL WIRING
[ALC] [SEND] [ELE-KEY]
J1001
TXRF
J1071
RXRF
RF UNIT
W21
8910000500
FFC-1055 (P0.5N30L150)
FAN
[TUNER] [DC]
4 2
3 1
W7
8900016990
OPC-1741(1.5DCOAXIAL110MM)
TXRF
J101
TXRF
P4 P4
RXRF
J801
RXRF
P4 W3 P4
8970024412
1.5DCOAXIAL330MM-2(T)C31/C31
PA UNIT
W22
8910000220
FFC-1024 (P0.5N40L120)
W24
8910000520
FFC-1056 (P0.5N40L100 S) TJM
FRONT UNIT
8-1
W1
8970024631
1.5DCOAXIAL170MM-1 C31/C31
J961 J1001
P4 P4
TUNER UNIT
W23
8910000530
FFC-1057 (P0.5N30L65 S)
6 5
W25
8900018810
OPC-1974
(P0.5N12L50)
14 13
J1803
J421
W11
1 4
8600037600
3
2
SX3765
3 2
P11*P12CH
4 1
(3765-1)
[REMOTE]
[ANT]
[ACC]
[USB]
1
2 J771
3 2
4 USB+ USB-
4 3 2 1
4 1
3
8
8 7 6 5
7
12
12 11 10 9
11
13
13
MAIN UNIT
4 3
CHASSIS
[EXT-SP]
