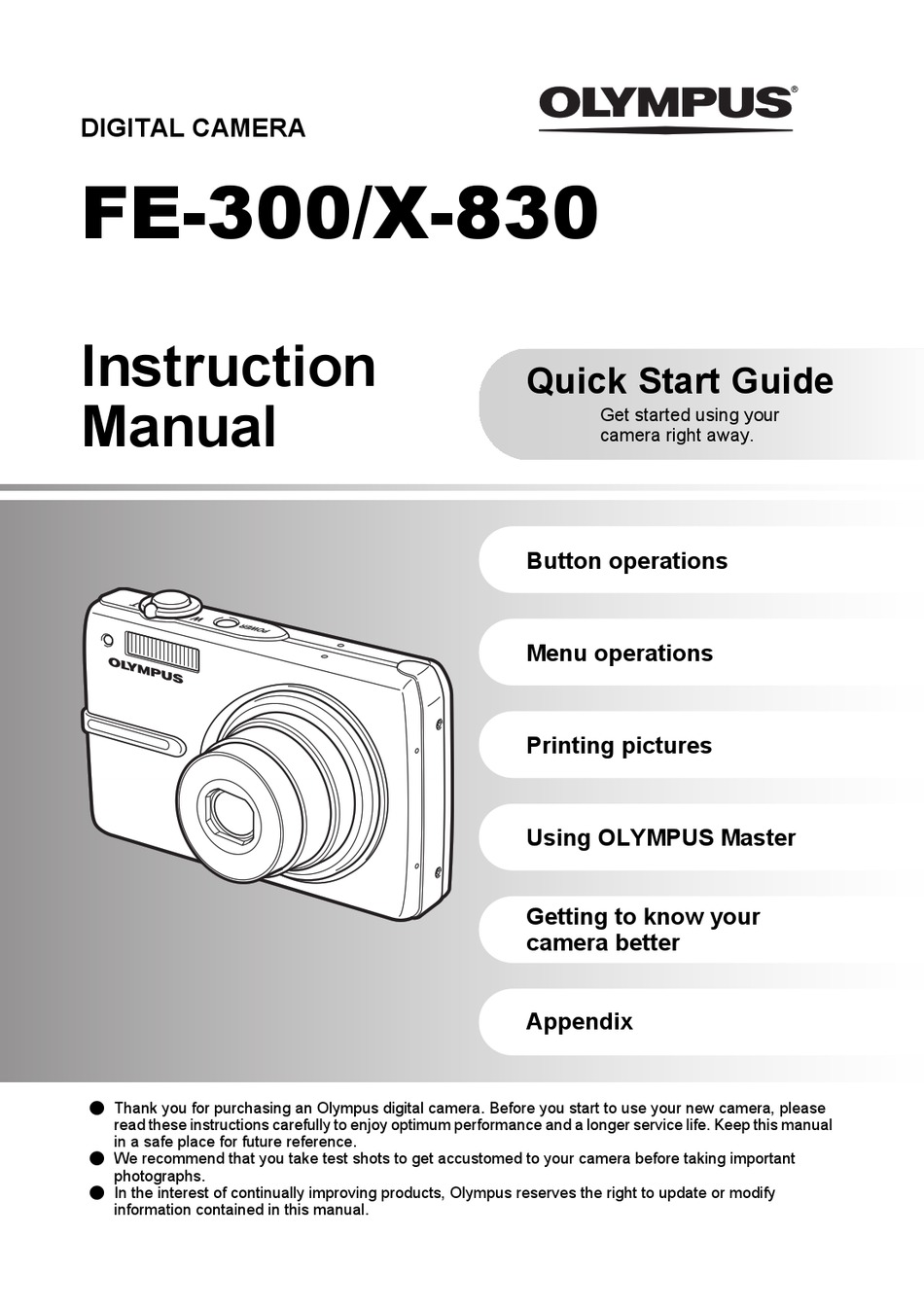

DIGITAL CAMERA

FE-300/X-830
Instruction
Manual
( Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please
read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual
in a safe place for future reference.
( We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
( In the interest of continually improving products, Olympus reserves the right to update or modify
information contained in this manual.

Quick Start Guide

Get started using your
camera right away.

Button operations

Menu operations

Printing pictures

Using OLYMPUS Master

Getting to know your
camera better
Appendix

Advertisement

Table of Contents
loading

Related Manuals for Olympus FE-300

Summary of Contents for Olympus FE-300

  • Page 1: Digital Camera

    Instruction Manual ( Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents Quick Start Guide Button operations Menu operations Printing pictures Using OLYMPUS Master Getting to know your camera better Appendix P. 3 Test out the functions of the camera buttons by following along with the illustrations. P. 11 Learn about the menus that control the functions and settings for basic P.
  • Page 3 Strap Lithium Ion Battery (LI-42B) Battery Charger USB Cable AV Cable OLYMPUS Master 2 (LI-40C) CD-ROM Items not shown: Instruction Manual (this manual) and the Warranty Card. Contents may vary depending on purchase location. Attach the strap ( Pull the strap tight so that it does not come loose.
  • Page 4 Prepare the camera a. Charge the battery. AC Wall Outlet ( Battery comes partially charged. b. Insert the battery and an xD-Picture Card (optional). ( To remove the battery, press the battery Power Cable Charging Indicator Red light on: Charging Light off: Charging complete (Charging time: Approx.
  • Page 5 Contact area Notch ( With this camera, you can take pictures without inserting the optional xD- Picture Card™ (hereinafter referred to as “the card”). If you shoot pictures with this camera without using an xD-Picture Card, the pictures will be recorded in the internal memory.
  • Page 6 Turn the camera on This explains how to turn on the camera in shooting mode. a. Set the mode dial to h. Still picture shooting modes The camera determines the optimum settings for the shooting conditions automatically. The camera automatically sets the optimum aperture value and shutter speed. This function reduces the blur incurred by a moving subject, or camera shake when taking pictures.
  • Page 7 Set the date and time About the date and time setting screen MENU Cancels the setting a. Press the OF/< and NY buttons to select [Y]. • The first two digits of the year are fixed. b. Press the Y# button. c.
  • Page 8 Set the date and time d. Press the Y# button. e. Press the OF/< and NY buttons to select [D]. f. Press the Y# button. g. Press the OF/< and NY buttons to select the hours and minutes. • The time is displayed in the 24-hour format. h.
  • Page 9 Take a picture a. Hold the camera. Horizontal grip b. Focus. c. Shoot. Shutter Button (Press Halfway) When the focus and exposure are locked, the green lamp lights up, and the shutter speed and aperture value are displayed. The card access lamp blinks. Shutter Button (Press Completely)
  • Page 10 Review your pictures a. Press the q button. Arrow pad Displays the previous image Erase pictures a. Press the X& and Y# buttons to display the picture you want to erase. b. Press the /S button. c. Press the OF/< button, select [YES], and press . q button Displays the next image /S button...

  • Page 11: Button Operations

    Button operations o button Power on: Camera turns on in shooting mode. • Lens extends • Monitor turns on Shutter button Shooting still pictures Set the mode dial to a setting other than n, and lightly press the shutter button (halfway). When the focus and exposure are locked, the green lamp lights up (focus lock), and the shutter speed and aperture value are displayed (only when the mode dial is set to h, P, h).

  • Page 12: H Shooting Pictures Using Digital Image Stabilization

    K button (Shooting) Shooting mode is selected. This function is used to set the camera to turn on in shooting mode when K is pressed with the camera off. g “K/q Turning on the camera with the K or q button” (P. 27) q button (Playback) The last picture taken is displayed.

  • Page 13: Smile Shot

    [S SMILE SHOT] • When the camera detects a smiling face in shooting standby mode, 3 frames are taken in high speed sequential shooting mode automatically. You can also shoot pictures manually by pressing the shutter button in this mode. •...
  • Page 14 OF/< button Shooting mode: Changing picture brightness Playback mode: Printing pictures Display a picture to print out in playback mode, connect the camera to the printer, and then press OF/< to print the picture. g “Direct printing (PictBridge)” (P. 29) X&...

  • Page 15: Erasing Pictures

    /S button  Increasing the brightness of the monitor Press  in shooting mode. The monitor becomes brighter. If there is no operation for 10 seconds, the previous brightness resumes. S Erasing pictures In playback mode, select the picture you want to erase, and press S. •...

  • Page 16: Index Display

    Playback mode: Switching the picture display [ IN IN ] [ IN IN ] [ IN IN ] [ IN IN ] Single-frame playback • Use the arrow pad to browse pictures. [ IN IN ] × 4000 4000 3000 3000 F2.8 1/1000 F2.8 1/1000...

  • Page 17: Menu Operations

    Menu operations K button (Shooting mode) q button (Playback mode) m button About the menus Press m to display the top menu on the monitor. • The contents displayed on the top menu differ according to the mode. Top menu (Still picture shooting mode) IMAGE IMAGE...
  • Page 18 MENU SCENE SCENE EXIT MENU CAMERA MENU FINE ZOOM SETUP SETUP SETUP R (still pictures) SILENT SILENT MODE MODE * An Olympus xD-Picture Card is required. IMAGE IMAGE QUALITY QUALITY CAMERA CAMERA RESET RESET SETUP SETUP SETUP MENU MENU SILENT...

  • Page 19: Image Quality

    • Some functions are not available according to the selected mode. g “Functions available in shooting modes and scenes” (P. 49) g “SETUP menus” (P. 26) • The factory default settings are displayed in gray ( IMAGE QUALITY Still picture image quality and their applications Image quality/Image size 4000 ×...

  • Page 20: Camera Menu

    Function R (still pictures) R (movies) AF MODE f (Scene) The scene selection screen displays sample images and the shooting mode to best suit the situation. This can be set only when the mode dial is set to f. • By switching to another scene, most settings will be changed to the default settings of each scene. g “f Shooting pictures by selecting a scene mode according to the situation”...

  • Page 21: Silent Mode

    Only the digital zoom can be used. PANORAMA ...Creating a panoramic picture Panorama shooting lets you create a panoramic picture, using the OLYMPUS Master software on the provided CD-ROM. An Olympus xD-Picture Card is required for panorama shooting. Connects pictures from...

  • Page 22: Operations During Movie Playback

    Playback mode menu EDIT EDIT INDEX EDIT SLIDESHOW Press  to start the slideshow. • Only the first frame of each movie is displayed. • To cancel the slideshow, press . MOVIE PLAY [ IN IN ] '07.12.10 '07.12.10 12:30 12:30 1 0 0 - 0 0 0 4 1 0 0 - 0 0 0 4...
  • Page 23 Operations during pause [ IN IN ] 00:05 00:05 00:36 00:36 • To resume the movie, press . • To cancel the playback of the movie in the middle of it or during pause, press m. PERFECT FIX The recorded image is corrected and saved as a new one. •...
  • Page 24 Erasing pictures registered in MY FAVORITE YES/ NO SET ... BACK MENU EDIT ... Changing the size of pictures 640 × 480 ...Cropping a picture INDEX ... Making an index picture from a movie 00:00 00:00/00:36 00:00/00:36 00:36 EDIT ... Cutting a part of the movie 00:00/00:36 00:00 00:00/00:36...

  • Page 25: Playback Menu

    PLAYBACK MENU ...Protecting pictures Protected pictures cannot be erased using [ERASE], [SEL. IMAGE] or [ALL [ IN ] ERASE], but they are all erased by formatting. • Select the picture with XY, and protect it by selecting [ON] with ON. You can protect several frames in succession.
  • Page 26 • Make sure there is no card inserted in the camera when formatting the internal memory. • Be sure that the card is inserted in the camera when formatting the card. • Before using non-Olympus cards or cards which have been formatted on a computer, you must format them with this camera.
  • Page 27 ... Selecting a display language You can select a language for on-screen display. Available languages vary depending on where you purchased this camera. You can add other languages to your camera with the provided OLYMPUS Master software. PIXEL MAPPING ...Adjusting the image processing function The pixel mapping feature allows the camera to check and adjust the CCD and image processing functions.

  • Page 28: Playing Back Pictures On A Tv

    ...Setting the date and time The date and time is saved with each image, and is used in the file name. If the date and time are not set, the [X] screen is displayed each time the camera is turned on. MENU Cancels the setting VIDEO OUT...

  • Page 29: Printing Pictures

    Printing pictures Direct printing (PictBridge) Using the direct printing function By connecting the camera to a PictBridge-compatible printer, you can print out pictures directly. Select the pictures you want to print and the number of prints on the camera’s monitor. To find out if your printer is compatible with PictBridge, refer to the printer’s instruction manual.
  • Page 30 • When printing is finished, the picture selection screen is displayed. To print another picture, press XY to select a picture, and press OF/<. • When you are finished, disconnect the USB cable from the camera with the picture selection screen displayed. Disconnect the USB cable from the camera.

  • Page 31: Selecting The Picture To Print

    Selecting a print mode PRINT P R I N T M O D E S E L E C T PRINT ALL PRINT ALL PRINT MULTI PRINT MULTI PRINT ALL INDEX ALL INDEX EXIT MENU PRINT ORDER Setting the print paper SIZE [ IN ] P R I N T P A P E R...

  • Page 32: How To Make Print Reservations

    Setting the number of prints and data to be printed P R I N T I N F O [ I N ] < x DATE WITHOUT FILE NAME WITHOUT BACK MENU Select [PRINT], and press . • Printing starts. •...
  • Page 33 Printing using a DPOF-compatible printer. Printing is possible directly from a card containing print reservation data, without using a computer. For more details, refer to the printer’s instruction manual. A PC card adapter may also be necessary. Note • DPOF reservations set by another device cannot be changed by this camera. Make changes using the original device.
  • Page 34 All-frame reservation Reserves all the pictures stored on the card. The number of prints is set at one print per picture. Press m in the playback mode and display the top menu. Select [PRINT ORDER] Select the date and time setting, and press . The pictures are printed without the date and time.

  • Page 35: Using Olympus Master

    Overview Using the USB cable provided with your camera, you can connect the camera and computer and download (transfer) the images to your computer using the OLYMPUS Master software, also provided with the camera. Prepare the following items before starting.

  • Page 36: Install The Olympus Master Software

    Before installing the OLYMPUS Master software, please confirm that your computer is compatible with the following system requirements. For newer operating systems, please refer to the Olympus web site as shown on the back cover of this manual. Operating environment...
  • Page 37 • To select the components to install, select “Custom”. • The installation begins. The screen confirming that setup is completed is displayed. Click “Close”. • Next, the screen confirming whether to install OLYMPUS muvee theaterPack Trial Version is displayed. To install this software, click “Install”. Macintosh Insert the CD-ROM into the CD-ROM drive.
  • Page 38 • Connecting the camera to a computer via a USB hub may cause unstable operation. In this case, do not use a hub, but connect the camera directly to the computer. • Images cannot be transferred to your computer with OLYMPUS Master if [PC] is selected in Step 3, Y is pressed and [MTP] is selected.
  • Page 39 • The browse window is displayed. • When OLYMPUS Master is started up for the first time after installation, the OLYMPUS Master initial setting screen and user registration screen are displayed before the browse window. Follow the on-screen instructions. To exit OLYMPUS Master Click “Exit”...
  • Page 40 Double-click the movie thumbnail that you want to see in the browse window. • OLYMPUS Master switches to the edit window and the first frame of the movie is displayed. To play back the movie, click “Play” bottom of the screen.

  • Page 41: Camera Display

    Note • If your computer is running Windows Vista, you can select [PC] in Step 3 on P. 38, press Y, and select [MTP] to use Windows Photo Gallery. • Data transfer is not guaranteed in the following environments, even if your computer is equipped with a USB port.

  • Page 42: Getting To Know Your Camera Better

    Getting to know your camera better Shooting tips and information Tips before you start taking pictures The camera does not turn on even when a battery is loaded The battery is not charged • Charge the battery with the charger. The battery is temporarily unable to function because of the cold •...

  • Page 43: The Date And Time Have Not Been Set

    The date and time have not been set The camera has been used in the same condition from the time of purchase • No date and time have been set in the camera at the time of purchase. Set the date and time before using the camera.

  • Page 44: Taking Pictures Without Blurring

    Taking pictures without blurring Hold the camera correctly and press the shutter button gently to shoot the picture. In addition, blurring is reduced when taking pictures in the h mode. The factors that can cause the picture to blur are as follows: •...

  • Page 45: Additional Shooting Tips And Information

    (15 frames/sec.) Using a new card • When using a non-Olympus card or a card used for other purposes with a computer, etc., use the [FORMAT] function to format the card. g “MEMORY FORMAT (FORMAT) Formatting the internal memory or card” (P. 26)

  • Page 46: Lamp Indicators

    Lamp indicators This camera uses several lamps to indicate the camera status. Lamp Self-timer lamp Card access lamp Green lamp of the monitor Lit: The focus and exposure are locked. Extending the useful life of the battery • Performing any of the following operations when not actually taking pictures can deplete the battery power.

  • Page 47: To Return The Settings Of Functions To Default Settings

    View the picture using image browsing software • Install the OLYMPUS Master 2 software from the provided CD-ROM. Change the monitor setting • The icons on the computer desktop may be rearranged. For details on changing the settings on your...
  • Page 48 When you get an error message on the camera... Monitor indication There is a problem with the card. CARD ERROR Writing to the card is prohibited. WRITE PROTECT The internal memory has no > available memory and cannot store any new data. MEMORY FULL The card has no available memory and cannot store...
  • Page 49 Monitor indication Possible cause The paper is jammed. JAMMED The printer’s paper tray has been removed or the printer SETTINGS has been operated while CHANGED changing settings on the camera. There is a problem with the printer and/or camera. PRINT ERROR Pictures recorded on other cameras may not be printed CANNOT PRINT...

  • Page 50: Appendix

    ( The rechargeable battery is not fully charged at the time of purchase. Charge the battery fully with the LI-40C charger before use. ( The provided rechargeable battery usually takes approximately 5 hours to charge. ( This camera uses a charger specified by Olympus. Do not use any other type of charger.
  • Page 51 Representative plug of power supply cord of countries/regions around the world A Type B Type (American Type) (British Type) (British Type) The representative supply voltage and plug type are described in this chart. Depending on the area, different types of plugs and supply voltages are used. Attention: Power cord meeting demands from each country shall be used.

  • Page 52: Using Your Charger Abroad

    Using your charger abroad ( The charger can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger may require a plug adapter to match the wall outlet.

  • Page 53: The Card

    Use of the accessories The card Pictures can be recorded on the optional card. The internal memory and card are the camera’s media for recording pictures, similar to film in a film camera. Pictures recorded to the internal memory or card can be easily erased on the camera or processed using a computer.

  • Page 54: General Precautions

    Safety Precautions CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. DANGER WARNING CAUTION WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

  • Page 55: Handling The Camera

    DANGER • The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers. • Never heat or incinerate batteries.

  • Page 56: Caution For Usage Environment

    • To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc. • If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

  • Page 57: Lcd Monitor

    Battery Handling Precautions • This camera uses a lithium ion battery specified by Olympus. Do not use any other type of battery. For safe and proper use, read the battery’s instruction manual carefully before using it. • If the battery’s terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.

  • Page 58: Copyright Notice

    Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein.
  • Page 59 Trademarks • IBM is a registered trademark of International Business Machines Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation. • Macintosh is a trademark of Apple Inc. • xD-Picture Card™ is a trademark. • All other company and product names are registered trademarks and/or trademarks of their respective owners.
  • Page 60 : 12,000,000 pixels : 1/1.72" CCD (primary color filter), 12,400,000 pixels (gross) : Olympus lens 7.4 to 22.2 mm, f2.8 to 4.7 (equivalent to 35 to 105 mm on a 35 mm camera) : Digital ESP metering : 4 to 1/1000 sec.
  • Page 61 Names of Parts Camera Self-timer lamp Multi-connector gP. 14 gP. 28, 29, 38 Strap eyelet gP. 3 Connector cover gP. 28, 38 Card access lamp gP. 39, 46, 53 q button (Playback) K button (Shooting) gP. 12 gP. 12 X& button Monitor gP.

  • Page 62: Shooting Mode

    Monitor Symbols & Icons (Shooting Mode 1/1000 F2.8 1/1000 1600 1600 4000×3000 4000 Still pictures Item 1 Battery check 2 Flash standby Camera movement warning/flash charge 3 Green lamp 4 Silent mode 5 White balance 6 ISO 7 Macro mode Super macro mode 8 Image quality 9 Image size...

  • Page 63: Playback Mode

    (Playback Mode 4000 4000 F2.8 1/1000 F2.8 1/1000 ISO 1600 ’07 07.12 12.10 10 12 100 - 0004 Still pictures Item e = full power, f = low power 1 Battery check 2 Silent mode 3 Aperture value F2.8, etc. 4 Shutter speed 4 to 1/1000 p (stabilized pictures/corrected pictures)
  • Page 64 Index K/q... 27 h (AUTO)... 6, 12 S button (backlight boost/erase) ... 10, 15 Y# button (flash mode) ... 14 X& button (macro) ... 14  button (OK)... 13, 17 q button (Playback mode) ... 10, 12 OF/< button (exposure compensation/print) ...
  • Page 65 Multi-connector ... 28, 29, 38 MY FAVORITE ... 23 NIGHT+PORTRAIT /... 12 NTSC ... 28 Number of storable still pictures ... 45 OLYMPUS Master ... 35, 38 Operation guide ... 17, 30 Optical zoom... 13, 15 PAL ... 28 PANORAMA ... 21 PC...
