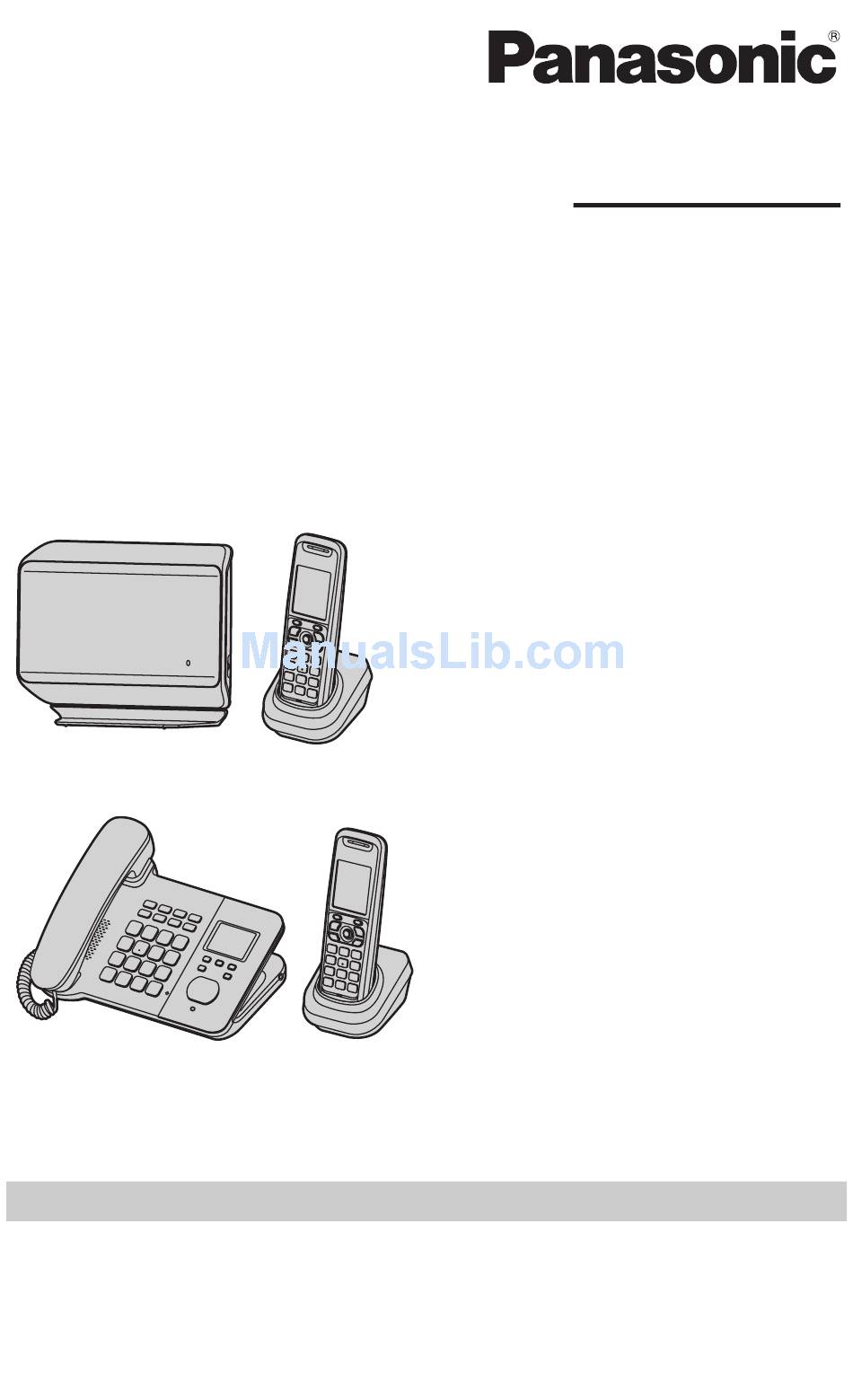

Model shown is KX-TGP500.
Model shown is KX-TGP550.
Thank you for purchasing a Panasonic product.
Charge the batteries for about 6 hours before initial use.
This cordless telephone is possible to use according to General licence
No.: VO-R/8/08.2005-23.
Please read this guide before using the unit and save it for future reference.
KX-TGP500
Model No.
KX-TGP550
Model No.
Quick Guide
SIP Cordless Phone
B61
T61
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TGP500 B61
Summary of Contents for Panasonic KX-TGP500 B61
-
Page 1: Quick Guide
Model No. Model shown is KX-TGP500. Model shown is KX-TGP550. Thank you for purchasing a Panasonic product. Charge the batteries for about 6 hours before initial use. This cordless telephone is possible to use according to General licence No.: VO-R/8/08.2005-23. -
Page 2: Table Of Contents
Table of Contents Introduction About this guide....3 Accessory information ... . . 3 Important Information For your safety . -
Page 3: About This Guide
About this guide This guide explains how to use the basic features of KX-TGP500/KX-TGP550. For further information on operations and customising your phone, please read the User Guide on the Panasonic Web site at: http://panasonic.net/pcc/support/sipphone/ Contact your administrator for further information. -
Page 4: Important Information
Important Information Operating safeguards For your safety L Unplug the product from power outlets before cleaning. Do not use liquid or To prevent severe injury and loss of aerosol cleaners. life/property, read this section carefully before L Do not disassemble the product. using the product to ensure proper and safe L Do not spill liquids (detergents, cleansers, operation of your product. -
Page 5: Important Safety Instructions
L We recommend using the batteries noted Base unit location/avoiding noise on page 3. USE ONLY rechargeable Ni- The base unit and other compatible Panasonic MH batteries AAA (R03) size. units use radio waves to communicate with L Do not mix old and new batteries. -
Page 6: Security Caution
Panasonic Marketing Europe GmbH to blocked access or information leaks). Winsbergring 15, 22525 Hamburg, Refer to the User Guide on the Panasonic Germany Web site. See page 3 for Panasonic URL. L You are responsible for the security... -
Page 7: Emergency Calls
Important Information resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. -
Page 8: Controls
Controls L Charge contacts Handset ■ Control type A Soft keys The handset features 2 soft keys and a joystick. By pressing a soft key, or by pressing the centre of the joystick, you can select the feature shown directly above it on the display. -
Page 9: Base Unit
Controls Base unit KX-TGP500 A 4 (Status) indicator L Indicates the status of the unit and network. B {x} (Handset locator button) L Allows you to page all handsets. - Page 10 Controls KX-TGP550 Q R S T A Corded handset L Headset jack B Receiver M Microphone C Speaker N Dial keypad D Handset paging buttons ({j} – O {s} (Speakerphone) {W} (Headset) {k}) Handset status indicators Speakerphone indicator P {T} (Mute) L Allow you to page each handset.
-
Page 11: Status) Indicator On The Base Unit
Controls Navigator key/volume key {<} {>} ■ Scrolling through lists or items By pressing this key ({^}, {V}, {<}, or {>}) repeatedly, you can scroll through (up, down, left, or right) various lists or items. ■ Adjusting the volume By pressing this key ({^} or {V}) repeatedly, you can adjust the receiver or speaker volume (up or down) while talking. - Page 12 Controls Status Meaning Colour Light pattern L When the base unit is turned on, the 4 indicator lights in red for about 10 seconds. Flashing L The base unit is registering a handset. Flashing L The base unit is paging handsets. (KX-TGP500 only) rapidly Amber L The base unit’s IP address may conflict with the IP...
-
Page 13: Basic Operations
L For further details, please read the times. While the handset is User Guide on the Panasonic Web waiting to redial, the ringer site. See page 3 for Panasonic URL. indicator flashes. To cancel, press {i}. Using the speakerphone Dial the phone number and press {s}. -
Page 14: Answering Calls Using The Handset
L For further details, please read the times. While the base unit is User Guide on the Panasonic Web waiting to redial, the site. See page 3 for Panasonic URL. speakerphone indicator on the base unit flashes. To cancel, Using the speakerphone press {b}. -
Page 15: Answering Calls Using The Base Unit (Kx- Tgp550 Only)
Basic Operations L If you are using the corded handset, you can place it on the Answering calls using cradle. the base unit (KX- To release hold, lift the corded handset, or press {a} or {s}. TGP550 only) Lift the corded handset or press ] or {s} when the unit rings. -
Page 16: Using The Base Unit
Basic Operations Using the base unit Available for: KX-TGP550 Transferring calls to another unit During an outside call, press {j} – {k} or {x}. Wait for the paged party to answer. L If the paged party does not answer, press the same button as in step 1 to return to the outside call. -
Page 17: Setting Up
Connecting the base unit Important: L Use only the supplied Panasonic AC adaptor PQLV219CE. L Do not connect the Ethernet cable connected to the PoE hub to the computer port of the unit. Doing so may cause severe damage to the unit. - Page 18 Setting Up KX-TGP550 Press plug firmly. Correct “Click” Hook Base unit “Click” Wrong C C C C C Base unit “Click” (220-240 V AC, 50/60 Hz) AC adaptor To a hub/router Ethernet cable To a computer Ethernet cable...
-
Page 19: Setting Up The Handset
Battery charge Setting up the handset Charge for about 6 hours. L When the batteries are fully charged, Connecting the charger the charge indicator goes off. L Use only the supplied Panasonic AC Charge indicator adaptor PQLV219CE. Confirm “Charging” is displayed. -
Page 20: Setting Network
Needs charging. change them even though the unit shows the setting menu. Contact your Empty service provider for further information. Panasonic Ni-MH battery performance (supplied batteries) Automatic setup (default) Turning the DHCP connection mode Operation Operating time In continuous 5 hours max. - Page 21 Setting Up M i {b} Static setup Y Handset Turning the DHCP connection mode 1 (centre of joystick) i {#}{5}{0}{0} {V}/{^}: “Off” i M i {i} Setting the static IP address and other settings 1 (centre of joystick) i {#}{5}{0}{1} Set the IP address, subnet mask, default gateway, DNS1, and DNS2.
-
Page 22: Open Source Software
Open Source Software Open Source Software Parts of this product use Open Source Software. Relevant conditions apply to this software. Panasonic cannot accept inquiries regarding the content of the following copyright and licence information. <<NetBSD kernel>> This product uses a part of NetBSD kernel. - Page 23 Open Source Software Copyright (c) 1980, 1986, 1991, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1980, 1986, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1982, 1985, 1986, 1988, 1993, 1994 The Regents of the University of California.
- Page 24 Open Source Software Copyright (c) 1987, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1988 Regents of the University of California. All rights reserved Copyright (c) 1988 Stephen Deering. Copyright (c) 1988 University of Utah. Copyright (c) 1988, 1989, 1993 The Regents of the University of California.
- Page 25 Open Source Software Copyright (c) 1998, 1999, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1998, 2000 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1998, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1999 The NetBSD Foundation, Inc. All rights reserved. Copyright (C) 1999 WIDE Project.
- Page 26 Open Source Software * Copyright (c) 1998-2004 The OpenSSL Project. All rights reserved. * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Page 27 Open Source Software * All rights reserved. * This package is an SSL implementation written * by Eric Young (eay@cryptsoft.com). * The implementation was written so as to conform with Netscapes SSL. * This library is free for commercial and non-commercial use as long as * the following conditions are aheared to.
- Page 28 Open Source Software * derivative of this code cannot be changed. i.e. this code cannot simply be * copied and put under another distribution licence * [including the GNU Public Licence.] <<MD5>> This software uses the Source Code of RSA Data Security, Inc. described in the RFC1321 (MD5 Message-Digest Algorithm).
- Page 29 Open Source Software LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
-
Page 30: Declaration Of Conformity Form
Declaration of Conformity Form Declaration of conformity form The object of the declaration described above <A> is in conformity with the requirements of the following EU legislations <B> and harmonized standards <C>. - Page 31 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd.
