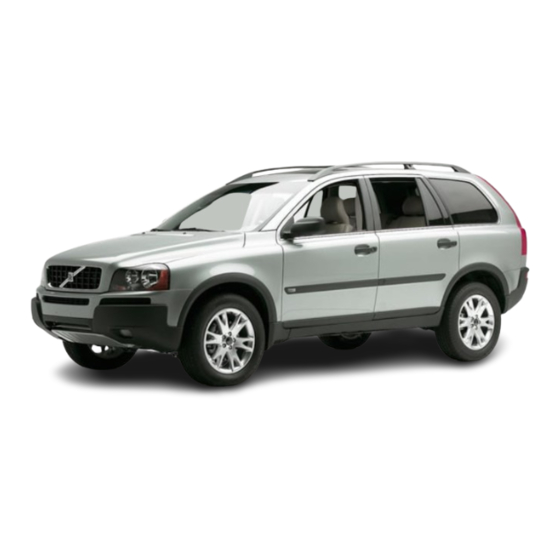

Page 1 XC90 Introduction Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating...
Page 2 Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.
Page 3 Volvo and the environment Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our...
Page 4 In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: Maintain proper air pressure in your tires.
Page 5 2003 VOLVO XC90 PremAir® On the surface of the radiator in the engine compartment, there is a special coating called PremAir®. PremAir® works as a catalytic converter, converting most of the ground-level ozone passing through the radiator into oxygen, thereby reducing harmful ground-level ozone.
Page 6: Table Of Contents
2003 VOLVO XC90 1. Headlights/Parking lights 31 2. Instrument lighting 31 3. Panel vents 47 4. Text window 28 5. Temperature gauge 24 6. Odometer/Trip odometer/Cruise control indicator 24, 37 7. Speedometer iv 8. Turn signal indicator lights 24 9. Tachometer 24 10.
Page 7 2003 VOLVO XC90 Contents Safety Instruments and controls Climate control Interior Locks and Alarm Starting and driving Vehicle care Wheels and tires Maintenance Specifications Audio Index Back Cover Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_00.htm (7 of 7)12/30/2006 4:18:48 PM...
Page 8: Seat Belts
Seat belts Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt, urges you and all occupants of your vehicle to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height.
Page 9 2003 VOLVO XC90 NOTE: A chime will sound several times if the driver has not fastened his/her seat belt. Extending the lap belt To buckle a seat belt: Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked"...
Page 10 Never repair the belt on your own; have this work done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.
Page 11 Airbags (Supplemental Restraint System) Driver's side airbag As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS) to complement the three-point seat belt system. The inflatable airbag is installed folded up in the center of the steering wheel. The wheel is embossed with SRS.
Page 12 2003 VOLVO XC90 WARNING! Never drive an SRS equipped vehicle with your hands on the steering wheel pad/airbag housing. Passenger side airbag The airbag on the front passenger side is folded up in a compartment above the glove compartment. The panel is embossed SRS.
Page 13 When installing any accessory equipment, make sure that the SRS system is not damaged. Do not attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your vehicle to the nearest authorized Volvo retailer for inspection as soon as possible.
Page 14 NOTE: Volvo's dual-threshold, dual-stage airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision.
Page 15 2003 VOLVO XC90 WARNING! Children must never be allowed in the front passenger's seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a front passenger-side airbag. See page 20 for guidelines.
Page 16 Seat belts - the heart of the Volvo safety system The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the vehicle.
Page 17 There is no maintenance to perform on the SRS yourself. The month and year shown on the decal on the door pillar indicate when you should contact your Volvo retailer for specific servicing or replacement of airbags and seat belt pretensioners. This maintenance must be performed by an authorized Volvo retailer.
Page 18 As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt pretensioners in both front door pillars. The system is designed to supplement the protection provided by the three-point seat belt system.
Page 19 2003 VOLVO XC90 Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_01a.htm (12 of 12)12/30/2006 4:18:49 PM...
Page 20 2003 VOLVO XC90 pg. 10 Safety Side airbags (SIPS airbags) SIPS airbag* SIPS airbag (front seats only) As an enhancement to the structural Side Impact Protection System built into your vehicle, the vehicle is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides of both front seat backrests, wires and gas generators/sensor units (see illustration on next page).
Page 21 Never try to open or repair any components of the SIPS airbag system. This should be done only by an authorized Volvo service technician. In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened.
Page 22 The Inflatable Curtains in the Volvo XC90 are also designed to help protect the occupants of the vehicle in a roll-over situation, and to help prevent them from being thrown from the vehicle if a roll-over occurs.
Page 23 The Inflatable Curtains are not designed to deploy in all side impact situations. Never try to open or repair any components of the IC system. This should be done only by an authorized Volvo service technician. In order for the IC to provide its best protection, both front seat occupants and all outboard rear seat occupants should sit in an upright position with the seat belt properly fastened;...
Page 24 The year and month specified on the decal in the door pillar(s) is the date when you should contact your Volvo retailer to inspect and, if necessary, replace the airbags and seat belt pretensioners. If you have any questions concerning either system, contact an authorized Volvo retailer.
Page 25 If your vehicle has been involved in a collision, the front seat backrests must be inspected by an authorized Volvo retailer even, if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced. Do not attempt to service any component in the WHIPS system yourself.
Page 26: Child Safety
Boxes, suitcases, etc. wedged behind the front seats (see illustration above) could impede the function of the WHIPS system. pg. 17 Safety Child safety Volvo recommends the proper use of restraint systems for all occupants including children. Remember file:///K|/ownersdocs/2003/2003_XC90/03xc90_01b.htm (7 of 15)12/30/2006 4:18:50 PM...
Page 27 A specially designed and tested booster cushion (not available in Canada) for children between the age of 3 and approximately 10 years, weighing 33-80 lb (15-36 kg) and 38-54 inches (97-137 cm) in height, can be obtained from your Volvo retailer. file:///K|/ownersdocs/2003/2003_XC90/03xc90_01b.htm (8 of 15)12/30/2006 4:18:50 PM...
Page 28 ISOFIX fasteners are installed in the second row of seats in the outboard positions. One set of ISOFIX guides is also provided. Consult your Volvo retailer for more information on child safety accessories. When installing child seats in the second row of seats (in seven-seat models), we recommend that the seats in this row be moved to their rearmost position.
Page 29 2003 VOLVO XC90 Integrated child booster cushion (option) Volvo's own integrated booster cushion has been specially designed to help safeguard a child seated in the rear seat. When using an integrated booster cushion, the child must be secured with the vehicle's three-point seat belt.
Page 30 Child restraint anchorages Child restraint anchorages Volvo vehicles are equipped with child restraint top tether anchorages in the rear seats (second row of seats in seven-seat models). Refer to the child seat manufacturer's instructions for information on file:///K|/ownersdocs/2003/2003_XC90/03xc90_01b.htm (11 of 15)12/30/2006 4:18:50 PM...
Page 31 2003 VOLVO XC90 securing the child seat. WARNING! Child Restraint Anchorages are designed to withstand only those loads imposed by correctly fitted Child Restraints. Under no circumstances are they to be used for adult seat belts or harnesses. The anchorages are not able to withstand excessive forces on them in the event of collision if full harness seat belts or adult seat belts are installed to them.
Page 32 Because of the size of the airbag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over fifty years, and we'll continue to do our part.
Page 33 However, NHTSA cannot become involved in individual problems between you, your retailer, or Volvo Cars of North America. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1- 800-424-9393 (or 202-366-0123 in Washington, D.C. area) or write to: NHTSA, U.
Page 34 2003 VOLVO XC90 Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_01b.htm (15 of 15)12/30/2006 4:18:50 PM...
Page 35 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Safety pg. 23 Instruments and controls Instrument panel 24 Indicator and warning symbols 25 Switches in center console 29 Steering wheel adjustment 30 Lighting panel 31 Manually unlocking the fuel filler door 32...
Page 36 2003 VOLVO XC90 Instrument panel 1. Turn signal indicators - right - left 2. Text window The text window displays information and warning messages. 3. Temperature gauge The pointer should be approximately midway on the gauge when driving. Do not drive the vehicle if the warning light is on.
Page 37: Indicator And Warning Symbols
2003 VOLVO XC90 automatically prevent excessively high engines speeds. This will be noticeable as a pronounced unevenness in engine speed. 10. Gear and driving mode indicator The currently selected driving mode is displayed here. If you use the optional Geartronic function on the automatic transmission, the currently selected gear will be displayed.
Page 38 Anti-lock brake system ABS If the warning light comes on, there is a malfunction of the ABS system (the standard braking system will still function). The vehicle should be driven to a Volvo retailer for inspection. See page 96 additional information.
Page 39 DO NOT DRIVE. Have the vehicle towed to an authorized Volvo retailer and have the brake system inspected. If the brake fluid level is above the MIN mark, drive carefully to an authorized Volvo retailer and have the brake system inspected Volvo retailer and have the brake system inspected.
Page 40 If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.
Page 41 130. If the light stays on after restart, have the vehicle towed to the nearest authorized Volvo retailer. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.
Page 42: Switches In Center Console
Stop and switch off the engine - to help prevent serious risk of STOP ENGINE: damage. Take your vehicle to an authorized Volvo retailer for inspection as SERVICE URGENT: soon as possible. Refer to your owner's manual. For additional information, please SEE MANUAL: contact your Volvo retailer.
Page 43 2003 VOLVO XC90 The positions of these buttons may vary, depending on the specifications of your vehicle 1. Reverse warning system (option) This system provides an audible warning if you back the vehicle to within approximately 5 feet (1.5 meters) of an object. See page 99 for more information.
Page 44: Steering Wheel Adjustment
1 (or higher) for the auxiliary socket to function. NOTE: The auxiliary sockets can also be used for cigarette lighters, which are available as accessories at your Volvo retailer. pg. 30 Instruments and controls...
Page 45: Lighting Panel
Low beam headlights will automatically come on if the ignition key is in position II. Front and rear parking lights, tail lights, side marker lights, and license plate lights will also be on. Volvo recommends the use of daytime running lights. If, however, you would prefer to have these lights turned off (USA only), please consult your Volvo retailer.
Page 46: Instrument Lighting
2003 VOLVO XC90 B - Instrument lighting Move the thumb wheel up to increase brightness or down to decrease brightness. There is also an instrument panel illumination sensor (see illustration on page 48) which automatically adjusts the level of illumination. The symbols have maximum illumination in daylight (only the background lighting can be adjusted).
Page 47 2003 VOLVO XC90 pg. 32 Instruments and controls Manually unlocking the fuel filler door Panel on passenger's side of cargo area Manually unlocking the fuel filler door NOTE: Cotton gloves are available in the tool kit located in the spare wheel well.
Page 48: Turn Signals
2003 VOLVO XC90 5. Pull down the insulating material (4) to access the fuel filler door motor (5). 6. Move the catch (6) rearward to unlock the fuel filler door lock, or move it forward to lock the filler door.
Page 49: Windshield Wipers
The headlights, parking lights, license plate lights and the lights in the sideview mirrors will now come on and remain on for 30, 60 or 90 seconds (the time interval is at your discretion and can be changed by an authorized Volvo retailer). Approach lighting...
Page 50 2003 VOLVO XC90 twisting collar A upward or downward. Activating the rain sensor function: 1. Switch on the ignition. 2. Move the windshield wiper lever to the intermittent position. The rain sensor is deactivated when the ignition is switched completely off.
Page 51 2003 VOLVO XC90 pg. 35 Instruments and controls Hazard warning flashers, rear window/sideview mirror defroster, heated front seats Hazard warning flashers The four-way flasher should be used to indicate that the vehicle has become a traffic hazard. To activate the flashers, press the triangular button in the center dash. Press the button again to turn off the flashers.
Page 52: Text Window
2003 VOLVO XC90 Heated front seats (option) The front seat heating can be switched on and off as required. Press the switch once for maximum seat heating. Both LED's in the switch will be lit. Press the switch a second time for comfort heating. One LED in the switch will be lit.
Page 53: Cruise Control
2003 VOLVO XC90 Trip computer controls and functions. The four* trip computer functions can be accessed by twisting control B one step at a time in either direction. Twisting a fifth** time returns you to the original function. The trip computer can be reset (current data will be erased from system memory) by pressing RESET (button C).
Page 54 2003 VOLVO XC90 Cruise control The cruise control panel is located on the left side of the steering wheel hub. Engaging cruise control/setting speed Press the CRUISE button. The word CRUISE will be displayed in the window in the lower section of the speedometer.
Page 55 2003 VOLVO XC90 placed in (N)eutral, if the vehicle's speed drops to under 70% of the currently set speed or if the wheels start to spin. Temporarily disengaging cruise control Press 0 to temporarily disengage cruise control. Press "resume" to return to the previously set speed.
Page 56 2003 VOLVO XC90 WARNING! Always use the parking brake when parking. On hills, also turn the front wheels toward the curb.The indicator light in the instrument panel will light up even if the parking brake is applied only slightly. Be sure to press down on the pedal sufficiently.
Page 57 2003 VOLVO XC90 Opening the tailgate To open the upper section of the tailgate, pull the handle (A) downward. To fold down the lower section of the tailgate, pull handle (B) upward. 12-volt socket at the rear of the center console Auxiliary 12-volt sockets These 12 volt sockets can be used to plug in certain accessories such as cellular telephones, etc.
Page 58: Electrically Operated Windows
Maximum current from the sockets is 15A. Ashtrays/cigarette lighter The auxiliary sockets can also be used for cigarette lighters. Ashtrays and lighters are available as accessories. Please contact your Volvo retailer. pg. 40 Instruments and controls Electrically operated windows The electrically operated windows are controlled by buttons in the arm rests.
Page 59 2003 VOLVO XC90 window at any time, press the button down. NOTE: If a window is obstructed during auto-up, it will automatically reverse direction and return to its starting position. If a window is repeatedly obstructed during auto-up operation, an overload protection circuit breaker will temporarily halt window function.
Page 60 2003 VOLVO XC90 Lockout switch for rear windows The electrically operated rear door windows can be disabled by a switch located on the driver's door (see illustration). If the light in the switch is OFF: The rear door windows can be raised or lowered with the buttons on the rear door armrests or with the buttons on the driver's door armrest.
Page 61 2003 VOLVO XC90 pg. 42 Instruments and controls Rearview mirror/power folding sideview mirrors Rearview mirror A Normal position B Night position, reduces glare from following headlights Autodim function (option) The autodim function reacts to headlights from following traffic and automatically reduces glare.
Page 62 2003 VOLVO XC90 The mirror control switches are located on the driver's door armrest. Driver's side: Press the L button (a light in the switch will go on) to activate the adjustment control. Use this control to adjust the driver's door mirror.
Page 63 2003 VOLVO XC90 Electrically operated moonroof To operate the moonroof, the ignition key must first be turned to the intermediate or drive position (position I, II or the engine running). To slide open the moonroof: Pull the switch back to the first detent ("stop") and hold it until the moonroof has opened to the position you prefer.
Page 64 2003 VOLVO XC90 CAUTION Remove ice and snow before opening the moonroof. Do not operate the moonroof if it is frozen closed. Never place heavy objects on the moonroof. pg. 44 Instruments and controls Electrically operated moonroof (option) (contd) NOTE: If the moonroof is obstructed during auto-close operation, it will automatically reverse direction and return to its starting position.
Page 65 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Climate control pg. 45 Climate control Climate control system-general information 46 Air distribution 47 Electronic Climate Control (ECC) 48 pg. 46 Climate control Climate control system-general information Condensation on the inside of the windows Keeping the insides of the windows clean will help reduce the amount of condensation that forms on the windows.
Page 66: Air Distribution
The air conditioning is momentarily disengaged during full-throttle acceleration. Climate control maintenance All maintenance on the climate control systems should be carried out by an authorized Volvo service technician only. Refrigerant Volvo cares about the environment. The air conditioning system in your vehicle contains a CFC-free refrigerant - R134a.
Page 67 2003 VOLVO XC90 Air vents in the dash A Open B Closed C Horizontal air flow D Vertical air flow Direct the outer air vents toward the side windows to defrost. In cold weather, close the air vents in the center of the dashboard to direct as much air as possible toward the windows.
Page 68 2003 VOLVO XC90 pg. 49 Climate control AUTO This function automatically regulates the Electronic Climate Control system so that the selected temperatures are maintained. The blower, heating, air distribution (air flow) and air conditioning are controlled. If you prefer to manually set any of these functions, the remaining functions will still be controlled automatically. Pressing the AUTO button overrides any settings that were previously made manually.
Page 69 2003 VOLVO XC90 Set the control to the temperature you prefer. Defroster This function defrosts/de-ices the windshield and front side windows. The LED in the switch will light up to indicate that the defrost function is engaged. Blower speed increases automatically and the air in the passenger compartment is dehumidified.
Page 70 2003 VOLVO XC90 A/C - ON/OFF Press the switch to turn the air conditioning on or off. The "ON" or "OFF" LED will light up to indicate if the system is switched on or off. Other functions will still be regulated automatically (if the AUTO switch is on).
Page 71 2003 VOLVO XC90 Operation Press to operate the Air Quality sensor (normal setting). Select one of the following three functions by pressing 1, 2 or 3 times. 1. The AUT LED lights. The Air Quality sensor is now activated. 2. No LED lights. Recirculation is not activated unless needed to cool the passenger compartment in a warm climate.
Page 72 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Interior pg. 53 Interior Front seats 54 Rear seats 58 Interior lighting 61 Floor mats 62 Storage compartments 63 Securing cargo 67 pg. 54 Interior Front seats file:///K|/ownersdocs/2003/2003_XC90/03xc90_04a.htm (1 of 11)12/30/2006 4:18:54 PM...
Page 73 2003 VOLVO XC90 Manual height adjustment - front seat The front edges of passenger seat cushions can be adjusted to seven different settings and the rear edges to nine different settings. Lever (A) - adjusting the front edge of the seat.
Page 74: Front Seats
2003 VOLVO XC90 Folding the backrests in the front seat The front passenger seat backrest can be folded to a horizontal position to make room for a long load. Fold the backrest as follows: Move the seat as far back as possible.
Page 75 2003 VOLVO XC90 1. Within 40 seconds of the ignition key being turned to position 0 or removed from the ignition switch. 2. After you have unlocked the driver's door with the key or remote control, the driver's seat can be adjusted during a 10 minute period if the door remains open.
Page 76 2003 VOLVO XC90 Emergency stop If the seat accidentally begins to move, press one of the buttons to stop the seat. pg. 57 Interior WARNING! - Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the vehicle.
Page 77: Rear Seats
2003 VOLVO XC90 pg. 58 Interior Rear seats Entering the optional third row of seats Tilting the outboard backrests in the second row of the seats: Pull up the handle (1), hold it up, and tilt the backrest forward to move the seat. Return the backrest to the upright position to slide the seat back to its original position.
Page 78 2003 VOLVO XC90 Sliding center seat - second row (seven-seat models only) The center seat in the second row can be moved farther forward than the outboard seats. This makes it possible for a child seated in this position to sit closer to the people in the front seats.
Page 79 2003 VOLVO XC90 WARNING! - Please note that the lowest head restraint position is only intended for use when the backrest is to be folded down, or when the seat is not occupied. - The head restraint is intended to help protect the head/neck in a collision. Ensure that it is properly adjusted for the occupant of the seat.
Page 80: Interior Lighting
2003 VOLVO XC90 Folding the backrests - third row of seats (option) Folding down the backrest If necessary, fold in the load anchorage eyelets before folding down the backrests. 1. Pull up the handle in illustration 1 above. 2. Push the seat cushion rearward, under the backrest.
Page 81 You can disconnect the automatic function by pressing the courtesy light button for more than 3 seconds. Briefly pressing the courtesy light button again automatically reconnects the function. The courtesy light timer periods can be changed. Contact your Volvo retailer. Rear reading lights The reading lights can be switched on or off by pressing the respective buttons.
Page 82: Vanity Mirror
Vanity mirror The light comes on when you open the cover. Floor Mats Volvo offers floor mats specially manufactured for your vehicle. They must be properly placed and secured in the mat clips. WARNING! An extra mat on the driver's floor can cause the accelerator pedal to catch. Check that the movement of the accelerator pedal is not impeded.
Page 83: Storage Compartments
2003 VOLVO XC90 pg. 63 Interior Storage compartments pg. 64 Interior Storage compartments (contd) file:///K|/ownersdocs/2003/2003_XC90/03xc90_04b.htm (1 of 10)12/30/2006 4:18:55 PM...
Page 84 Two cup holders are provided for the front seat occupants. Press lightly on the cover to open it. Ashtray (accessory) An ashtray insert is available from your Volvo retailer. This insert slides into either of the cup holders. Pen holder There is a pen holder in the center console, in front of the gear selector.
Page 85 Grasp the upper edge of cover and pull to open this compartment. Ashtray (accessory) An ashtray insert is available from your Volvo retailer. Cup holders for the rear seats Grasp the lower edge of the panel to pull out the cup holders in the rear side of the center console.
Page 86 2003 VOLVO XC90 pg. 66 Interior Storage compartments (contd) Coat hanger Use the coat hanger for clothes of normal weight. Storage space between rear seats (seven-seat models) - option This storage space provides compartments for pens or other small items.
Page 87: Securing Cargo
As a safety precaution, all cargo in your vehicle should be securely anchored to keep it from being thrown forward in the event of sudden braking, etc. The vehicle is equipped with eyelets in the cargo space to which straps or other cargo restraints can be attached. Consult your Volvo retailer about suitable accessories for this purpose. WARNING! The eyelets are not to be used as passenger restraints or as anchorages for child restraints.
Page 88 2003 VOLVO XC90 Nylon cargo net (option) The Volvo XC90 can be equipped with a cargo net made of strong nylon fabric. This net can be installed in two places: Behind the rear seat backrests (the second row of seats in seven-seat models) Behind the front seat backrests if the rear seat backrests (the second row of seats in seven-seat models) have been folded down.
Page 89 2003 VOLVO XC90 Folding and storing the cargo net Press the release buttons on the hinges (1 in the illustration above) and fold the net. The cargo net can be stored under the floor of the cargo area on five-seat models.
Page 90 2003 VOLVO XC90 Lower attachments 1. Insert the lower attachment bracket through the steel grid's lower mount from underneath. 2. Install the spring on the attachment bracket and tighten the knob. 3. Secure the attachment bracket hook in the lower cargo eyelet. Turn the knob to tension the attachment bracket in the cargo eyelet.
Page 91 2003 VOLVO XC90 Pull out the cargo area cover and hook it in the holes in the rear cargo area pillars (see illustration above). Removing the cargo area cover: Press the end pieces of the cover inward. Pull up and lift out.
Page 92 2003 VOLVO XC90 Compartments under the cargo area floor - seven-seat models Fold up the rear section of the cargo area floor to access these compartments. If the vehicle is equipped with the optional grocery bag holder: Fold up the rear section of the cargo area floor, disconnect the grocery bag holder's retaining cords and fold up the lower section of the floor.
Page 93 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Locks and Alarms pg. 73 Locks and Alarm Keys and remote controls 74 Locking and unlocking 77 Child safety locks 79 Alarm 80 pg. 74 Locks and Alarm Keys and remote controls...
Page 94 2003 VOLVO XC90 Keys Two keys are provided with your vehicle; a master key and a service (valet) key. The master key, the remote control, and the central locking button may all be used to lock and unlock all of your vehicle's locks.
Page 95 The vehicle will start only with a properly coded key. If you misplace a key, take the other keys to an authorized Volvo retailer for reprogramming as an antitheft measure. NOTE: If two of the keys to your vehicle are close together, e.g., on the same key ring, when you try to start the vehicle, this could cause interference in the immobilizer system and result in the vehicle not starting.
Page 96 1-Lock, 2-Unlock, 3-Unlock tailgate, 4-"Panic" function,*, 5-Approach lighting As an extra security precaution in certain situations (valet parking, etc.), Volvo recommends that the transmitter not be included when the keys are given to anyone. The service key can be used instead. If one of the transmitters is misplaced, contact the nearest authorized Volvo retailer for assistance.
Page 97 2003 VOLVO XC90 Automatic re-locking If the doors are unlocked, the locks will automatically reengage (re-lock) and the alarm will rearm after 2 minutes unless a door or the tailgate has been opened. * See page 80 for more information on this function.
Page 98: Locking And Unlocking
2003 VOLVO XC90 Replacing the battery in the remote control If the range of the transmitter is noticeably reduced, this indicates that the battery is weak and should be replaced. To replace the battery Remove the screw on the transmitter cover with a small screwdriver.
Page 99 2003 VOLVO XC90 set the alarm. Locking the glove compartment The glove compartment can be locked with the master key. pg. 78 Locks and Alarm Locking and unlocking (contd) Unlocking the tailgate The tailgate lock is incorporated in the central locking system and is locked or unlocked when all doors are locked/unlocked.
Page 100: Child Safety Locks
2003 VOLVO XC90 Pressing twice on the remote control's tailgate unlock button (see illustration above). Automatic relocking: If you use the tailgate unlock button to unlock the tailgate without opening it, it will automatically relock after approximately 2 minutes. However, if you open the tailgate and close it again, it will remain unlocked and the alarm will not be rearmed.
Page 101 2003 VOLVO XC90 Alarm Alarm The alarm is automatically armed whenever you lock your vehicle. When armed, the alarm continuously monitors a number of points on the vehicle. The following conditions will set off the alarm: The hood is forced open.
Page 102 2003 VOLVO XC90 The function can be turned off by pressing any of the buttons on the remote control or will stop automatically after 25 seconds. When a button is pressed, there is a 5 second delay before the panic alarm is deactivated.
Page 103 LED flashes rapidly before the ignition is switched on - the alarm has been triggered Fault in the alarm system: If a fault has been detected in the alarm system, a message will be displayed in the text window. Contact your Volvo retailer. Automatic re-lock/re-arm system If the vehicle is unlocked with the remote, the vehicle will re-lock and the alarm will re-arm after 2 minutes unless a door or the tailgate has been opened.
Page 104 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Starting and driving pg. 83 Starting and driving Refueling 84 Starting the vehicle 87 General information 89 Automatic transmission with Geartronic 91 All Wheel Drive 94 Brake system 95 Dynamic Stability Traction Control (DSTC) 97...
Page 105 (MMT). If such fuels are used, your Emission Control System performance may be affected, and the Check Engine Light (malfunction indicator lamp) located on your instrument panel may light. If this occurs, please return your vehicle to an authorized Volvo retailer for maintenance.
Page 106 To meet seasonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxygenated" fuels; however, the octane ratings listed on this page must still be met.
Page 107: Refueling
2003 VOLVO XC90 pg. 86 Starting and driving Fuel filler door Press the button on the light switch panel (see illustration on page 31) when the vehicle is at a standstill to unlock the fuel filler door. Please note that the fuel filler door will remain unlocked until the vehicle begins to move forward.
Page 108: Fuel Gauge
* If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps. pg. 87 Starting and driving Starting the engine 1.
Page 109 2003 VOLVO XC90 - For cold starts at altitudes above 6000 ft (1800 meters), depress the accelerator pedal halfway and turn the key to the starting position. Release the pedal slowly when the engine starts. 4. To release the gear selector from the (P)ark position, the engine must be running (or the ignition key must be in position II) and the brake pedal must be depressed.
Page 110 2003 VOLVO XC90 pg. 88 Starting and driving Steering wheel lock The steering wheel lock might be under tension when the vehicle is parked. Turn the steering wheel slightly to free the ignition key. In order to help reduce vehicle theft, make sure the steering wheel lock is engaged before leaving the vehicle.
Page 111 2003 VOLVO XC90 WARNING! Never switch off the ignition (turn the ignition key to position 0) or remove the key from the ignition switch while the vehicle is in motion. This could cause the steering wheel to lock, which would make the vehicle impossible to steer.
Page 112 Loads should be distributed so that capacity weight or maximum permissible axle loads are not exceeded. Driving on rough/unpaved surfaces The Volvo XC90 is designed primarily for onroad driving, and it has excellent handling characteristics on very rough or unpaved roads.
Page 113: Automatic Transmission With Geartronic
2003 VOLVO XC90 WARNING! Avoid driving diagonally across steep inclines as this could increase the risk of a roll-over. Try to drive straight up or down the slope. If the road is very steep, avoid turning the vehicle around to help avoid the risk of rolling over. Back the vehicle up or down the incline instead.
Page 114 2003 VOLVO XC90 5-cylinder turbo models P Park Use this position when starting the engine or parking the vehicle. Never use P while the vehicle is in motion. The parking brake should also be set whenever the vehicle is parked.
Page 115 2003 VOLVO XC90 WARNING! Never leave the vehicle unattended when the engine is running. If, by mistake, the gear selector is moved from P, the vehicle may start moving. R (Reverse) Never engage R while the vehicle is moving forward.
Page 116 2003 VOLVO XC90 Models equipped with a 5-cylinder turbo engine have five forward speeds. Models equipped with a 6- cylinder turbo engine have four forward speeds A "lock-up" feature on gears 3 and 4 (and 5, if equipped) reduces engine speed and help saves fuel.
Page 117: All Wheel Drive
All Wheel Drive All Wheel Drive (AWD) - general information Your Volvo can be equipped with permanent All Wheel Drive (option), which means that power is distributed automatically between the front and rear wheels. Under normal driving conditions, most of the engine's power is directed to the front wheels.
Page 118 Tire dimensions Volvo recommends that you always drive on tires of the same brand, size, construction (radial), tread pattern, load-, speed-, traction-, temperature-, and treadwear rating. Never drive on mixed tires, except for brief periods when the temporary spare tire is in use.
Page 119: Brake System
If the fluid level is below the MIN mark in the reservoir or if a "Brake failure - Service urgent" message is displayed in the text window: DO NOT DRIVE. Have the vehicle towed to a Volvo retailer and have the brake system inspected.
Page 120 If the warning lamp lights up there is a malfunction of the ABS system (the standard braking system will however function) and the vehicle should be driven cautiously to a Volvo retailer for inspection. The Anti-lock Braking System (ABS) helps to improve vehicle control (stopping and steering) during severe braking conditions by limiting brake lockup.
Page 121 (see page 128 for the location of the brake fluid reservoir). If the brake fluid level is above the MIN mark, drive carefully to an authorized Volvo retailer and have the brake system inspected. WARNING! If the fluid level is below the MIN mark in the reservoir or if a "Brake failure - Service urgent"...
Page 122 2003 VOLVO XC90 improve tractive force. Under certain circumstances, such as when driving with snow chains, or driving in deep snow or loose sand, it may be advisable to temporarily switch off this function for maximum tractive force. This is done by pressing the DSTC button on the center control panel for at least a half a second.
Page 123: Rear Parking Assistance
That the system has been automatically disengaged due to a fault. "ANTI SKID SERVICE REQUIRED" be displayed in the text window. An authorized Volvo retailer should check the system. In the event of high brake temperature, "TRACTION CONTROL TEMPORARILY OFF" will be displayed in the text window.
Page 124 2003 VOLVO XC90 Rear Parking Assistance (option) is used to assist you when backing into parking spaces, etc by providing an audible tone as you back up. The system is automatically activated when you select reverse gear. It utilizes ultrasound sensors located in the rear bumper to measure the distance to a vehicle or other object, or a person who may be behind the vehicle.
Page 125: Towing
2003 VOLVO XC90 To temporarily off the system Press the button in the center control panel (see illustration above). The LED in the button will go out to indicate that the system is not in active mode. Press the button again to reactivate the system.
Page 126 2003 VOLVO XC90 in place. After the vehicle has been towed, the eyelet should be removed and returned to the tool bag. Press the cover back into position. Precautions when the vehicle is in tow The steering wheel must be unlocked. Turn the ignition key to position I or II.
Page 127: Jump Starting
2003 VOLVO XC90 Towing vehicles with front wheel drive/All Wheel Drive Volvo recommends the use of flat bed equipment. If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle. In this case, the vehicle should be towed with the rear wheels on the ground if at all possible.
Page 128 2003 VOLVO XC90 Follow these instructions to jump start your vehicle's dead battery or to jump start another vehicle's dead battery using your vehicle. Although your vehicle's battery is located under the floor of the cargo area, jumper cables should be connected in the engine compartment, to the points shown in the illustrations.
Page 129: Towing A Trailer
More frequent vehicle maintenance is required. Remove the ball and drawbar assembly when the hitch is not being used. Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas. file:///K|/ownersdocs/2003/2003_XC90/03xc90_06b.htm (11 of 17)12/30/2006 4:18:59 PM...
Page 130 Trailer hitches attaching to the vehicle rear axle must not be used. Never connect a trailer's hydraulic brake system directly to the vehicle brake system, nor a trailer's lighting system directly to the vehicle lighting system. Consult your nearest authorized Volvo retailer for correct installation.
Page 131: Load Carriers
1. Remove the cotter pin from the locking bolt and slide the locking bolt out of the ball holder/hitch assembly. 2. Pull the ball holder out of the hitch assembly. NOTE: A cover for the hitch assembly can be purchased from your Volvo retailer. pg. 106 Starting and driving Load carriers...
Page 132 1.5 inches (3.5 cm) in front of the rear rail anchorage. This will help to reduce wind noise. NOTE: Volvo accessories mounted on these load carriers will require T-track mounting hardware for correct installation. Please consult your Volvo retailer.
Page 133: Cold Weather Precautions
It is therefore advisable to check the state of charge more frequently and spray an antirust oil on the battery posts. Volvo recommends the use of snow tires on all four wheels for winter driving - see section "Wheels and tires."...
Page 134: Before A Long Distance Trip
Check all lights, including high beams. Reflective warning triangles are legally required in some states/provinces. Have a word with your Volvo retailer if you intend to drive in countries where it may be difficult to obtain the correct fuel. file:///K|/ownersdocs/2003/2003_XC90/03xc90_06b.htm (16 of 17)12/30/2006 4:18:59 PM...
Page 135 Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider snow tires. * To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid level inspected by a qualified Volvo service technician. Contents Top of Page...
Page 136: Washing And Cleaning The Vehicle
2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Vehicle care pg. 109 Vehicle care Washing and cleaning the vehicle 110 Paint touch up 112 pg. 110 Vehicle care Washing and cleaning the vehicle The vehicle should be washed at regular intervals since dirt, dust, insects and tar spots adhere to the paint and may cause damage.
Page 137 2003 VOLVO XC90 fl. oz. (8.5 cl) of detergent to 2.6 US gal. (10 liters) of warm water. After washing with a detergent the vehicle should be well rinsed with clean water. Bumpers: Wash the bumpers with the same cleaning agent used on the rest of the vehicle. Never clean the bumpers with gasoline or paint thinner.
Page 138: Paint Touch Up
Paint damage requires immediate attention to avoid rusting. Make it a habit to check the finish regularly - when washing the vehicle for instance. Touch-up if necessary. Paint repairs require special equipment and skill. Contact your Volvo retailer for any extensive damage. file:///K|/ownersdocs/2003/2003_XC90/03xc90_07.htm (3 of 5)12/30/2006 4:19:00 PM...
Page 139 2003 VOLVO XC90 Minor scratches can be repaired by using Volvo touch-up paint. NOTE: When ordering touch-up paint from your Volvo retailer, use the paint code indicated on the model plate. The plate is located in the engine compartment. Color code Make sure you have the right color.
Page 140 2003 VOLVO XC90 3. If there is a longer scratch, you may want to protect surrounding paint by masking it off. Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_07.htm (5 of 5)12/30/2006 4:19:00 PM...
Page 141: General Information
2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Wheels and tires pg. 113 Wheels and tires General information 114 Tire pressure 116 Tread wear indicators 117 Uniform Tire Quality Grading 118 Changing wheels 119 pg. 114 Wheels and tires...
Page 142 2003 VOLVO XC90 However, for optimum road holding on icy or snow-covered roads, we recommend suitable winter tires on all four wheels. When replacing tires, be sure that the new tires are the same size designation, type (radial) and preferably from the same manufacturer, on all four wheels. Otherwise there is a risk of altering the vehicle's roadholding and handling characteristics.
Page 143 Snow chains can be used on your Volvo with the following restrictions: Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used.
Page 144: Tire Pressure
2003 VOLVO XC90 Volvo recommends 225/70 R16 (235/65 R17 on seven-seat models with the T6 turbo engine) winter tires on all four wheels. Winter tires wear more quickly on dry roads in warm weather. They should be removed when the winter driving season has ended.
Page 145 Vehicle loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label located on the inside of the fuel filler door. This label lists both tire and vehicle design limits.
Page 146: Tread Wear Indicators
2003 VOLVO XC90 Tire Rotation Volvo recommends rotating the tires every 7,500 miles (12,000 km). Tires should be rotated front-to- back/back-to-front only. Tires must maintain the same direction of rotation throughout their lifetime, and should never be rotated from one side of the vehicle to the other.
Page 147: Changing Wheels
2003 VOLVO XC90 TREADWEAR The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one half (1 1/2) times as well on the government course as a tire graded 100. The relative...
Page 148 2003 VOLVO XC90 Lowering the spare wheel Changing wheels - lowering the spare wheel The spare wheel is located under the floor of the rear cargo compartment. It can be lowered using the crank that is stored in the tool bag.
Page 149 2003 VOLVO XC90 Returning the spare wheel to its storage compartment NOTE: The space under the vehicle is designed to hold the special spare wheel only. Other fullsize wheels will not fit in this compartment. Returning the spare wheel to the storage compartment 1.
Page 150 2003 VOLVO XC90 Changing a wheel There are two attachment points for the jack on each side of the vehicle. These attachment points are under the center of each door.The jack is located in the storage compartment under the cargo area floor (to the right in five-seat models and in the center in seven-seat models), and the crank is stored in the tool bag.
Page 151 2003 VOLVO XC90 CAUTION - The vehicle must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the vehicle. The use of different size wheels can seriously damage your vehicle's transmission.
Page 152 2003 VOLVO XC90 Lift the wheel and place it on the hub. Install the wheel bolts and tighten handtight. Using the lug wrench, tighten crosswise until all bolts are snug. Lower the vehicle to the ground and alternately tighten the bolts crosswise to 102 ft. lbs. (140 Nm).
Page 153: Volvo Maintenance
The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories.
Page 154 You will be required to pay for labor and material used. Maintenance Your Volvo passed several major inspections before it was delivered to you, in accordance with Volvo specifications. The maintenance outlined in the Warranty and Service Records Information booklet, many of which will positively affect your vehicle's emissions, should be performed as indicated.
Page 155 NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine light (Malfunction Indicator) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps. Timing belt For proper functioning of the engine and emission control systems, the timing belt and belt pretensioner must be replaced every 120,000 miles (193,000 km).
Page 156: Working On Your Vehicle
The battery contains acid that is both corrosive and poisonous. It is important that the battery is handled in an environmentally friendly way. Let your Volvo retailer assist you. Never use a fast charger to charge the battery. The battery cables should be disconnected when recharging.
Page 157 2003 VOLVO XC90 WARNING! The ignition system has very high voltage! The voltage in the ignition system is dangerous! Do not touch spark plugs, ignition cables or the ignition coil when the engine is running or the ignition is switched on! The ignition should be switched off when: - Conducting engine tests.
Page 158: Engine Compartment
2003 VOLVO XC90 Normally, the coolant does not need to be changed. If the system must be drained, consult your Volvo retailer. NOTE: Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has a lower boiling point. It can also cause damage to the cooling system if it should freeze.
Page 159 Please consult your Volvo retailer. Operation in hot climates. When temperatures exceed 86° F (30° C) in your area, Volvo recommends, for the protection of your engine, that you use a heavier weight oil, such as SAE 10W-30. See the viscosity chart below.
Page 160 Volvo does not recommend the use of oil additives. Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at ower request and at additional charge. Please consult your Volvo retailer. The API Service Symbol "donut" is divided into three parts: The top half describes the oil's performance level.
Page 161 2003 VOLVO XC90 Oil and fluids (contd) Checking the oil level The oil level should be checked every time the vehicle is refueled. This is especially important during the period up to the first maintenance. CAUTION Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low.
Page 162 2003 VOLVO XC90 Capacity (including filter): 5-cylinder turbo engine - 6.1 US qt (5.8 liters). 6-cylinder turbo engine - 7 US qt (6.7 liters) The oil filter should be replaced at every oil change. pg. 131 Maintenance Washer fluid reservoir Washer fluid reservoir The washer fluid reservoir is located in the engine compartment and holds approx.
Page 163 Coolant reservoir Changing coolant Normally, the coolant does not need to be changed. If the system must be drained, consult your Volvo retailer. NOTE: Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has a lower boiling point.
Page 164 Replace : Every second year or 30,000 miles (48,000 km). The fluid should be replaced once a year or every 15,000 miles (24,000 km) when driving under extremely hard conditions (mountain driving, etc.) Always entrust brake fluid changing to an authorized Volvo retailer. Power steering fluid reservoir The fluid level should always be between the MIN and MAX marks.
Page 165: Wiper Blades
2003 VOLVO XC90 Replace : No fluid change required NOTE: If a problem should occur in the power steering system or if the vehicle has no electrical current and must be towed, it is still possible to steer the vehicle. However, keep in mind that greater effort will be required to turn the steering wheel.
Page 166 2003 VOLVO XC90 NOTE: The driver's side wiper blade is straight. The passenger's side wiper blade is curved to match the curve at the base of the windshield. Replacing windshield wiper blades 1. Lift the wiper arm off the windshield and hold the blade at a 45° to the arm. Press the end of the plastic clip located on the arm.
Page 167 2003 VOLVO XC90 Tailgate wiper blade 1. Pull the wiper blade out, away from the tailgate window. 2. Pull the wiper blade outward, toward the tailgate. 3. Press the new wiper blade into place. Check that it is properly secured.
Page 168: Battery Maintenance
2003 VOLVO XC90 pg. 134 Maintenance Battery Maintenance The battery in your vehicle is located under the floor of the cargo compartment. Driving habits and conditions, climate, the number of starts, etc. all affect the service life and function of the battery.
Page 169 2003 VOLVO XC90 pg. 135 Maintenance file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (2 of 23)12/30/2006 4:19:04 PM...
Page 170 2003 VOLVO XC90 Replacing the battery 1. Switch off the ignition. 2. Wait at least 5 minutes after switching off the ignition before disconnecting the battery so that all information in the vehicle's electrical system can be stored in the control modules.
Page 171 (see illustration). Be sure the ventilation hose is free of debris. Only use replacement batteries equipped with a ventilation hose. Consult your Volvo retailer. NOTE: After the battery has been disconnected or replaced, lock and unlock the vehicle with the central...
Page 172 2003 VOLVO XC90 locking system's remote control to reactivate such features as the power windows, moonroof, courtesy lighting, etc. WARNING! PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and reproductive harm. Wash hands after handling.
Page 173 Volvo retailer. WARNING! Bi-Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced by an authorized Volvo service technician. pg. 138 Maintenance Retaining pins Replacing high/low beams/turn signal/parking light bulbs The entire lamp housing must be lifted out when replacing these bulbs.
Page 174 2003 VOLVO XC90 CAUTION - Do not touch the glass on the halogen bulbs with your fingers. Grease, oil, or any other impurities can be carbonized onto the bulb and cause damage to the reflector. - Be sure to use bulbs of the correct type and voltage.
Page 175 2003 VOLVO XC90 Replacing the low beam bulb 1. Remove the plastic cover over the bulb (1) by turning it counterclockwise. 2. Pull the connector from the lamp housing (2). 3. Loosen the bulb's retaining spring by first moving it to the right and then moving it out of the way.
Page 176: Bulbs
2003 VOLVO XC90 5. Insert the new bulb (without touching the glass) in the holder. 6. Move the retaining spring up and push it slightly to the left until it seats properly. 7. Press the bulb holder into place on the headlight housing.
Page 177 2003 VOLVO XC90 Replacing the turn signal bulb 1. Turn the lamp holder approximately 1/4 turn counterclockwise and pull it out of the headlight housing. 2. Press in the bulb slightly and pull it out of the holder. 3. Align the guide lugs on the side of the base of the new bulb in the grooves in the holder. Press it in and turn it slightly clockwise.
Page 178 2003 VOLVO XC90 Front fog lights Avoid touching the glass on the bulb with your fingers. 1. Switch off the ignition. 2. Turn the bulb holder slightly counterclockwise to release it. 3. Replace the bulb. The shape of the foot of the bulb corresponds to the shape of the bulb holder.
Page 179 2003 VOLVO XC90 D - Parking light - P21 4W Replacing bulbs in the tail light cluster 1. Switch off all lights and turn ignition key to position 0. 2. Fold down the lower section of the tailgate, and fold up the rear section of the cargo area floor.
Page 180 2003 VOLVO XC90 Rear fog light 1. Switch off the ignition. 2. Carefully insert a small screwdriver (see illustration above) 3. Pry out the lamp housing. 4. Turn the bulb holder counterclockwise and pull out the bulb. 5. Insert a new bulb and press the lamp housing back into place.
Page 181 3. Press the lens back into place. pg. 143 Maintenance Front courtesy lights These bulbs may be difficult for you to replace yourself. We recommend that you let an authorized Volvo retailer replace these bulbs if necessary. file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (14 of 23)12/30/2006 4:19:04 PM...
Page 182 These bulbs may be difficult for you to replace yourself. We recommend that you let an authorized Volvo retailer replace these bulbs if necessary. NOTE: Other bulbs may be difficult for you to replace yourself. Let an authorized Volvo retailer replace these bulbs if necessary.
Page 183 2003 VOLVO XC90 Bulbs (contd) License plaste lights 1. Switch off the ignition. 2. Loosen the screws with a Torx screwdriver. 3. Turn the bulb holder counterclockwise and pull it out. 4. Pull out the defective bulb and insert a new one.
Page 184 (written on the fuse). Spare fuses are stored in the fuse box in the engine compartment and the passenger compartment. If fuses burn out repeatedly, have the electrical system inspected by an authorized Volvo retailer. WARNING! Never use fuses with higher amperage than those stated on the following pages. Doing so could overload the vehicle's electrical system.
Page 185 2003 VOLVO XC90 A-To open, press the plastice catches on the rear side of the fuse box cover and lift. Relay/Fuse box in the engine compartment When replacing fuses, be sure to replace a blown fuse with a new one of the same color and amperage (written on the fuse).
Page 186 2003 VOLVO XC90 3. Vacuum pump 4. Oxygen sensors 5. Crankcase ventilation heater, solenoid valves 6. Mass air flow sensor, engine control module, injectors 7. - 8. A/C compressor, accelerator pedal position sensor, E-box 9. Horn 10. Tailgate washer 11. A/C compressor, ignition coils 12.
Page 187 2003 VOLVO XC90 Fuses in the passenger compartment Fuses are located inside the access panel on the end face of the dashboard. There are also a number of spare fuses. Amperage 1. Blower - climate system 2. Audio amplifier 3. Power driver's seat 4.
Page 188: Glove Compartment
2003 VOLVO XC90 19. Heated front passenger's seat (option) 20. Infotainment system 21. Relay extended D1 feed: climate control system, power driver's seat, instrument panel 22. Headlight switch module, climate control system, onboard diagnostic connector, steering wheel lever modules 23. Turn signals 24.
Page 189 2003 VOLVO XC90 Fuses in the cargo compartment Amperage 1. Rear electrical module, cargo compartment lighting 2. Rear fog light 3. Brake lights 4. Backup lights 5. Rear window defroster, relay 15I - accessories (rear) 6. Tailgate release 7. Electric socket 12V in cargo compartment 8.
Page 190 2003 VOLVO XC90 18. - Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (23 of 23)12/30/2006 4:19:04 PM...
Page 191 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Specifications pg. 149 Specifications Label information 150 Dimensions and weights 151 Capacities 152 Lubricants 153 Cooling system 153 Suspension 153 Electrical system 155 Bulbs 156 Engine specifications, Transmission 157 All specifications are subject to change without prior notice.
Page 192 2003 VOLVO XC90 1 Vehicle Emission Control Information Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.
Page 193: Dimensions And Weights
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driverÕs door. For further information regarding these regulations, please consult your Volvo retailer.
Page 194 2003 VOLVO XC90 down: 5-seat: 92.0 cu ft (2606 litres) 7-seat: 93.2 cu ft (2640 litres) U.S.A. Canada Gross vehicle weight* 5-cyl turbo: 5-seat-5770 lb/7-seat-6005 lb 2630 kg/2720 kg 6-cyl turbo: 5-seat-5880 lb/7-seat-6080 lb 2680 kg/2760 kg Capacity weight 5-seat: 1150 lb...
Page 195 Meeting minimum ILSAC specification GF-2, including ACEA A1, API SJ, SJ/CF and SJ/ Energy Conserving. Oil additives must not be used. Transmission Oil grade: 4-speed automatic (on models with 6-cylinder turbo engines): Dexron III G (Volvo P/N 1161521). file:///K|/ownersdocs/2003/2003_XC90/03xc90_10.htm (5 of 10)12/30/2006 4:19:05 PM...
Page 196: Cooling System
2003 VOLVO XC90 5-speed automatic (on models with 5-cylinder turbo engines): Volvo synthetic transmission oil Volvo P/N 1161540. Different types of oil should never be mixed. Power steering Grade: ATF Brake fluid Fluid type: DOT 4+ boiling point >536°F (280°C), P/N 9437433...
Page 197 2003 VOLVO XC90 Three-way catalytic converter cautions Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or distributor ignition systems, may cause unusually high three-way catalytic converter temperatures. Do not continue to operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating conditions, such as engine overheating or backfiring.
Page 198 2003 VOLVO XC90 Cold start capacity 520 A 600 A (CCA) Reserve capacity (RC) 115 min If you must replace your battery, be sure to replace it with a battery of the same cold start capacity and reserve capacity as the original (See the decal on the battery).
Page 199 2003 VOLVO XC90 Courtesy lighting, front SV 8.5 Cargo compartment lighting 5 W SV 8.5 Glove compartment lighting 3 W BA 9 Vanity mirror 1.2 W SV 5.5 pg. 157 Specifications Engine specifications, Transmission B5254T2 B6294T Output (kW/rps) 154/83 200/85...
Page 200 158 Specifications Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.
Page 201: Audio System
2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Audio pg. 159 Audio Audio system 160 Audio system controls 161 Audio functions 164 Radio functions 168 Menu settings and selections 174 CD player 175 CD changer (option) 177 CD player 179 HomeLink®...
Page 202: Audio System Controls
2003 VOLVO XC90 1. On/Off 2. Volume 3. CD player 4. AM/FM - for switching between FM1, FM2 and AM 5. Display 6. ENTER - select in the menu or activate a selection 7. MY KEY - programmable key for your favorite function 8.
Page 203 2003 VOLVO XC90 Steering wheel keypad (option) The four buttons on the steering wheel keypad can be used to control the audio system. The steering wheel keypad can be used to adjust volume, shift between preset stations and change CD tracks.
Page 204 2003 VOLVO XC90 menu alternatives are shown in the display. Press the menu button (2) to enter menu mode. Use the menus as follows: Use the menu keys (3) to navigate up or down in the menus. Dots in the display indicated that there are more menu selections from which to choose.
Page 205 2003 VOLVO XC90 for 3.5 mm contacts and are located under the lower edge of the socket. All headphones are automatically turned off when the ignition is switched off. They must be manually restarted when the ignition is switched on again.
Page 206: Audio Functions
2003 VOLVO XC90 2. Volume 3. Forward/back - fast forward or back 4. Source - step between sound sources 5. Preset/disc - selects among CD's (in the optional CD changer) or preset radio stations 6. Auto store - searches for and stores the strongest radio stations 7.
Page 207 2003 VOLVO XC90 Volume control Turn the knob (2) clockwise or counterclockwise to raise or lower the volume. The volume control is electronic and has no end position. Volume can also be raised (+) or lowered (-) using the optional steering wheel keypad.
Page 208 2003 VOLVO XC90 NOTE: - Volume for the center speaker can only be set if Dolby Pro Logic II (DPL II) or three-channel stereo (3- CH) is selected in the menu. - Volume for the subwoofer can only be set if SUBWOOFER is selected in the menu.
Page 209 2003 VOLVO XC90 the resonance of a concert hall. Dolby Surround Pro Logic II (DPL2) works in CD and FM mode. 3- channel stereo (3-CH) is recommended for AM radio broadcasts. DPL2 is only available on the highest level audio system -Premium Sound. Use the following instructions to select PRO LOGIC II, 3- CHANNEL, or to turn these functions off.
Page 210: Radio Functions
2003 VOLVO XC90 EQ - FRONT This function is used to fine-tune the sound from the front speakers. 1. Select AUDIO SETTINGS in the menu and press ENTER. 2. Select Equalizer FR and press ENTER. 3. Use the menu selection buttons to set the level or use the SELECTOR control.
Page 211 2003 VOLVO XC90 audible station and then stop. 3. Press one of the buttons again to start a new search. Manually search for a known frequency 1. Press and hold the button (or the corresponding buttons on the steering wheel keypad).
Page 212 2003 VOLVO XC90 Radio Frequency band 87.7 - 107.9 MHz 530 - 1710 kHz MY KEY - programming a shortcut Use the MY KEY buttons (2) to program a favorite function from the menu, such as SCAN, AUTOSTORE, etc. See page 174 for the functions that can be programmed with the MY KEY button.
Page 213 2003 VOLVO XC90 1. Choose radio mode using the SELECTOR control or the AM/FM button. 2. Press the MENU button (2). 3. Select AUTOSTORE and press ENTER. 4. Select AST SEARCH and press ENTER. 5. AUTOSTORING is shown in the display and a number of strong stations (max. 10) from the set frequency band are now automatically stored in the autostore memory.
Page 214 2003 VOLVO XC90 pg. 172 Audio Program type/Format - PTY The PTY function allows you to find programs that suit your taste. Use the PTY function to select from among the different program types shown in the list. Which PTY does the set station have? 1.
Page 215 2003 VOLVO XC90 Top 40 TOP 40 Country COUNTRY Oldies OLDIES Soft SOFT Nostalgia NOSTALGIA Jazz JAZZ Classical CLASSICAL Rhythm & Blues RHYTHM & BLUES Soft R&B SOFT R&B Language LANGUAGE Religious music RELIGIOUS MUSIC Religious talk RELIGION TALK Personality...
Page 216 2003 VOLVO XC90 Search for a specific program type - PTY This functions enables you to search for a certain type of program by searching through the entire waveband. 1. Select FM1 or FM2 and press the MENU button. 2. Select RADIO SETTINGS and press ENTER.
Page 217 2003 VOLVO XC90 Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_11a.htm (17 of 17)12/30/2006 4:19:06 PM...
Page 218: Menu Settings And Selections
2003 VOLVO XC90 pg. 174 Audio Menu settings and selections Main menus/submenus RADIO (FM) 1. AUTOSTORE* 1.1. AST MODE 1.2. AST SEARCH 2. SCAN* 3. RADIO TEXT 4. RADIO SETTINGS 4.1. PTY 4.1.1. SELECT PTY 4.1.2. SEARCH PTY 4.1.3. SHOW PTY 4.2.
Page 219: Cd Player
2003 VOLVO XC90 CD (single disc) 1. RANDOM* 2. SCAN* 3. AUDIO SETTINGS* 3.1. SURROUND MODE* (option) 3.1.1. Pro Logic II (default) 3.1.2. 3CH 3.1.3. OFF 3.2. SUBWOOFER* (option) 3.3. EQ FRONT (option) 3.4. EQ REAR (option) 3.5. RESET ALL CDX (CD changer - option) 1.
Page 220 2003 VOLVO XC90 Starting the CD 1. Select the CD mode using the SELECTOR control (1) or the CD button (2). 2. Insert a CD into the player. Changing tracks Press to go to the next track or to go to the previous track. The track number is shown in the display.
Page 221: Cd Changer (Option)
2003 VOLVO XC90 SCAN This function plays the first ten seconds of each track. 1. Press the MENU button. 2. Select SCAN and press ENTER. 3. Press EXIT/CLEAR to listen to an entire track. Disctext Certain CDs contain information about the disc, such as the titles of the tracks, etc. This information can be shown in the display by activating the DISCTEXT function.
Page 222 2003 VOLVO XC90 CD changer (option) The CD changer can hold up to six discs. 1. Choose CD mode using the SELECTOR control or the CD button. 2. Select an empty slot with the number keys 1-6 (1). The display indicates which slots are empty.
Page 223 2003 VOLVO XC90 Press and hold down to search within a track or the whole disc. The search continues as long as the buttons are depressed. If you have a keypad in the steering wheel, you can use the arrow keys in the same way.
Page 224 Do not put tape or labels on the disc itself. They could become stuck in the player. Volvo does not recommend the use of plastic outer rings on the disc. Condensation may occur on discs/optical components of the changer in cold winter weather. The disc can be dried with a clean, lint-free cloth.
Page 225: Homelink® Universal Transceiver
2003 VOLVO XC90 HomeLink® Universal Transceiver Hand-held transmitter HomeLink® Universal Transceiver HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled-devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink®'s sun visor- mounted transceiver, powered by your vehicle's electrical system, may then be used in place of your hand-held remote controls.
Page 226 2003 VOLVO XC90 5. If you are programming a rolling code-equipped device (e.g., garage door opener or entry door lock), refer to "Programming rolling codes" on the next page to complete the programming process. Repeat steps 3 and 4 to program the other two transceiver buttons.
Page 227 2003 VOLVO XC90 the transceiver." The help of a second person may make training easier. 1. Locate the training button on the garage door opener motor head unit. The location and color of the training button may vary. If you encounter difficulty, refer to the garage door opener owner's manual or call toll-free 1-800-355-3515 (Internet: www.HomeLink.com).
Page 228 2003 VOLVO XC90 3. Press and hold the hand-held transmitter button. The HomeLink® indicator light will flash first slowly, then rapidly. When the indicator light flashes rapidly, release both buttons. The previously programmed device has now been erased and the new device can be activated by pressing the HomeLink®...
Page 229 2003 VOLVO XC90 2 0 0 3 VOLVO XC90 Index pg. 183-186 Index 12-volt sockets A/C (air conditioning) ABS ii, 25, Adjustable steering wheel Advanced user functions Air bags - dual threshold/stage Air cleaner Air distribution 47, Air Quality sensor...
Page 230 2003 VOLVO XC90 Auxiliary 12-volt socket Auxiliary lamps Average speed Bass Battery 126, 133, Battery - replacing Battery drain - avoiding Battery maintenance Belt check Blower (fan) Booster cushion Brake circuit Brake system 26, Bulbs 137, Capacities Carbon Monoxide - Important Warning...
Page 231 2003 VOLVO XC90 Clock Coat hanger Coin compartment Cold weather precautions Coolant Coolant - changing 127, Coolant - checking level of Cooling system Courtesy light Cruise control Cup holder 64, 65 Cup holder in rear seat Current fuel consumption Defroster...
Page 232 2003 VOLVO XC90 Engine oil, capacity Engine specifications Engne oil - checking Environment Fader Federal Clean Air Act FIX NEXT SERVICE Floor mats Fog light Folding sideview mirrors Front seat - backrest Front seats Front seats - heated Front seats - manual adjustment...
Page 233: Instrument Panel
2003 VOLVO XC90 Generator warning light Glove compartment Handling Hazard warning flashers Headlight flasher Headlight washer Headlight wiper blades Headlights Headphones Heated front seats 35, High beam "flash" High beam indicator High/low beams - replacing Hoisting the car Home Safe System...
Page 234 2003 VOLVO XC90 Keylock ii, 87 Keys LED illumination Lighting panel Locking Locking steering wheel Locks Long distance trips Lubricants Maintenance services Malfunction indicator light Messages in the display Moonroof (electrically operated) Multifilter with air quality sensor Occupant safety Octane rating...
Page 235: Reading Lights
2003 VOLVO XC90 Parking lights Polishing Power seat Power steering fluid Power moonroof PROPOSITION 65 WARNING 102, Radiator Rain sensor - windshield wipers Reading lights Rear fog lights Rear seat air condition Rear suspension Rear window defroster Rearview mirror/door mirrors...
Page 236 2003 VOLVO XC90 Service Service key Service reminder SERVICE REQUIRED SERVICE URGENT Shiftlock ii, Side airbags Sideview mirrors SIPS airbags Snow chains Snow tires Spare tire - accessing Spare tires Spark plugs Specifications Speedometer Spoiler lights Start inhibitor (immobilizer) Starting the car...
Page 237 2003 VOLVO XC90 Tachometer Tailgate - locking/unlocking Tailgate - opening Temperature Temperature gauge Temporary spare tires Text window - messages Three-way catalytic converter TIME FOR REGULAR SERVICE Tire economy Tire economy - improving Tire Rotation Tires Tires - tread wear indicators...
Page 238 Genuine Volvo accessories are tested to ensure compatibility with the performance, safety, and emission systems in your vehicle. Additionally, your authorized Volvo retailer knows where accessories may and may not be safely installed in your Volvo. In all cases, please consult your authorized Volvo file:///K|/ownersdocs/2003/2003_XC90/03xc90_12.htm (10 of 14)12/30/2006 4:19:09 PM...
Page 239 Any of your vehicle's performance and safety systems could be adversely affected if you install accessories that Volvo has not tested, or if you allow accessories to be installed by someone unfamiliar with your vehicle. Damage caused by unapproved or improperly installed accessories may not be covered by your new vehicle warranty.
Page 240 2003 VOLVO XC90 The following should be checked regularly:* 1. Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti- freeze). See page 131. 2. Power steering - When cold, the level must not be above the COLD mark and when hot it must not be above the HOT mark.
Page 241 2003 VOLVO XC90 1 Turn signal H21W amber 2 High beam 55W H7 3 Parking light 4 Low beam 55W H7 5 Fog light, front 55W H1 6 Fog light, rear 21W BA5 7 Back-up light 21W BA15 8 Parking light/tail...
Page 242 2003 VOLVO XC90 Contents Top of Page file:///K|/ownersdocs/2003/2003_XC90/03xc90_12.htm (14 of 14)12/30/2006 4:19:09 PM...
