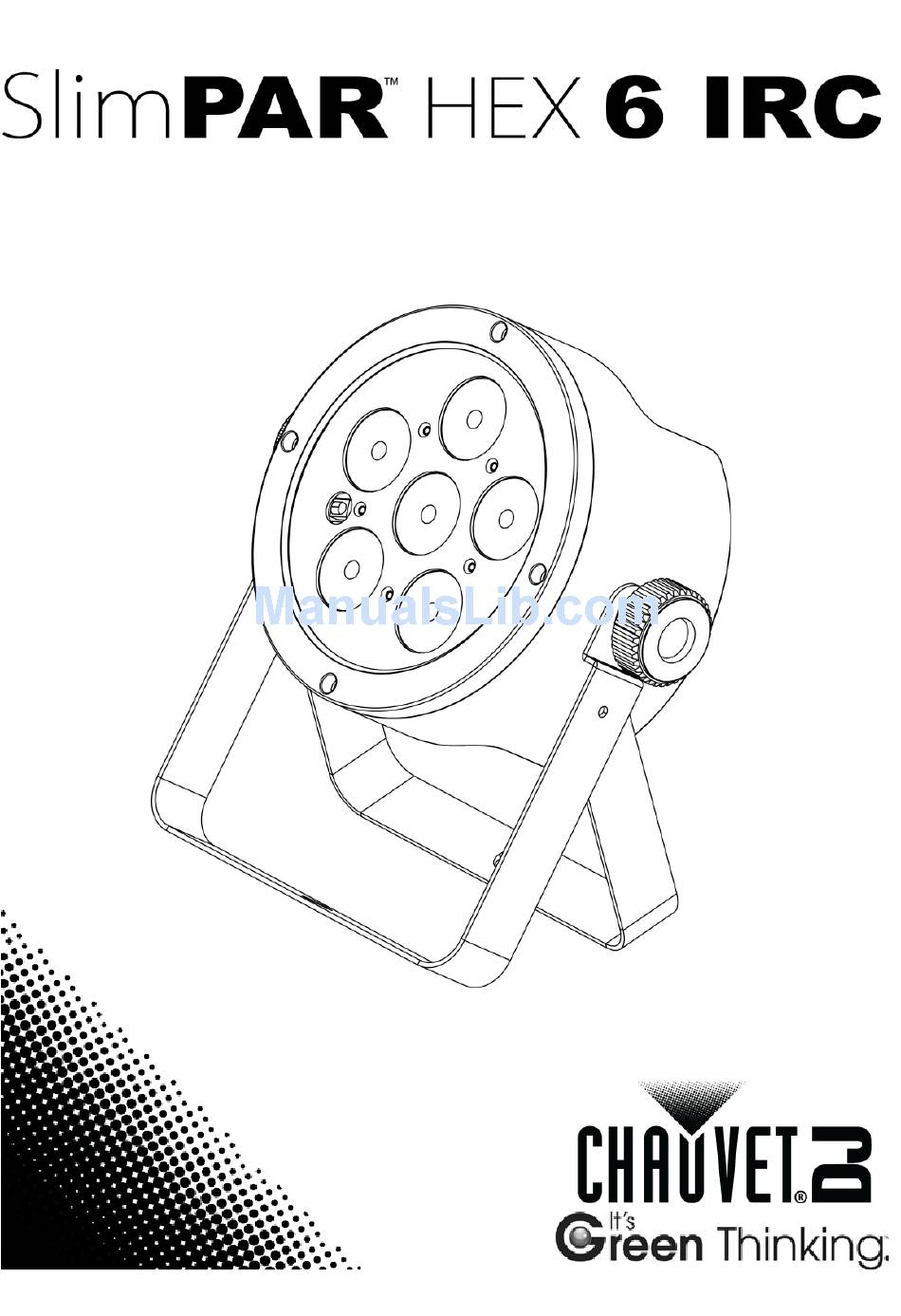

SlimPAR™ HEX 6 IRC QRG The SlimPAR™ HEX 6 IRC Quick Reference Guide (QRG) has basic About This product information such as mounting, menu options, and DMX values. Guide Download the User Manual from www.chauvetlighting.com for more details. The information and specifications contained in this QRG are subject to Disclaimer change without notice.
Unpack your SlimPAR™ HEX 6 IRC and make sure you have received all To Begin parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET®. The SlimPAR™ HEX 6 IRC is a low-profile LED Par with 6-in-1 LED Description technology (RGBAW+UV) and built-in infrared remote control capability.
5. Re-insert the fuse holder and reconnect power. Infrared Remote The SlimPAR™ HEX 6 IRC is fully compatible with the Infrared Remote Control 6 (IRC-6) from CHAUVET®. For more information on the IRC-6 Control 6 (IRC-6) or to download instructions, go to www.chauvetlighting.com.
SlimPAR™ HEX 6 IRC QRG Menu Options Main Function Programming Levels Description 6-CH DMX Personalities Selects DMX personality and 8-CH d 1–d512 and Starting Address starting address 12CH Static Colors C 1–C 63 Selects static color Auto Programs P 1–P 4 Selects auto program Program Speed S 1–S100...
SlimPAR™ HEX 6 IRC QRG DMX Values 12-CH Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% Amber 000 ó 255 0–100% White 000 ó...
SlimPAR™ HEX 6 IRC GRR La Guía de Referencia Rápida (GRR) del SlimPAR™ HEX 6 IRC contiene Acerca de información básica sobre el producto, como montaje, opciones de menú y Esta Guía valores DMX. Descargue el manual de usuario de www.chauvetlighting.com para una información más detallada.
Desembale su SlimPAR™ HEX 6 IRC y asegúrese de que ha recibido todas Para Empezar las partes en buen estado. Si la caja o los componentes parecen dañados, notifíqueselo al transportista inmediatamente, no a CHAUVET®. El SlimPAR™ HEX 6 IRC IRC es un reflector LED de perfil bajo con Descripción tecnología LED 6-en-1 (RGBAW+UV) y capacidad integrada de control...
Page 9
5. Vuelva a insertar el portafusibles y conecte de nuevo la alimentación. Control Remoto El SlimPAR™ HEX 6 IRC es totalmente compatible con el control remoto por infrarrojos IRC-6 de CHAUVET®. Para información adicional sobre el por Infrarrojos IRC-6 para...
SlimPAR™ HEX 6 IRC GRR Opciones de Menú Función Principal Niveles de Programación Descripción 6-CH Personalidades DMX Selecciona la personalidad DMX 8-CH d 1–d512 y Dirección de Inicio y la dirección de inicio 12CH Colores Estáticos C 1–C 63 Selecciona el color estático Programas P 1–P 4 Selecciona el programa automático...
SlimPAR™ HEX 6 IRC MdR Le Manuel de Référence du SlimPAR™ HEX 6 IRC reprend des À Propos de informations de base sur cet appareil notamment en matière de montage, ce Manuel d'options de menu et de valeurs DMX. Téléchargez le manuel d'utilisation sur www.chauvetlighting.com pour de plus amples informations.
Déballez votre SlimPAR™ HEX 6 IRC et assurez-vous d'avoir tout reçu et Débuter en bon état. Si l'emballage ou le contenu semblait être endommagé, indiquez- le immédiatement au transporteur et non à CHAUVET®. Le SlimPAR™ HEX 6 IRC est un projecteur Par profilé à technologie LED Description 6 en 1 (RVBAb+UV) et à...
5. Insérez à nouveau le porte-fusible puis rebranchez l'appareil. Télécommande SlimPAR™ HEX 6 IRC est entièrement compatible avec la télécommande à infrarouge IRC-6 de CHAUVET®; Pour de plus amples informations à Infrarouge concernant l'IRC-6 ou pour télécharger les instructions, rendez-vous sur (IRC-6) www.chauvetlighting.com.
SlimPAR™ HEX 6 IRC MdR Options du Menu Fonctions Principales Niveaux de Programmation Description 6-CH Adresse de Départ et Sélectionne la personnalité DMX et 8-CH d 1–d512 Personnalités DMX l'adresse de départ 12CH Couleurs Statiques C 1–C 63 Sélectionne les couleurs statiques Programmes P 1–P 4 Sélectionne le programme automatique...
SlimPAR™ HEX 6 IRC MdR Valeurs DMX Canal Fonction Valeur Pourcentage/Configuration 12 Canaux 000 ó 255 0 Gradateur à 100 % 000 ó 255 0 Rouge à 100 % 000 ó 255 0 Vert à 100 % 000 ó 255 0 Bleu à...
Page 17
SlimPAR™ HEX 6 IRC SAL In der Schnellanleitung des SlimPAR™ HEX 6 IRC finden Sie die Über diese wesentlichen Produktinformationen, wie etwa über die Montage, Menüoptionen Schnellan- und DMX-Werte des Geräts. Laden Sie für weiterführende Informationen unter leitung www.chauvetlighting.com das Benutzerhandbuch herunter. Die Informationen und Spezifikationen dieser Anleitung können ohne Haftungs- vorherige Ankündigung geändert werden.
Page 18
Packen Sie Ihr SlimPAR™ HEX 6 IRC aus und überprüfen Sie, ob Sie alle Teile Start unbeschädigt erhalten haben. Wenn die Verpackung beschädigt ist, benachrichtigen Sie umgehend das Transportunternehmen, nicht jedoch CHAUVET®. Der SlimPAR™ HEX 6 IRC ist eine LED-Kanne in flacher Bauweise mit Beschreibung 6-in-1 LED-Technologie (RGBAW+UV) und einer integrierten Option für eine IR-Fernbedienung.
Page 19
5. Stecken Sie den Sicherungshalter wieder zurück, und schließen Sie das Gerät an das Stromnetz an.. Infrarot- Der SlimPAR™ HEX 6 IRC ist vollständig kompatibel mit der Infrarot- Fernbedienung IRC-6 von CHAUVET®. Weitere Informationen zur IRC-6 Fernbedienung oder herunterladbare Anweisungen...
Page 20
SlimPAR™ HEX 6 IRC SAL Taste Funktion Beschreibung Damit verlassen Sie das aktuelle Menü oder die Funktion <MENU> Damit navigieren Sie sich durch die Menüpunkte nach oben und <UP> erhöhen den numerischen Wert der entsprechenden Funktionen Bedienfeldes Damit navigieren Sie sich durch die Menüpunkte nach unten und <DOWN>...
Page 21
SlimPAR™ HEX 6 IRC SAL DMX-Werte Kanal Funktion Wert Prozent/Einstellung 12 Kanäle 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Grün 000 ó 255 0–100% Blau 000 ó 255 0–100% Bernsteinfarben 000 ó 255 0–100% Weiß...
SlimPAR™ HEX 6 IRC GRR O Guia de Referência Rápida (GRR) do SlimPAR™ HEX 6 IRC contém Sobre este informações básicas sobre o produto tais como instalação, opções de menu e Guia valores DMX. Transfira Manual Utilizador www.chauvetlighting.com para obter mais informações. Exclusão de As informações e especificações contidas neste GRR estão sujeitas a alteração sem aviso prévio.
Desembale o SlimPAR™ HEX 6 IRC e certifique-se de que recebeu todas as Para Começar peças em boas condições. Se a caixa ou conteúdos aparentarem estar danificados, notifique imediatamente a transportadora e não a CHAUVET®. O SlimPAR™ HEX 6 IRC é um holofote LED de baixo perfil equipado Descriçã...
Page 24
5. Volte a colocar o suporte de fusíveis e volte a ligar a alimentação. Controlo O SlimPAR™ HEX 6 IRC é totalmente compatível com o controlo remoto por infravermelhos IRC-6 da CHAUVET®. Para obter mais informações Remoto por sobre IRC-6...
SlimPAR™ HEX 6 IRC GRR Opções de Menu Função Principal Níveis de Programação Descrição 6-CH Personalizações e Selecciona a personalização e Endereçamento 8-CH d 1–d512 endereço inicial DMX Inicial DMX 12CH Cores Estáticas C 1–C 63 Selecciona cor estática Programas P 1–P 4 Selecciona programa automático Automáticos...
Page 26
SlimPAR™ HEX 6 IRC GRR Valores DMX Canal Função Valor Percentagem/Definição 12 Canais Regulador da 000 ó 255 0–100% Intensidade da Luz 000 ó 255 Vermelho 0–100% 000 ó 255 Verde 0–100% 000 ó 255 Azul 0–100% 000 ó 255 Âmbar 0–100% 000 ó...
Page 27
SlimPAR™ HEX 6 IRC GR La Guida Rapida di SlimPAR™ HEX 6 IRC contiene informazioni di base Informazioni sul prodotto quali montaggio, opzioni menù e valori DMX. Per maggiori sulla Guida dettagli, scaricare il Manuale Utente dal sito www.chauvetlighting.com. Le informazioni e le specifiche contenute in questa guida possono essere Esclusione di modificate senza preavviso.
Disimballare SlimPAR™ HEX 6 IRC ed accertarsi di aver ricevuto tutti i Per Iniziare componenti integri. Se l'imballo appare danneggiato, farlo immediatamente presente al trasportatore e non a CHAUVET®. SlimPAR™ HEX 6 IRC è un proiettore Par a LED sottile con tecnologia Descrizione LED 6 in 1 (RGBAW+UV) e funzione telecomando a infrarossi integrata.
Page 29
Telecomando a SlimPAR™ HEX 6 IRC è totalmente compatibile con il telecomando a Infrarossi infrarossi IRC-6 di CHAUVET®. Per maggiori informazioni sul IRC-6, o per scaricarne le relative istruzioni, visitare il sito www.chauvetlighting.com. (IRC-6) Prima di montare l'unità, leggere le Note di Sicurezza.
SlimPAR™ HEX 6 IRC GR Opzioni del Menù Funzioni Principali Livelli di Programmazione Descrizione 6-CH Caratteristiche DMX Seleziona la funzione DMX e e Indirizzamento 8-CH d 1–d512 l'indirizzo iniziale Iniziale 12CH Colori Statici C 1–C 63 Seleziona il colore statico Programmi P 1–P 4 Seleziona i programmi auto...
SlimPAR™ HEX 6 IRC GR Valori DMX Canale Funzione Valore Percentuale/Impostazione 12-CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% Rosso 000 ó 255 0–100% Verde 000 ó 255 0–100% 000 ó 255 0–100% Ambra 000 ó 255 0–100% Bianco 000 ó...
SlimPAR™ HEX 6 IRC QRG SlimPAR™ HEX 6 IRC Quick Reference Guide (QRG) zawiera podstawowe informacje o produkcie takie jak montaż, opcje menu oraz Przewodniku wartości DMX. Szczegółowe informacje znajdują się w instrukcji obsługi na stronie www.chauvetlighting.com. Oświadczenie Informacje i specyfikacje zawarte w niniejszym dokumencie (QRG) podlegają...
W Montażem przypadku, gdy opakowanie lub jego zawartość noszą ślady uszkodzenia, należy natychmiast poinformować o tym fakcie dostawcę, a nie firmę CHAUVET®. Niskoprofilowa lampa typu Par z zastosowaniem technologii LED 6-in-1 Opis (RGBAW+UV) oraz z możliwością...
Page 34
5. Włożyć uchwyt bezpiecznika i ponownie włączyć zasilanie. Urządzenie SlimPAR™ HEX 6 IRC jest w pełni kompatybilne z pilotem na IRC-6 – podczerwień IRC-6 produkowanym przez firmę CHAUVET®. Więcej Sterowanie na informacji o sterowaniu bezprzewodowym IRC-6 oraz instrukcje znajdują się...
SlimPAR™ HEX 6 IRC QRG Przycisk Funkcja Opis Panelu Wyjście z bieżącej opcji menu lub funkcji <MENU> Sterowania Przejście w górę po liście menu oraz zwiększenie wartości <UP> numerycznej w funkcji Przejście w dół po liście oraz obniżenie wartość numerycznej w <DOWN>...
SlimPAR™ HEX 6 IRC QRG Wartości DMX Kanał Wartość Funkcja Procent/Ustawienie 12-CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% Czerwony 000 ó 255 0–100% Zielony 000 ó 255 0–100% Niebieski 000 ó 255 0–100% Bursztynowy Biały 000 ó 255 0–100% 000 ó...
Page 37
SlimPAR™ HEX 6 IRC QRG данном Краткое руководство (QRG) по SlimPAR™ HEX 6 IRC содержит базовую информацию об устройстве, включая вопросы монтажа, настроек меню и руководстве значений Загрузите Руководство пользователя на сайте DMX. www.chauvetlighting.com. Отказ от Информация и спецификации, приведенные в этом руководстве, могут ответственности...
Распакуйте устройство SlimPAR™ HEX 6 IRC и проверьте исправное состояние всех полученных деталей. Если коробка или ее содержимое работы имеют признаки повреждения, немедленно сообщите об этом не CHAUVET®, а перевозчику. Описание SlimPAR™ HEX 6 IRC – это низкопрофильный светодиодный прожектор со светодиодной технологией 6-в-1 (RGBAW+УФ) и...
Page 39
5. Повторно вставьте держатель предохранителя и снова подключите питание. Инфракрасный Устройство EZrail™ RGBA полностью совместимо с инфракрасным пульт пультом дистанционного управления IRC-6 от CHAUVET®. Для получения дополнительной информации об IRC-6 или загрузки дистанционног инструкций посетите сайт www.chauvetlighting.com. о управления (IRC-6)
SlimPAR™ HEX 6 IRC QRG Кнопка Функция Описание Выход из текущего меню или функции <MENU> панели Перемещение вверх по списку меню и увеличение числового <UP> управления значения при работе Перемещение вниз по списку меню и уменьшение числового <DOWN> значения при работе Текущее...
SlimPAR™ HEX 6 IRC QRG Связь по DMX Устройство SlimPAR™ HEX 6 IRC может работать с контроллером DMX при подключении с помощью последовательных соединений DMX. Инструкции по подключению и конфигурированию этого устройства в режиме DMX приведены в Руководстве пользователя. Если вы не знакомы с DMX, загрузите вводное руководство DMX Primer на...
Page 43
SlimPAR™ HEX 6 IRC QRG Значения DMX (прод.) Канал Функция Значение Процент/уставка 8-CH Диммер 000 ó 255 0–100% Красный 000 ó 255 0–100% Зеленый 000 ó 255 0–100% Синий 000 ó 255 0–100% Желтый 000 ó 255 0–100% Белый 000 ó 255 0–100% Ультрафиолетовый...
