Jensen VX3014 Operation Manual

7" single din multimedia receiver
Hide thumbs Also See for VX3014:
Table of Contents

Advertisement

Quick Links

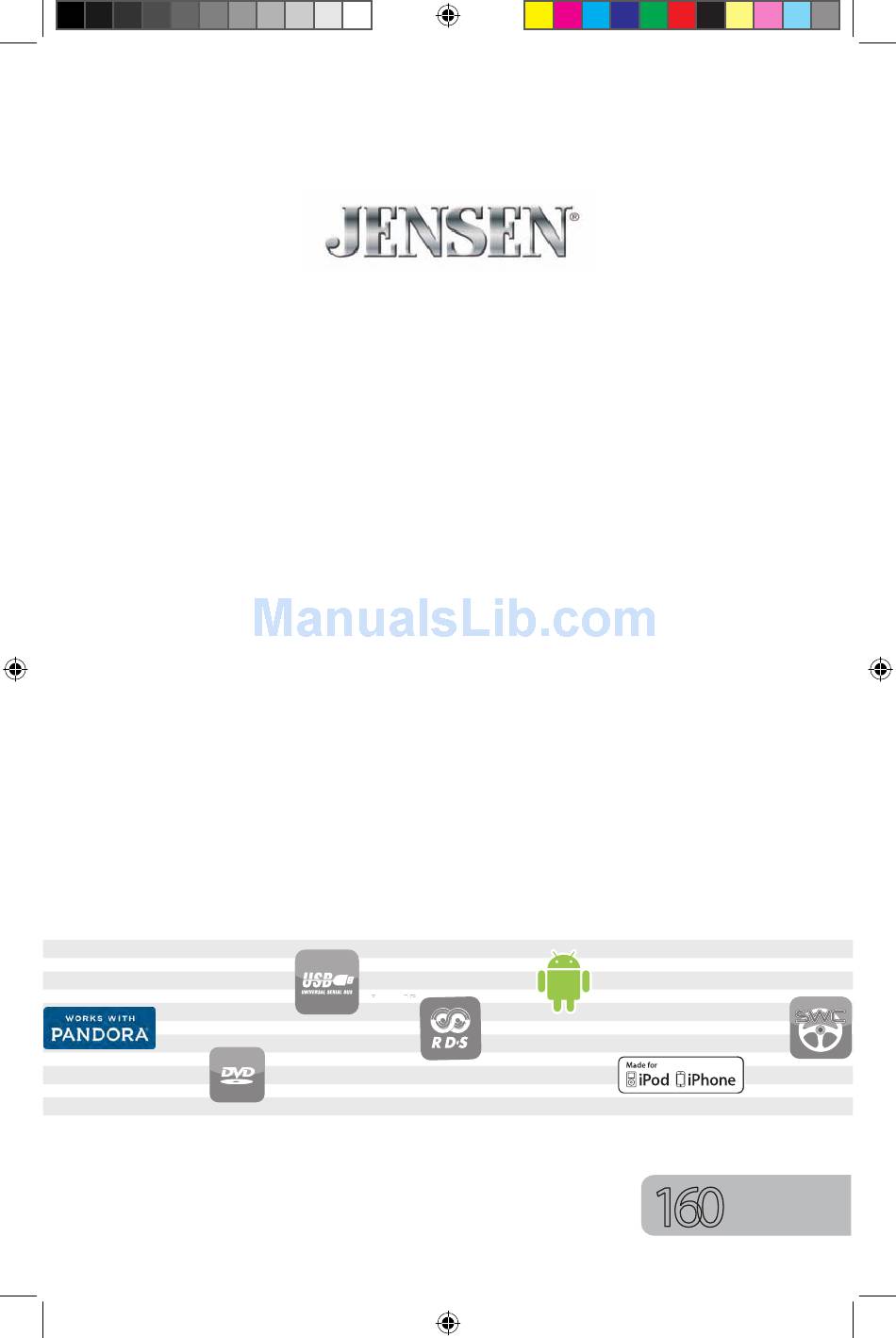

VX3014
7" Single DIN Multimedia Receiver
AM-FM / DVD / Pandora / Bluetooth / iPhone®/ iPod®/ USB / AV In
Operation Manual
160
Watts Peak
40w x 4

Advertisement

Table of Contents
loading

Related Manuals for Jensen VX3014

Summary of Contents for Jensen VX3014

  • Page 1 VX3014 7" Single DIN Multimedia Receiver AM-FM / DVD / Pandora / Bluetooth / iPhone®/ iPod®/ USB / AV In Operation Manual Watts Peak 40w x 4...
  • Page 2 Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VX3014 Mobile Multimedia Receiver for maximum enjoyment.

  • Page 3: Fcc Radiation Exposure Statement

    FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Safety Precautions

    Safety Precautions Please contact your nearest dealer if one of the following symptoms is experienced: P l e a s e r e a d t h r o u g h t h e s e o p e r a t i n g instructions so you will know how to operate your model properly.
  • Page 5 Please read the instruction manual for this product before using. The documentation provided will allow the user to fully enjoy all the features of your new Jensen VX3014 Mobile Multimedia Receiver. Please read all of the instructions before beginning the installation and save this manual for future reference. We recommend having your Jensen VX3014 installed by a reputable installation shop.

  • Page 6: Rear Camera

    • Rotary Encoder Audio Control (Volume Control) • USB Charging Current - 2.1 Amp • LCD Screen Dimmer Circuit - Dims Screen at Night Automatically REAR CAMERA The VX3014 is “Camera Ready.” Before accessing any camera features, you must purchase and install a rear video camera.

  • Page 7: Front Panel Controls And Indicators

    FRONT PANEL CONTROLS AND INDICATORS Controls and Indicators Notice: The graphic in this manual is for reference only, and may be different from the actual unit. Reference to actual unit is suggested.

  • Page 8: Button: Press

    1.) SRC Button (Source Menu): Momentarily pressing the [SRC] button will display the Main Source Menu. 2.) ROTARY ENCODER / POWER ( ) ON-OFF: Push the rotary encoder to turn the unit ON. Rotate the control to adjust the volume from 0 to 40. Pressing the control momentarily will mute / un-mute the audio.

  • Page 9: Remote Control Functions

    REMOTE CONTROL FUNCTIONS 1. SOURCE (SRC) Button: Press this button to switch between and select available sources. (Radio/Disc/BT/USB/BT Audio/AV In 1/AV In 2/Camera) 2. EJECT Button ( ): Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is ejected and the unit will change to radio operation. If the disc is not removed from the unit and the button is pressed again, the disc will be re-loaded.

  • Page 10: Fast Reverse

    12. NEXT (uul) Button: Press this button to skip to the next chapter, track or song during playback of a disc. Press this button while in Radio mode to search available radio station by increasing tuning frequency. 13. PLAY / PAUSE ( ) Button: Press this button to pause the playback of a disc.

  • Page 11: Turning The Unit On/Off

    1. Momentarily press the front panel SRC button or touch the " < " Back arrow in the top left-hand corner of the user interface. VX3014 Main Menu Screen 2. Touch the desired source icon on one of the two main menu screens.

  • Page 12: Volume Adjustment

    Mute Press the rotary control on the front panel or press the [MUTE] button on the remote control to mute the volume from the unit. Press again to un-mute. Volume Adjustment Volume Increase/Decrease To increase or decrease the volume level, turn the rotary control on the front panel.

  • Page 13: Equalizer Controls

    Equalizer Controls Equalizer (EQ): Adjustments made after entering of the audio/video sources (Disc, Radio, USB, AV IN 1, IN 2) Touch the Equalizer (EQ) icon to view the Equalizer Control Screen to make adjustments to the audio Balance and Fader levels. Touch the return icon to return to the current source.

  • Page 14: General Settings

    General Settings 1. Touch [ General ], if necessary. 2. Touch to highlight a setting to display/select an option. General settings Options Description USA/Asia/Japan/Europe/Eur LW/ Radio region Select one that matches your location. Oirt Local Select Local to receive only stations with extremely Radio range strong signal.

  • Page 15: Video Settings

    Video Settings 1. Touch [Video]. 2. Touch an option repeatedly to select. Video settings Options Description Full Aspect Ratio Adjust aspect ratio. Normal Mirror Rear Camera Reverse the camera image as if looking through a rear-view mirror. Normal 3. Touch the return icon to exit and return to the previous screen. Time Settings 1.

  • Page 16: Language Settings

    Language Settings 1. Touch [ Language ]. 2. Touch an option repeatedly to select. Language settings Description Select on-screen display language. DVD audio Select DVD audio language. Options available depending on DVD disc. DVD subtitle Select DVD subtitle language. Options available depending on DVD disc. Disc menu Select DVD menu language.
  • Page 17 Load factory Restore to default settings. Version Info The Version menu is used to identify the model, hardware and software versions. 3. Touch the return icon to exit and return to the previous screen. Adjust Source Volumes (Relative Level) You can set different relative volumes for different sources. 1.

  • Page 18: Radio Tuner Mode

    RADIO TUNER MODE Select Radio as Playing Source Open the SOURCE MENU and then touch [Radio]. Selecting a Radio Band Press th BAND button on the remote control or touch the BAND icon on the user interface to select one radio band among FM1, FM2, FM3, AM1 and AM2. Tuning AM-FM Stations Seek Tuning Press the [...

  • Page 19: Recalling A Station

    AutoStore (AS) Touch AUTOSTORE to search radio stations and store the 6 strongest stations in the current band automatically. Recalling a Station 1. Select a band. 2. Touch an on-screen preset button to select the corresponding stored station. Local / Distance When the Local function is on, only radio stations with a strong local radio signal are played.

  • Page 20: Playback Of Audio Files

    PLAYBACK OF AUDIO FILES Compatible Audio Discs Types This system will play the following types of discs: • DVD - DVDs that contain audio and/or video. • Audio discs - Audio CD's that contain audio files. • MP3 discs - A disc that contains audio, video and image files (for example, a CD-R with downloaded MP3 files.

  • Page 21: Controlling Playback

    Controlling Playback To access the on-screen controls, touch the screen anywhere except for the upper left corner and touch again to cancel display. Connecting a USB Device 1. Open the USB door. 2. Connect a USB device into the USB connector. Play starts automatically. NOTES: If there are audio files supported on the USB stick, the system will enter the audio files menu automatically.

  • Page 22: Random Play

    Video Files 1. Touch Video icon [ ] to display all available video folders. 2. Touch a folder, then touch the desired file. 3. Touch the file again to start play. Picture Files 1. Touch Picture icon [ ] to display all available picture folders. 2.

  • Page 23: Select Audio Mode

    Select Audio Mode When playing VCDs, the user can select an audio mode (R/L/Stereo). 1. During playback, touch the bottom half of the screen to display menu on the screen. 2. Touch the Next icon [ ] to display the 2nd menu. 3.

  • Page 24: Elapsed Time

    For VCD 1. Disc type. 2. Return to the main menu. 3. VCD Track information. “1/16” indicates that this VCD has 16 tracks and the track playing back now is the first title. 4. Time display. 02:35 < Title: 1/16 VCD Information Display Elapsed Time 1.

  • Page 25: General Disc Information

    General Disc Information Disc Properties Symbol 12cm Disc Properties Max Play Time Single side single layer (DVD-5) (MPEG 2 Method) Single side double layer (DVD-9) 133 minutes Double side single layer (DVD-10) 242 minutes Double side double layer (DVD-18) 266 minutes 484 minutes Single side single layer (VCD) (MPEG 1 Method)

  • Page 26: Equalizer Control Menu

    EQUALIZER CONTROL MENU Adjusting Equalizer Controls The Equalizer adjustment screen allows the user to easily adjust the audio tone controls to suite individual listener preferences. Note: Set the EQ controls for the most natural sound. The Balance / Fader level options of a selected audio / video source (Disc, Radio, USB, AV IN 1,...
  • Page 27 Adjusting the Fader and Balance The user can adjust front/rear fader settings, L/R balance settings, and subwoofer levels here. 1. Enter the EQ setup mode. 2. Touch the [ ] icon in the EQ interface menu. Balance - This feature is used to balance the audio output levels between the left and right side of the vehicle.

  • Page 28: Ipod® / Iphone® Controls

    iPod® / iPhone® CONTROLS Accessing iPod® Mode The user can control an iPod® / iPhone® using the touch screen to access albums, songs, etc. The unit will automatically switch to iPod® mode when an iPod® or iPhone® is plugged into the front panel USB connector. Also the iPod® can be accessed from the Main Menu Screen by touching the iPod®...

  • Page 29: Pausing Playback

    pause playback. ) Next - Touch this icon to play the next track. List - Touch this icon to access the list of audio and video files contained on the iPod®. Touch a folder icon and the contents of the folder will be displayed. Touch a desired track icon twice and the track will begin playing.

  • Page 30: Pandora Radio Operation

    PANDORA RADIO OPERATION Pandora Radio is available via your iPhone® (data usage will occur) or Android™ device (via Bluetooth®). Note: The Pandora app must be installed on your iPhone® / iPod® touch or Android device. Note: To play Pandora Radio on this multimedia receiver using an Android device, it is necessary to first establish a connection using Bluetooth®.

  • Page 31: Station List Screen

    ) Pause / Play Icon - Touch the icon to pause playback. Touch the icon to begin playback. ) Next Icon - Press this icon skip a song, subject to the skip limit. ) Thumbs Up - Press thumbs up to tell Pandora you like the track currently playing, and Pandora will play more tracks like it.
  • Page 32 To Launch / Stop Pandora Radio Launch the Pandora app on the iPhone®, iPod® or Android device. Touch the Pandora icon on the main menu screen. If only one device is connected to the radio, the Pandora Radio user interface screen appears. Pandora Radio User Interface Screen Pausing Playback 1.Touch the Pause icon [ ] on the bottom of the screen to pause play.

  • Page 33: Bluetooth Operation

    Please make sure your mobile phone supports BT functions (Headset or Handsfree profiles or both). Adhere to the following guidelines for successful operation. • Before using BT functions, you must pair your mobile phone to the VX3014. unit (see “Pairing the BT system with Your Mobile Phone and Unit”). To ensure the best reception for pairing and re-connection, please make sure the mobile phone battery is fully charged before you begin.
  • Page 34 Use your mobile phone to begin the BT pairing process: 1. Turn ON the BT function on the device/mobile phone. 2. Search for BT devices using your mobile phone. 3. Select the BT device ID “VX3014” in the pairing list. 4. Enter default password “5309”. NOTES: •...

  • Page 35: Making A Call

    Disconnecting a BT Device To disconnect one device, touch [ Disconnect ]. After "Disconnect" is pressed, the radio will display a screen listing paired devices. Pressing the Green "Connect" icon will reconnect a previously paired phone to the VX3024. Pressing the "Wastebin"...
  • Page 36 PTT (Push to Talk) Function The VX3014 has a PTT button to allow you to access Siri or Google Voice through the head unit when connected via BT. You mobile phone must support Siri or Google Voice in order for this feature to be supported on the head unit.
  • Page 37 AV In 1 / AV In 2 AV In 1 AV In 1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm connector located on the front panel. AV In 2 AV-In 2 is used for playback of audio/video from an external device connected through RCA connectors located on the back of the unit.
  • Page 38 SWC Ready The built-in SWC interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party SWC adapter must be used in order for the VX3014 to be compatible with any steering wheel controls. Note: Not all OE steering wheel functions may be supported by the VX3014.

  • Page 39: Rear Camera Operation

    REAR CAMERA OPERATION This unit is “Camera Ready.” Before accessing any camera features, you must install a rear video camera (Sold separately). When the rear camera is installed, a rear view image of what is behind the vehicle will appear (On the screen) when the vehicle is placed in reverse gear. When shifting out of reverse gear, the screen will display the previous source.

  • Page 40: Troubleshooting

    Troubleshooting Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit cannot power on Car battery fuse blown. Install new fuse with correct rating. Illegal operation Reset the unit. Battery depleted. Change the battery. Remote control does not work Battery installed incorrectly.

  • Page 41: Error Messages

    Troubleshooting (Continued) Problem Cause Corrective action Disc playback Eject current disc and insert new Cannot insert disc A disc is inside the unit already. one. Disc is warped or scratched. Use disc in good condition. Disc is dirty or wet. Clean disc with soft cloth.

  • Page 42: Specifications

    SPECIFICATIONS DVD/CD Player Compatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / RW Compatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, AVI, MPEG 1/2 Signal to Noise Ratio: >95dBA Dynamic Range: >95dB Frequency Response: 20Hz to 20kHz, -3dB Channel Separation: >...

  • Page 43: Cea Power Ratings

    General Auxiliary (Audio) Input Impedance: 10k-Ohm Power Supply: 11 to 16VDC, Negative Ground Power Antenna / Amp Remote (Blue): 500mA Max (Current Limited Protection) Operating Temperature: 0C ~ 65C / 32F ~ 149F Fuse: 15-Amp, ATO Type Chassis Dimensions: 7” x 7” x 4” (178mm x 178mm x 100mm) CEA Power Ratings Power Output: 13 Watts RMS x 4 Channels Into 4- Ohms @ <...

  • Page 44: Care And Maintenance

    Care and Maintenance 1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alcohol) may result in scratching or discoloration. 2. Do not get water or cleaning fluids on the uni . 3.
  • Page 45 Dual Electronics Corporation Heathrow, FL 32746 Technical Assistance: 888-921-4088 www.jensenmobile.com © 2016 Installation Guide VX3014 Common Replacement Parts Wire Harness (Pwr/Spk/Line Out/ BT Mic / SWC Adapter) 30313990 Trim Ring 30413940 Remote Control 30714230 Hardware Kit 30513940 Mounting Sleeve 30113940...
