ACONDICIONADOR DE AIRE DOMÉSTICO SISTEMA MULTI SPLIT
CONDIZIONATORE D'ARIA PER PIÙ AMBIENTI AD UNITÀ SEPARATE
RAUMKLIMAGERÄT IN MEHRFACH GETEILTER AUSFÜHRUNG
¶ O§Y¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY
äéåçÄíçõâ ÇéáÑìòçõâ äéçÑàñàéçÖê íàèÄ åìãúíà-ëèãà
E S F I P D G R DB98-05694A(3)
MULTI-SPLIT TYPE ROOM AIR CONDITIONER
CLIMATISEUR DE TYPE MULTIPLE
AR CONDICIONADO MULTI SPLIT
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D'INSTALLATION
MANUALE D'INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E°XEIPI¢IO E°KATA™TA™H™
àçëíêìäñàü èé ìëíÄçéÇäÖ
Indoor unit
MH14VA1(A2)(C1)(C2)-07
MH18VA1(A2)(C1)(C2)-09
MH19VA1(A2)(C1)(C2)-07
MH19VA1(A2)(C1)(C2)-12
( Cool and Heat )
( Refroidissement et Chauffage )
( Refrigeração e Aquecimento )
(æ‡Í˘ Î·È £¤ÚÌ·ÓÛ˘ )
Outdoor unit
MH14VA1(A2)(C1)(C2)X
MH18VA1(A2)(C1)(C2)X
MH19VA1(A2)(C1)(C2)X
( Refrigeración y Calefacción )
( Raffreddamento e Riscaldamento )
( Kühlen und Wärmen )
í (éı·ʉÂÌËÂ Ë é·Ó„‚)
Advertisement
Table of Contents
Related Manuals for Samsung MH14VA1 Seies
Summary of Contents for Samsung MH14VA1 Seies

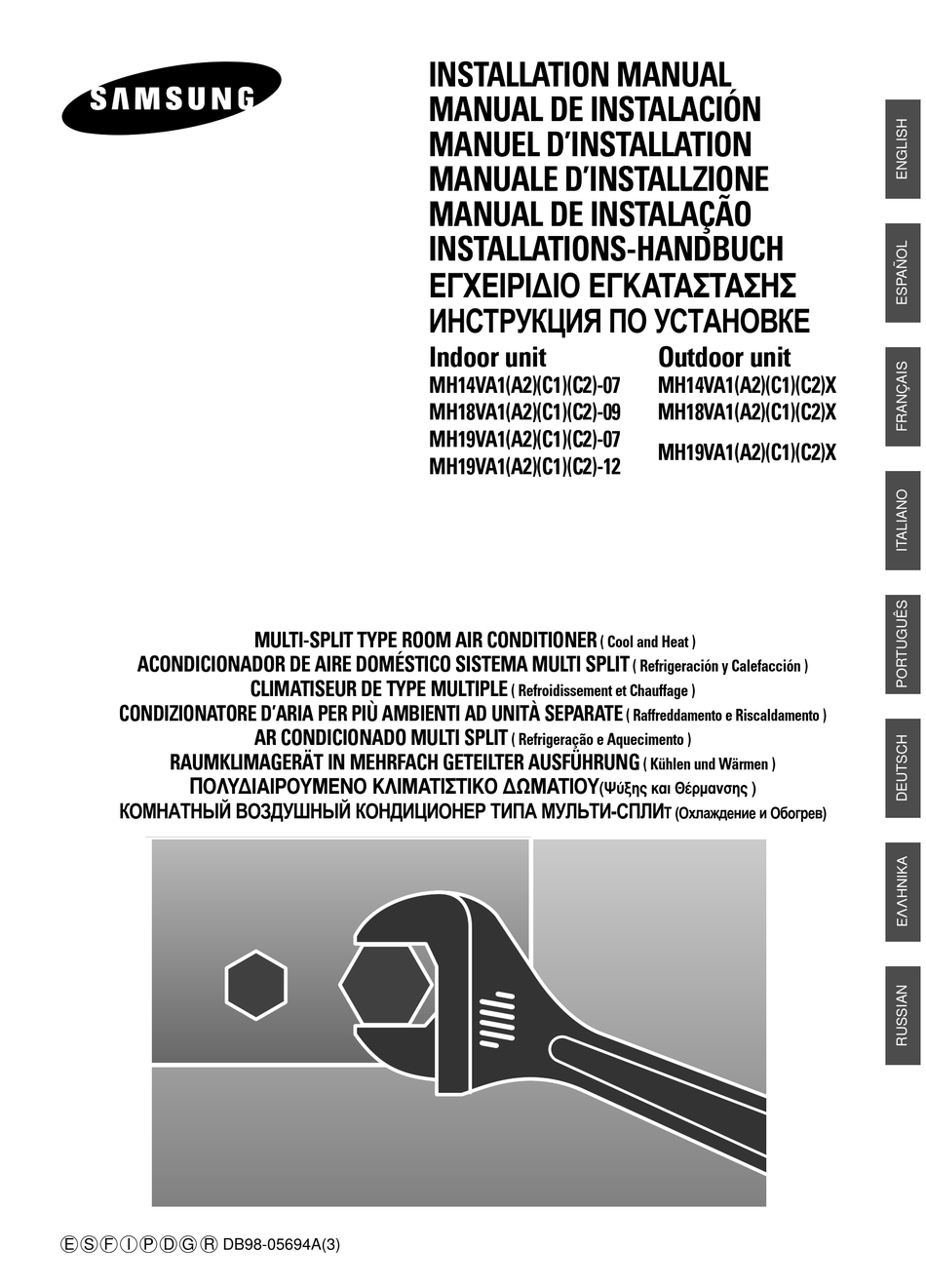

- Page 1 INSTALLATION MANUAL MANUAL DE INSTALACIÓN MANUEL D’INSTALLATION MANUALE D’INSTALLZIONE MANUAL DE INSTALAÇÃO INSTALLATIONS-HANDBUCH E°XEIPI¢IO E°KATA™TA™H™ àçëíêìäñàü èé ìëíÄçéÇäÖ Indoor unit Outdoor unit MH14VA1(A2)(C1)(C2)-07 MH14VA1(A2)(C1)(C2)X MH18VA1(A2)(C1)(C2)-09 MH18VA1(A2)(C1)(C2)X MH19VA1(A2)(C1)(C2)-07 MH19VA1(A2)(C1)(C2)X MH19VA1(A2)(C1)(C2)-12 MULTI-SPLIT TYPE ROOM AIR CONDITIONER ( Cool and Heat ) ACONDICIONADOR DE AIRE DOMÉSTICO SISTEMA MULTI SPLIT ( Refrigeración y Calefacción ) CLIMATISEUR DE TYPE MULTIPLE ( Refroidissement et Chauffage )
-
Page 3: Table Of Contents
Contents REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner .......... Air Conditioner and Accessories ..............NSTALLING THE NDOOR Fixing the Installation Plate ................Purging the Unit..................... Connecting the Assembly Cable ..............Installing and Connecting the Indoor Unit Drain Hose........Installing and Connecting the Indoor Unit Assembly Piping ...... -
Page 4: Preparing The Installation
REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: Combustible gases Saline air Machine oil... - Page 5 REPARING THE NSTALLATION 14,000Btu/h 18,000Btu/h 19,000Btu/h Power supply Power supply Power supply Indoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Outdoor unit Ø, V, Hz Ø, V, Hz Ø, V, Hz MH14VA1(A2)(C1)(C2) MH14VA1(A2)(C1)(C2)X 1,220-240~,50 MH18VA1(A2)(C1)(C2) MH18VA1(A2)(C1)(C2)X 1,220-240~,50 MH19VA1(A2)(C1)(C2) MH19VA1(A2)(C1)(C2)X 1,220-240~,50 14,000Btu/h 18,000Btu/h B-unit 9,000(2.63kW) or...
-
Page 6: Air Conditioner And Accessories
REPARING THE NSTALLATION Air Conditioner and Accessories The following accessories are supplied with the air conditioner. Accessories in the Indoor Unit Case Installation Plate Remote Control Batteries for Remote Control Accessories in the Outdoor Unit Case Drain Plug Rubber Leg Owner’s Instruction Installation Manual Booklet... -
Page 7: Installing The Indoor Unit
NSTALLING THE NDOOR Fixing the Installation Plate Before fixing the installation plate to a wall or window frame, you must determine the position of the 65 mm hole through which the cable, piping and hose pass to connect the indoor unit up to the outdoor unit. -
Page 8: Purging The Unit
NSTALLING THE NDOOR Purging the Unit On delivery, the indoor unit is loaded with an inert gas. All this gas must therefore be purged before connecting the assembly piping. To purge the inert gas, proceed as follows. Unscrew the caps at the end of each pipe. Result: All inert gas escapes from the indoor unit. -
Page 9: Installing And Connecting The Indoor Unit Drain Hose
NSTALLING THE NDOOR Installing and Connecting the Indoor Unit Drain Hose Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the wall, check that none of the following situations occur. -
Page 10: Installing And Connecting The Indoor Unit Assembly Piping
NSTALLING THE NDOOR Installing and Connecting the Indoor Unit Assembly Piping There are two refrigerant pipes of different diameters: A smaller one for the liquid refrigerant A larger one for the gas refrigerant A short length of piping is already fitted to the air conditioner. You must extend this piping using assembly piping (optionally supplied). -
Page 11: Cutting/Extending The Piping
NSTALLING THE NDOOR Cutting/Extending the Piping Five metres of piping is supplied with the air conditioner(Optional). This length can if necessary be: Extended to a maximum length Shortened as required If more than five metres of piping is required: The assembly cable must also be extended Refrigerant must be added to the circuit by an approved installer;... -
Page 12: Installing The Outdoor Unit
NSTALLING THE UTDOOR Connecting the Cables to the Outdoor Unit Two electric cables must be connected to the outdoor unit: The assembly cable connecting the indoor unit to the outdoor unit. The power cable connecting the auxiliary circuit breaker to the outdoor unit. - Page 13 NSTALLING THE UTDOOR Outdoor unit (N1) (N1) Terminal block Earth terminal Circuit Breaker (Main Power supply cable) Earth Earth terminal (N1) (N1) terminal Assembly cable Earth (N1) Earth (N1) terminal terminal (N1) (N1) Indoor unit A-unit B-unit...
-
Page 14: Checking Correct Earthing
NSTALLING THE UTDOOR Checking Correct Earthing If the power distribution circuit does not have an earth or the earth does not comply with specifications, an earthing electrode must be installed. The corresponding accessories are not supplied with the air conditioner. Select an earthing electrode that complies with the specifications given in the illustration opposite. -
Page 15: Installing And Connecting The Outdoor Unit Drain Hose
NSTALLING THE UTDOOR Installing and Connecting the Outdoor Unit Drain Hose When using the air conditioner in the heating mode, ice may accumulate. During de-icing, the condensed water must be drained off safely. Consequently, you must install a drain hose on the outdoor unit, following the instructions below. -
Page 16: Completing The Installation
OMPLETING THE NSTALLATION Connecting Up and Purging the Circuit The air in the indoor unit and in the pipe must be purged. If air remains in the refrigeration pipes, it will affect the compressor, reduce to cooling/heating capacity and could lead to a malfunction. Refrigerant for air purging is not charged in the outdoor unit. Use Vacuum Pump as shown at the right figure. -
Page 17: Performing Leak Tests
OMPLETING THE NSTALLATION Performing Leak Tests Before completing the installation (insulation of the cables, hose and piping and fixing of the indoor unit to the installation plate), you must check that there are no gas leaks. To check for gas leaks on the... Then, using a leak detector, check the... -
Page 18: Checking And Testing Operations
OMPLETING THE NSTALLATION Checking and Testing Operations To complete the installation, perform the following checks and tests to ensure that the air conditioner is operating correctly. Step 1 Review all the following elements in the installation: INDOOR UNIT Installation site strength Piping connection tightness to detect any gas leakages Connection wiring Heat-resistant insulation of the piping... - Page 19 OMPLETING THE NSTALLATION If the indicators display an error, check the following items. Room select switch - Check that you have set the switch to the proper position. Quantity of refrigerant - The error can be occurred when the refrigerant is insufficient. Connection of refrigerant pipes - Upper service valves on the outdoor unit are for the A unit and the others (lower service valves) are for the B unit.
-
Page 20: Explaining Operations To The Owner
OMPLETING THE NSTALLATION Explaining Operations to the Owner Before leaving the premises on which you have installed the air conditioner, you should explain the following operations to the owner, making reference to the appropriate pages in the owner’s instruction booklet. How to start and stop the air conditioner. -
Page 21: Technical Specifications
ECHNICAL PECIFICATIONS Technical Specifications Model Indoor unit Model Outdoor unit Power Supply MH14VA1(A2)(C1)(C2)-07 MH14VA1(A2)(C1)(C2)X MH18VA1(A2)(C1)(C2)-09 MH18VA1(A2)(C1)(C2)X 220-240V~, 50Hz MH19VA1(A2)(C1)(C2)-07 MH19VA1(A2)(C1)(C2)X MH19VA1(A2)(C1)(C2)-12... - Page 22 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O: ùíéí...
