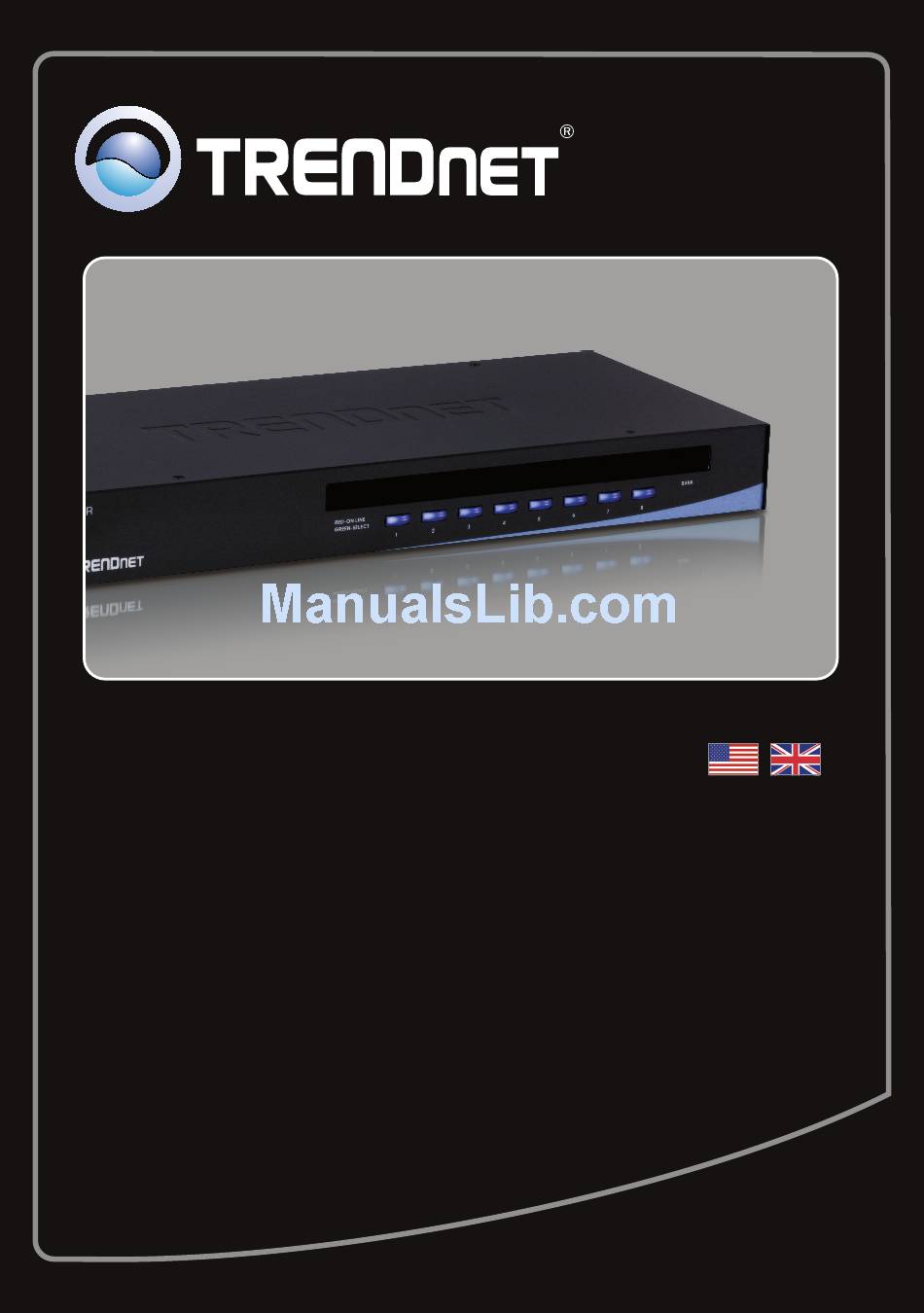

- Page 1 Quick Installation Guide TK-804R 2.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install 3. Operation Technical Specifications Troubleshooting Version 07.25.2009... -
Page 3: English
1. Before You Start Package Contents TK-804R Multi-Language Quick Installation Guide AC Power Adapter (9V DC, 1A) Rack mount kit Daisy-chain cable (HDB 15-pin male to HDB 15-pin female) (9in/22.86cm) Daisy-chain terminator (HDB 15-pin male) System Requirements PS/2 or USB Keyboard... -
Page 4: How To Install
2. How to Install 1. Turn OFF all computers and their peripherals, and then disconnect all power cords. 2. Connect the shared PS/2 or USB keyboard, monitor, and PS/2 or USB mouse to the KVM switch's Console Port. To KVM 3. - Page 5 1. The maximum accumulated daisy-chain cable length is 30 meters 2. You must use the daisy-chain cable provided with the KVM switch 3. You can only daisy-chain the KVM switch with another TK-804R 4. You can daisy-chain up to 16 KVM switches. There is a maximum of 128 PCs connections 1.
- Page 6 3. If you have a third KVM switch, connect one end of the daisy-chain to the Daisy-Chain OUT port on the second KVM switch. Then connect the opposite end of the daisy-chain cable to the Daisy-Chain IN port on the third (slave) switch. Repeat for each additional switch.
-
Page 7: Rack Mount
KVM switch. Your configuration is now complete. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet. -
Page 8: Operation
3. Operation Note: To switch between computers, you can use the front-panel push buttons, On Screen Display (OSD) or the Hot Key commands. LED Indicators Bank Number Indicates the sequence of the KVM switch when daisy-chained. Red LED light: KVM cable is connected and PC is powering the KVM switch. - Page 9 Scroll Lock Scroll Lock + Select PC = For example, to select port 08 of the 8 KVM switch on a series of daisy-chained TK-804R's you hit the following key sequence: Scroll Lock Scroll Lock + Select PC = Note: When using the KVM switch standalone, do not enter the bank number. For example, to select port 1 on the KVM switch you hit the following key sequence.
- Page 10 On Screen Display (OSD) Control To activate the OSD Menu, use the following hot-key command: Scroll Lock Scroll Lock Space Bar Note: For detailed information regarding the OSD, please refer to the Quick Reference Sheet.
-
Page 13: Technical Specifications
Technical Specifications Management 8 computers 1 x USB keyboard Type A 1 x USB mouse Type A Console Port Connectors 1 x PS/2 keyboard 6-pin mini din female 1 x PS/2 mouse 6-pin mini din female 1 x VGA HDB 15-pin female 1 x VGA HDB 15-pin male (Daisy-Chain OUT ) Daisy-Chain Port Connectors 1 x VGA HDB 15-pin female (Daisy-Chain IN) -
Page 14: Troubleshooting
Troubleshooting Do I need to use the included external AC adapter? It is recommended that you use the included external AC adapter with the TK-804R KVM switch. I have the KVM switch connected properly, but my keyboard and mouse don't work. What should I do? 1. - Page 15 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 16 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 17 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 18 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2009. All Rights Reserved. TRENDnet.
