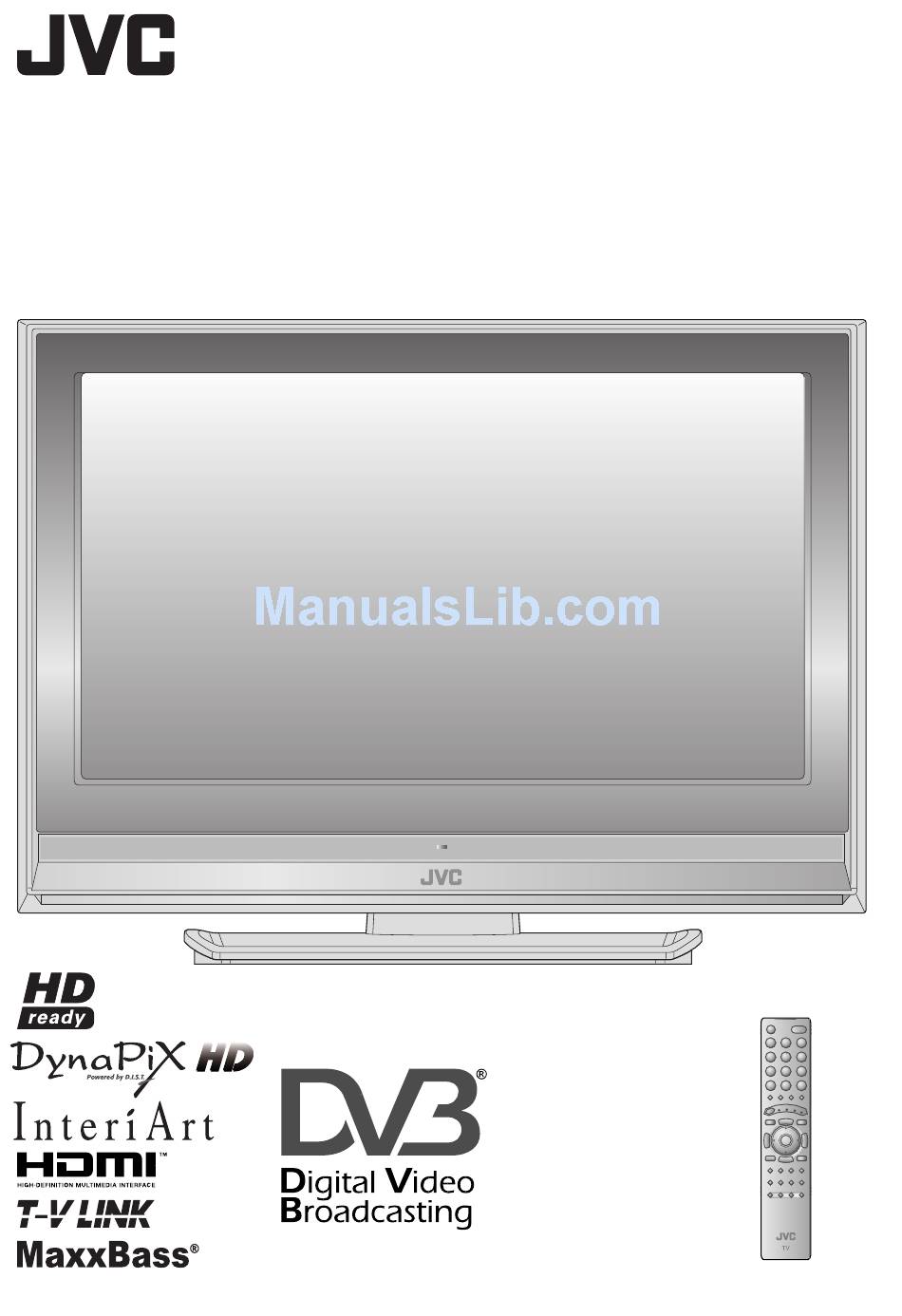

- Page 1 LT-32DX7BJ LT-32DX7SJ LT-26DX7BJ LT-26DX7SJ WIDE LCD PANEL TV INSTRUCTIONS Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number : 3925, 3926, 3927, 3928 LCT2016-001A-U...
- Page 2 Attention: (Business users) This symbol is only If you wish to dispose of this product, please visit our web page www.jvc-europe.com to valid in the European obtain information about the take-back of the product. Union. [Other Countries outside the European Union]...
- Page 3 Expanding the world of...
-
Page 4: Table Of Contents
Useful functions ······························ 28 · Multi-picture / Favourite channel · Sleep timer / Child lock Useful functions ······························ 30 Operate JVC recorders and other devices ··· 32 Just the way you like it Customising your TV ······················ 34 Using DTV ······································ 36 Advanced picture adjustment ·········... -
Page 5: First Things Fi Rst
TV unit cannot See the included manual on mounting completely turn off the procedures. TV. (Make appropriate JVC assumes no responsibility for arrangements for damage due to improper mounting. bedridden people.) For more details on installation, usage and safety... - Page 6 On disposal of the Never place anything on the TV! Follow the instruction in Placing liquids, naked “Information for Users on fl ames, cloths, paper, Disposal of Old Equipment” etc. on the TV may (P. 1). cause a fi re. Never expose to rain or moisture! To prevent fi...
-
Page 7: Getting Started
Getting started Names of all the parts Switch between TV/AV TV / AV devices MENU Display on-screen menu / set Change channel / page Volume Illumination lamp Remote control sensor Power On / Off Power lamp Illumination lamp lights while the TV is on. ON: Lit (Green) “Illumination”... - Page 8 Turn on “3D Cinema Sound” (P. 20) When choosing a favourite Take a snapshot channel (P. 29) of the screen (P. 20) When operating a JVC VCR View in multi-picture mode (P. 28) or DVD (P. 26) Check accessories Insert the batteries Use two “AAA/R03”...
-
Page 9: Basic Connections
When attaching the TV to the wall, use the 200mm optional JVC wall mounting unit Consult a qualifi ed technician. See the included manual on mounting procedures. JVC assumes no responsibility for damage due to improper mounting. 200mm × 200mm mount which conforms to VESA standards. 150mm... - Page 10 Connect a VCR / DVD recorder AERIAL EXT-2 EXT-1 VCR / DVD recorder After all the connections have been made, insert the plug into an AC outlet. Connect “T-V LINK” compatible recording device to “EXT-2”. “T-V LINK” “What is “T-V LINK”?” (P. 12) Watch pay-per-view Contract with a broadcasting company beforehand.
-
Page 11: Connecting External Devices
Connecting external devices You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setting up. (Connecting cables are not supplied with this TV.) To “EXT-3” R/L (PC IN) Check for PC compatibility “Technical information”... - Page 12 VCR / DVD / other devices Connect “DVI” devices (P. 48) : signal direction “T-V LINK” (P. 12) EXT-1 Watching videos Output Input · Composite signal · Composite signal / · Sound L / R RGB / S-VIDEO AERIAL · Sound L / R Use S-VIDEO “S-IN”...
-
Page 13: Initial Settings
(In this manual, digital broadcasting is indicated as DTV, and analogue broadcasting as ATV.) To the previous screen MENU TV/DTV Exit If the “JVC” logo does not appear or if you wish to make changes later DTV : “Automatic Seach” (P. 40) BACK ATV : “Auto Program” (P. 35) What is “T-V LINK”? - Page 14 Begin The remote control doesn’t work Shown only when powering on for the fi rst time. The power on the unit can also be used. Confi rm the mode is set to “TV”. Automatically register DTV channels Installation > Automatic Search Channels: BBC ONE BBC TWO...
-
Page 15: Editing Dtv Channels
Editing DTV channels Edit the channels registered with “Automatic search” in “Initial settings” (P. 12). When coming from “Initial settings” (P. 12), skip to @. Confi rm Select DTV the channel picture Select Display the menu bar Delete a channel Delete Select “DTV”... - Page 16 1 Select “Select” EDIT PR LIST EDIT PR LIST BBC ONE 1 select BBC THREE 1. BBC ONE 1. BBC ONE 2. BBC TWO 2. BBC TWO 7. BBC THREE 7. BBC THREE 30. CBBC Channel 30. CBBC Channel 40. BBC NEWS 24 40.
-
Page 17: Editing Atv Channels
Editing ATV channels Edit the channels registered with “Auto Program” in “Initial settings” (P. 12) When coming from “Initial settings” (P. 12), skip to @. Move a Select ATV channel’s position MOVE Display the menu bar Select “Set Up” Edit a 1 select channel name... - Page 18 1 Begin 2 Select a destination 3 Finish >Edit >Edit select BBC1 BBC1 BBC2 BBC2 move out move in 1 Begin 2 Enter a channel name When selecting a preset name from the “ID LIST” >Edit 1 select >Edit enter ID List (red) (blue)
-
Page 19: Let's Try It Out
Let’s try it out Enjoying your new TV! Watching TV PAGE View channel information Change the aspect ratio Enjoy “3D Cinema Sound” Take snapshots of the screen Viewing teletext PAGE Enlarge the text To the index page Hold the current page Switch briefl... - Page 20 Watching PAGE videos / DVDs Watch high quality video (S-VIDEO) Name connected devices Dub videos PAGE Personal preferences Adjust the picture Picture Adjust the sound Advanced settings (sleep-timer / child lock, etc.) Basic settings (channel settings, etc.) Use DTV (timer-record / confi guration / channel settings, etc.)
-
Page 21: Watching Tv
Watching TV Set to “TV” Mute Power on Channel The green power lamp information and on the TV lights. clock Press again to turn the screen off INFORMATION and put the TV into standby mode. Select ATV / DTV DTV : Digital broadcasting ATV : Analogue broadcasting Select a channel View subtitles... - Page 22 When DTV is selected Name of station Reception level Current ITV News CH61 programme Now: 13:00-14:00 Steve Scott 13:19 Next: 14:00-14:30 Steve Scott Time Following programme Channel When ATV is selected PR List PR List Channel information Channels BBC1 registered in Time (in case of having viewed teletext) 12 : 00 “Initial settings”...
-
Page 23: Using Epg
Using EPG (Electronic Programme Guide) You can fi nd a programme from an eight-day programme guide, check its information, and make a reservation. Select DTV Display EPG Electronic Programme Guide 05:27 20/10/2004 GENRE 20/10 2. BBC TWO 04:00- History: Britain 1750-1900 21/10 7. - Page 24 Reservations After Reserve a At the start time, Electronic Programme Guide 06:06 20/10/2004 GENRE programme the channel will 20/10 2. BBC TWO 06:00- Big Cook Little Cook 21/10 7. BBC THREE 06:20- Tots TV 22/10 30. CBBC Channel 06:30- Bobinogs to watch automatically change.
-
Page 25: Viewing Teletext
Viewing teletext This TV can display TV broadcasts and teletext on the same channel in two windows. Select ATV / DTV When ATV is selected When ATV is selected TEXT When DTV is selected Operate according to the screen indications When ATV is selected Enter a teletext page TEXT... - Page 26 Hold the current page Hold the current page HOLD (ATV) Release Press “ ” again Display hidden information Reveal (answers to quizzes, etc) hidden pages REVEAL (ATV) Double the size of the displayed text Enlarge the text SIZE (ATV) To the Returns to page “100”...
-
Page 27: Watching Videos / Dvds
2 watch EXT-4 HDMI1 HDMI2 E.g. For EXT-1 Operate the connected device and play a video Operate JVC recorders and other devices (P. 32) To TV Select the video source using the side buttons TV/AV TV /A V Select the... - Page 28 Advanced functions Display the menu bar Select “Set Up” Select “EXT Setting” 1 select 1 select Set Up Auto Program Edit/Manual Decoder(EXT-2) Component Auto Select EXT Setting HDMI Setting Set Up Attenuator PC Position 2 next 2 next 1 Select the EXT connected to S-VIDEO 2 Set S-VIDEO input Switch The device...
-
Page 29: Try The Advanced Features
Try the advanced features Useful functions Select the number of screens 1 select 2 set Selecting “ ” returns to normal viewing mode Not available in PC mode. Watch in dual-picture mode E.g. You can watch TV and video at the same time. (For wide aspect ratio signals) Main Main... - Page 30 While the channel Press the number is displayed to register it on 1 - 4? (For 3 seconds) “Not Available” is displayed: Already registered Disappears after Programmed! a few seconds Recall the favourite channel Press the number you registered Favourite 1 - 4? Register a channel to a button...
-
Page 31: Useful Functions
Useful functions 1 select “Features” Features 2 next Set a time > Features 1 select for the TV to Sleep Timer Child Lock “Sleep Timer” Appearance Type A turn itself off Blue Back Favourite Setting Illumination Bright Power Lamp SLEEP TIMER 2 next >... - Page 32 1 select “Features” Features 2 next > Features select Sleep Timer Child Lock “Child Lock” Appearance Type A Blue Back Favourite Setting Illumination Bright Power Lamp 1 enter an “ID NO.” >> Set ID No. (a secret number of your choice) Stop children from 2 to the next column...
-
Page 33: Operate Jvc Recorders And Other Devices
Some models of JVC devices cannot be operated with this remote control. JVC DVD recorders and HDD recorders are set to code “C” or “3” by default. Note If the battery is removed, the remote control code reverts back... - Page 34 and other devices Select VCR / DVD recorder / HDD recorder DVD recorders HDD recorders Operate DVD / HDD recorder menus Playback / Record etc. Display menu Rewind / Playback Select / Fast-forward Record / Stop / Pause Back to Display previous menu top menu...
-
Page 35: Just The Way You Like It
Just the way you like it Customising your TV Display the menu bar Selected menu’s title Picture Picture Sound Features Select a menu Set Up 1 select DTV (P. 36) 2 next Select an item Picture select Standard Picture Mode Bright-1 Contrast Bright-2... - Page 36 Menu Item Adjustments / Confi gurations Picture Mode Picture mode (Bright / Standard / Soft) Bright-1 Backlight brightness (Darker Brighter) Contrast Contrast (Lower Higher) Bright-2 Brightness (Darker Brighter) Sharp Sharpness (Softer Sharper) Colour Colour (Lighter Deeper) Tint (Reddish Greenish) Colour Temp. Colour temperature (Warm / Normal / Cool) Features Finer picture adjustments (P.
-
Page 37: Using Dtv
Using DTV Timer-record setting DTV original function and setting, such as a recorder-linked timer-record setting, can be selected from the DTV menu. Select DTV Display the menu bar Select “DTV” 1 select 2 next Select an item 1 select Recording Rec Timer Configuration Edit PR List... - Page 38 Select an “Inactive” column 1 select Settings can be overwritten. REC TIMER 06:02 20/10/2004 Name Start Date Mode BBC ONE 00:00 00:00 01/01/2000 Inactive 2 set BBC ONE 00:00 00:00 01/01/2000 Inactive BBC ONE 00:00 00:00 01/01/2000 Inactive BBC ONE 00:00 00:00 01/01/2000...
- Page 39 Using DTV AV setting Available for changing subtitle languages for DTV, favourite channel selection, changing PIN code, and upgrading the tuner software. Also, you can upgrade the tuner software as newer versions become available. Select DTV Display the menu bar Select “DTV”...
-
Page 40: Change Language
Select a confi guration item select CONFIGURATION Audio Language English Subtitle English Favourite Mode Receiver Upgrade V.3.3 Enter PIN code Change settings Audio Language Subtitle : Change language Favourite Mode : Channel selection method Audio Language Switch languages (English / Welsh / Gaelic) Subtitle Select only DTV channels registered by using Favourite Mode... - Page 41 Using DTV Registration and setting Available for registration of DTV channels, initialisation of all DTV settings, and downloading software to use pay-per-view. Select DTV Display the menu bar Reset channel registration Select “DTV” Register a 1 select new channel Initialise the DTV settings 2 next Installation...
- Page 42 Select an installation item 1 select Installation Automatic Search Manual Search Factory Settings 2 next Change setting : Reset channel registration Automatic Search 1 Select “Yes” 1 select Displays “Edit PR List” Installation > Automatic Search Channels: (P. 14) after registering BBC ONE BBC TWO BBC THREE...
-
Page 43: Advanced Picture Adjustment
Advanced picture adjustment By default, the TV automatically adjusts itself for the best picture. Super Display the menu bar DigiPure Movie Select “Picture” Theatre 1 select Picture Colour 2 next Management Select “Features” 1 select Picture Picture Mode Standard Bright-1 Contrast Bright-2 Sharp... - Page 44 Auto natural-looking : Function is : When the picture : When : Automatically Auto turned off loses sharpness noise appears adjusts outlines Auto For smooth : Function is : Function is : Automatically Auto cinema fi lm turned off always on adjusts natural-looking : Function is...
-
Page 45: When You Have Trouble
When you have trouble Troubleshooting Severe noise or snow Is the TV connected correctly to the aerial? Change the direction of the aerial. Is the aerial or its cable damaged? Consult your retailer Patterns, stripes or noise I can’t turn it on! Is the power cord connected to the AC outlet correctly? Is the aerial receiving interference... - Page 46 Problem Actions page Is the ATV reception poor, too? Following the instructions in “Severe noise or snow” can solve this problem. Is there a DTV transmission tower nearby? Not displayed Turn “Attenuator” to “On”, since the radio waves (black screen) are too strong.
-
Page 47: Troubleshooting
Troubleshooting (continued) Problem Actions page Wrong screen size Switch “Size” in “HDMI Setting” to “1” or “2”. No picture, no sound – Use the cable marked with HDMI logo. – Check if the device is compliant with HDMI. Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for No sound HDMI devices, or “Analogue”... -
Page 48: Ch/Cc List
Problem Actions page LCD panels use fi ne dots (“pixels”) to display images. While more than 99.99% of these pixels function properly, Black or white dots – a very small number of pixels may not light, or may light all appear on the screen the time. -
Page 49: Technical Information
Technical information What is “T-V LINK”? “T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device. By using T-V LINK : You can send the ATV channel information programmed on the TV to the “T-V LINK” compatible device, so that both the TV and the external device have the same channel settings. -
Page 50: Specifi Cations
Specifi cations Main unit Model LT-32DX7BJ/SJ LT-26DX7BJ/SJ Broadcasting systems CCIR, I Colour systems · The EXT terminals also support the NTSC 3.58/4.43 MHz system. Analogue : E21-E69 (UNITED KINGDOM) Channels and frequencies IR A-J, E2-E12, E21-E69 (IRELAND) Digital : 474 MHz-850MHz (channel 21-68) Sound-multiplex systems NICAM (I) system. - Page 51 For users in the UK : If you have any problems setting up your new TV, please call the Helpline on 0870 330 5000. For users in the Republic of Ireland : If you have any problems setting up your new TV, please call the Helpline on 1890-582500.
- Page 52 ENGLISH DEUTSCH FRANÇAIS NEDERLANDS CASTELLANO ITALIANO PORTUGUÊS LT-32X70BU LT-32X70SU LT-26X70BU LT-26X70SU WIDE LCD PANEL TV INSTRUCTIONS 16:9 LCD TV BEDIENUNGSANLEITUNG TELEVISEUR A ECRAN LCD PANORAMIQUE MANUEL D’INSTRUCTIONS BREEDBEELD LCD TV GEBRUIKSAANWIJZING TELEVISOR CON PANEL LCD PANORÁMICO MANUAL DE INSTRUCCIONES TV LCD WIDESCREEN ISTRUZIONI TELEVISOR COM ECRÃ...
- Page 53 à la législation nationale. (Business users) This symbol is only Ce symbole n’est If you wish to dispose of this product, please visit our web page www.jvc-europe.com to (Utilisateurs professionnels) valid in the European reconnu que dans obtain information about the take-back of the product.
- Page 54 Unión é válido na União Si desea desechar este producto, visite nuestra página Web www.jvc-europe.com para Se pretender eliminar este produto, visite a nossa página da web em www.jvc-europe.com Europea. obtener información acerca de la retirada del producto.
- Page 55 · Take a snapshot · View and search in multi-picture mode · “Sleep timer” / “Child lock” Operate JVC recorders and other devices ··· 25 Just the way you like it Customising your TV ······················ 27 Advanced picture adjustment ········· 29 ·...
-
Page 56: First Things Fi Rst
TV on your own! It may cause overheating or a fi re. TV. (Make appropriate JVC assumes no responsibility for arrangements for Handle LCD panel damage due to improper mounting. In order to prevent accidents, bedridden people.) -
Page 57: Getting Started
Getting started Names of all the parts Mute Power On / Off Switch between TV/AV TV / AV devices MENU Display on-screen Change channel / page menu / set Change channel / page Channel information Watch video, etc. (P. 21) (P. -
Page 58: Basic Connections
When attaching the TV to the wall, use the 200mm optional JVC wall mounting unit Consult a qualifi ed technician. See the included manual on mounting procedures. JVC assumes no responsibility for damage due to improper mounting. 200mm × 200mm mount which conforms to VESA standards. 150mm... - Page 59 Auto Program Exit (This will set up cable television channels.) “What is “ACI” (Automatic Channel Installation)?” (P. 34) If the “JVC” logo does not appear or if you wish to make changes later “Language” and “Auto Program” (P. 28) BACK Check what was registered >...
-
Page 60: Editing Channels
Editing channels Edit the channels registered with “Auto Program” in “Initial settings” (P. 9) 1 Begin 2 Select a destination 3 Finish Move a When coming from “Initial settings” (P. 9), skip to ⁄. >Edit > Edit channel’s select CH/CC CH/CC BBC1 BBC1... -
Page 61: Connecting External Devices
Connecting external devices VCR / DVD / other devices You can connect many different devices to the rear panel of the TV. Connect “DVI” devices Please read the user manuals of each device before setting up. (P. 34) : signal direction (Connecting cables are not supplied with this TV.) “T-V LINK”... -
Page 62: Let's Try It Out
Let’s try it out Enjoying your new TV! Watching PAGE Watching TV videos / DVDs PAGE View channel information Change the aspect ratio Watch high quality video (S-VIDEO) Enjoy “3D Cinema Sound” Name connected devices Register your favourite channels Dub videos PAGE Personal preferences Adjust the picture... -
Page 63: Watching Tv
Watching TV Set to “TV” PR List PR List Channel information Channels Mute BBC1 registered in Channel 12 : 00 Time (in case of having viewed teletext) “Initial settings” will information and appear here. Power on clock (No indication) select 1 select INFORMATION The blue... - Page 64 Viewing teletext This TV can display TV broadcasts and teletext on the same channel in two windows. Hold the current page When watching TV Hold the current page HOLD Release Press “ ” again TEXT Enter a teletext page Display hidden information (answers to quizzes, etc.) Reveal hidden pages...
-
Page 65: Watching Videos / Dvds
PC Position Set Up 2 next 2 next Operate the connected device and play a video 1 Select the “EXT” connected to S-VIDEO 2 Set the S-VIDEO mode Operate JVC recorders and The device Switch > EXT Setting > EXT Setting other devices (P. -
Page 66: Try The Advanced Features
Try the advanced features Useful functions Current programme Take snapshots 1 select “Features” of the screen Still picture Cancel Press “ ” again, or change the channel FREEZE Features Not available when the SUB-PICTURE is displayed, Set a time 2 next or when in PC mode. -
Page 67: Operate Jvc Recorders And Other Devices
Some models of JVC devices cannot be operated with this Display the subtitle Press “ ” remote control. JVC DVD recorders and HDD recorders are set to code “C” or Mute Press “ ” “3” by default. Volume Press “... -
Page 68: Just The Way You Like It
Just the way you like it Customising your TV Display the menu bar Menu Item Adjustments / Confi gurations Selected menu’s title Picture Mode Picture mode (Bright / Standard / Soft) Bright-1 Backlight brightness (Darker Brighter) Picture Picture Contrast Contrast (Lower Higher) Sound Bright-2... -
Page 69: Advanced Picture Adjustment
Advanced picture adjustment By default, the TV automatically adjusts itself for the best picture. Auto Super Display the menu bar natural-looking Auto : Function is : When the picture : When : Automatically DigiPure turned off loses sharpness noise appears adjusts outlines Auto... -
Page 70: When You Have Trouble
When you have trouble Troubleshooting Problem Actions page Severe noise or snow Remote control Unplug TV, several minutes later plug it in again. – stops working Is the TV connected correctly to the aerial? Aspect ratio changes Press “ ” to return to your settings. Change the direction of the aerial. -
Page 71: Technical Information
Troubleshooting Technical information (continued) Problem Actions page What is “T-V LINK”? “T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device. By using T-V LINK : You can send the channel information programmed on the TV to the “T-V LINK” compatible device, so that Wrong screen size Switch “Size”... -
Page 72: Ch/Cc" List
“CH/CC” List Specifi cations To use the INSERT function (P. 11), fi nd the “CH/CC” number corresponding to the TV’s Channel number from this Main unit table. When the Country setting is “France”, select a three-digit CH/CC number. Model LT-32X70BU/SU LT-26X70BU/SU Channel Channel...
