Shaftesbury : Model No. SHA 20 with Optiflame plus effect.

Somerley :

AUS / NZ

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Introduction

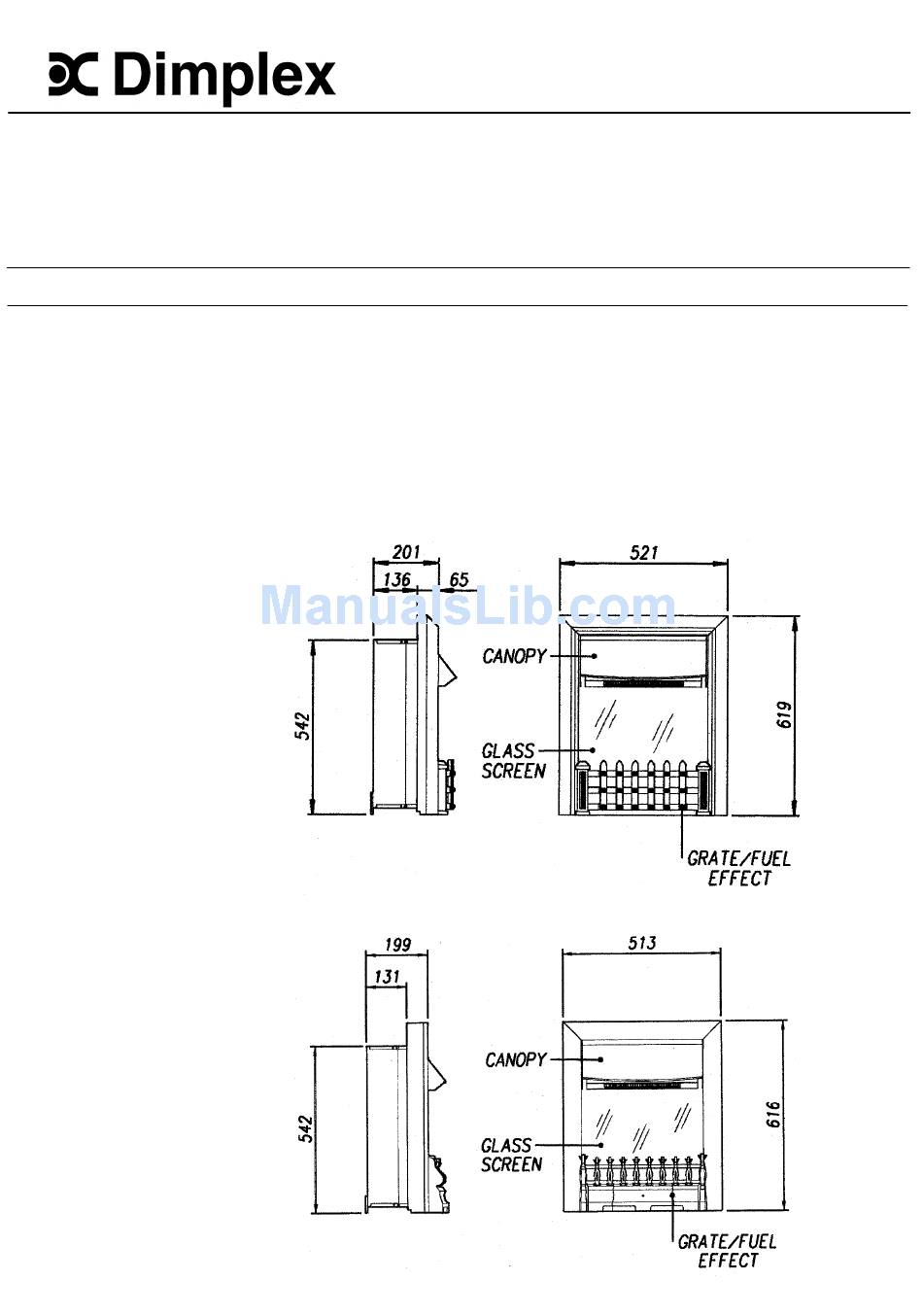

Dimensions.

(Millimeters.)

SHAFTESBURY

SOMERLEY

Installation and Operating Instructions

Model No. SOM 20 with Optiflame effect.

Incorporating a 2kW Fan Heater.

This fire incorporates a flame effect, which can be used with or without

heating, so that the comforting effect may be enjoyed at any time of the year.

The flame effect is provided by low wattage motors and two 60 watt lamps.

Using the flame effect on its own, therefore requires little electricity.

The controls are concealed behind the canopy cover. A choice of 1kW or

2kW thermostatically controlled heat output is provided by the fan heater.

These models are designed to be inset in a fireplace opening.

Issue 2. 10/01/02

8/18540/0

Page 1: Installation And Operating Instructions
Installation and Operating Instructions Shaftesbury : Model No. SHA 20 with Optiflame plus effect. Somerley : Model No. SOM 20 with Optiflame effect. Incorporating a 2kW Fan Heater. AUS / NZ Issue 2. 10/01/02 8/18540/0 IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE...
Page 2 Installation Instructions Ensure that all packaging items are removed (read any warning labels carefully). Unpack the heater carefully and retain the packaging for future use, in the event of moving or returning the fire to your supplier. The grate/fuel effect is packed separately within the carton. Both heaters are designed for use inset into a 407mm (16”) or 457mm (18”) wide by 559mm (22”) high fireplace opening.
Page 3 Important Safety Advice: When using electrical appliances, Basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: • If the appliance is damaged, check with the supplier before installation and operation.
Page 4 Thermostat. Note: Once the thermostat has switched the appliance off it may take some time before the heater comes back on. This does not mean that the appliance is faulty. Thermal Safety Cut-Out. A thermal safety cut-out is incorporated in the heater to prevent damage due to overheating.
