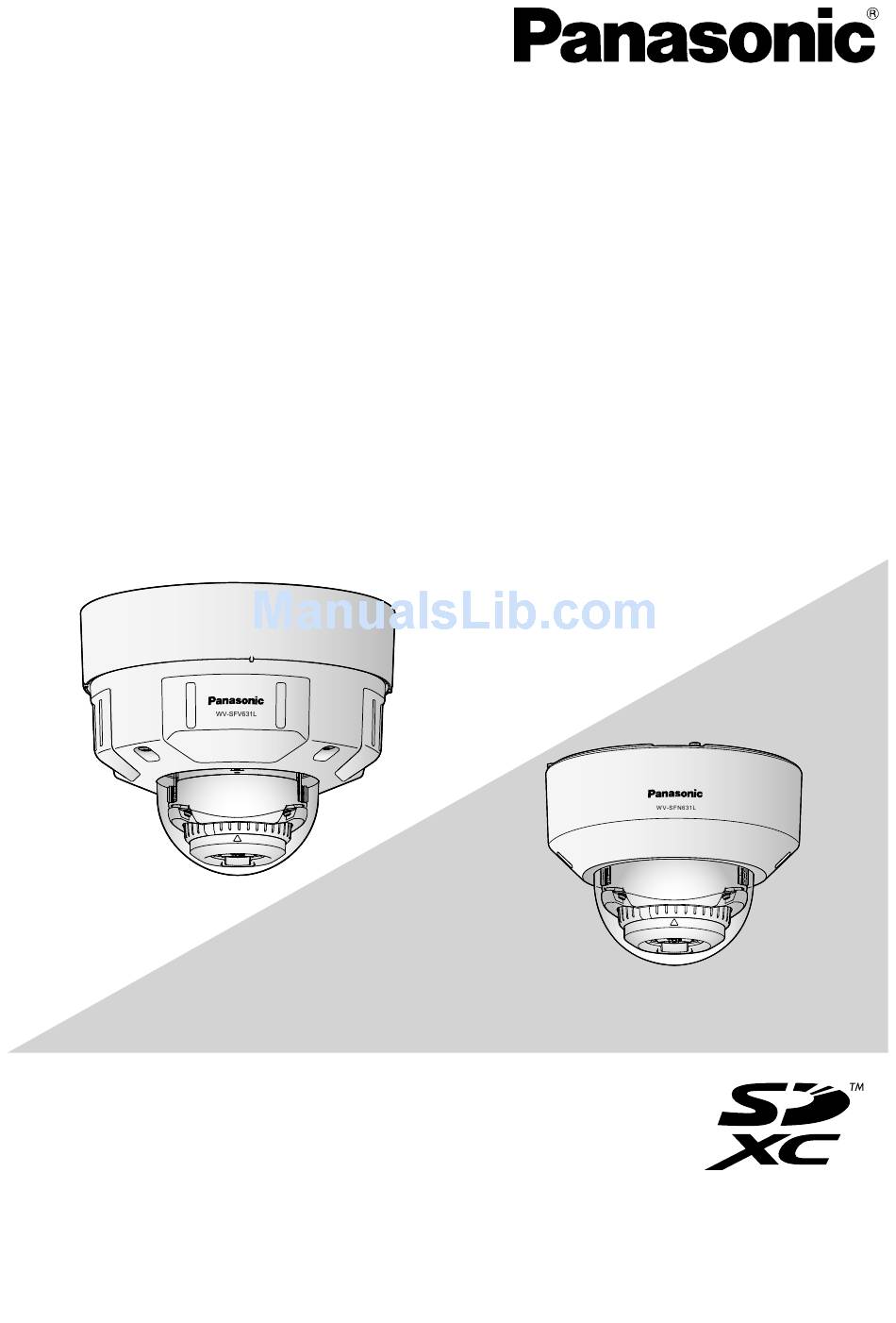

Important Information
Network Camera
WV-SFV631L/WV-SFV631LT
Model No.
WV-SFV611L
WV-SFR631L/WV-SFR611L
WV-SFN631L/WV-SFN611L
WV-SFV631L
WV-SFN631L
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
PGQX1443XA
avs1213-2064
Printed in China
Advertisement
Table of Contents
Related Manuals for Panasonic WV-SFV631L
Summary of Contents for Panasonic WV-SFV631L
-
Page 1: Network Camera
Important Information Network Camera WV-SFV631L/WV-SFV631LT Model No. WV-SFV611L WV-SFR631L/WV-SFR611L WV-SFN631L/WV-SFN611L WV-SFV631L WV-SFN631L Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 For U.S.A. WARNING: The model number and serial number of this product may be found on the surface of the • To prevent injury, this apparatus must be unit. securely attached to the wall/ceiling in accor- You should note the model number and serial dance with the installation instructions.
-
Page 3: Table Of Contents
Contents Important safety instructions ......................4 Limitation of liability ........................5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Main functions ..........................7 About the user manuals ........................ 8 System requirements for a PC ...................... 8 Trademarks and registered trademarks.................. -
Page 4: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. (WV-SFR631L/WV-SFR611L/WV-SFN631L/WV-SFN611L) 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 6: Preface
<Outdoor Vandal resistant & waterproof model> Full-HD type: SF V 631L The functions with this notation are available when using the model WV-SFV631L. SF V 631LT Full-HD long focal type: The functions with this notation are available when using the model WV-SFV631LT. -
Page 7: Main Functions
Extension software support Installing extension software makes it possible to add functions that use image data. * For further information about the Extension software supported by this camera, refer to our website (http://security.panasonic.com/pss/security/support/info.html). SF V 631L SF V 631LT SF V 611L... -
Page 8: About The User Manuals
About the user manuals There are 3 sets of operating instructions for the WV-SFV631L/WV-SFV631LT/WV-SFV611L/ WV-SFR631L/WV-SFR611L/WV-SFN631L/WV-SFN611L as follows. • Important Information (this document): Provides information about the cautions required for safely using and installing this camera. • Installation Guide: Explains how to connect devices. -
Page 9: Trademarks And Registered Trademarks
/ Internet Explorer versions”. • For information on the operation verification of the supported operating systems and web browsers, refer to our website at http://security.panasonic.com/pss/security/support/index.html. Trademarks and registered trademarks • Microsoft, Windows, Windows Vista, Internet Explorer, and DirectX are either registered trade- marks or trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 10: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. - Page 11 Do not use this product in an inflammable Do not install or clean the camera, or atmosphere. touch this product, the power cable or the Failure to observe this may cause an explosion connected cables during thunder storms. resulting in injury. Failure to observe this may cause electric shock.
- Page 12 About the automatic status detection SF R 631L SF R 611L SF N 631L SF N 611L function This product is designed to be used When this product malfunctions due to exoge- indoors. This product is not operable nous noise, etc. for 30 seconds or more, the outdoors.
- Page 13 CD-ROM for how to format an SD memory SF V 631LT SF V 631L SF V 611L card. What to do if “WARMING UP-PLEASE • When some SD memory cards are used WAIT” appears on the display. with this product, the product may not This message indicates that the temperature work properly or performance deterioration inside the camera has become extremely low.
- Page 14 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A...
-
Page 15: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. Power supply This product has no power switch. - Page 16 sufficient enough so that there is no SF R 631L SF R 611L SF N 631L SF N 611L movement or looseness. • Locations where it may get wet from rain or water splash (including under the eaves, etc.) SF V 631LT SF V 631L SF V 611L •...
- Page 17 Protection from lightning SF V 631L SF V 631LT SF V 611L When cables are used outdoors, there is a chance that they may be affected by lightning. In this case, install a lightning arrester just before where the cables connect to the camera. SF R 631L SF R 611L SF N 631L...
-
Page 18: Troubleshooting
Or install the software to format the SD memory card blinks red on the PC. Refer to our website CD-ROM) (http://security.panasonic.com/pss/security/support/ info.html) for further information about the supported software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one. - Page 19 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains strong magnetic field or radio waves (such as near noise.
- Page 20 About the indicator The indicator will light or blink as follows depending on the camera status. Indicator type and operation state Change of indicator indication ACT indicator When data is being sent via the network camera Blinks green (accessing) LINK indicator When the camera is able to communicate with the con- Lights orange nected device...
-
Page 21: Specifications
Specifications Basic • WV-SFV631L/WV-SFV631LT/ WV-SFR631L/WV-SFR611L WV-SFV611L WV-SFN631L/WV-SFN611L Power source * DC 12 V, PoE (IEEE802.3af compliant) Power consumption * SF V 631LT SF V 631L SF R 631L SF N 631L When IR LED is ON DC 12 V: DC 12 V: (PoE: Class 0 device) 1080 mA/Approx. -
Page 22: Base Bracket
Clear acrylic resin Tamper-resistant enclosure Others: *1 Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about Power source and Power consumption information, Extension Units support- ed by the camera and their supported software versions. *2 Only when installation work is properly performed according to the instructions in this book and... - Page 23 Camera • Image sensor: Approx. 1/3 type MOS image sensor Built-in primary color filter Effective pixels: SF V 631LT SF V 631L SF R 631L SF N 631L 1944 (H) x 1213 (V) Approx. 2.4 mega pixels SF V 611L SF R 611L SF N 611L 1296 (H) x 1032 (V) Approx.
- Page 24 Super Dynamic: On (High)/ On (Normal)/ Off * When 60 fps is selected, the Super Dynamic function is automati- cally set to off. Dynamic range: 133 dB typ. (Super Dynamic: On) Face SD (Super Dynamic): On/ Off (only when Super Dynamic: On) Gain (AGC): On (Low)/ On (Mid)/ On (High)/ Off Adaptive black stretch:...
- Page 25 Lens • SF V 631L SF R 631L SF N 631L 3.6x Varifocal Lens 10.8x Extra optical zoom* is available when VGA resolution is used. * 16:9 mode must be selected SF V 611L SF R 611L SF N 611L 3.6x Varifocal Lens 7.2x Extra optical zoom is available when VGA resolution is used.
- Page 26 Angular field of view: SF V 631L [16:9 mode] Horizontal: 28.8° (TELE) – 102.6° (WIDE) Vertical: 16.0° (TELE) – 56.0° (WIDE) [4:3 mode] Horizontal: 23.7° (TELE) – 84.3° (WIDE) Vertical: 17.8° (TELE) – 62.4° (WIDE) SF V 631LT [16:9 mode] Horizontal: 13.8°...
- Page 27 Adjusting angle: Horizontal: ±180° Vertical: 0° to 85° Image tilt adjustment range: –45° (Left) to +300° (Right) • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: SF V 631L SF V 631LT SF R 631L SF N 631L H.264 2 mega pixel [16:9](30 fps mode)/ 2 mega pixel [16:9](60 fps mode) JPEG (MJPEG) 1920x1080, 1280x720, 640x360, 320x180, 160x90 2 mega pixel [4:3](30 fps mode)
-
Page 28: Bit
Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card* SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB... -
Page 29: Standard Accessories
Standard accessories Important Information (this document) ....1 pc. Installation Guide ..........1 set Warranty card ............1 set CD-ROM* ............1 pc. Code label* ............1 pc. The following parts are used during installation procedures. SF V 631L SF V 631LT SF V 611L Base bracket ............1 pc. -
Page 30: Optional Accessories
Optional accessories User License Accessory (For H.264): BB-HCA8A BB-HCA8CE Ceiling Mount Bracket: SF R 631L SF R 611L SF N 631L SF N 611L WV-Q105A Ceiling Mount Bracket: SF V 631L SF V 631LT SF V 611L WV-Q169A SF R 631L SF R 611L SF N 631L SF N 611L... - Page 32 Authorised Representative in EU: Two Riverfront Plaza, Newark, NJ 07102-5490 Panasonic Testing Centre Panasonic Marketing Europe GmbH Panasonic Canada Inc. Winsbergring 15, 22525 Hamburg, Germany 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca © Panasonic System Networks Co., Ltd. 2014...
