User Manual
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment
TECHNICAL INFORMATION
- Colour
- Power consumption
- Maximum Air displacement : 37 l/s
- Vacuum
- Duststorage capacity
- Cord length
- Motor
- Fiter system
- Dimensions of cleaner
- Net weight
Published by Philips Consumer Lifestyle
08/11
: Icy white
: 2000 W (IEC) 230 V
: 27.5 kPa
: 1.5 L
: 9 m
: Infrared remote controlled
: HEPA cyclone-filtration
auto-clean system
: Permanent motor
protection filter
: Ultra Clean Air HEPA13
washable exhaust filter
: 485 x 285 x 335 mm
: 9.6 kg
Printed in the Netherlands

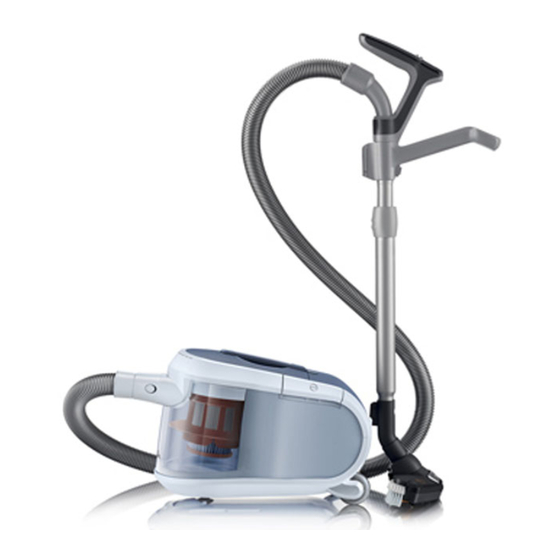

Vacuum cleaner
ACCESSORIES
- Nozzle
: Tri-Active all purpose nozzle
- Tubes
: Metal lacquered telescopic tube with
second handgrip
- Hose
: Extra large hose
- Handgrip
: Ergonomic handgrip with remote
control and LCD
- Accessories
: Brush, crevice nozzle and small nozzle
- Accessory storage : Active accessory storage bridge in
handgrip
- Coupling
: Button coupling
OPTIONAL (accessories)
- FC 8031
: Super Clean Air HEPA filter
- FC 8038
: Super Clean Air HEPA washable filter
© Copyright reserved
FC9256
Subject to modification
Advertisement
Related Manuals for Philips FC9256
Summary of Contents for Philips FC9256
-
Page 1: Vacuum Cleaner
: Ultra Clean Air HEPA13 washable exhaust filter - Dimensions of cleaner : 485 x 285 x 335 mm - Net weight : 9.6 kg Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 08/11... - Page 2 FC9256 DISASSEMBLY- AND RE-ASSEMBLY ADVISE REPAIR INSTRUCTION - To open the appliance, first remove the filter cover - If the reel half spring unit is replaced, shaft (M) must be (item 37). lubricated with silicone grease. Do not apply any silicone grease to or spill any grease on terminals (item 53) or - Remove the can with the filters.
- Page 3 REPAIR INSTRUCTION FC9256 - Appliances from before WK845 have a potential problem To prevent lever shifting out of position to re-occur, in the cord winder system; the lever of spindle (Pos. 24) can CW support (Pos. 68) must be added as shown in below move out of position.
- Page 4 PARTS LIST FC9256 Service code Description Service code Description 4322 005 25400 Handle assy 4322 005 25110 Skate wheel assy Frozen blue 4322 003 34210 Handle side rear 4322 005 25150 Exhaust grille assy Frozen blue 4322 003 34200 Handle side front 4322 004 93350 HEPA13 fi...
- Page 5 EXPLODED VIEW FC9256...
- Page 6 EXPLODED VIEW FC9256 Brown Black Black Blue Black Black...
- Page 7 EXPLODED VIEW FC9256 Black Black ÷ 55 57 Blue Brown...
- Page 8 EXPLODED VIEW FC9256 Swiss U.K. / H.K. Europe Ø 4.8mm...
