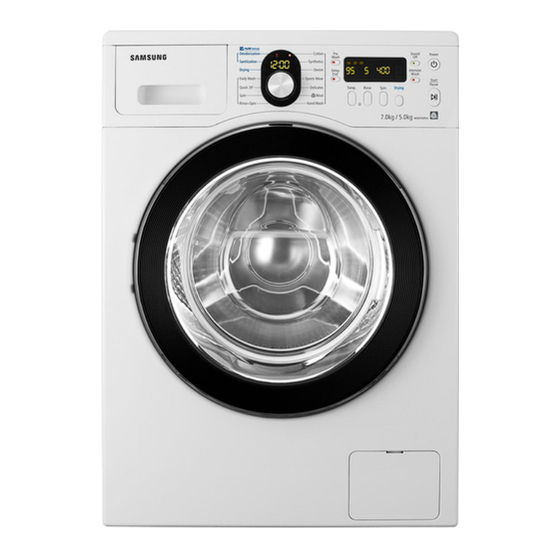

Washing Machine

WD8804CJ-02767A_EN.indd 1

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WD8704CJ(A/F/G/H/Z)
WD8702CJ(A/F/G/H/Z)
WD8704DJ(A/F/G/H/Z)
WD8702DJ(A/F/G/H/Z)
WD8704HJ(A/F/G/H/Z)
WD8702HJ(A/F/G/H/Z)
WD8804CJ(A/F/G/H/Z)
WD8802CJ(A/F/G/H/Z)
WD8804DJ(A/F/G/H/Z)
WD8802DJ(A/F/G/H/Z)
WD8804HJ(A/F/G/H/Z)
WD8802HJ(A/F/G/H/Z)
2009-12-09 ø¿»ƒ 1:31:52

Advertisement

Table of Contents
loading

Related Manuals for Samsung WD8704CJF

Summary of Contents for Samsung WD8704CJF

  • Page 1: Washing Machine

    WD8702DJ(A/F/G/H/Z) WD8704HJ(A/F/G/H/Z) WD8702HJ(A/F/G/H/Z) WD8804CJ(A/F/G/H/Z) WD8802CJ(A/F/G/H/Z) WD8804DJ(A/F/G/H/Z) WD8802DJ(A/F/G/H/Z) WD8804HJ(A/F/G/H/Z) WD8802HJ(A/F/G/H/Z) Washing Machine user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register WD8804CJ-02767A_EN.indd 1 2009-12-09 ø¿»ƒ 1:31:52...
  • Page 2 Your new washing machine will change the way you feel about doing laundry. From its super-size capacity to its energy efficiency, the Samsung washing machine has all the features to turn a mundane chore into a pleasure. • Silver Wash - Silver Wash Health System(selected model only) The winning combination! Samsung’s silver technology combines the sanitizing effect of silver...
  • Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
  • Page 4 Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features.
  • Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or WARNING instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Page 6 safety information SEVERE WARNING SIGNS FOR INSTALLATION WARNING The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220V/60Hz/15A wall socket or higher and use the socket for this appliance only.
  • Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.
  • Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
  • Page 9 CAUTION SIGNS FOR USING CAUTION When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth. - Failure to do so may result in discoloration, deformation, damage or rust. The front glass may be broken by a strong impact.
  • Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
  • Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry.

  • Page 12: Table Of Contents

    contents SETTING UP YOUR WASHING Checking the parts MACHINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation Installing your washing machine WASHING A LOAD OF LAUNDRY Washing for the first time Basic instructions Using the control panel Child lock...

  • Page 13: Setting Up Your Washing Machine

    Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Release lever...

  • Page 14: Meeting Installation Requirements

    setting up your washing machine MEETING INSTALLATION REQUIREMENTS Electrical supply and grounding To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances.

  • Page 15: Drain

    Drain Samsung recommends a standpipe height of 18 in (46 cm). The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.

  • Page 16: Removing The Shipping Bolts

    setting up your washing machine STEP 2 Removing the shipping bolts Before installing the washing machine, you must remove the five shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. 2. Hold the bolt with the spanner and pull it through the wide section of the hole.

  • Page 17: Connecting The Water Supply Hose

    STEP 3 Adjusting the levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the leveling feet in and out as necessary by hand.
  • Page 18 setting up your washing machine Connecting the water supply hose (selected models) 1. Remove the adaptor from the water supply hose. Adaptor Water supply hose 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.
  • Page 19 6. Turn on the water supply and ensure that no water leaks ✗ from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury.
  • Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.

  • Page 21: Washing A Load Of Laundry

    With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. WASHING FOR THE FIRST TIME Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).

  • Page 22: Using The Control Panel

    washing a load of laundry USING THE CONTROL PANEL DIGITAL GRAPHIC Displays the remaining wash cycle time, all cycle information, and error DISPLAY messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”.
  • Page 23 Spin - Performs an additional spin cycle to remove more water. Rinse + Spin - Use for a load that needs rinsing only or to add rinse- added fabric softener to a load. Drain Only - Turn the Cycle Selector to the Spin position, press the Spin button, and then press the Start/Pause button to drain the water.

  • Page 24: Child Lock

    washing a load of laundry Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Temp. and Rinse buttons at the same time for 3 seconds.

  • Page 25: Air Wash

    Air Wash Air Wash can refresh laundry without using water owing to its powerful airing system. Clothing that can be refreshed includes woolen coats, cotton or jumpers, sweaters and suits. [Two items or less (less than 1 kg)] 1. Open the door, place the laundry into the washing machine and close the door. 2.

  • Page 26: Using Dry Course

    washing a load of laundry USING DRY COURSE Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line for the dried clothe of 5.0kg. 1. Open the door, put in the clothes and close the door again. 2.

  • Page 27: Washing Clothes Using The Cycle Selector

    Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap.

  • Page 28: Laundry Guidelines

    washing a load of laundry LAUNDRY GUIDELINES Follow these simple guidelines for the cleanest laundry and the most efficient wash. Always check the Care label on clothing before washing. Sort and wash your laundry according to the following criteria: • Care Label: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayons.

  • Page 29: Detergent And Additives Information

    Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally). • The metal parts of the brassieres may break through the material and damage the laundry. Therefore make sure to place them inside a fine laundry net. •...

  • Page 30: Cleaning And Maintaining Your Washing Machine

    cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. DRAINING THE WASHING MACHINE IN AN EMERGENCY 1. Unplug the washing machine from the power supply. 2. Open the filter cover using a coin or a key. Filter cover 3.

  • Page 31: Cleaning The Detergent Drawer And Drawer Recess

    CLEANING THE DETERGENT DRAWER AND DRAWER RECESS 1. Press the release lever on the inside of the Release lever detergent drawer and pull the drawer out. 2. Remove the rinse cap from the detergent drawer. 3. Wash all parts under running water. 4.

  • Page 32: Cleaning The Water Hose Mesh Filter

    cleaning and maintaining your washing machine CLEANING THE WATER HOSE MESH FILTER You should clean the water hose mesh filter at least once a year, or when the error message of “4E” is displayed: 1. Turn off the water supply to the washing machine. 2.

  • Page 33: Troubleshooting And Information Codes

    Door is locked shut or will The door will not open until 3 minutes after the machine stops or the not open. power turns off. If the problem persists, contact your local Samsung Customer Service. troubleshooting and information codes _33 WD8804CJ-02767A_EN.indd 33 2009-12-09 ø¿»ƒ 1:32:28...

  • Page 34: Information Codes

    The fan will automatically function, so just wait until “Hot” indication disappeared. For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer. 34_ troubleshooting and information codes WD8804CJ-02767A_EN.indd 34...
  • Page 35 cycle chart CYCLE CHART user option)  Max load(kg) DETERGENT Max Temp PROGRAM Silver wash WD8704/ WD8804/ (˚C) Pre-wash wash Softener WD8702 WD8802 Cotton    Synthetics    Denim    Sports Wear    Delicates Wool Handwash...

  • Page 36: Appendix

    appendix FABRIC CARE CHART The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems.

  • Page 37: Specifications

    SPECIFICATIONS TYPE FRONT LOADING WASHING MACHINE WD8704CJ/WD8704DJ/WD8704HJ WD8702CJ/WD8702DJ/WD8702HJ DIMENSIONS W598mm X D600mm X H844mm 50 kPa ~ 800 kPa WATER PRESSURE WATER VOLUME 49.7 ℓ WD8704CJ/ WD8702CJ/ WD8704DJ/ WD8702DJ/ NET WEIGHT WD8704HJ WD8702HJ 70 kg 69 kg WASH AND SPIN CAPACITY 7.0 kg [DRY LAUNDRY] DRY CAPACITY 5 kg...
  • Page 38 appendix SPECIFICATIONS TYPE FRONT LOADING WASHING MACHINE WD8804CJ/WD8804DJ/WD8804HJ WD8802CJ/WD8802DJ/WD8802HJ DIMENSIONS W598mm X D600mm X H844mm 50 kPa ~ 800 kPa WATER PRESSURE WATER VOLUME 56.8 ℓ WD8804CJ/ WD8802CJ/ WD8804DJ/ WD8802DJ/ NET WEIGHT WD8804HJ WD8802HJ 70 kg 69 kg WASH AND SPIN CAPACITY 8.0 kg [DRY LAUNDRY] DRY CAPACITY 5 kg...
  • Page 39 memo WD8804CJ-02767A_EN.indd 39 2009-12-09 ø¿»ƒ 1:32:36...
  • Page 40 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg Code No. DC68-02767A_EN WD8804CJ-02767A_EN.indd 40 2009-12-09 ø¿»ƒ 1:32:36...
