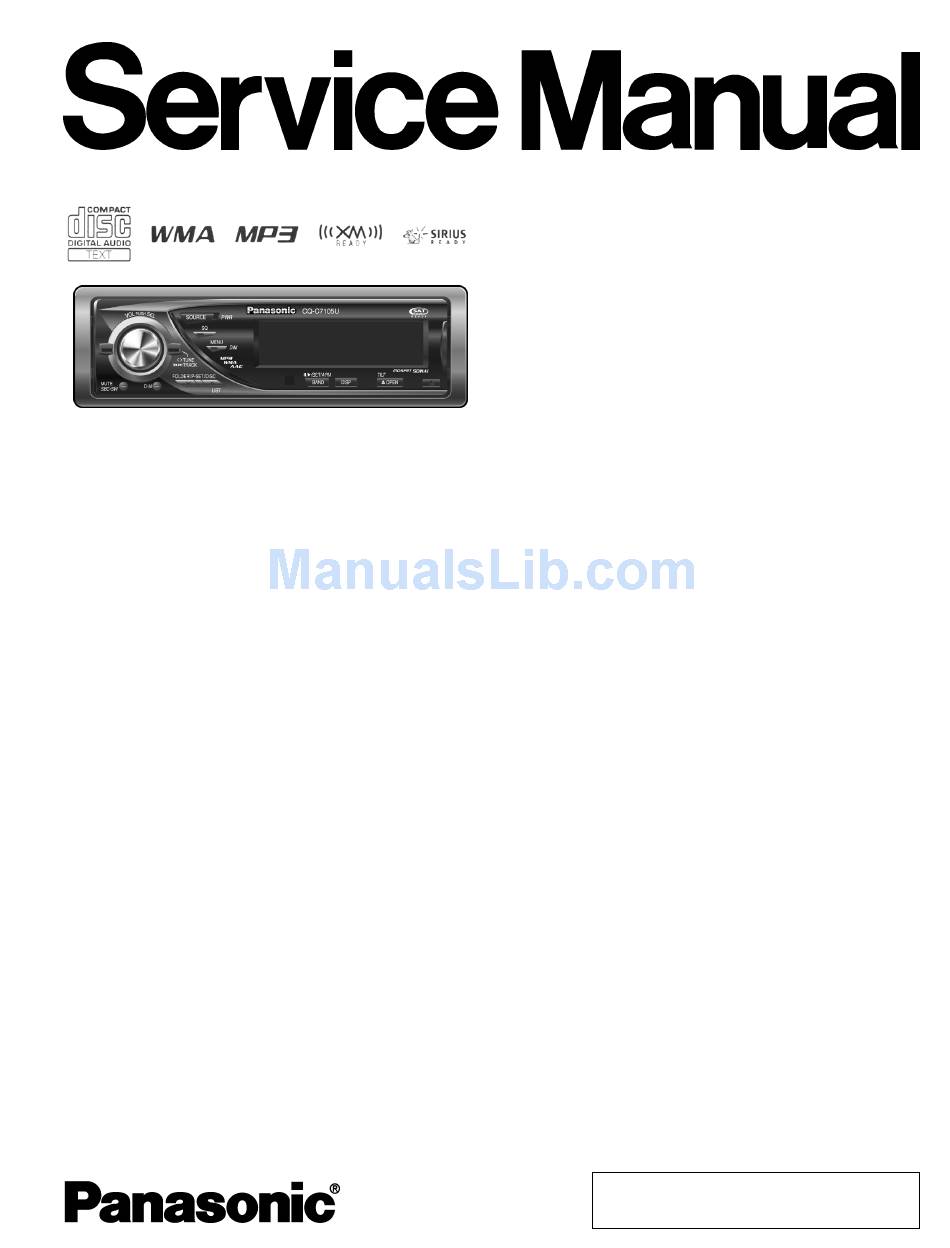

Panasonic CQ-C7105U Service Manual

Specifications*

General
Power Supply
Tone Controls (Bass/Treble) Bass: ±12dB at 60Hz
Equlizer Center Frequency
Variable Range of Equalizer
Current Consumption
Maximum Power Output
Speaker Impedance
Pre-amp Output Voltage
Subwoofer Output Voltage
Pre-amp Output Impedance
Subwoofer Output Impedance 200Ω
FM Stereo Radio
Frequency Range
Usable Sensitivity
50dB Quieting Sensitivity
Frequency Response
Alternate Channel Selectivity 75dB
Stereo Separation
Image Response Ratio
IF Response Ratio
Signal to Noise Ratio
AM Radio
Frequency Range
Usable Sensitivity
CD Player
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Treble: ±12dB at 16kHz
60, 160, 400, 1k, 3k, 6k, 16k Hz
-12dB to 12dB (2dB step)
Less than 2.2A
(CD mode; 0.5W × 4-speaker)
50W × 4(at 1kHz)
4 - 8Ω
2.5V (CD mode; 1kHz, 0dB)
2.5V (CD mode; 1kHz, 0dB)
200Ω
87.9MHz - 107.9MHz
10.2dBf. (0.9µV, 75Ω)
15.2dBf. (1.6µV, 75Ω)
30Hz-15kHz (±3dB)
35dB (at 1kHz)
75dB
100dB
62dB
530kHz - 1,710kHz
27dB/µV (S/N 20dB)
AUTOMOTIVE AFTERMARKET
CQ-C7105U
WMA MP3 AAC CD Player/Receiver
Sampling Frequency
DA Converter
Pick-up Type
Light Source
Wave Length
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
Dimensions (W×H×D)**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. ACED061211C7
8 Times Oversampling
4 DAC System
Astigma 3-Beam
Semiconductor Laser
790 nm
20 Hz-20kHz (±1dB)
96dB
0.01% (1kHz)
Below Measurable Limits
75dB
7"×1-15/16"×6-1/8"
(178×50×155mm)
3 lbs. 8oz (1.6 kg)
Unauthorized copying
C4
and
