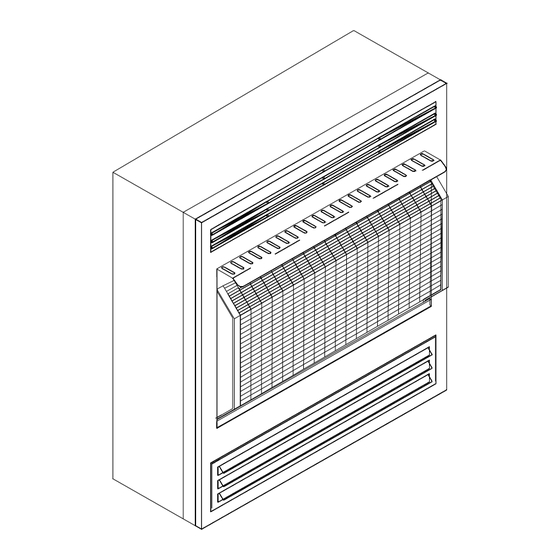

MODEL 1127B VENT-FREE GAS HEATER
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section " Producing Adequate Ventilation" page 13.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Manufacturer: NEW BUCK CORPORATION
P.O. Box 69
8000 Highway 226 South
Spruce Pine, NC 28777
NEW BUCK CORPORATION
March 2005
This appliance is intended for sup-
plemental heating.

Advertisement

Table of Contents
loading

Summary of Contents for New Buck Corporation 1127B

  • Page 1 MODEL 1127B VENT-FREE GAS HEATER WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this −...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Information and Warnings ... 3 Product Identification ... 6 Product Features ... 7 Unpacking ... 7 Installation ... 9 Producing Adequate Ventilation (Fresh Air for Combustion and Ventilation) ... 13 Gas Connection ... 17 Connecting to Gas Supply ... 18 Gas Pressure Check………………………………………………………………20 Log Placement……………………………………………………………………21 Lighting Instructions ...
  • Page 5: Safety Information And Warnings

    IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE THIS APPLIANCE. IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION, AND CARBON MONOXIDE POISONING. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly.
  • Page 6 5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure. 6. What To Do IF You Smell Gas: Shut off gas supply. - Do not try to light any appliance. - Do not touch any electrical switch; do not use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone.
  • Page 7 20. All heater screens must be kept clean when operating the gas logs. ”WARNING: 21. . Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.” 22. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage, or any other material on top of logs or into the flames.
  • Page 8: Product Identification

    PRODUCT IDENTIFICATION Figure 1 WARNING:Installation and repairs should be performed by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding mate- rial, etc.
  • Page 9: Product Features

    Model 1127B P* or N*- (Sensing or Modulating Bulb) - This heater has a thermostat sensing bulb. This bulb will modulate the flame up and down on the demand of the heat desired.
  • Page 10 THIS HEATER CREATES WARM AIR CURRENTS. THESE CURRENTS MOVE HEAT TO WALL SURFACES NEXT TO HEATER. DO NOT INSTALL HEATER WHERE IMPURITIES IN THE AIR MAY EXIST. MINIMUM CLEARANCES TO COMBUSTIBLE CONSTRUCTION NOTE: FOR GARAGE INSTALLATION Heater Pilot and Burner must be at least 18" off the floor. •...
  • Page 11: Installation

    NOTE: This heater may be installed three different ways: 1. Wall Mounted 2. Freestanding heater (with optional pedestal) 3. Freestanding (with optional wooden mantel) WALL MOUNT INSTALLATION: 1. After determining the location for the heater, unfold the template provided and place the bottom of the template a minimum of 7"...
  • Page 12 3. Lift heater by each bottom corner and place the round part of the tear drop punch out over each screw head. Gently push down until the body of the screw is at the end of the slot. NOTE: Make sure unit is level. 4.
  • Page 13 FREESTANDING WITH OPTIONAL PEDESTAL INSTALLATION 1. Place heater on backside and center the pedestal on the bottom. Mark the 4 pre-punched holes in the pedestal angle. Use the 4 self-tapping screws provided with the pedestal to drill the 4 marked spots.
  • Page 14 MOUNTING BRACKET VIEW OPTIONAL DELUXE FINISHED MANTEL REAR OF MANTEL Z BRACKETS Z-BRACKET(S) PLACEMENT ON STOVE NOTE: FLUSH BRACKET WITH REAR REAR OF TOP OF UNIT. STOVE FREE-STANDING NOTE: “MODEL 1127 TO BE USED WITH NEW BUCK OPTIONAL “L” CORP. MANTEL ONLY, PART BRACKETS (2) AND SCREWS (2) PRO- # PAKDM1127.”...
  • Page 15: Producing Adequate Ventilation (Fresh Air For Combustion And Ventilation)

    PRODUCING ADEQUATE VENTILATION This section is for residential or manufactured (mobile) installation “This heater shall not be installed in a confined space or unusually tight construction unless pro- visions are adequate combustion and ventilation air.” The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8m per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a...
  • Page 16 51200 (maximum BTU/Hr the space can support) 3. Add the BTU/Hr of all fuel burning appliances in the space. Vent-free heater Gas water heater* Gas furnace Vented gas heater Gas fireplace logs Other gas appliances* Total Example: Gas water heater 40000 BTU/Hr...
  • Page 17: Ventilation Air

    VENTILATION AIR VENTILATION AIR FROM INSIDE BUILDING This fresh air would come from an adjoining unconfined space. When venting to an adjoining space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see Options 1 and 2, Figure 8). You can also remove door into adjoining room (see Option 3, in Figure 8).
  • Page 18: Ventilation Air From Outdoors

    THIS APPLIANCE MUST HAVE FRESH AIR FOR PROPER OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. INSTRUCTIONS TO ENSURE PROPER FRESH AIR FOR THIS AND OTHER FUEL- BURNING APPLIANCES IN YOUR HOME. VENTILATION AIR FROM OUTDOORS Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12"...
  • Page 19: Gas Connection

    WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE DANGEROUS. GAS CONNECTION Check gas type. Use only the type of gas indicated on the valve rating plate. If the type of gas listed on the plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model. Always use an external regulator for all LP heaters to reduce the supply tank pressure to a maximum of 13"...
  • Page 20: Connecting To Gas Supply

    CONNECTING TO A GAS SUPPLY CAUTION: NEVER CONNECT HEATER DIRECTLY TO THE PROPANE SUPPLY. THIS HEATER REQUIRES AN EXTERNAL REGULATOR (NOT SUPPLIED). INSTALL THE EXTERNAL REGULATOR BETWEEN THE HEATER AND THE PROPANE SUPPLY. The installer must supply the external regulator for liquid propane gas. The external regulator will reduce incoming gas pressure.
  • Page 21 CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing may be used in certain areas. Check state and local codes. Use pipe of 1/2" or greater in diameter to allow proper gas volume. If piping is too small, undue loss of pressure will occur.
  • Page 22: Gas Pressure Check

    GAS PRESSURE CHECK Check the inlet pressure to the burner to insure that it is as shown in the table below. NOTE: The pressure check point is located on the right side of the valve facing burner. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
  • Page 23: Log Placement

    LOG PLACEMENT FOR 1127 Logs are shipped secured in unit. NOTE: When operated for the first time, logs may emit a “paper burning” smell. This smell will gradually diminish and will be totally eliminated after the first few hours of operation.
  • Page 24: Lighting Instructions

    OPERATING INSTRUCTIONS Before operating this appliance, proceed through the following checklist 1. Read and understand these instructions before operating this appliance. 2. Check that there no leaks. If you smell gas do not attempt to light this appliance. LIGHTING INSTRUCTIONS MODULATING VALVE(MAXITROL) FOR YOUR SAFETY, READ BEFORE LIGHTING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EX-...
  • Page 25 LIGHTING INSTRUCTIONS 1. STOP! Read the safety information on the previous page. 2. Make sure manual shutoff valve is fully closed. 3. Open access panel door, located in lower front center of base for access to control knobs. 4. Turn off all electric power to the appliance. 5.
  • Page 26: To Turn Off Gas To Appliance

    IGNITER ELECTRODE THERMO-COUPLE 14. Close the access panel door. 15. “Turn on all electric power to the appliance.” DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE MANUAL SHUTOFF VALVE. TO TURN OFF GAS TO APPLIANCE SHUTTING OFF UNIT: 1.
  • Page 27: Manual Lighting Procedure

    THERMOSTAT CONTROL OPERATION The thermostat control used on this heater differs from standard thermostats. Standard thermostats simply turn the burner on and off. The thermostat used on this heater senses the room temperature and adjusts the amount of gas flow to the burner. This will increase or decrease the flame height.
  • Page 28: Flame Check

    FLAME CHECK A periodic check of the flames should be made. The pilot flame should always be present when the unit is in operation. See Figure 17. FLAME: Propane (LP) should produce a flame that is about 6" above the rear log. This flame should be yellow.
  • Page 29: Burner Flame Pattern

    BURNER FLAME PATTERN Figure 18 shows a correct burner flame pattern. Figure 19 shows an incorrect burner flame pattern. NOTE: When using the heater the first time, the logs will emit a paper like odor for about one hour. Figure 15 - Correct Burner Flame Pattern Figure 16 - Incorrect Burner Flame Pattern If burner flame pattern is incorrect, as shown in Figure 19: *turn heater OFF (see “To Turn Off Gas to Appliance”, page 28.
  • Page 30: Wiring Diagram

    WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM WITH THE APPLIANCE. WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIALS ON OR NEAR THE APPLIANCE.
  • Page 31: Repair Parts

    NOTE: #PE A24001 Blower Motor Rating: 120 volts/60MZ/0.54 Amps. 1 P.H. Blower Motor is standard on all Model 1127B. See page 38 for blower motor location. NOTE: For convenience, allow licensed electrician to properly install a grounded 3-plug receptacle near the unit.
  • Page 32: Important Safeguards

    INTENTIONAL MISUSE OR DELIBERATELY FRAGMENTING THE MATERIAL COULD LEAD TO INHALING FIBERS AND BE HAZARDOUS TO YOUR HEALTH. THIS HEATER IS INTENDED FOR USE AS A GAS HEATER FIREPLACE AS DESCRIBED IN THESE INSTRUCTIONS. IT SHOULD NOT BE USED FOR ANY OTHER PURPOSE.
  • Page 33 TROUBLE-SHOOTING WARNING TURN OFF AND UNPLUG HEATER AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR HEATER. CAUTION NEVER USE A WIRE, NEEDLE, OR SIMILAR OBJECT TO CLEAN ODS/PILOT. THIS CAN DAMAGE ODS/PILOT. WARNING:Installation and repairs should be performed by a qualified service person.
  • Page 34: Troubleshooting

    OBSERVED PROBLEM 1. Igniter button is pressed. No spark at ODS/Pilot 2. Igniter button is pressed Spark at ODS/Pilot No Ignition POSSIBLE CAUSE 1. Igniter electrode positioned incorrectly 2. Igniter electrode broken 3. Igniter electrode not connected to igniter cable 4.
  • Page 35: Cleaning And Maintenance

    OBSERVED PROBLEM 3. ODS/PILOT lights but flame goes out when control knob is released 4. Burner does not light after ODS/Pilot is lit POSSIBLE PROBLEM 1. Control knob is not fully pressed in 2. Control knob not pressed in long enough 3.
  • Page 36 OBSERVED PROBLEM 5. Delayed ignition of burner 6. Burner backfiring during combustion 7. Slight smoke or odor during initial operation 8. Heater produces a whistling noise when burner is lit POSSIBLE CAUSE 1. Manifold pressure is too low 2. Burner orifice is clogged 1.
  • Page 37 IF YOU SMELL GAS: * SHUT OFF GAS SUPPLY * DO NOT TRY TO LIGHT APPLIANCE * DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY PHONE IN YOUR BUILDING * IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S PHONE. FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.
  • Page 38: Technical Service

    TECHNICAL SERVICE MODEL 1127 - MODULATING VALVE BTU(Variable) Type Gas Ignition Pressure Regulator Setting Inlet Gas Pressure (in. of water)* Maximum Minimum Dimensions, Inches (HxWxD) Heater Weight (pounds) Heater Shipping * For purposes of input adjustment 11000/27000 11000/27000 Propane (LP) Natural Piezo 9"...
  • Page 39 KEY NO. PART NUMBER MF 112738 PO 1127IM PO PNPSNH50JT MA 1127SC P0 112706 MF 112782 A2-40-01 PS 112724 PS 112740 PE KB9724 PE BC204 PE BC204A PE 400132 PE 30JUMPER PE 400320 PE 400240 PO 22GAJ1712 PO WALLMT PH 101612PHPTEK PH101634TEK PH 103212HWSPS5 PH 6114DWPHILSC...
  • Page 40 BLOWN UP VIEW OF HEATER, FAN MOTOR, AND ALL REMOVABLE PARTS...
  • Page 41 KEY PART NUMBER PE GV30B5A2L7B PE GV30B5A2N7B PE 4966 PS 112736 PS 112716 PO TBURN PE TPT100/433 PE 2150053 PE 2150054 PE RV12LF30 PE RV12LF90 RF 14ALMTUB PH 1166 PE 6482 PO ORIFICE PS 112726 PO 38634ALMTUB PO 54ORFHLD PARTS LIST MAXITROL VALVE BURNER SYSTEM DESCRIPTION...
  • Page 42 BLOWN UP VIEW OF BURNER ASSEMBLY...
  • Page 43: Warranty

    NEW BUCK CORPORATION We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We offer no other warranty, expressed or implied. LIMITED WARRANTY ON VENT-FREE GAS LOG HEATER...
