Removing the USB Board

1. Perform the
page 3-25.
2. Open the connector latch on both ends of the USB board cable (1), and then disconnect
the USB board cable from both the mainboard and the USB board (2).
3. Remove the USB board cables from the lower case (3).
4. Remove the USB board from the lower case.
Machine Maintenance
Downloaded from www.Manualslib.com
"Removing the Palmrest Module/Upper

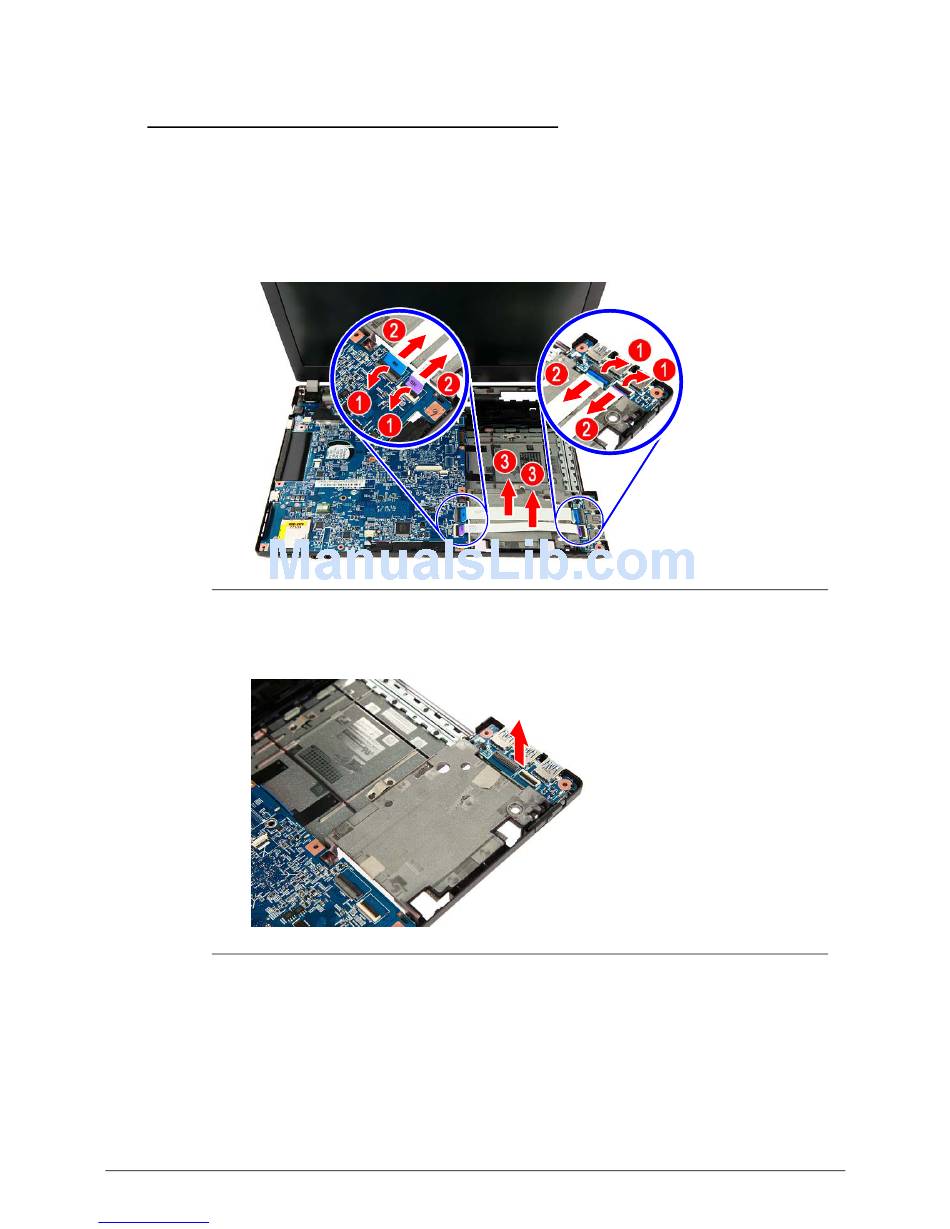

Figure 1-48. USB Board Cables
Figure 1-49. USB Board
