Owner's Manual

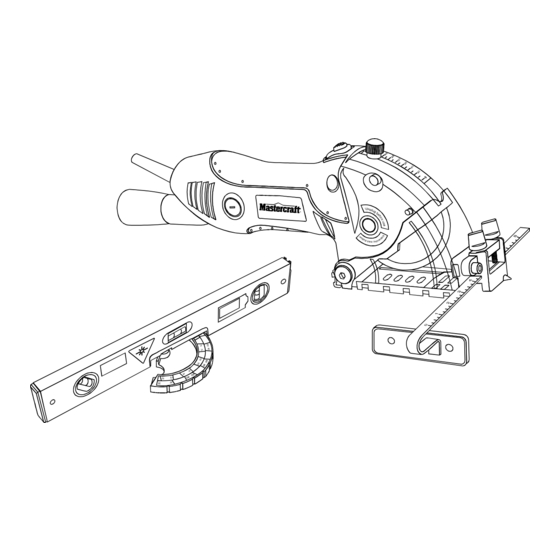

Multi-Cutter Precision Saw
54-8333-2
CAUTION:
Before using this multi-cutter
precision saw or any of its
accessories, carefully read
this manual and follow all
Safety Rules and Operating
Instructions.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
Rev 1.2
13/01/2009
General Safety Rules
Specific Safety Rules
and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
Advertisement
Table of Contents
Related Manuals for MasterCraft 54-8333-2
Summary of Contents for MasterCraft 54-8333-2
- Page 1 Functional Description accessories, carefully read Assembly this manual and follow all Operation Safety Rules and Operating Maintenance Instructions. Accessories Imported by Mastercraft Canada Toronto, Canada M4S 2B8 Rev 1.2 13/01/2009...
-
Page 2: Table Of Contents
This product is not guaranteed if used for industrial or commercial purposes. Mastercraft is a superior line of products selected for their workmanship and materials. These products are designed to meet rigorous quality and performance standards, and are approved by our Quality Assurance laboratory. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Rating ……………………………….. 120 V, 60 Hz, AC Amperes ……………………………. 4.0 Amperes Speed ………………………………. 4000 RPM (no load) Blade diameter …………………….. ”) 85 mm (3 Arbor ………………………………… 10 mm Depth of cut ………………………… ”) 0–26.9 mm (0–1 Edge guide …………………………. 170 mm (6 ¾”) POWER TOOL SAFETY WARNING:... - Page 4 POWER TOOL SAFETY GENERAL SAFETY RULES Do not expose power tools to rain or wet conditions. Water entering the power WARNING: tool will increase the risk of electric shock. Read and understand all instructions. Failure to follow all of the Do not abuse the cord.
- Page 5 POWER TOOL SAFETY PERSONAL SAFETY – cont’d When not in use, store tools out of reach of children and other untrained Remove adjusting keys or wrenches persons. Tools are dangerous in the before turning the tool ON. A wrench or hands of untrained users.
-
Page 6: Specific Safety Rules
SPECIFIC SAFETY RULES To avoid injury from accidental starting, WARNING: Know your multi-cutter precision saw. Read the Owner’s always remove the plug from the power Manual carefully. Learn the tool’s source before making any adjustments or installing / removing a saw blade, applications and limitations, as well as accessory or attachment. -
Page 7: Symbols
EXTENSION CORD Volts SAFETY Amperes Hertz Be sure your extension cord is properly wired and in good condition. Always Watts replace a damaged extension cord or have Kilowatts it repaired by a qualified electrician before using it. Protect your extension cord from Microfarads sharp objects, excessive heat and damp or wet areas. -
Page 8: Know Your Multi-Cutter
KNOW YOUR MULTI-CUTTER Cutting ON/OFF depth knob switch Handle grip Blade guard Motor vents release Edge guide locking knobs Vacuum Power ON Dust hose light port adaptor Cut line indicator Spindle lock Blade guard Edge guide button fulcrum mount Blade Edge guide guard Laser... -
Page 9: Tote Contents
TOTE CONTENTS WARNING: If any part is missing MULTI-CUTTER COMPONENTS or damaged, do not plug the tool into DESCRIPTION the power source until the missing or Multi-cutter assembly damaged part is replaced. w/edge guide mount Spirit/laser level Carefully unpack the multi-cutter. Compare Pipe cutter attachment against the “MULTI-CUTTER Vacuum hose adaptor... - Page 10 TOTE CONTENTS...
-
Page 11: Assembly & Operation
ASSEMBLY AND OPERATION – MULTI-CUTTER This multi-cutter precision saw is a versatile tool that is designed for use in confined work spaces. By selecting the appropriate cutting blades, it will cut copper and aluminum tubing, ceramic and marble tile, and assorted wood products. The Fig. - Page 12 ASSEMBLY AND OPERATION – MULTI-CUTTER REMOVE BLADE – cont’d Blade Press inward on the spindle lock Profile Description button (3) which is located on the Reinforced cutting disc RIGHT side of the tool. 85 mm x 1.4 mm corundum compound. Cuts non-ferrous metal, Rotate the hex key CLOCKWISE while plastic &...
- Page 13 ASSEMBLY AND OPERATION – MULTI-CUTTER INSTALL BLADE – cont’d ADJUST CUTTING DEPTH – cont’d NOTES: Lock spindle using the spindle lock button and tighten the arbor screw by a) The measurement markings on side of turning it COUNTER CLOCKWISE. the blade guard (6) can be used as a guide NOTE: The arbor screw has a left in setting the depth of cut.
- Page 14 ASSEMBLY AND OPERATION – MULTI-CUTTER INSTALL EDGE GUIDE MOUNT – cont’d Tighten the mounting screw using a 5 mm hex key. NOTE: Do not over tighten the mounting screw. You will break the blade guard. Fig. 7a INSTALL EDGE GUIDE Fig.
- Page 15 ASSEMBLY AND OPERATION – MULTI-CUTTER ON/OFF SWITCH Plug the tool cord into the power source. NOTE: The green “power on” light (1) This tool has dual purpose ON/OFF switch that is designed to prevent accidental on the right hand side of the tool will illuminate when power is “live”...
- Page 16 ASSEMBLY AND OPERATION – MULTI-CUTTER CUTTING (without edge guide) – cont’d Turn switch ON as outlined on Page NOTE: Do not proceed any further until the blade is running at full speed. Using the thumb on your left hand, press the blade guard release button (6).
- Page 17 ASSEMBLY AND OPERATION – SPIRIT/LASER LEVEL The spirit/laser level is a dual purpose tool and can be used in the following modes: ● Spirit/laser level that will project either a needle beam (fine point) or a horizontal line. ● Mitre gauge for marking cutting angles on ceramic tile, wood etc.
- Page 18 ASSEMBLY AND OPERATION – SPIRIT/LASER LEVEL LEVELING LASER BEAM MITRE GAUGE The laser level can be used in both The laser level can be used in conjunction horizontal and vertical positions. To confirm with the mitre gauge for marking the cutting the tool is “level”, shim the front or rear until line on a workpiece.
-
Page 19: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause damage to the product. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 20: Parts & Service
PARTS DIAGRAM – MODEL 54-8333-2... - Page 21 PARTS LIST – MODEL 54-8333-2 ® WARNING: When servicing, use only Mastercraft replacement parts. Use of any other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this power tool may create a safety hazard unless repair is performed by a qualified technician.
- Page 22 PARTS LIST – MODEL 54-8333-2 Key # Part # Part Name Quantity 224478 Blade clamping plate 215130 Blade retaining screw 520022 Bearing 609-2RS 312161 Transparent cover 500000 Tapping screw 100101 Rotor 314509 Carbon brush cap 162428 Carbon brush 222828 Brush holder...
