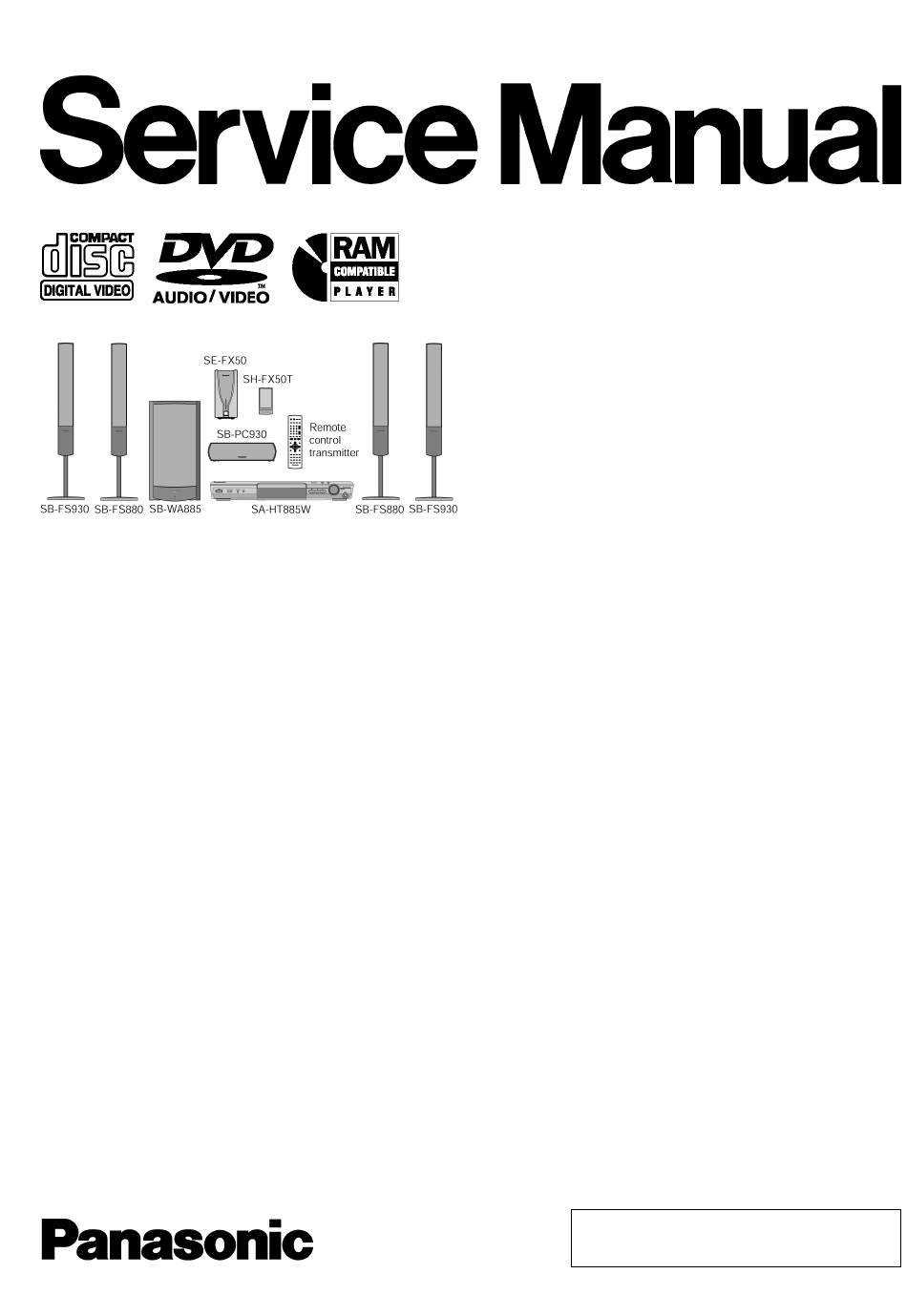

Panasonic SA-HT885WEG Service Manual

Panasonic SA-HT885WEG Service Manual

Dvd home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Specifications
lGeneral
Power Source:
Power consumption:
Dimensions (W×H×D):
Mass:
lGeneral (For digital transmitter and receiver)
Power Source:
Power consumption:
Digital transmitter
Digital receiver
Dimensions (W×H×D):
Digital transmitter
Digital receiver
Mass:
Digital transmitter
Digital receiver
Wireless module:
Frequency range
No. of channels
Bandwidth/Channel
RF Output Power
RF Output Impedance
AC 230 V, 50 Hz
25 W
430×60×348.3 mm
2.7 kg
AC 230 V, 50 Hz
0.3 W
35 W
97×47.5×8.5 mm
103×215×178 mm
0.03 kg
2.3 kg
2.402-2.480 GHz
79
1MHz
13dBm (max)
50Ω
DVD Home Theater Sound System
SA-HT885WEG
Colour
(S).......................Silver Type
Type of Emissions:
Data Rate
lAmplifier section
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital
mode Power:
At 1kHz and total harmonic of 10%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 10%
lActive subwoofers:
DIN Output Power: Dolby Digital Mode:
lTotal DIN Dolby Digital mode Power:
At 1kHz and total harmonic of 1%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 1%
lSubwoofer:
lAmplifier section (For digital receiver)
lTotal RMS Dolby Digital:
At 1kHz and total harmonic of 10%
lSurround Ch:
© 2005 Panasonic AVC Networks Singapore Pte.
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO.MD0507279C2
1 Mbps
1000 W
170 W/ Channel (6Ω)
260 W/ Channel (4Ω)
70 W/ Channel (4Ω)
260 W/ Channel (4Ω)
750 W
140 W/ Channel (6Ω)
180 W/ Channel (4Ω)
55 W/ Channel (4Ω)
180 W/ Channel (4Ω)
70 W/ Channel (4Ω)
