Exploded View - Sony XM-222MK2 Service Manual

XM-222MK2
Ver 1.1
• Semiconductor
Location
Ref. No. Location
D101 G-10
D102 G-9
D201 G-7
D202 G-6
D801 F-11
D802 E-11
D803 F-11
D851 E-10
D852 F-5
D901 D-10
D902 D-11
D903 D-9
D904 D-8
D951 B-7
D952 B-6
D953 D-4
D954 D-3
IC801 E-3
IC802 F-3
IC803 H-3
IC851 E-10
IC901 D-8
LD801 F-14
Q101 F-6
Q102 G-10
Q103 G-9
Q104 G-10
Q105 G-9
Q106 I-10
Q107 H-9
Q108 H-10
Q109 H-9
Q110 J-10
Q111 J-9
Q112 G-9
Q201 G-5
Q202 G-6
Q203 G-6
Q204 G-7
Q205 G-6
Q206 I-6
Q207 H-6
Q208 H-7
Q209 H-6
Q210 J-7
Q211 J-6
Q212 G-5
Q801 E-11
Q802 E-12
Q803 F-13
Q851 E-10
Q852 E-12
Q853 E-12
Q901 D-10
Q902 D-10
Q903 B-9
Q904 B-10
Q951 C-4
Q952 C-4
Q953 C-4
Q954 C-4
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1 / W or less unless otherwise
4
specified.
• 2 : nonflammable resistor.
Note:
Note:
Les composants identifiés par
The components identi-
fied by mark 0 or dotted une marque 0 sont critiques
line with mark 0 are criti- pour la sécurité.
cal for safety. Ne les remplacer que par une
Replace only with part piéce por tant le numéro
number specified. spécifié.
• A : B+ Line.
• B : B– Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from +12V and REM terminals.
• Voltage is dc with respect to ground under no-signal
condition.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
for printed wiring boards:
• X : parts extracted from the component side.
• : Pattern from the side which enables seeing.
• IC Block Diagram
IC901 µPC494GS-T1
16 15 14 13 12 11 10 9
REF. REG.
ERROR
0.1V
OSC
ERROR
1 2 3 4 5 6 7 8
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
3
2
1

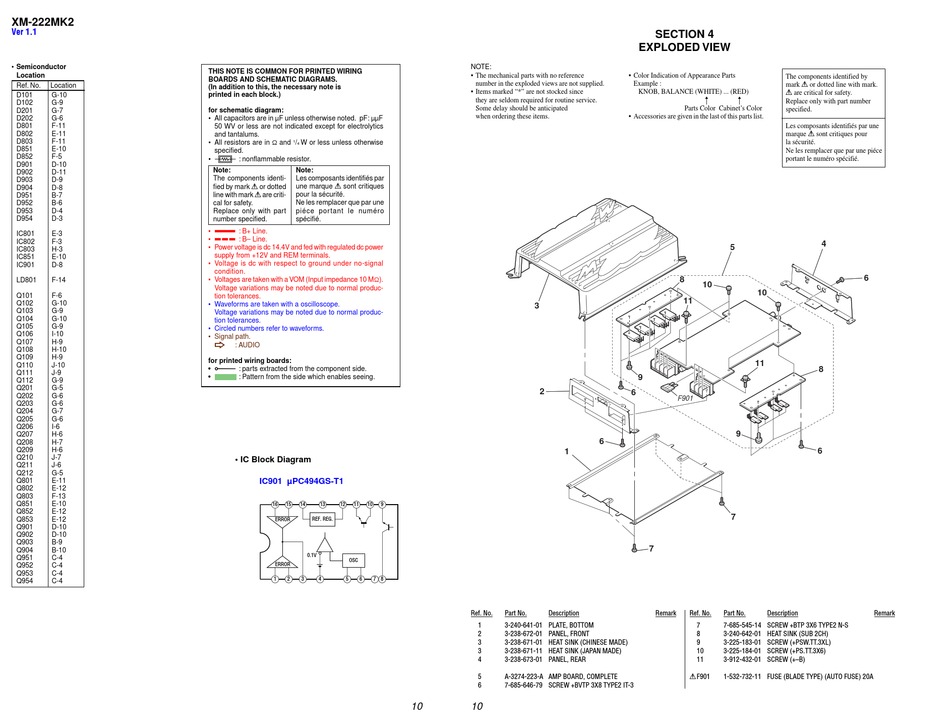

Ref. No. Part No. Description
1 3-240-641-01 PLATE, BOTTOM
2 3-238-672-01 PANEL, FRONT
3 3-238-671-01 HEAT SINK (CHINESE MADE)
3 3-238-671-11 HEAT SINK (JAPAN MADE)
4 3-238-673-01 PANEL, REAR
5 A-3274-223-A AMP BOARD, COMPLETE
6 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
10 10
SECTION 4

EXPLODED VIEW

• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R R
Parts Color Cabinet's Color
• Accessories are given in the last of this parts list.
5
8
10
10
11
11
9
6
F901
9
6
7
7
Remark Ref. No. Part No. Description
7 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
8 3-240-642-01 HEAT SINK (SUB 2CH)
9 3-225-183-01 SCREW (+PSW.TT.3XL)
10 3-225-184-01 SCREW (+PS.TT.3X6)
11 3-912-432-01 SCREW (+–B)
0 F901
1-532-732-11 FUSE (BLADE TYPE) (AUTO FUSE) 20A
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
4
6
8
6
Remark
