XM-S400D
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked "*" are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
Note: When the complete MAIN board (Ref. No. 4) is replaced, be
sure to apply the grease (OIL COMPOUND (KS609)) so as to
cover the IC301 on the MAIN board.
Ref. No. Part No. Description
1 3-971-322-01 SCREW (2.6X8)
2 4-531-202-11 SCREW M2 (AL TYPE, OUTER) (L = 6 mm)
3 2-892-797-02 SCREW +PTW M2 (L = 3.5 mm)
4 A-2090-858-A MAIN BOARD, COMPLETE (See Note)
14

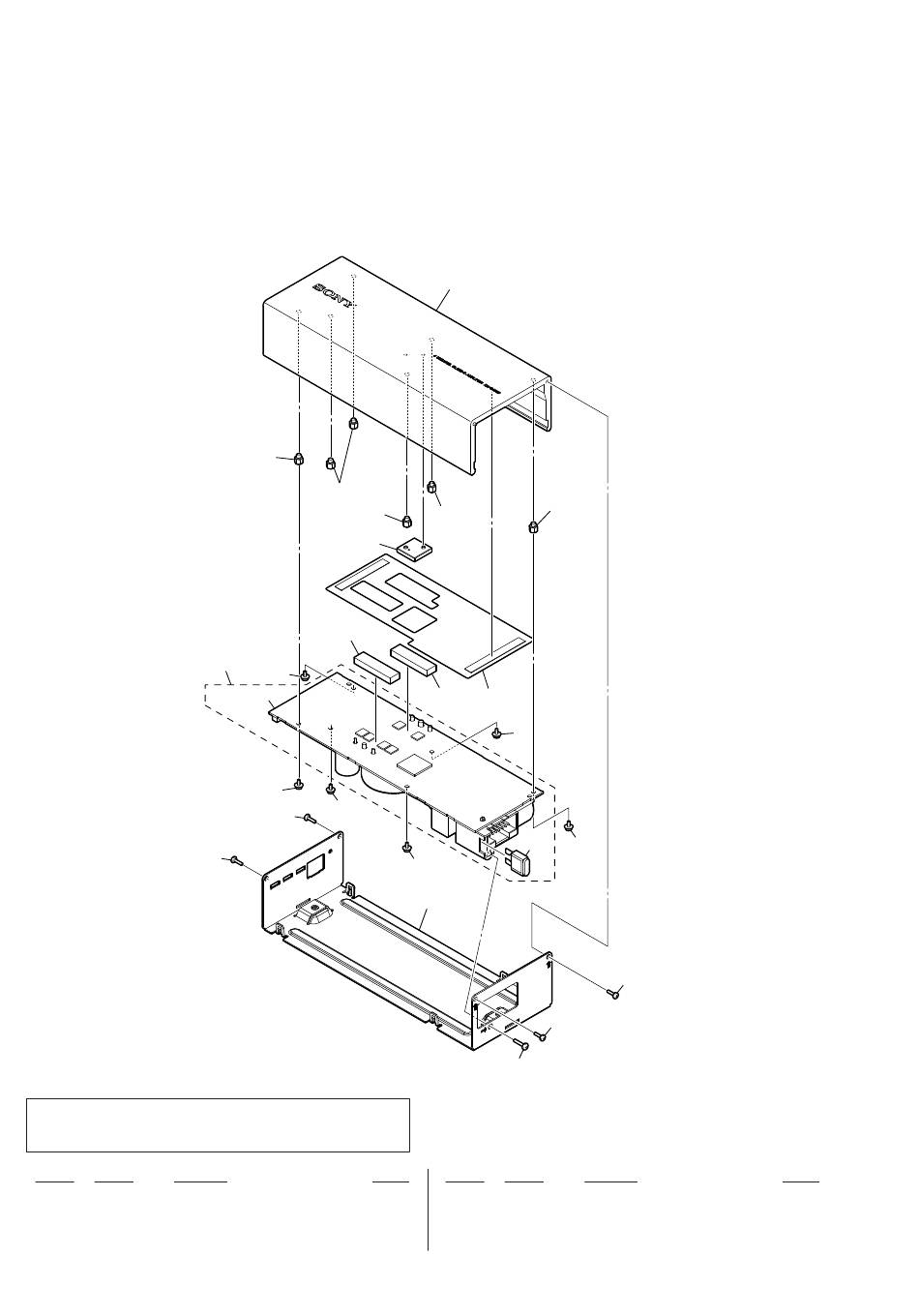

SECTION 5
EXPLODED VIEW
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
not supplied
not supplied
not supplied
not supplied
5
4
3
MAIN board
3
3
2
2
Remark
 
Parts Color Cabinet's Color
not supplied
not
supplied
not
supplied
5
not supplied
3
FU1
3
not supplied
2
1
Ref. No. Part No.
5 4-580-473-01
FU1 1-523-461-11
3
2
Description
SHEET, HEAT TRANSFER (CHIP)
MINI FUSE (BLADE TYPE) (15 A/32 V)
Remark
