Universal Thermostat
Install Guide
Want to install the easy way?
Model # UNP310
Made in China
37-7580A

Advertisement

Table of Contents
loading

Related Manuals for White Rodgers UNP310

Summary of Contents for White Rodgers UNP310

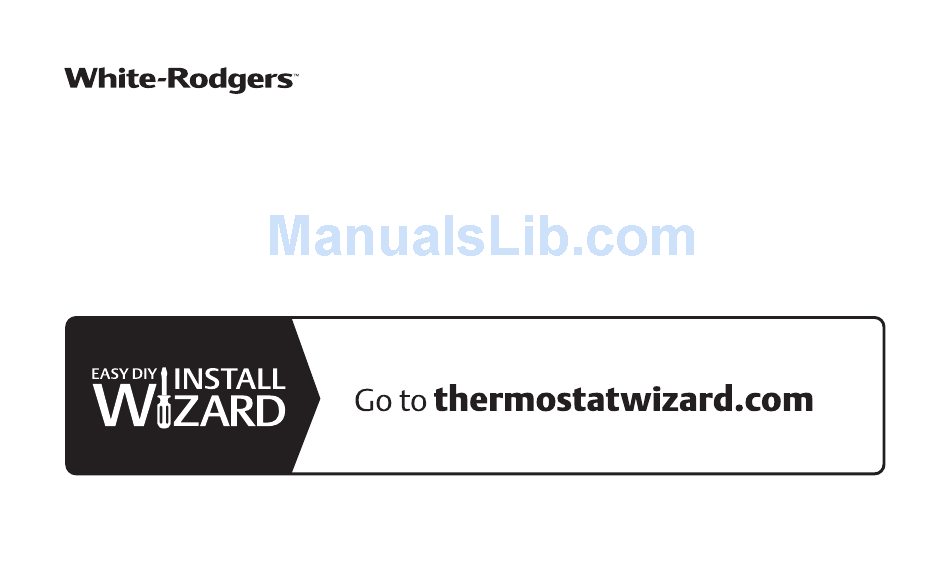

  • Page 1 Universal Thermostat Install Guide Want to install the easy way? Model # UNP310 Made in China 37-7580A...

  • Page 2: Table Of Contents

    GUIDE CONTENTS Preparations ................ 3 Thermostat details ............... 5 Removal of your old thermostat........... 7 Mounting, wiring, and configuring your new thermostat ..11 Checking thermostat operation.......... 18 Using your thermostat ............20 Specifications ..............26 Troubleshooting ..............27 Failure to follow and read all instructions carefully before installing or operating this control could cause personal injury and/or property damage.

  • Page 3: Preparations

    1. PREPARATIONS Precautions • Do not exceed the specification ratings. • All wiring must conform to local and national electrical codes and ordinances.

  • Page 4: Check Package Contents

    1.1 Check package contents This package should contain the following items: • Thermostat • Mounting screws and wall anchors (x2) • 2 AA batteries • Terminal wire label stickers • Installation instructions 1.2 Gather tools Required: □ Small Phillips or Flat-head screwdriver □ Small pliers (needle-nose) □ Drill with 3/16” (4 mm) bit Optional: □ Wire cutters/stripper □ Hammer (for wall anchors)

  • Page 5: Thermostat Details

    2. THERMOSTAT DETAILS The thermostat buttons and switches Fan button Away button (set a frequntly used temperature) Menu System button System Away Backlight button Raises temperature setting Access menu options Lowers temperature setting...

  • Page 6: The Display

    The display Next (Menu button) is used to navigate within a menu Back (Fan button) is used to navigate within a menu Exit (Away button) returns to the home screen Thermostat is protecting the equipment from short cycling (5-minute delay) Indicates that the system is running in Cool, Heat or Auxiliary mode. (Heat Pump Only -The auxiliary Battery status indicator will run in Heat mode when the...

  • Page 7: Removing Old Thermostat

    3. REMOVING OLD THERMOSTAT 3.1 Turn off power To prevent electrical shock and/or equipment damage, disconnect electrical power to the system at the main fuse or circuit breaker box, or by flipping a switch at the air handler. Do not restore power until installation is complete. To ensure the power to your heating and cooling system has been turned off, try to turn on heating or cooling by changing the temperature on your old thermostat.
  • Page 8 3.2 Remove the old thermostat cover Remove the old thermostat’s front cover form the wall base. Some covers pull off easily, while others may need to be released by using a screwdriver. Your old thermostat may have a sealed glass tube containing mercury. Be careful not to damage the tube or dispose of the tube in your trash. For safe disposal information, please see Mercury Notice on page 32 3.3 Label wires Tip: Taking a picture with a camera or smartphone can help you not only remember how wires are connected to the terminals, but can also ensure that you label your wires correctly. Mislabeling the wires may result in a high energy bill or damage to your heating and cooling system. For each wire that comes out of wall, follow these 4 steps.
  • Page 9 3. Label that wire with the corresponding letter in the third column 4. Disconnect the labeled wire carefully, and proceed to the next wire until all wires are labeled Please note that not all terminals may be used and that there’s no standard color code for thermostat wires, so your wire colors may vary. For your reference, we’ve included a terminal label reference chart below to help you connect the wires from your old thermostat to your new thermostat in case you get stuck. Terminal labeling reference chart If your current Write down that Label the wires with terminal has the Terminal function letter here the following letters following letter RH, R, R5, 5 24V Power (Heating)
  • Page 10 Terminal labeling reference chart, contʼd. If your current Write down Label the wires with terminal has the Terminal function that letter here the following letters following letter 2nd Stage Heat (Conventional) 2nd Stage W2** Auxiliary Heat (Heat Pump) Y, Y1 1st Stage Compressor 2nd Stage compressor Fan Relay O, B*, O/B Reversing Valve (for heat pump systems) Heat Pump Diagnostic...
  • Page 11 Do you have a “B” wire? Labeling the “B” wire can be tricky. It could be labeled as “C” or “O/B” depending on whether you have an “O” wire connected to your old thermostat. Please pay attention and follow the asterisk (*) comments below while labeling it. * Label “B” as “C” only if the old thermostat also had a wire in the “O” terminal block. If there was no wire in the “O” terminal block, label the wire as “O/B” ** On heat pump systems with separate W2 and E wires, label both wires W/E (2 wires on one terminal) 3.4 Identify jumper wire For terminal RC and RH: On your old thermostat, if… Then, on your new thermostat… Terminal RC and RH are connected Leave the RC/RH jumper wire in its place with a jumper wire There’s only one R wire (RC, RH, R or R5) Leave the RC/RH jumper wire in its place coming out of the wall Two separate R wires come out of the wall, and Clip the jumper wire between RC and RH on the they are NOT connected by a jumper wire back of the new thermostat...
  • Page 12 EMERSON 50/60HZ OR DC 0.05 TO 1.5 AMP (PER TERMINAL) 2.5 AMPS MAX. (COMBINED LOAD) CLASS 2 0150-XXXXXX E1 XXXX 5001 9087 REV.X RC/RH Jumper Wire MADE IN CHINA...
  • Page 13 3.5 Remove old thermostat base With all of your wires disconnected and properly labeled, you may now safely remove the thermostat base from your wall. Tip: Worried about having your wires falling into your wall? Keep the wires secure by wrapping the them around a pencil.
  • Page 14 4. MOUNTING AND WIRING YOUR NEW THERMOSTAT 4.1 Install new thermostat base Leveling Thermostat Leveling is for appearance only and will not affect thermostat operation. Mount your new thermostat base using the supplied screws. Drill holes and insert wall anchors to secure the thermostat base to the wall, if necessary.
  • Page 15 4.2 Connect wires to corresponding terminal blocks Match each labeled wire to it’s corresponding terminal on the mounted thermostat base. Insert each labeled wire into the hole of it’s matching terminal, and using the screwdriver, tighten the screw on the terminal block securely. Take care when securing and routing wires so they do not short to adjacent terminals or rear of thermostat. Personal injury and/or property damage may occur.
  • Page 16 4.3 Identify system configuration Your wiring can help to determine the type of heating and cooling equipment installed in your home. Before attaching the front cover, use the following chart, and check the box next to the settings that match your new thermostat’s wiring. This information will be used in Step 4.5 to configure your thermostat. Thermostat Terminals Outdoor Equipment Setting
...
  • Page 17 Thermostat Terminals Indoor Equipment Setting
 (Used in 4.5) with attached wires Blower only (no indoor heating ▢ No wire on thermostat terminal W/E equipment) ▢ W/E (Gas or Oil heat) Single stage gas or oil furnace ▢ W/E, W2 (Gas or Oil heat) Two stage gas or oil furnace ▢...
  • Page 18 4.4 Install the batteries and attach front cover Install the included AA alkaline batteries and push the front cover on to the thermostat base until it’s secure. Do not restore power to the heating and cooling system until instructed. 4.5 Configure thermostat Hold the menu button down for 8 seconds to launch the installer menu. Your screen will change to the configuration menu. Set the first 3 items (05, 10, 15) to match your equipment. Please refer to the table in Section 4.3 and Section 3.3 to find out your equipment type and old wirings. 05: number of item on AC2: setting of the item installer menu Menu Menu...
  • Page 19 Settings User Menu # Default Setting Description (flashing icons) (Hold Menu 8 Seconds) (Press Outdoor Equipment: selects air conditioner (AC) or heat pump (HP) equipment as well as the number of stage Refer to Section 4.3 Indoor Equipment: selects whether the equipment is a gas furnace, electric furnace or fan only Refer to Section 4.3...
  • Page 20 Settings User Menu # Default Setting Description (Hold Menu 8 Seconds) (flashing icons) (Press SLO – slow Aux Cycle Rate: how often the MEd – medium auxiliary heat will turn on FAS – fast SLO – slow Cool Cycle Rate: how often the MEd –...

  • Page 21: Check Thermostat Operation

    4.6 Turn on power Turn on your power at the source. Congratulations! You’ve completed the thermostat installation process. 5. CHECK THERMOSTAT OPERATION 5.1 Fan operation If your system does not have a G terminal connection, skip to 5.2 Heating system. 1. Press the fan button to select the On position. The blower should operate. 2. Press the fan button to select the Auto position. The blower should stop immediately.

  • Page 22: Heating System

    5.2 Heating system 1. Press the System button to select the Heat position. 2. Press to adjust thermostat setting to 1° above room temperature. The heating system should begin to operate and the thermostat will indicate Heat On. 3. For heat pump with auxiliary- Press to adjust thermostat setting to 3° above room temperature. The auxiliary heat should begin to operate and the thermostat will indicate Heat On Aux. 4. Press to adjust thermostat setting below room temperature. The heating system should stop operating and the Heat On icon will disappear.

  • Page 23: Using Your Thermostat

    5.4 Cooling system 1. Press the system button to select the Cool position. 2. Press to adjust thermostat setting 1° below room temperature. The blower should come on immediately on high speed, followed by cold air circulation. The thermostat will indicate Cool On. There can be up to a 5 minute delay. (see INSTALLER MENU, item 50) 3. Press to adjust thermostat setting to 1° above room temperature. The cooling system should stop operating and the Cool On icon will disappear. 6.
  • Page 24 User Menu # Settings Default Setting Description (Press Menu button (flashing icons) (Press and release) °F – Fahrenheit Fahrenheit or Celsius °F °C – Celsius Temperature Display Adjustment: -5 to +5 adjust the Room Temperature) Continuous Display Light: keep On – always on the backlight always on – “C” wire OFF –...

  • Page 25: Thermostat Operation

    6.2 Thermostat operation • Away – Store a frequently used temperature so that you can easily select that setting with the touch of a button. Set up by using to change the set point. At the desired set point, hold the Away button for 3 seconds. Once the information is stored the set point will flash one time. Perform this action to store an away setting for both Cool and Heat modes. (Example: Set an away temperature to 88°F in the summer for cool and 55°F in the winter for heat.) • Keypad Lockout – To prevent unwanted changes, the buttons can be disabled. To turn this feature On, press and and the Menu button until the hold icon appears (this can also be turned on in the menu). To turn Off, press and the Menu button for 3 seconds.

  • Page 26: Specifications

    7 SPECIFICATIONS Electrical Rating: Battery Power ............mV to 30 VAC, NEC Class II, 50/60 Hz or DC Input-Harwire ............20 to 30 VAC, NEC Class II, 50/60 Hz Terminal Load ............1.5 A per terminal, 2.5A maximum all terminals combined Setpoint Range ............45° to 99° F (7° to 37° C) Rated Differentials (@ 6°F/ Hr): Fast Slow Heat (Conventional Gas / Oil / Elect) ....0.5°F 0.75°F 1.9°F Cool (Central Air) ..........0.9°F 1.2°F 1.7°F Heat Pump (Heat and Cool) ........ 0.9°F 1.2°F 1.7°F Heat Pump Aux............ 0.5°F 0.75°F 1.9°F Operating Ambient ..........

  • Page 27: Troubleshooting

    8. TROUBLESHOOTING Symptom Possible Cause Corrective Action No Heat/No Cool/No Fan 1. Blown fuse or tripped circuit breaker 1. Replace fuse or reset breaker. (common problem) 2. Furnace power switch to OFF 2. Turn switch to ON. 3. Furnace blower compartment door or 3. Replace door panel in proper position to panel loose or not properly installed engage safety interlock or door switch. 4. Loose connection to thermostat or 4. Tighten connections system No Heat 1. System not set to Heat 1. Set thermostat to Heat.
  • Page 28 Symptom Possible Cause Corrective Action No Heat (contd.) 3. (contd.) This sound indicates the thermostat is operating properly.If the thermostat does not click, try the reset operation listed below. If the thermostat does not click after being reset, contact your heating and cooling service person or place of purchase for a replacement. If the thermostat clicks, contact the furnace manufacturer or a service person to verify the heating system is operating correctly.
  • Page 29 Symptom Possible Cause Corrective Action Heat, Cool or Fan Runs Constantly. Possible short in wiring, thermostat, Check each wire connection to verify heat, cool or fan system they are not shorted or touching other wires. Try resetting the thermostat. If the condition persists contact your HVAC service person. Thermostat Display & Thermostat display requires adjustment Display can be adjusted +/-5°. Thermometer Disagree See User Menu item 05 Furnace (Air Conditioner) Cycles Too The location of the thermostat and/or Digital thermostats provide precise...
  • Page 30 Symptom Possible Cause Corrective Action “Call for Service” icon appears on 1. Heating system is not able to heat 1. See corrective action for “No Heat” displayed the space to within 10 degrees of the 2. See corrective action for “No Cool” setpoint within 2 hours 3. Replace thermostat 2. Cooling system is not able to cool the space to within 10 degrees of the 4. Make sure keypad lockout is not setpoint within 2 hours turned on ( ), If it’s OFF, try reset shown below. 3. If “--” is displayed for the Room Tem- perature, a replacement thermostat 5. Contact a service person to verify is needed the outdoor equipment is operating...

  • Page 31: Backlight Button

    Resetting the Thermostat or Thermostat Settings If the thermostat has good batteries, but has a blank display or does not respond to key presses, the thermostat should be reset by removing the batteries for 2 minutes. This reset will not change the menu settings or program. If the condition persists after reinstalling the batteries, replace the thermostat. To conveniently reset only the schedule and user settings back to factory defaults, press Menu and Backlight buttons at the same time and hold until the display goes blank and resets.
  • Page 32 CONTACT US Customer support: 877.654.9394 or wr.techsupport@emerson.com MERCURY NOTICE This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury must not be discarded in household trash. Refer to thermostat-recycle.org for location to send product containing mercury. FOR CALIFORNIA RESIDENTS Warning: This product contains a chemical known to the state of California to cause cancer and birth defects and other reproductive harm.
