When Replacing Dvd Deck - Sharp LC-26DV24U Service Manual

[ When removing the DVD Deck ]
Before removing Pick Up PCB and DVD MT PCB connector, the short circuit the position shown in
Fig. 1 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be dam-
aged.
[ When installing the DVD Deck ]
Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD
MT PCB connector.
NOTE
• Before your operation, please read "PREPARATION OF SERVICING".
• Use the Lead Free solder.
• Manual soldering conditions
• Soldering temperature: 320 ± 20˚C
• Soldering time: Within 3 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
• When Soldering/Removing of solder, use the draw in equipment over the Pick Up Unit to keep the
Flux smoke away from it.

WHEN REPLACING DVD DECK

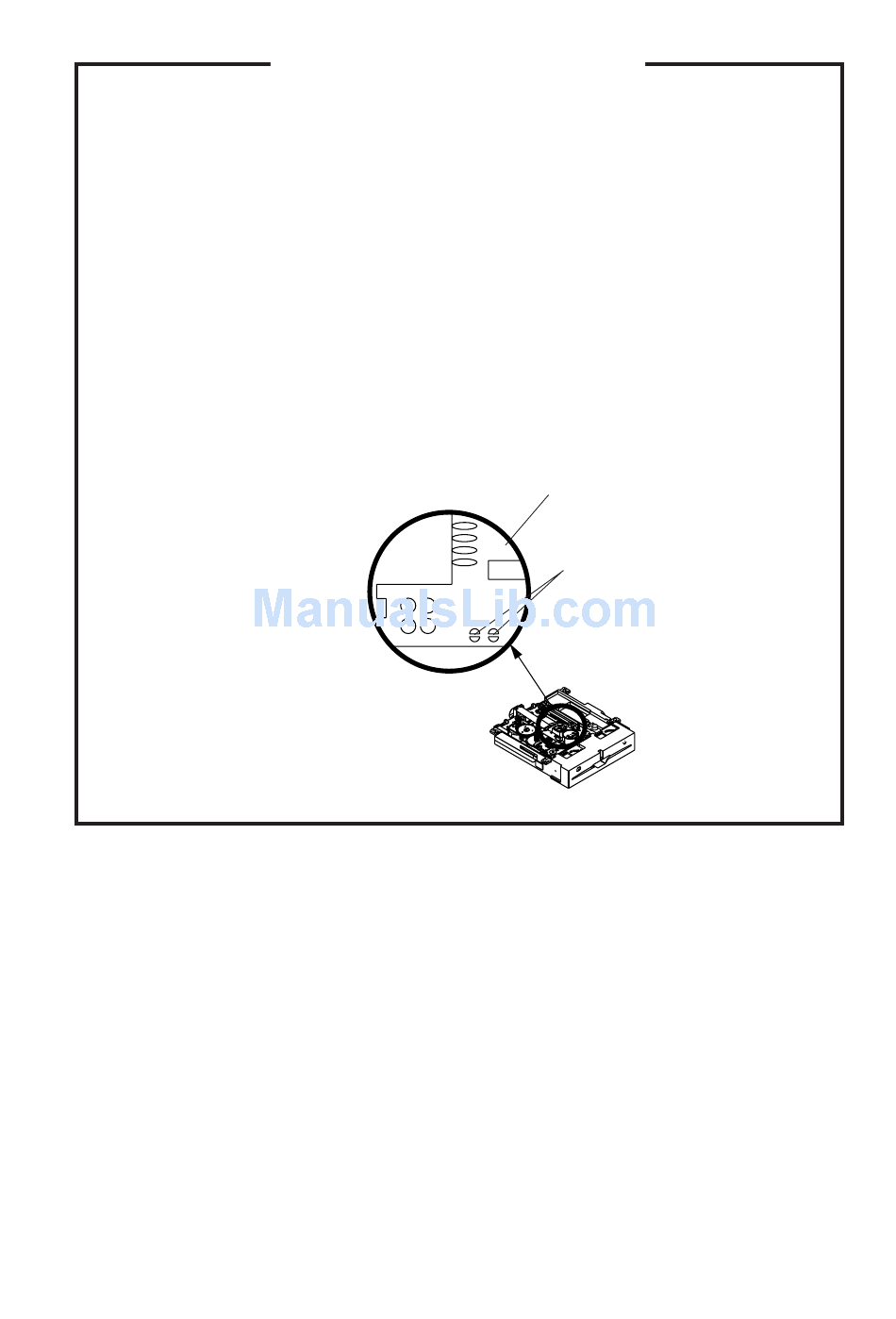

Fig. 1
A1-5
Pick Up PCB
Short circuit using a
soldering iron.
